Parts for Mercury Marine 800 (4 Cylinder) , 80 (4 Cylinder) Starter Motor & Wiring Harness

Revise Search: All Models > 800 (4 Cylinder) , 80 (4 Cylinder) > 2559001 - 3493912 > Starter Motor & Wiring Harness

« Previous

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

Engine section

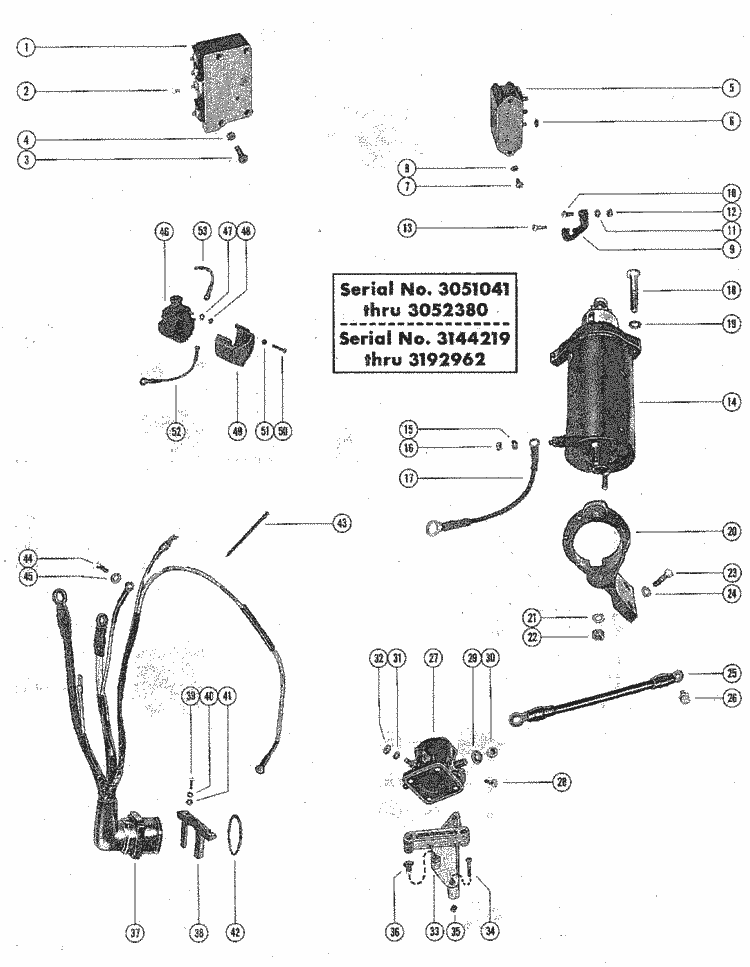

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#1	337-4411A 2	SWITCH BOX ASSEMBLY, COMPLETE (CASTING #337-4411) (1 required per assembly)
		337-4411A 2 - Switch Box,NLA [ More info ] $65.00 5 In Stock.
#2	10-60251	SCREW, HARNESS LEADS TO SWITCH BOX (3/8") (4 required per assembly)
		10-60251 - Screw, NLA [ More info ] $1.25 9 In Stock.
#3	10-56214	SCREW, SWITCH BOX TO FRONT SUPPORT BRACKET (5/8") (3 required per assembly)
		10-56214 - Screw - Priced Individually [ More info ] $0.25 8 In Stock.
		10-64074 - Screw [ More info ] $10.90 10+ In Stock.
#3	10-59788	SCREW, SWITCH BOX TO FRONT SUPPORT BRACKET (2") (1 required per assembly)
		10-59788 - SCREW NLA [ More info ] Unavailable
#5	332-2910A 3	RECTIFIER ASSEMBLY, COMPLETE (1 required per assembly)
		332-2910A 3 - 332-2910A 3 - RECTIFIER ASSY [ More info ] Unavailable Replaced by -78614A 1

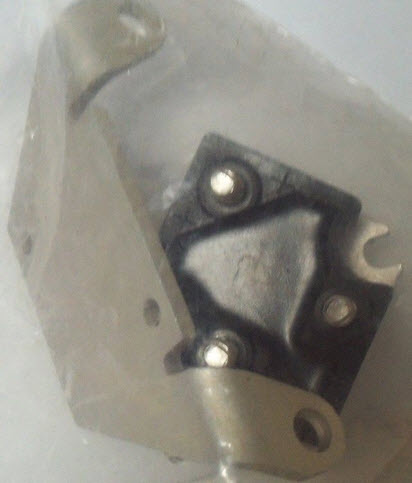

		78614A 1 - Rectifier & Bracket [ More info ] $165.50 1 In Stock.
		193-5114 - Regulated Rectifier [ More info ] $102.57 9 In Stock.
		154-6770 - Rectifier [ More info ] $57.64 $53.93 10+ In Stock.
#6	11-45076	NUT, RECTIFIER TERMINAL (3 required per assembly)
		11-45076 - Nut (#10-32) (brass) [ More info ] $1.70 6 In Stock.
#7	10-24866	SCREW, RECTIFIER TO TOP COWL SUPPORT (3/4") (2 required per assembly)
		10-24866 - 10-24866 - SCREW [ More info ] Unavailable Replaced by 10-64279
		10-64279 - Screw, NLA [ More info ] $1.50 10+ In Stock.
#9	59757	BRACKET, RETAINER-HIGH TENSION LEAD (1 required per assembly)
		59757 - Bracket, NLA [ More info ] $4.00 10+ In Stock.
#10	10-22956	SCREW, RETAINER BRACKET TO FRONT SUPPORT BRACKET (7/8") (1 required per assembly)
		10-22956 - Screw, NLA [ More info ] $1.65 10+ In Stock.
#11	12-29245	WASHER, RETAINER BRACKET FASTENING SCREW (1 required per assembly)
		12-29245 - Washer [ More info ] $0.80 10+ In Stock.
		12-8M0204649 - WASHER Note: Priced Individually [ More info ] $1.20 Available to Order: Usually ships within 10 days.
		18-4275 - SS Washer [ More info ] $0.79 $0.76 1 In Stock.
#12	11-46887	NUT, RETAINER BRACKET SCREW (1 required per assembly)
		11-46887 - 11-46887 - NUT (1/4-28) [ More info ] Unavailable Replaced by 11-20184
		11-20184 - Nut, (1/4-28x7/32) [ More info ] $1.50 10+ In Stock.
		118M0207775 - NUT Note: Priced Individually [ More info ] $9.30 Available to Order: Usually ships within 10 days.
#13	10-30663	SCREW, WIRING HARNESS LEAD TO RETAINER BRACKET (3/8") (1 required per assembly)
		10-30663 - 10-30663 - SCREW (#10-16 x . [ More info ] Unavailable Replaced by 10-62568
		10-62568 - Screw - Priced Individually [ More info ] $1.10 10+ In Stock.
#14	50-58788	STARTER MOTOR ASSEMBLY (1 required per assembly)
		50-58788 - 50-58788 - STARTER ASSY [ More info ] Unavailable Replaced by 50-58788A3
		50-58788A3 - STARTER ASSY NLA [ More info ] Unavailable
		18-5636 - Outboard Starter [ More info ] $303.99 $275.39 6 In Stock.
		18-5602 - Starter, 50-67341 [ More info ] $219.99 $209.45 2 In Stock.

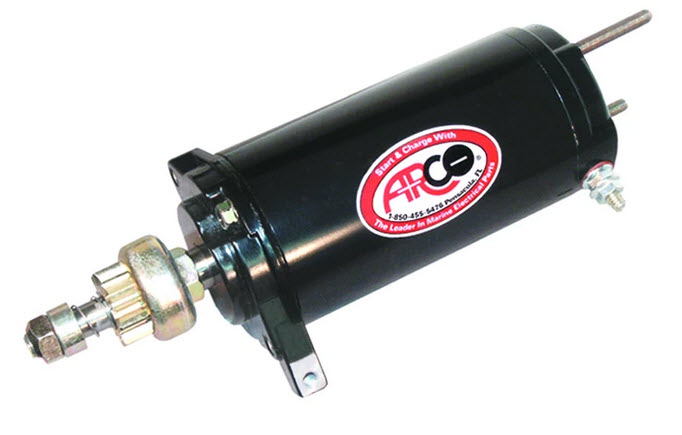

		5374 - Starter, 50-57867, 50-58788A3 [ More info ] $211.10 $201.81 1 In Stock.
#15	13-26992	LOCKWASHER, STARTER MOTOR TERMINAL (1 required per assembly)
		13-26992 - LockWasher - Priced Individually [ More info ] $1.20 10+ In Stock.
#16	11-20890	NUT, STARTER MOTOR TERMINAL (1 required per assembly)
		11-20890 - Nut (1/4 x20) [ More info ] $1.60 10 In Stock.
#17	59736	CABLE, STARTER SOLENOID TO STARTER MOTOR (YELLOW-6 1/2") (1 required per assembly)
		59736 - 59736 - JUMPER WIRE [ More info ] Unavailable Replaced by 84-93389A5
		84-93389A5 - WIRE ASSY NLA [ More info ] Unavailable
#18	10-20362	SCREW, STARTER MOTOR TO CRANKCASE FLANGE (1 1/2") (1 required per assembly)
		10-20362 - Screw - Priced Individually [ More info ] $0.66 10+ In Stock.
		10-73657 - Screw - Priced Individually [ More info ] $3.30 Available to Order: Usually ships within 10 days.
#18	10-31984	SCREW, STARTER MOTOR CRANKCASE FLANGE (1 3/8") (1 required per assembly)
		10-31984 - Screw - Priced Individually [ More info ] $1.70 4 In Stock.
#20	52691	BRACKET, SUPPORT-STARTER MOTOR (1 required per assembly)
		52691 - Bracket, NLA [ More info ] $9.00 4 In Stock.
#21	13-24669	LOCKWASHER, THRU BOLT-BRACKET TO STARTER MOTOR (2 required per assembly)
		13-24669 - LOCKWASHER NLA [ More info ] Unavailable
#22	11-20013	NUT, THRU BOLT-BRACKET TO STARTER MOTOR (2 required per assembly)
		11-20013 - Nut, (.250-28) [ More info ] $0.40 $0.22 10+ In Stock.
#23	10-24234	SCREW, STARTER MOTOR BRACKET TO CRANKCASE (1") (2 required per assembly)
		10-24234 - 10-24234 - SCREW (.312-18 x [ More info ] Unavailable Replaced by 10-35386
		10-35386 - Screw - Priced Individually [ More info ] $1.10 Available to Order: Usually ships within 10 days.
#24	13-26993	LOCKWASHER, STARTER MOTOR BRACKET FASTENING SCREW (2 required per assembly)
		13-26993 - LockWasher - Priced Individually [ More info ] $1.10 10+ In Stock.
		13-8M0204647 - LOCKWASHER @5 [ More info ] Unavailable
#25	25596	WIRE, STARTER MOTOR TO STARTER SOLENOID AND TOP MOUNT (1 required per assembly) BLACK - 10"
		25596 - 25596 - WIRE [ More info ] Unavailable Replaced by -54651
		54651 - 54651 - JUMPER WIRE [ More info ] Unavailable Replaced by 84-93389A12
		84-93389A12 - Cable Assembly, NLA [ More info ] $13.99 7 In Stock.
#26	10-29197	SCREW, GROUND WIRE TO STARTER MOTOR (5/8") (1 required per assembly)
		10-29197 - 10-29197 - SCREW @10 [ More info ] Unavailable Replaced by 10-69035
		10-69035 - Screw/LockWasher [ More info ] $1.70 10+ In Stock.
#27	25661	STARTER SOLENOID (1 required per assembly)
		25661 - 25661 - SOLENOID [ More info ] Unavailable Replaced by -256611
		256611 - 256611 - ->25661T1 [ More info ] Unavailable Replaced by -25661T1
		25661T 1 - Solenoid [ More info ] $66.75 Available to Order: Usually ships within 10 days.

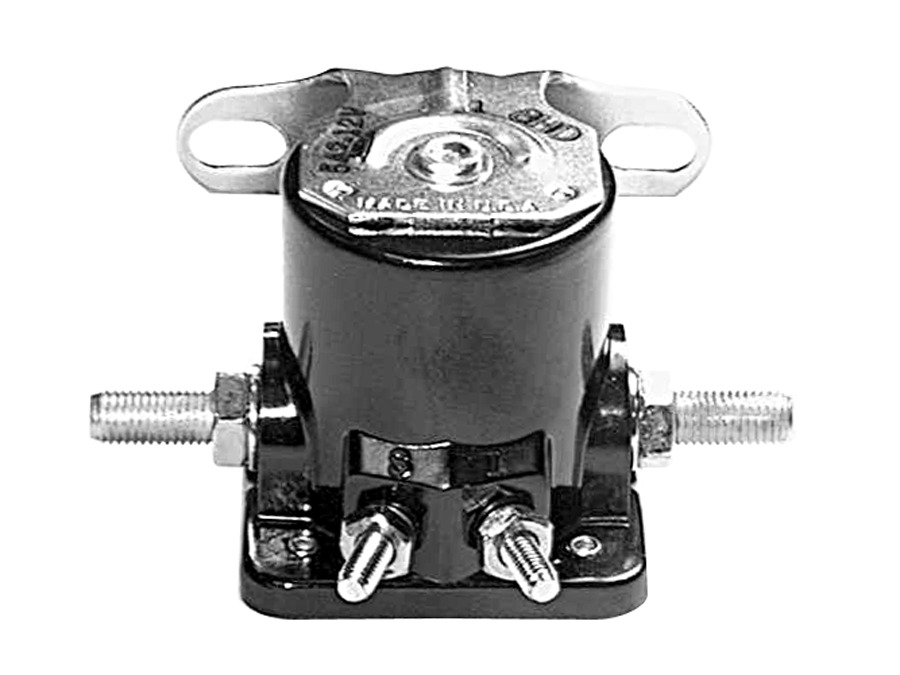

		18-5836 - Solenoid 25661-1 [ More info ] $33.17 2 In Stock.
		SW661 - Solenoid, 25661-1, Arco [ More info ] $41.97 $35.37 In Stock
#28	10-53099	SCREW, STARTER SOLENOID TO BRACKET (3/4") (2 required per assembly)
		10-53099 - Screw, NLA [ More info ] $1.25 10+ In Stock.
#30	11-20083	NUT, SOLENOID TERMINAL-INSIDE (5/16") (2 required per assembly)
		11-20083 - Nut, Starter Solenoid Terminal (5/16X24) [ More info ] $1.10 10+ In Stock.
		11-22053 - Nut (5/16x24) [ More info ] $2.50 10+ In Stock.
#32	11-20645	NUT, SOLENOID TERMINAL (#10) (2 required per assembly)
		11-20645 - Nut,(10X32) [ More info ] $0.21 10+ In Stock.
		11-68219 - Nut (#10-32) [ More info ] $2.90 10+ In Stock.
#33	59769	BRACKET, STARTER SOLENOID (1 required per assembly)
		59769 - Bracket, NLA [ More info ] $7.00 10+ In Stock.
#34	10-37561	SCREW, SOLENOID BRACKET TO BOTTOM COWL (2 1/2") (2 required per assembly)
		10-37561 - Screw, NLA [ More info ] $1.25 9 In Stock.
#36	26901	BUMPER, STARTER SOLENOID TO BRACKET (1 required per assembly)

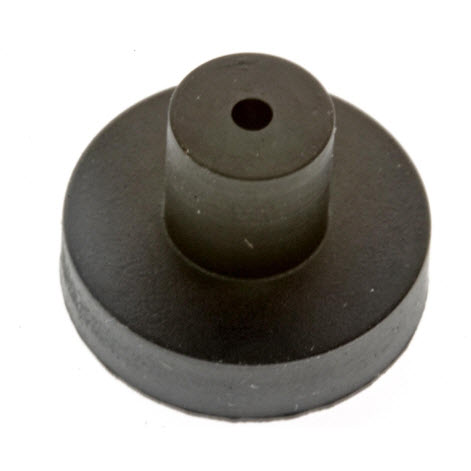

		26901 - Bumper [ More info ] $3.30 4 In Stock.

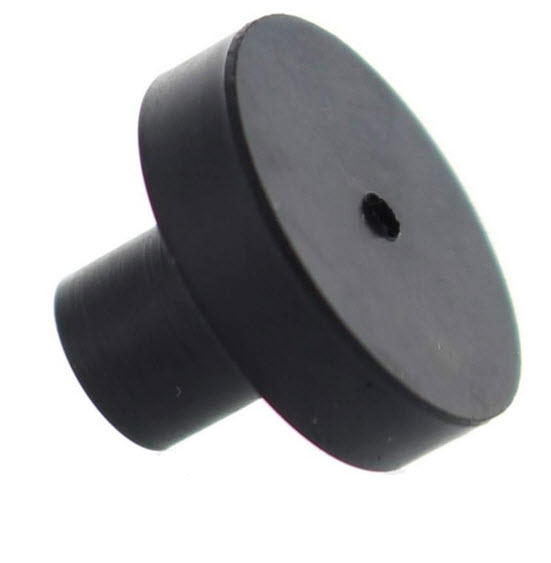

		26901 1 - Bumper [ More info ] $3.80 2 In Stock.
#37	59741	WIRING HARNESS (INTERNAL) (1 required per assembly)
		59741 - WIRING HARNESS NLA [ More info ] Unavailable

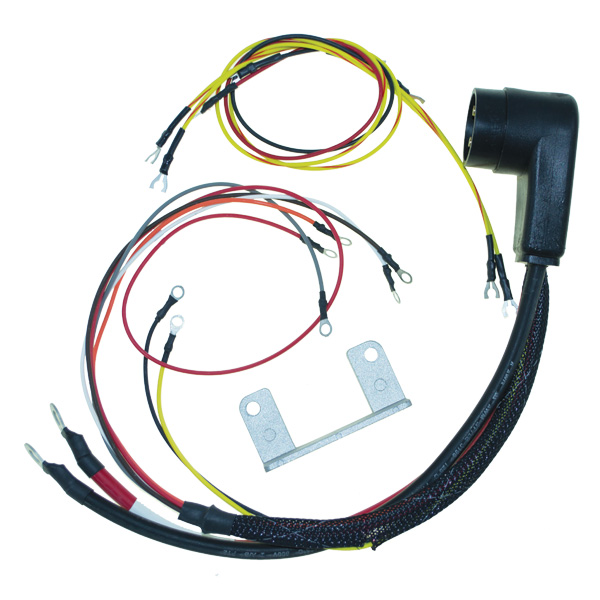

		414-2770 - Mercury Wiring Harness, Replaces Many Original Numbers [ More info ] $217.72 10+ In Stock.
#38	54-52876	CLAMP, WIRING HARNESS TO BOTTOM COWL (1 required per assembly)
		54-52876 - Clamp [ More info ] $2.00 3 In Stock.
		54-76368 - Clamp [ More info ] $5.50 10+ In Stock.
#39	10-45862	SCREW, WIRING HARNESS CLAMP TO BOTTOM COWL (7/8") (2 required per assembly)
		10-45862 - Screw - Priced Individually [ More info ] $1.30 10+ In Stock.
#41	12-20128	WASHER, WIRING HARNESS CLAMP SCREW (2 required per assembly)
		12-20128 - Washer - Priced Individually [ More info ] $0.55 10+ In Stock.
		12-847883 - Washer, (.192 X .375 X .033) [ More info ] $4.30 9 In Stock.
#42	24-28975	SPRING, GARTER-INTERNAL WIRING HARNESS (1 required per assembly)
		24-28975 - Spring, Garter - Harness,NLA [ More info ] $7.88 10+ In Stock.
#43	55502	STA-STRAP, INTERNAL WIRING HARNESS (1 required per assembly)
		55502 - 55502 - STA STRAP [ More info ] Unavailable Replaced by -69355
		69355 - Tie Strap - Priced Individually [ More info ] $0.40 10+ In Stock.
#44	10-20776	SCREW, WIRING HARNESS LEAD TO BOTTOM COWL (1/2") (1 required per assembly)
		10-20776 - Screw - Priced Individually [ More info ] $0.21 10+ In Stock.

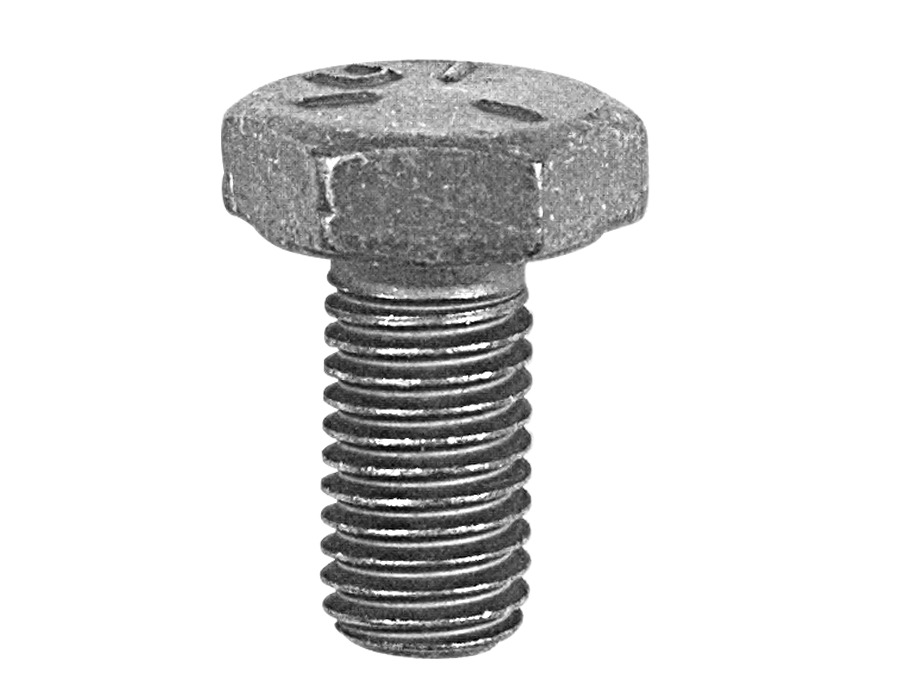

		10-98256 - Screw [ More info ] $1.10 $0.45 10+ In Stock.
#46	337-4456A 1	IGNITION COIL ASSEMBLY, COMPLETE (1 required per assembly)
		337-4456A 1 - Coil Assembly, NLA [ More info ] $70.00 4 In Stock.
#47	13-26996	LOCKWASHER, COIL TERMINAL (2 required per assembly)
		13-26996 - LockWasher - Priced Individually [ More info ] $1.20 10+ In Stock.
#49	56188	COVER, IGNITION COIL (1 required per assembly)
		56188 - Cover [ More info ] $5.00 5 In Stock.
#50	10-59770	SCREW, IGNITION COIL COVER (2") (3 required per assembly)
		10-59770 - 10-59770 - SCREW [ More info ] Unavailable Replaced by 10-69046
		10-69046 - Screw [ More info ] $0.66 6 In Stock.
		10-88856 - Screw, NLA [ More info ] $3.49 10+ In Stock.
#51	11-27164	NUT, IGNITION COIL COVER (3 required per assembly)

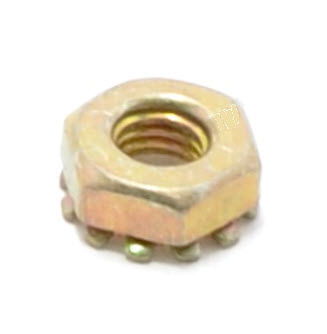

		11-27164 - Nut And Lockwasher (#10-32) [ More info ] $1.50 $0.85 4 In Stock.
#52	59739	CABLE, COIL TO SWITCH BOX (GREEN-3 1/4") (1 required per assembly)
		59739 - JUMPER WIRE NLA [ More info ] Unavailable
#53	59740	CABLE, COIL TO GROUND (BLACK-5 1/4") (1 required per assembly)
		59740 - JUMPER WIRE NLA [ More info ] Unavailable
