NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

Engine section

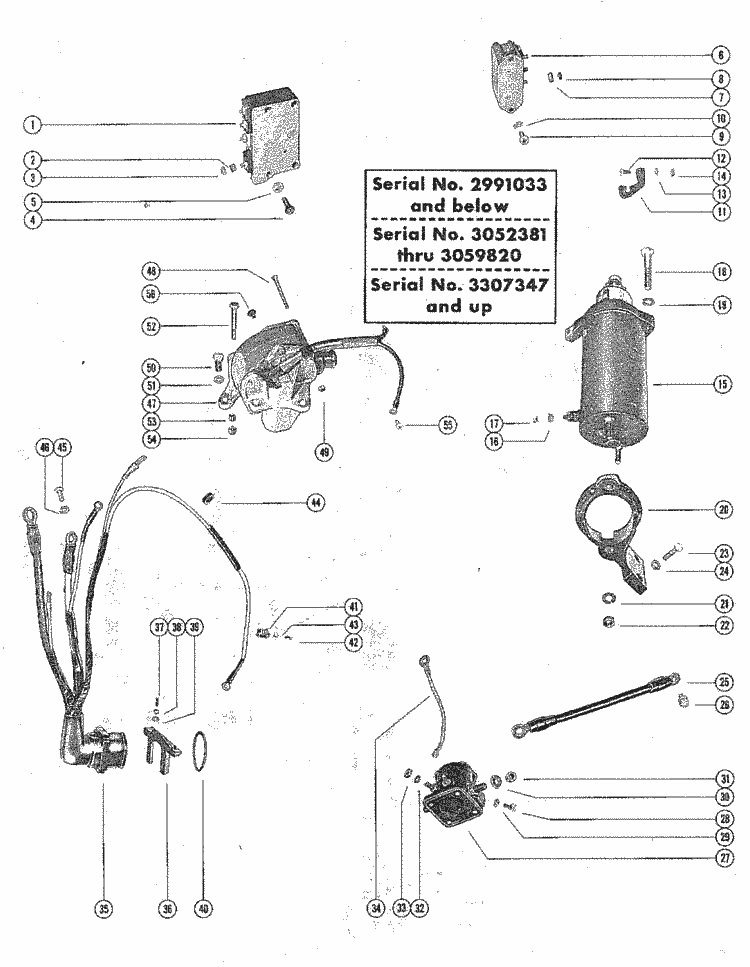

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#1	332-2986A 8	SWITCH BOX ASSEMBLY, COMPLETE (CASTING #332-2986) (1 required per assembly)
		332-2986A 8 - 332-2986A 8 - SWITCH BOX ASSY [ More info ] Unavailable Replaced by 332-2986A22
		332-2986A22 - 332-2986A22 - SWITCH BOX ASSY [ More info ] Unavailable Replaced by 332-2986A27
		332-2986A27 - Switch Box Assembly [ More info ] $498.29 1 In Stock.
		114-2986 - Switch Box, Kit, 332-2986A21 [ More info ] $410.42 6 In Stock.
#2	12-45075	WASHER, SWITCH BOX TERMINAL (7 required per assembly)
		12-45075 - Washer, NLA [ More info ] $1.88 10+ In Stock.
#3	11-45076	NUT, SWITCH BOX TERMINAL (7 required per assembly)
		11-45076 - Nut (#10-32) (brass) [ More info ] $1.70 7 In Stock.
#4	10-24866	SCREW, SWITCH BOX TO FRONT SUPPORT BRACKET (3/4") (4 required per assembly) SERIAL 00000000-02670574
		10-24866 - 10-24866 - SCREW [ More info ] Unavailable Replaced by 10-64279
		10-64279 - Screw, NLA [ More info ] $1.50 10+ In Stock.
#4	10-21625	SCREW, SWITCH BOX TO FRONT SUPPORT BRACKET (3/4")-SERIAL #27 (4 required per assembly) SERIAL 02783253-09999999
		10-21625 - 10-21625 - SCREW (.250-28 x [ More info ] Unavailable Replaced by 10-69028

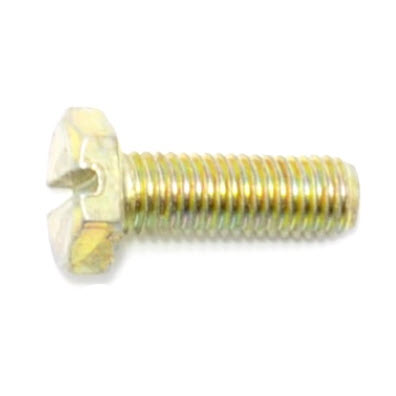

		10-69028 - Screw [ More info ] $2.80 $1.57 10+ In Stock.
#5	11-46887	NUT, SWITCH BOX TO FRONT SUPPORT BRACKET SCREW (4 required per assembly)
		11-46887 - 11-46887 - NUT (1/4-28) [ More info ] Unavailable Replaced by 11-20184
		11-20184 - Nut, (1/4-28x7/32) [ More info ] $1.50 10+ In Stock.
		118M0207775 - NUT Note: Priced Individually [ More info ] $9.30 Available to Order: Usually ships within 10 days.
#6	332-2910A 3	RECTIFIER ASSEMBLY, COMPLETE (1 required per assembly)
		332-2910A 3 - 332-2910A 3 - RECTIFIER ASSY [ More info ] Unavailable Replaced by -78614A 1
		78614A 1 - Rectifier & Bracket [ More info ] $165.50 1 In Stock.
		193-5114 - Regulated Rectifier [ More info ] $102.57 9 In Stock.
		154-6770 - Rectifier [ More info ] $57.64 $53.93 10+ In Stock.
#9	10-24963	SCREW, RECTIFIER TO BOTTOM COWL (7/8") (2 required per assembly)
		10-24963 - Screw - Priced Individually [ More info ] $1.00 10 In Stock.
		10-76621 - Screw, NLA [ More info ] $1.59 10+ In Stock.
#10	13-22773	LOCKWASHER, RECTIFIER MOUNTING SCREW (2 required per assembly)
		13-22773 - LockWasher, NLA [ More info ] $1.88 3 In Stock.
#11	59757	BRACKET, RETAINER-HIGH TENSION LEAD (1 required per assembly)
		59757 - Bracket, NLA [ More info ] $4.00 10+ In Stock.
#12	10-31294	SCREW, RETAINER BRACKET TO FRONT SUPPORT BRACKET (1") (1 required per assembly) SERIAL 00000000-02670574
		10-31294 - Screw, NLA [ More info ] $0.55 1 In Stock.
		10-64278 - Screw, NLA [ More info ] $1.98 10+ In Stock.
#12	10-22956	SCREW, RETAINER BRACKET TO FRONT SUPPORT BRACKET (7/8") (1 required per assembly) SERIAL 02783253-09999999
		10-22956 - Screw, NLA [ More info ] $1.65 10+ In Stock.
#13	12-29245	WASHER, RETAINER BRACKET FASTENING SCREW (1 required per assembly)
		12-29245 - Washer [ More info ] $0.80 10+ In Stock.
		12-8M0204649 - WASHER Note: Priced Individually [ More info ] $1.20 Available to Order: Usually ships within 10 days.
		18-4275 - SS Washer [ More info ] $0.79 $0.76 1 In Stock.
#15	50-45822A 1	STARTER MOTOR ASSEMBLY (1 required per assembly) FOR BREAKDOWN, SEE ACCESSORY SECTION "E" SERIAL 00000000-02670574

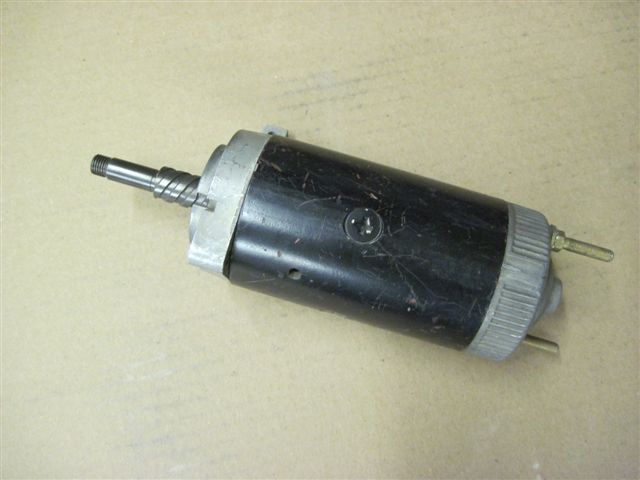

		50-45822A 1 - STARTER ASSY NLA [ More info ] Unavailable
		5374 - Starter, 50-57867, 50-58788A3 [ More info ] $211.10 $201.81 1 In Stock.
#15	50-57867A 1	STARTER MOTOR ASSEMBLY (1 required per assembly) FOR BREAKDOWN, SEE ACCESSORY SECTION "E" SERIAL 02783253-02886331
		50-57867A 1 - 50-57867A 1 - STARTER ASSY [ More info ] Unavailable Replaced by 50-58788A 3
		50-58788A 3 - STARTER ASSY NLA [ More info ] Unavailable
		18-5636 - Outboard Starter [ More info ] $303.99 $275.39 6 In Stock.
		18-5602 - Starter, 50-67341 [ More info ] $219.99 $209.45 2 In Stock.
#15	50-58788	STARTER MOTOR ASSEMBLY (SERIAL #2986444 AND UP) (1 required per assembly) FOR BREAKDOWN, SEE ACCESSORY SECTION "E"
		50-58788 - 50-58788 - STARTER ASSY [ More info ] Unavailable Replaced by 50-58788A3
		50-58788A3 - STARTER ASSY NLA [ More info ] Unavailable
#17	11-20890	NUT, STARTER MOTOR TERMINAL (1 required per assembly)
		11-20890 - Nut (1/4 x20) [ More info ] $1.60 10 In Stock.
#18	10-20362	SCREW, STARTER MOTOR TO CRANKCASE FLANGE (1 1/2") (1 required per assembly)
		10-20362 - Screw - Priced Individually [ More info ] $0.66 10+ In Stock.
		10-73657 - Screw - Priced Individually [ More info ] $3.30 Available to Order: Usually ships within 10 days.
#18	10-31984	SCREW, STARTER MOTOR TO CRANKCASE FLANGE (1 3/8") (1 required per assembly)
		10-31984 - Screw - Priced Individually [ More info ] $1.70 4 In Stock.
#20	52691	BRACKET, SUPPORT-STARTER MOTOR (1 required per assembly)
		52691 - Bracket, NLA [ More info ] $9.00 4 In Stock.
#21	13-24669	LOCKWASHER, THRU BOLT-BRACKET TO STARTER MOTOR (2 required per assembly)
		13-24669 - LOCKWASHER NLA [ More info ] Unavailable
#22	11-20013	NUT, THRU BOLT-BRACKET TO STARTER MOTOR (2 required per assembly)
		11-20013 - Nut, (.250-28) [ More info ] $0.40 $0.22 10+ In Stock.
#23	10-24234	SCREW, STARTER MOTOR BRACKET TO CRANKCASE (1") (2 required per assembly)
		10-24234 - 10-24234 - SCREW (.312-18 x [ More info ] Unavailable Replaced by 10-35386
		10-35386 - Screw - Priced Individually [ More info ] $1.10 Available to Order: Usually ships within 10 days.
#24	13-26993	LOCKWASHER, STARTER MOTOR BRACKET FASTENING SCREW (2 required per assembly)
		13-26993 - LockWasher - Priced Individually [ More info ] $1.10 10+ In Stock.
		13-8M0204647 - LOCKWASHER @5 [ More info ] Unavailable
#25	25596	WIRE, STARTER MOTOR TO STARTER SOLENOID AND TOP MOUNT (1 required per assembly)
		25596 - 25596 - WIRE [ More info ] Unavailable Replaced by -54651
		54651 - 54651 - JUMPER WIRE [ More info ] Unavailable Replaced by 84-93389A12
		84-93389A12 - Cable Assembly, NLA [ More info ] $13.99 7 In Stock.
#26	10-29197	SCREW, GROUND WIRE TO STARTER MOTOR (5/8") (1 required per assembly)
		10-29197 - 10-29197 - SCREW @10 [ More info ] Unavailable Replaced by 10-69035
		10-69035 - Screw/LockWasher [ More info ] $1.70 10+ In Stock.
#27	25661	STARTER SOLENOID (1 required per assembly)
		25661 - 25661 - SOLENOID [ More info ] Unavailable Replaced by -256611
		256611 - 256611 - ->25661T1 [ More info ] Unavailable Replaced by -25661T1
		25661T 1 - Solenoid [ More info ] $66.75 Available to Order: Usually ships within 10 days.
		18-5836 - Solenoid 25661-1 [ More info ] $33.17 2 In Stock.
		SW661 - Solenoid, 25661-1, Arco [ More info ] $41.97 $35.37 In Stock
#29	13-26992	LOCKWASHER, STARTER SOLENOID MOUNTING SCREW (2 required per assembly)
		13-26992 - LockWasher - Priced Individually [ More info ] $1.20 10+ In Stock.
#31	11-20083	NUT, SOLENOID TERMINAL-INSIDE (5/16") (2 required per assembly)
		11-20083 - Nut, Starter Solenoid Terminal (5/16X24) [ More info ] $1.10 10+ In Stock.
		11-22053 - Nut (5/16x24) [ More info ] $2.50 10+ In Stock.
#33	11-20645	NUT, SOLENOID TERMINAL (#10) (2 required per assembly)
		11-20645 - Nut,(10X32) [ More info ] $0.21 10+ In Stock.
		11-68219 - Nut (#10-32) [ More info ] $2.90 10+ In Stock.
#34	52902	CABLE, STARTER SOLENOID TO STARTER MOTOR (1 required per assembly)
		52902 - JUMPER WIRE NLA [ More info ] Unavailable
#35	52771	WIRING HARNESS (INTERNAL) (1 required per assembly)
		52771 - 52771 - WIRING HARNESS [ More info ] Unavailable Replaced by -52771A1
		52771A1 - 52771A1 - ->52771A2 [ More info ] Unavailable Replaced by -52771A2

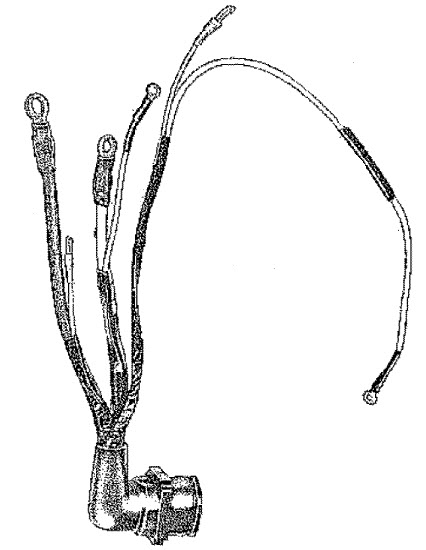

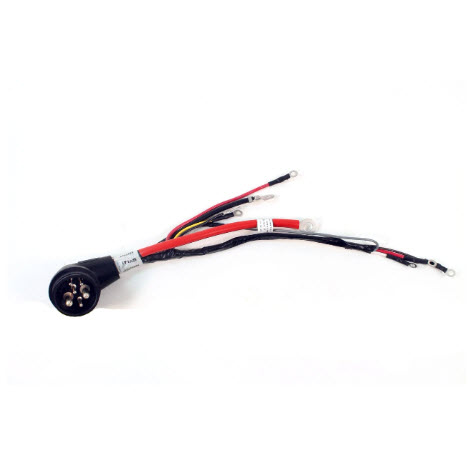

		52771A 2 - Wiring Harness [ More info ] $295.92 Available to Order: Usually ships within 10 days.
		414-2770 - Mercury Wiring Harness, Replaces Many Original Numbers [ More info ] $217.72 10+ In Stock.
#36	54-52876	CLAMP, WIRING HARNESS TO BOTTOM COWL (1 required per assembly)
		54-52876 - Clamp [ More info ] $2.00 3 In Stock.
		54-76368 - Clamp [ More info ] $5.50 10+ In Stock.
#37	10-45862	SCREW, WIRING HARNESS CLAMP TO BOTTOM COWL (7/8") (2 required per assembly)
		10-45862 - Screw - Priced Individually [ More info ] $1.30 10+ In Stock.
#38	13-26996	LOCKWASHER, WIRING HARNESS CLAMP SCREW (2 required per assembly)
		13-26996 - LockWasher - Priced Individually [ More info ] $1.20 10+ In Stock.
#39	12-20128	WASHER, WIRING HARNESS CLAMP SCREW (2 required per assembly)
		12-20128 - Washer - Priced Individually [ More info ] $0.55 10+ In Stock.
		12-847883 - Washer, (.192 X .375 X .033) [ More info ] $4.30 9 In Stock.
#40	24-28975	SPRING, GARTER-INTERNAL WIRING HARNESS (1 required per assembly)
		24-28975 - Spring, Garter - Harness,NLA [ More info ] $7.88 10+ In Stock.
#41	54-26550	CLAMP, WIRING HARNESS TO COIL BRACKET (1 required per assembly)
		54-26550 - Clip [ More info ] $4.60 $2.58 8 In Stock.
#42	10-31206	SCREW, WIRING HARNESS CLAMP TO COIL BRACKET (1 required per assembly)
		10-31206 - 10-31206 - SCREW @5 [ More info ] Unavailable Replaced by 10-69079

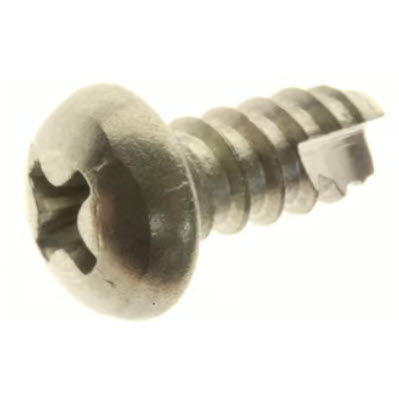

		10-69079 - Screw [ More info ] $1.20 3 In Stock.
#43	22789	"D" WASHER, WIRING HARNESS CLAMP (1 required per assembly)
		22789 - 22789 - D WASHER [ More info ] Unavailable Replaced by -69205
		69205 - 69205 - C WASHER [ More info ] Unavailable Replaced by -8M0084613
		8M0084613 - Washer [ More info ] $1.10 Available to Order: Usually ships within 10 days.
#44	25-26547	GROMMET, RECTIFIER TO SWITCH BOX WIRE (1 required per assembly)
		25-26547 - Grommet, High Tension Cable,NLA [ More info ] $8.99 10+ In Stock.
#45	10-20776	SCREW, WIRING HARNESS LEAD TO BOTTOM COWL (1/2") (1 required per assembly)
		10-20776 - Screw - Priced Individually [ More info ] $0.21 10+ In Stock.
		10-98256 - Screw [ More info ] $1.10 $0.45 10+ In Stock.
#47	332-2983A15	IGNITION COIL ASSEMBLY, COMPLETE (1 required per assembly) SERIAL 00000000-03059820
		332-2983A15 - 332-2983A15 - COIL [ More info ] Unavailable Replaced by 332-2983A19
		332-2983A19 - 332-2983A19 - COIL [ More info ] Unavailable Replaced by 332-4895A5

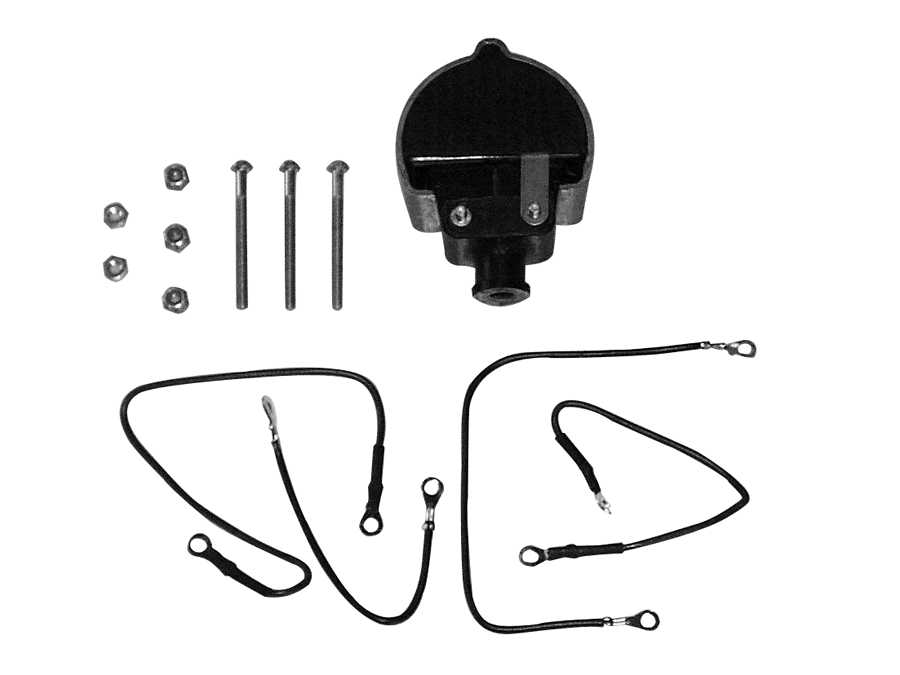

		332-4895A 5 - Ignition Coil Kit [ More info ] $382.58 $220.37 4 In Stock.
#47	332-2983A19	IGNITION COIL ASSEMBLY, COMPLETE (1 required per assembly) SERIAL 03307347-09999999
#48	10-46368	SCREW, IGNITION COIL CLAMPING (2 1/4") (2 required per assembly)
		10-46368 - SCREW @5 NLA [ More info ] Unavailable
#49	11-20190	NUT, IGNITION COIL CLAMPING SCREW (2 required per assembly)
		11-20190 - Nut, (#10-32) [ More info ] $0.72 9 In Stock.
		11-826708 6 - Nut - Priced Individually [ More info ] $1.60 $0.90 10+ In Stock.
#50	10-24624	SCREW, IGNITION COIL TO BOTTOM COWL ( 3/4") (1 required per assembly)
		10-24624 - Screw, NLA [ More info ] $2.20 7 In Stock.
#52	10-31471	SCREW, IGNITION COIL TO BOTTOM COWL (3 1/4") (2 required per assembly)
		10-31471 - Screw [ More info ] $0.95 2 In Stock.
		10-88488 - Screw, NLA [ More info ] $4.00 1 In Stock.
#53	23-52933	SPACER, COIL BRACKET TO BOTTOM COWL (3 required per assembly)
		23-52933 - Spacer - Coil Bracket To Bottom Cowl [ More info ] $1.25 7 In Stock.
#55	10-45218	SCREW, IGNITION COIL WIRE TO SWITCH BOX (3/8") (1 required per assembly)
		10-45218 - Screw, NLA [ More info ] $1.80 10+ In Stock.
#56	26901	BUMPER, IGNITION COIL (1 required per assembly)
		26901 - Bumper [ More info ] $3.30 4 In Stock.
		26901 1 - Bumper [ More info ] $3.80 2 In Stock.
