Parts for Mercury Marine 800 (4 Cylinder) , 80 (4 Cylinder) Top Cowl & Support Brackets

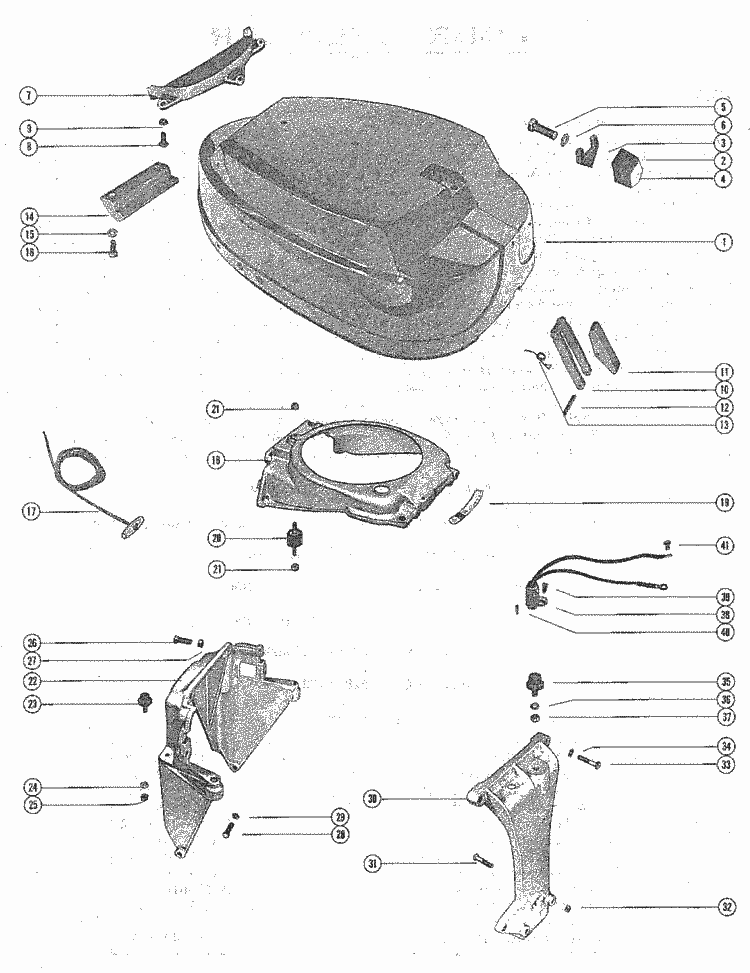

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| #1 | 2114-3591 | COWL, TOP SERIAL (1 required per assembly) SERIAL 00000000-02670574 |
 |
|
2114-3591 - 2114-3591 - TOP COWL [ More info ] Unavailable Replaced by 2114-3806 |
|
|
2114-3806 - Top Cowl, NLA [ More info ]
|
| #1 | 2114-3806 | COWL, TOP (1 required per assembly) SERIAL 02783253-09999999 |
| #2 | 52733A 1 | RETAINER ASSEMBLY, TOP COWL (1 required per assembly) SERIAL 00000000-02670574 |
|
|
52733A 1 - 52733A 1 - RETAINER ASSY [ More info ] Unavailable Replaced by -52733A 3 |
|
|
52733A 3 - 52733A 3 - RETAINER ASSY [ More info ] Unavailable Replaced by -52733A 4 |
|
|
52733A 4 - 52733A 4 - RETAINER ASSY [ More info ] Unavailable Replaced by -52733A 6 |
|
|
52733A 6 - 52733A 6 - RETAINER ASSY [ More info ] Unavailable Replaced by -52733A 9 |
|
|
52733A 9 - Retainer Assembly, NLA [ More info ]
|
| #4 | 46141 | EMBLEM, TOP COWL RETAINER (1 required per assembly) SERIAL 00000000-02670574 |
|
|
46141 - 46141 - EMBLEM [ More info ] Unavailable Replaced by -56186 |
|
|
56186 - 56186 - EMBLEM [ More info ] Unavailable Replaced by 37-61018A1 |
|
|
37-61018A1 - DECAL SET NLA [ More info ] Unavailable |
| #2 | 52733A 3 | RETAINER ASSEMBLY, TOP COWL (1 required per assembly) SERIAL 02783253-02886331 |
| #4 | 56186 | EMBLEM, TOP COWL RETAINER (1 required per assembly) SERIAL 02783253-02886331 |
| #2 | 52733A 4 | RETAINER ASSEMBLY, TOP COWL (1 required per assembly) SERIAL 02986444-03148653 |
| #2 | 52733A 6 | RETAINER ASSEMBLY, TOP COWL (1 required per assembly) SERIAL 03186263-09999999 |
| #3 | 35496 | PAD, BUMPER - TOP COWL RETAINER (1 required per assembly) SERIAL 03186263-09999999 |
  |
|
35496 - Bumper Pad, NLA [ More info ]
|
| #5 | 10-37558 | SCREW, RETAINER TO TOP COWL (1 1/4") (1 required per assembly) |
|
|
10-37558 - Screw - Priced Individually [ More info ]
|
  |
|
10-74824 - Screw - Priced Individually [ More info ]
|
| #6 | 13-39107 | LOCKWASHER, RETAINER FASTENING SCREW (1 required per assembly) |
|
|
13-39107 - LockWasher - Priced Individually [ More info ]
|
| #7 | 49448 | SHIELD, TOP COWL - REAR (1 required per assembly) |
|
|
49448 - 49448 - SHIELD [ More info ] Unavailable Replaced by -76370 |
  |
|
76370 - Rear Shield, NLA [ More info ]
|
| #8 | 10-37370 | SCREW, SHEILD TO TOP COWL (5/8") (3 required per assembly) |
  |
|
10-37370 - Screw - Priced Individually [ More info ]
|
| #9 | 13-37371 | LOCKWASHER, SHIELD SCREW (3 required per assembly) |
|
|
13-37371 - LockWasher, NLA [ More info ]
|
| #10 | 52739 | HINGE, COWL LATCH - TOP COWL (1 required per assembly) |
  |
|
52739 - HINGE NLA [ More info ] Unavailable |
| #11 | 52737 | LEVER, COWL LATCH HINGE (1 required per assembly) |
|
|
|
  |
|
|
  |
|
94918T - 94918T - LEVER [ More info ] Unavailable Replaced by -94918F1 |
|
|
94918F 1 - Lever [ More info ]
|
| #12 | 17-33522 | PIN, COWL LATCH LEVER TO HINGE (1 required per assembly) |
|
|
17-33522 - 17-33522 - ROLL PIN [ More info ] Unavailable Replaced by 17-58998 |
|
|
17-58998 - Pin -roll [ More info ]
|
| #13 | 24-53019 | SPRING, COWL LATCH HINGE (1 required per assembly) SERIAL 00000000-03148653 |
|
|
24-53019 - Spring, Cowl Latch Hinge,NLA [ More info ]
|
| #14 | 52738 | HOOK, TOP COWL LATCH - REAR (1 required per assembly) SERIAL 00000000-02670574 |
|
|
52738 - 52738 - HOOK [ More info ] Unavailable Replaced by -55455 |
|
|
55455 - Hook, NLA [ More info ]
|
| #14 | 55455 | HOOK, TOP COWL LATCH - REAR (1 required per assembly) SERIAL 02783253-09999999 |
| #16 | 10-22956 | SCREW, REAR HOOK TO TOP COWL (7/8") (2 required per assembly) |
|
|
10-22956 - Screw, NLA [ More info ]
|
| #17 | 47341A 1 | ROPE, STARTER (FOR MANUAL STARTING ONLY) (1 required per assembly) |
  |
|
47341A 1 - 47341A 1 - ROPE AND HANDLE K [ More info ] Unavailable Replaced by -47341A11 |
  |
|
47341A11 - Manual Start Rope And Handle [ More info ]
|
| #18 | 47271 | FRAME, TOP COWL SUPPORT (1 required per assembly) |
|
|
|
|
|
65609A2 - 65609A2 - ->69240A2 [ More info ] Unavailable Replaced by -69240A2 |
|
|
69240A 2 - Frame Assembly [ More info ]
|
|
|
75971A 1 - Frame Assembly [ More info ]
|
|
|
86922A 1 - FRAME ASSY [ More info ]
|
|
|
79897A4 - FRAME ASSY NLA [ More info ] Unavailable |
| #19 | 37-60204 | DECAL, TIMING - TOP COWL FRAME (1 required per assembly) |
|
|
37-60204 - DECAL NLA [ More info ] Unavailable |
| #20 | 37639 | MOUNT, RUBBER - TOP COWL FRAME (3 required per assembly) |
|
|
37639 - 37639 - MOUNT [ More info ] Unavailable Replaced by -63007 |
|
|
63007 - 63007 - MOUNT [ More info ] Unavailable Replaced by -90435 |
  |
|
90435 - Rubber Mount [ More info ]
|
| #21 | 11-20361 | NUT, RUBBER MOUNT TO TOP COWL FRAME (6 required per assembly) |
  |
|
11-20361 - 11-20361 - NUT (.250-28) [ More info ] Unavailable Replaced by 11-8267089 |
  |
|
11-826708 9 - Nut - Priced Individually [ More info ]
|
  |
|
18-3722 - Lock Nut, 121731, 11-35888 [ More info ]
|
| #22 | 52468 | BRACKET, TOP COWL SUPPORT - REAR (1 required per assembly) |
|
|
52468 - BRACKET NLA [ More info ] Unavailable |
| #23 | 31014 | MOUNT, RUBBER - REAR SUPPORT BRACKET (2 required per assembly) |
  |
|
31014 - Mount, NLA [ More info ]
|
| #24 | 13-26992 | LOCKWASHER, RUBBER MOUNT TO REAR SUPPORT BRACKET (2 required per assembly) |
  |
|
13-26992 - LockWasher - Priced Individually [ More info ]
|
| #25 | 11-20088 | NUT, RUBBER MOUNT TO REAR SUPPORT BRACKET (2 required per assembly) |
|
|
11-20088 - Nut (.250X28) [ More info ]
|
| #26 | 10-26065 | SCREW, REAR SUPPORT BRACKET TO TOP COWL FRAME (1") (4 required per assembly) |
|
|
10-26065 - Screw, NLA [ More info ]
|
| #28 | 10-24234 | SCREW, RAR SUPPORT BRACKET TO BOTTOM COWL (1') (4 required per assembly) |
|
|
10-24234 - 10-24234 - SCREW (.312-18 x [ More info ] Unavailable Replaced by 10-35386 |
  |
|
10-35386 - Screw - Priced Individually [ More info ]
|
| #30 | 52635 | BRACKET, SUPPORT-FRONT (1 required per assembly) SERIAL 00000000-02991033 |
|
|
52635 - 52635 - BRACKET [ More info ] Unavailable Replaced by -59768 |
|
|
59768 - 59768 - BRACKET [ More info ] Unavailable Replaced by -65077A3 |
|
|
65077A3 - 65077A3 - ->66521A2 [ More info ] Unavailable Replaced by -66521A2 |
|
|
66521A 2 - Bracket Assembly, NLA [ More info ]
|
| #30 | 59768 | BRACKET, SUPPORT - FRONT (1 required per assembly) SERIAL 03051041-03052380 |
| #31 | 10-22040 | SCREW, FRONT SUPPORT BRACKET TO BOTTOM COWL (1 1/2") (2 required per assembly) |
|
|
10-22040 - Screw - Priced Individually [ More info ]
|
|
|
10-69097 - Screw [ More info ]
|
|
|
10-78841 - Bolt, NLA [ More info ]
|
| #32 | 11-46793 | NUT, FRONT SUPPORT BRACKET SCREW (2 required per assembly) |
|
|
11-46793 - Nut, (5/16-24) [ More info ]
|
  |
|
11-29250 - Nut (5/16-24) [ More info ]
|
| #33 | 10-20362 | SCREW, FRONT BRACKET TO TOP COWL FRAME (1 1/2") (2 required per assembly) |
|
|
10-20362 - Screw - Priced Individually [ More info ]
|
  |
|
10-73657 - Screw - Priced Individually [ More info ]
|
| #35 | 37640 | MOUNT, RUBBER - FRONT SUPPORT BRACKET (1 required per assembly) |
  |
|
37640 - Mount, NLA [ More info ]
|
| #36 | 13-26993 | LOCKWASHER, RUBBER MOUNT TO FRONT SUPPORT BRACKET (1 required per assembly) |
|
|
13-26993 - LockWasher - Priced Individually [ More info ]
|
|
|
13-8M0204647 - LOCKWASHER @5 [ More info ] Unavailable |
| #37 | 11-22053 | NUT, RUBBER MOUNT TO FRONT SUPPORT BRACKET (1 required per assembly) |
  |
|
11-22053 - Nut (5/16x24) [ More info ]
|
| #38 | 58124A 7 | SWITCH, MERCURY (1 required per assembly) SERIAL 00000000-02991033 |
|
|
58124A 7 - Switch Assembly, NLA [ More info ]
|
| #38 | 58124A 9 | SWITCH, MERCURY (1 required per assembly) SERIAL 03051041-03052380 |
|
|
58124A 9 - SWITCH ASSY NLA [ More info ] Unavailable |

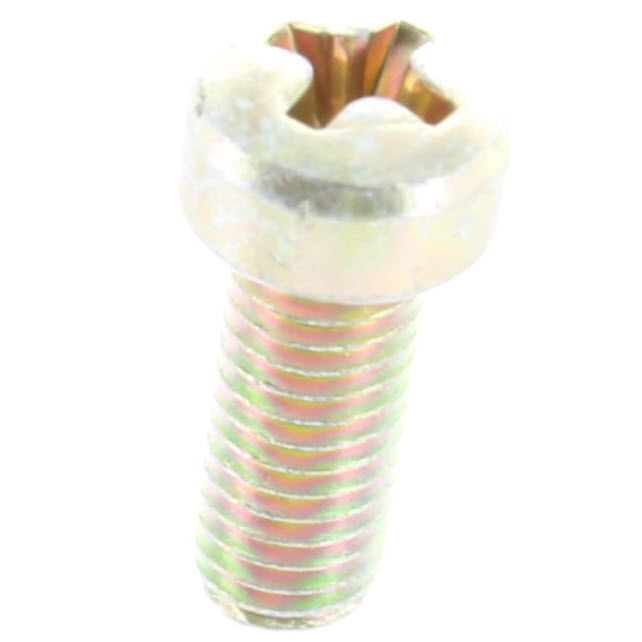

| #39 | 10-25764 | SCREW, MERCURY SWITCH TO FRONT SUPPORT BRACKET (1/2") (1 required per assembly) |
  |
|
10-25764 - SCREW (.190-32 x [ More info ] Unavailable |
| #40 | 17-30496 | PIN, ROLL - MERCURY SWITCH (EARLY MODELS ONLY) (1 required per assembly) |
|
|
17-30496 - ROLL PIN @5 NLA [ More info ] Unavailable |
| #41 | 10-30663 | SCREW, MERCURY SWITCH LEAD (3/8") (1 required per assembly) |
|
|
10-30663 - 10-30663 - SCREW (#10-16 x . [ More info ] Unavailable Replaced by 10-62568 |
  |
|
10-62568 - Screw - Priced Individually [ More info ]
|
