Parts for Mercury Marine 75 HP EFI (4-Stroke) Electrical Plate Components, Serial No. 1B723943 & Up

Revise Search: All Models > 75 HP EFI (4-Stroke) > 1B366823 & Up (USA) > Electrical Plate Components, Serial No. 1B723943 & Up

« Previous

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

Engine section

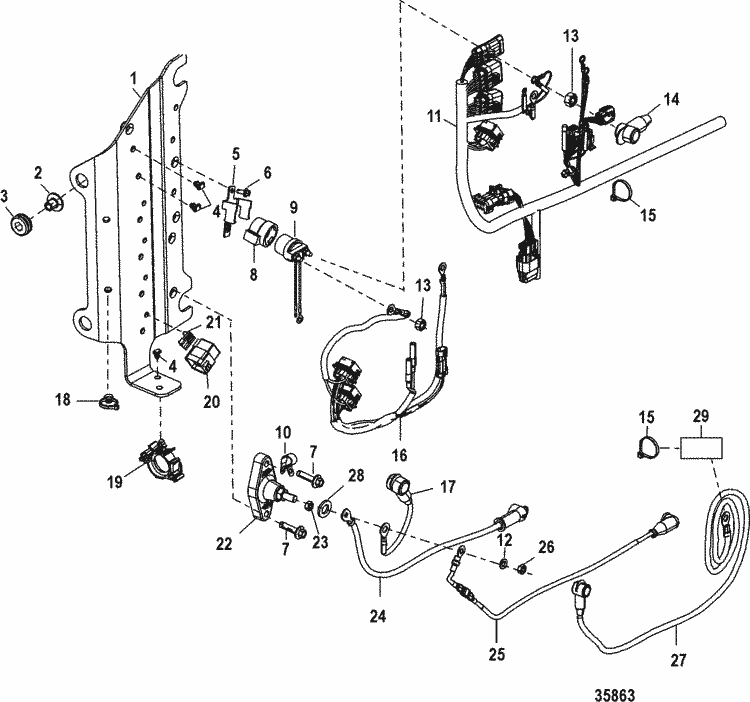

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#	88-832969 5	FUSE, Mini - Tan - 5 Ampere (1 required per assembly)
		88-832969 5 - Fuse, Tan-5 AMP [ More info ] $1.79 3 In Stock.

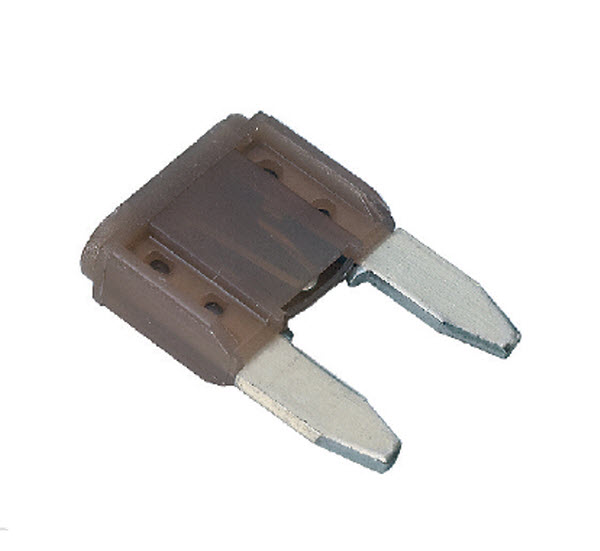

		88-832969T05 - Fuse -TAN-5 AMP [ More info ] $6.40 1 In Stock.
#	88-832969 2	FUSE, Mini - Gray - 2 Ampere (1 required per assembly)

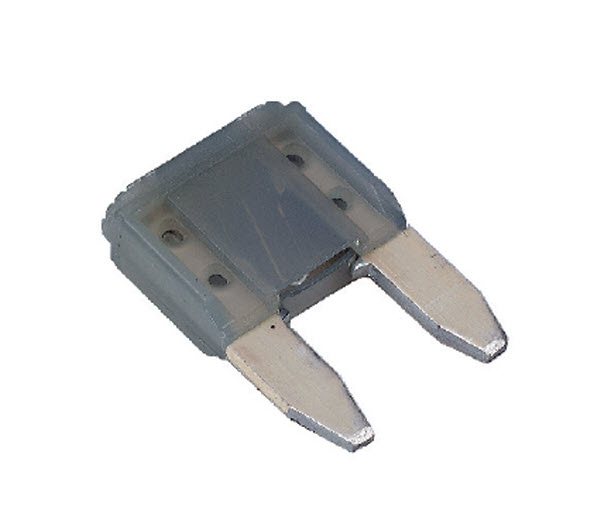

		88-832969 2 - Fuse - GRAY-2 Amp [ More info ] Unavailable
#	858754	COVER, Fuse (2 required per assembly)
		858754 - Fuse Cover [ More info ] Unavailable
#	88-832969 20	FUSE, Mini - Yellow - 20 Ampere (4 required per assembly)
		88-832969 20 - Fuse-Yellow-20AMP [ More info ] Unavailable

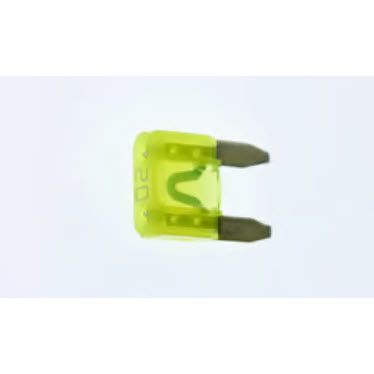

		88-832969T20 - Fuse - Yellow - 20 Amp [ More info ] $6.30 Available to Order: Usually ships within 10 days.
#	88-832969 15	FUSE, Mini - Blue - 15 Ampere (1 required per assembly)
		88-832969 15 - Fuse, Blue-15AMP [ More info ] Unavailable

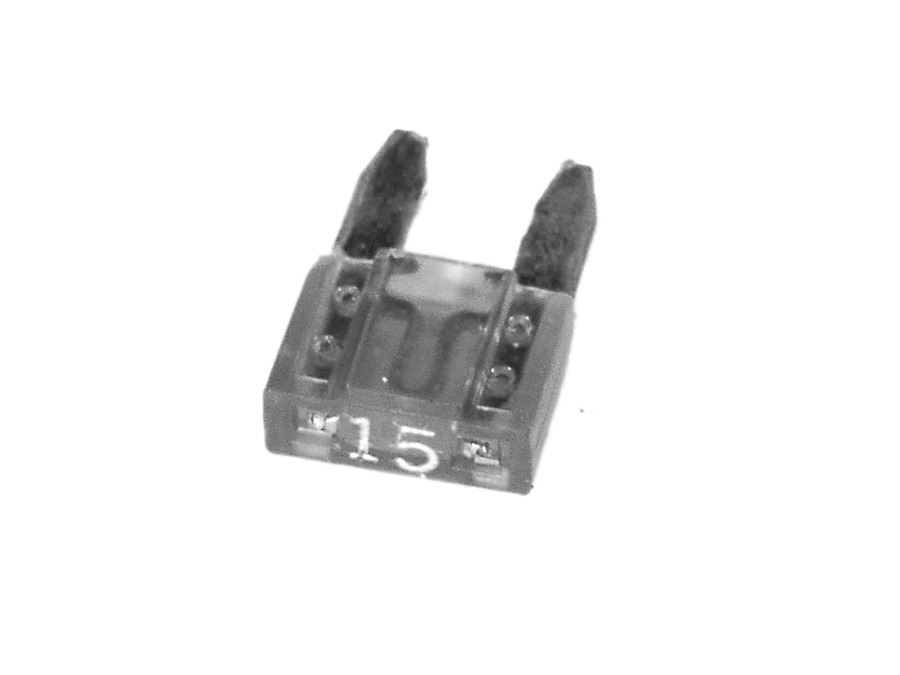

		88-832969T15 - Fuse -Blue-15AMP [ More info ] $3.90 Available to Order: Usually ships within 10 days.
#	NSS	NOT SOLD SEPARATE, Electrical Plate Assembly-Complete (1 required per assembly)
		NSS - NOT SOLD SEPARATE [ More info ] Unavailable
#1	897619T01	PLATE, Electrical (1 required per assembly)
		897619T01 - Electrical Plate [ More info ] $123.25 Available to Order: Usually ships within 10 days.
#2	23-856954	BUSHING (2 required per assembly)
		23-856954 - Bushing [ More info ] $6.70 Available to Order: Usually ships within 10 days.
#3	25-834985	GROMMET (2 required per assembly)
		25-834985 - Grommet [ More info ] $3.00 Available to Order: Usually ships within 10 days.
#4	54-879962	CLIP (4 required per assembly)
		54-879962 - Clip [ More info ] $1.90 Available to Order: Usually ships within 10 days.
#5	893768T	PLATE (1 required per assembly)
		893768T - Plate [ More info ] $11.90 Available to Order: Usually ships within 10 days.
#6	10-821291 14	SCREW, (M6 x 14) (2 required per assembly)
		10-821291 14 - Screw [ More info ] $2.40 $2.04 5 In Stock.
#7	10-821291 25	SCREW, (M6 x 25) (2 required per assembly)
		10-821291 25 - Screw [ More info ] $3.30 $1.86 5 In Stock.
#8	8M0010250	BRACKET (1 required per assembly)
		8M0010250 - Bracket [ More info ] $22.08 Available to Order: Usually ships within 10 days.

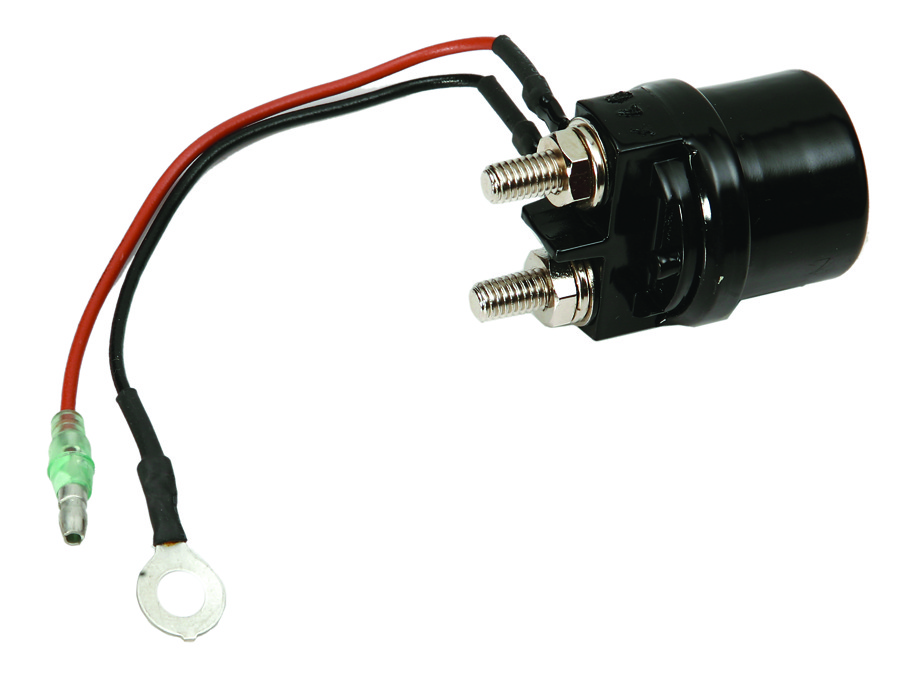

#9	825096T01	SOLENOID, Starter (1 required per assembly)
		825096T01 - Starter Solenoid [ More info ] Unavailable
		18-5821 - Starter Solenoid [ More info ] $74.99 $68.01 10+ In Stock.

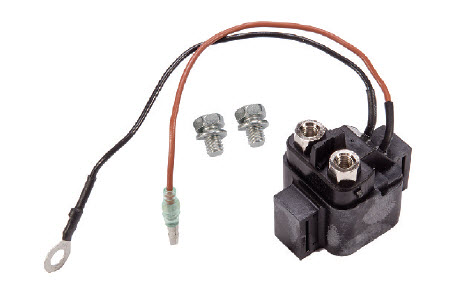

		89-8M0098898 - Relay Assembly [ More info ] $44.25 In Stock
		SW945 - Solenoid [ More info ] $76.59 In Stock
#10	54-859172	CLAMP (1 required per assembly)
		54-859172 - Clamp [ More info ] $5.00 Available to Order: Usually ships within 10 days.
#11	84-892579T14	HARNESS ASSEMBLY, Engine (1 required per assembly)
		84-892579T14 - Engine Harness [ More info ] $1,093.07 Available to Order: Usually ships within 10 days.
#12	13-26993	LOCKWASHER, (.312) (1 required per assembly)
		13-26993 - LockWasher - Priced Individually [ More info ] $0.99 10+ In Stock.
		138M0204647 - LOCKWASHER, Priced Individually [ More info ] $1.70 Available to Order: Usually ships within 10 days.
#13	11-40138 6	NUT, (M6) Stainless Steel (2 required per assembly)
		11-40138 6 - Nut - Priced Individually [ More info ] $4.90 10+ In Stock.
#14	85-880787	BOOT, Insulator - Yellow (1 required per assembly)
		85-880787 - Boot (Yellow) [ More info ] $4.30 Available to Order: Usually ships within 10 days.
#15	56762	TIE STRAP, (4.00 Inches) (AR required per assembly)
		56762 - Tie Strap - Priced Individually [ More info ] $0.50 10+ In Stock.
		0317893 - Tie Strap [ More info ] $0.36 10+ In Stock.
#15	54-816311T	TIE STRAP, (8.00 Inches) (AR required per assembly)
		54-816311T - Tie Strap, 8 Inches, Priced Individually [ More info ] $0.60 10+ In Stock.
#16	84-819514T27	HARNESS ASSEMBLY, Trim (1 required per assembly)
		84-819514T27 - Trim Harness [ More info ] $100.58 Available to Order: Usually ships within 10 days.
#17	84-93388T20	CABLE ASSEMBLY, Black (1 required per assembly)
		84-93388T20 - Cable Assembly [ More info ] $45.08 Available to Order: Usually ships within 10 days.
#18	54-899145	CLIP, Tie Strap (2 required per assembly)
		54-899145 - Clip [ More info ] $3.30 Available to Order: Usually ships within 10 days.
#19	54-898454	CLIP, (19 mm) (1 required per assembly)
		54-898454 - Clip [ More info ] $1.50 Available to Order: Usually ships within 10 days.

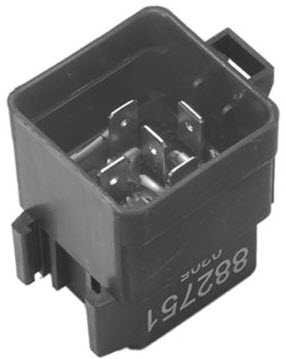

#20	882751	RELAY (3 required per assembly)
		882751 - Relay - Trim [ More info ] $20.70 10+ In Stock.
		8M0207772 - RELAY-TRIM [ More info ] $20.70 10+ In Stock.
#21	86-865205	CLIP (3 required per assembly)
		86-865205 - Clip - Priced Individually [ More info ] $2.90 Available to Order: Usually ships within 10 days.
#22	85-875302A 1	HOT STUD ASSEMBLY (1 required per assembly)
		85-875302A 1 - Hot Stud Assembly [ More info ] $26.67 Available to Order: Usually ships within 10 days.
#23	11-40021 3	NUT, (M8) Stainless Steel (1 required per assembly)
		11-40021 3 - Nut - Priced Individually [ More info ] $2.80 Available to Order: Usually ships within 10 days.
#24	84-93388T22	CABLE ASSEMBLY, Black (1 required per assembly)
		84-93388T22 - Cable [ More info ] $24.32 1 In Stock.

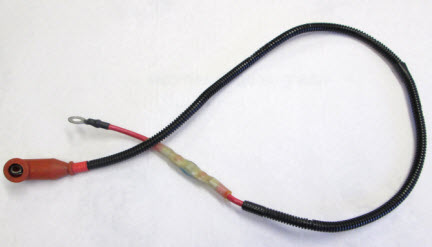

#25	84-878231T05	HARNESS ASSEMBLY, Fuse (1 required per assembly)
		84-878231T05 - Fuse Harness [ More info ] $99.33 Available to Order: Usually ships within 10 days.
#27	84-88439A46	CABLE ASSEMBLY, Battery - Positive (1 required per assembly)
		84-88439A46 - Battery Cable Pos [ More info ] $76.58 Available to Order: Usually ships within 10 days.
#28	12-85172	WASHER (1 required per assembly)
		12-85172 - Washer,rubber-upper Mount Screw [ More info ] $3.90 2 In Stock.
