Parts for Mercury Marine 75 HP EFI (4-Stroke) Extension Kit - 5 Inch, Driveshaft Housing 12092A19
Reference numbers in this diagram can be found in a light blue row below — scroll down to order.

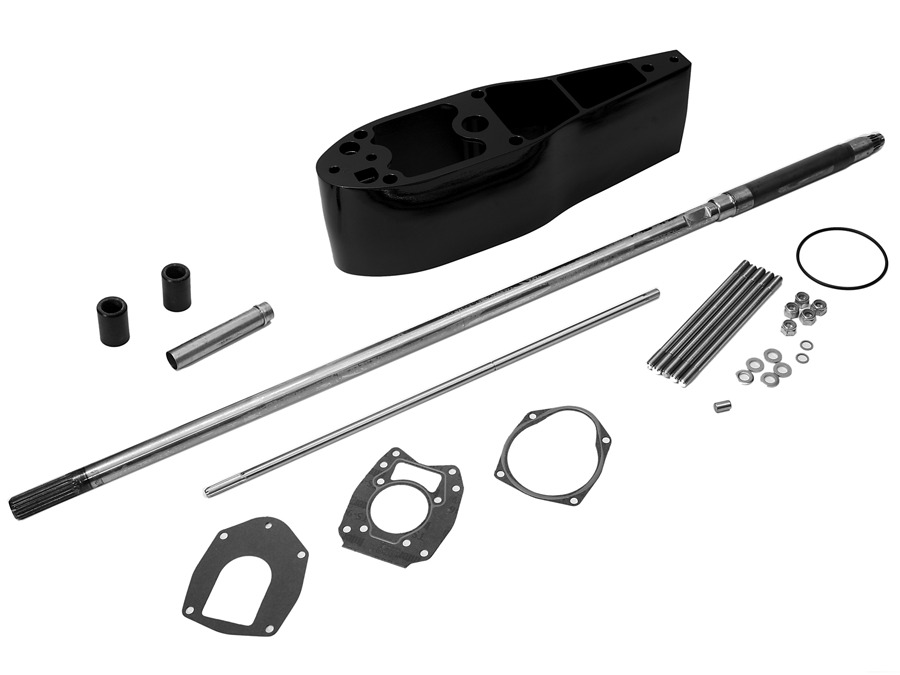

| # | 12092A19 | EXTENSION KIT, Driveshaft - 5 Inch /128 mm (1 required per assembly) |
  |
|
12092A19 - Conversion Kit - 5 Xl 4S [ More info ]
|
| #1 | 12092A 3 | SPACER KIT (1 required per assembly) |
 |
|
12092A 3 - Spacer - Drive Shaft Housing - XL - Black [ More info ]
|
| #2 | 17-43043 | PIN, Dowel - With Hole (.375 x .625) (1 required per assembly) |
|
|
17-43043 - Pin, Dowel [ More info ]
|
|
|
178M0084244 - Pin - Dowel [ More info ]
|
| #3 | 17-43044 | PIN, Dowel - Without Hole (.375 x .625) (1 required per assembly) |
|
|
17-43044 - Pin -Dowel-solid [ More info ]
|
| #4 | 16-90350 3 | STUD, (M10 x 190) (4 required per assembly) |
|
|
16-90350 3 - Stud [ More info ]
|
| #5 | 16-90350 2 | STUD, (M10 x 227) (1 required per assembly) |
|
|
16-90350 2 - Stud [ More info ]
|
| #6 | 12-856774 | WASHER, (.406 x .750 x .105) Stainless Steel (5 required per assembly) |
  |
|
12-856774 - WASHER (.406 x .7 [ More info ] Unavailable |
| #7 | 11-40140 | NUT, (M10) (5 required per assembly) |
  |
|
11-40140 - Nut, (M10) [ More info ]
|
| #8 | 25-97386 | O-RING, (3.609 x .139) (1 required per assembly) |
|
|
785-97386 - 785-97386 - O-RING (3.609 x . [ More info ] Unavailable Replaced by 25-861844 |
  |
|
25-861844 - 25-861844 - O-RING [ More info ] Unavailable Replaced by -8M0214974 |
|
|
258M0214974 - O RING [ More info ]
|
  |
|
18-7961 - O-Ring 25-97386 [ More info ]
|
| #9 | 26-830749 | SEAL (3 required per assembly) |
  |
|
26-830749 - 26-830749 - SEAL [ More info ] Unavailable Replaced by -8M0204693 |
  |
|
26-8M0204693 - Drain Screw Washer, Priced Individually [ More info ]
|
  |
|
18-2430-9 - Drain Screw Gasket (PK5) [ More info ]
|
| #10 | 32-828937 1 | TUBE, Water (1 required per assembly) |
|
|
32-828937 1 - 32-828937 1 - TUBE Water [ More info ] Unavailable Replaced by 32-8M4501430 |
|
|
32-8M4501430 - Water Tube 4 Inch XL Extension only [ More info ]
|
| #11 | 43023 2 | SEAL (2 required per assembly) |
  |
|
|
| #12 | 27-817277 1 | GASKET (1 required per assembly) |
  |
|
27-817277 1 - GASKET [ More info ] Unavailable |
  |
|
18-2566-9 - Gasket 27-817277 2-Pack [ More info ]
|
| #13 | 27-43033 1 | GASKET (1 required per assembly) |
  |
|
27-43033 1 - Face Plate To Cover Gasket [ More info ]
|
| #14 | 27-43047 2 | GASKET (1 required per assembly) |
  |
|
27-43047 2 - GASKET [ More info ] Unavailable |
  |
|
18-2565-9 - Gasket 27-430472 2-Pack [ More info ]
|
| #15 | 45-897680T01 | DRIVESHAFT ASSEMBLY, X-Long (1 required per assembly) |
  |
|
45-897680T01 - Drive Shaft [ More info ]
|
| #16 | 884565A00 | SHIFT SHAFT ASSEMBLY (1 required per assembly) |
|
|
884565A00 - Shift Shaft -XLong [ More info ]
|
| #17 | 53-29641 | E RING (1 required per assembly) |
  |
|
53-29641 - E Ring - Priced Individually [ More info ]
|
| #18 | 25-45710 1 | O-RING, (1.424 x .103) (1 required per assembly) |
  |
|
25-45710 1 - O-RING (1.424 x . [ More info ] Unavailable |
  |
|
18-7198-9 - O-Ring (PK5) 25-45710, 308626 [ More info ]
|
