Parts for Mercury Marine 75 HP EFI (4-Stroke) Electrical Plate Component, Serial No. 1B723942 & Below

Revise Search: All Models > 75 HP EFI (4-Stroke) > 1B366823 & Up (USA) > Electrical Plate Component, Serial No. 1B723942 & Below

« Previous

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

Engine section

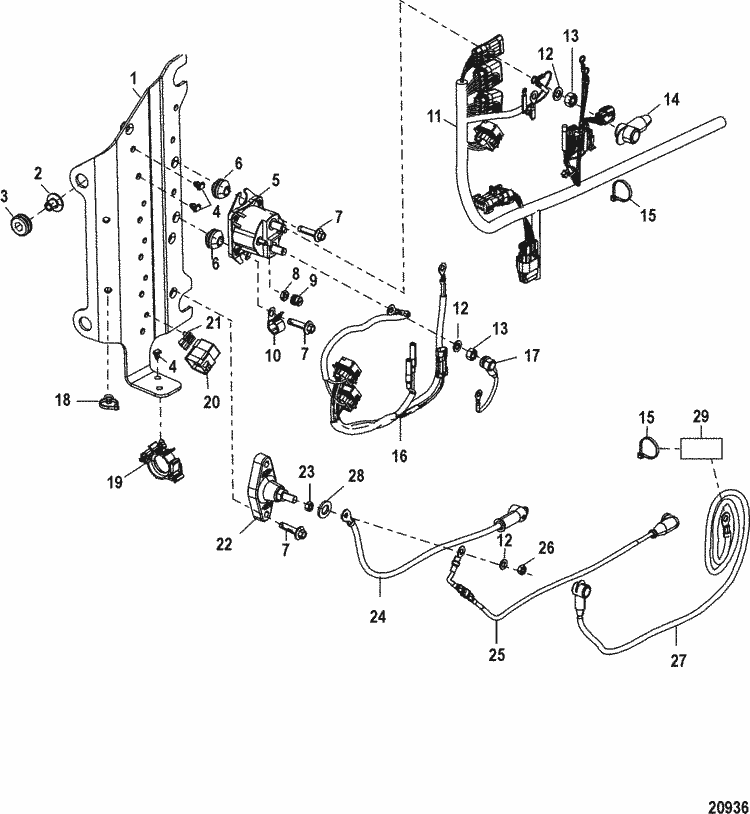

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#	88-832969 20	FUSE, Mini - Yellow - 20 Ampere (4 required per assembly)
		88-832969 20 - Fuse-Yellow-20AMP [ More info ] $3.49 2 In Stock.
		88-832969T20 - Fuse - Yellow - 20 Amp [ More info ] $4.40 Available to Order: Usually ships within 10 days.
#	88-832969 15	FUSE, Mini - Blue - 15 Ampere (1 required per assembly)
		88-832969 15 - 88-832969 15 - FUSE Mini - Blue [ More info ] Unavailable Replaced by 88-832969T15
		88-832969T15 - Fuse -Blue-15AMP [ More info ] $3.90 Available to Order: Usually ships within 10 days.
#	88-832969 5	FUSE, Mini - Tan - 5 Ampere (1 required per assembly)
		88-832969 5 - Fuse, Tan-5 AMP [ More info ] $1.79 3 In Stock.
		88-832969T05 - Fuse -TAN-5 AMP [ More info ] $6.40 1 In Stock.
#	88-832969 2	FUSE, Mini - Gray - 2 Ampere (1 required per assembly)
		88-832969 2 - FUSE Mini - Gray [ More info ] Unavailable
#	858754	COVER, Fuse (2 required per assembly)
		858754 - COVER Fuse [ More info ] Unavailable
#1	897619T01	PLATE, Electrical (1 required per assembly)
		897619T01 - Electrical Plate [ More info ] $123.25 Available to Order: Usually ships within 10 days.
#2	23-856954	BUSHING (2 required per assembly)
		23-856954 - Bushing [ More info ] $6.70 Available to Order: Usually ships within 10 days.
#3	25-834985	GROMMET (2 required per assembly)
		25-834985 - Grommet [ More info ] $3.00 2 In Stock.
#4	54-879962	CLIP (4 required per assembly)
		54-879962 - Clip [ More info ] $1.90 Available to Order: Usually ships within 10 days.
#5	89-817109A 2	SOLENOID ASSEMBLY, (#10-32 / .3125-18 Terminals) (1 required per assembly)
		89-817109A 2 - SOLENOID ASSEMBLY [ More info ] Unavailable
		18-5834 - Solenoid, 89-817109A2 [ More info ] $42.24 10+ In Stock.
		SW109 - Solenoid [ More info ] $41.40 8 In Stock.
#6	25-822179	GROMMET (2 required per assembly)
		25-822179 - Grommet [ More info ] $4.30 1 In Stock.
#7	10-821291 25	SCREW, (M6 x 25) (4 required per assembly)
		10-821291 25 - Screw [ More info ] $3.30 $1.86 8 In Stock.
#8	11-45076	NUT, (#10-32) Brass (2 required per assembly)
		11-45076 - Nut (#10-32) (brass) [ More info ] $1.70 6 In Stock.
#9	11-813938	CAP NUT, (#10-32) (2 required per assembly)
		11-813938 - Capnut [ More info ] $3.10 Available to Order: Usually ships within 10 days.
#10	54-859172	CLAMP (1 required per assembly)
		54-859172 - Clamp [ More info ] $5.00 Available to Order: Usually ships within 10 days.
#11	84-892579T13	HARNESS ASSEMBLY, Engine (1 required per assembly)
		84-892579T13 - Engine Harness [ More info ] $1,135.93 Available to Order: Usually ships within 10 days.
#12	13-26993	LOCKWASHER, (.312) (3 required per assembly)
		13-26993 - LockWasher - Priced Individually [ More info ] $1.10 10+ In Stock.
		13-8M0204647 - LOCKWASHER @5 [ More info ] Unavailable
#13	11-68292	NUT, (.312-18) (2 required per assembly)
		11-68292 - Nut (5/16 Inch) [ More info ] $3.70 $1.49 10+ In Stock.
		11-8M0204668 - NUT @5 [ More info ] Unavailable
#14	85-880787	BOOT, Insulator - Yellow (1 required per assembly)
		85-880787 - Boot (Yellow) [ More info ] $4.30 Available to Order: Usually ships within 10 days.
#15	54-816311T	TIE STRAP, (8.00 Inches) (AR required per assembly)
		54-816311T - Tie Strap, 8 Inches, Priced Individually [ More info ] $0.60 1 In Stock.
#15	69355	TIE STRAP, (5.50 Inches) (AR required per assembly)
		69355 - Tie Strap - Priced Individually [ More info ] $0.40 10+ In Stock.
#16	84-819514T24	HARNESS ASSEMBLY, Trim (1 required per assembly)
		84-819514T24 - Trim Harness [ More info ] $73.00 Available to Order: Usually ships within 10 days.
#17	84-93388T21	CABLE ASSEMBLY, Black (1 required per assembly)
		84-93388T21 - Cable Assembly [ More info ] $23.33 Available to Order: Usually ships within 10 days.
#18	54-899145	CLIP, Tie Strap (2 required per assembly)
		54-899145 - Clip [ More info ] $3.30 Available to Order: Usually ships within 10 days.
#19	54-898454	CLIP, (19 mm) (1 required per assembly)
		54-898454 - Clip [ More info ] $1.50 Available to Order: Usually ships within 10 days.
#20	882751	RELAY (3 required per assembly)
		882751 - Relay - Trim [ More info ] $20.70 10+ In Stock.
		8M0207772 - RELAY-TRIM [ More info ] $20.70 10+ In Stock.
#21	86-865205	CLIP (3 required per assembly)
		86-865205 - Clip - Priced Individually [ More info ] $2.90 Available to Order: Usually ships within 10 days.
#22	85-875302A 1	HOT STUD ASSEMBLY (1 required per assembly)
		85-875302A 1 - Hot Stud Assembly [ More info ] $26.67 Available to Order: Usually ships within 10 days.
#23	11-40021 3	NUT, (M8) Stainless Steel (1 required per assembly)
		11-40021 3 - Nut - Priced Individually [ More info ] $2.80 Available to Order: Usually ships within 10 days.
#24	84-93388T20	CABLE ASSEMBLY, Black (1 required per assembly)
		84-93388T20 - Cable Assembly [ More info ] $45.08 Available to Order: Usually ships within 10 days.
#25	84-878231T05	HARNESS ASSEMBLY, Fuse (1 required per assembly)
		84-878231T05 - Fuse Harness [ More info ] $99.33 Available to Order: Usually ships within 10 days.
#27	84-88439A46	CABLE ASSEMBLY, Battery - Positive (1 required per assembly)
		84-88439A46 - Battery Cable Pos [ More info ] $76.58 Available to Order: Usually ships within 10 days.
#28	12-85172	WASHER (1 required per assembly)
		12-85172 - Washer,rubber-upper Mount Screw [ More info ] $3.30 2 In Stock.
#29	NSS	NOT SOLD SEPARATE, Tag-Battery (1 required per assembly)
		NSS - NOT SOLD SEPARATE [ More info ] Unavailable
