Parts for Mercury Marine 75 HP (3 Cylinder) Transom Bracket (Manual Tilt Assist)

Revise Search: All Models > 75 HP (3 Cylinder) > 9793577 - 0P016999 (Belgium) > Transom Bracket (Manual Tilt Assist)

« Previous

NEED PARTS OR KITS?

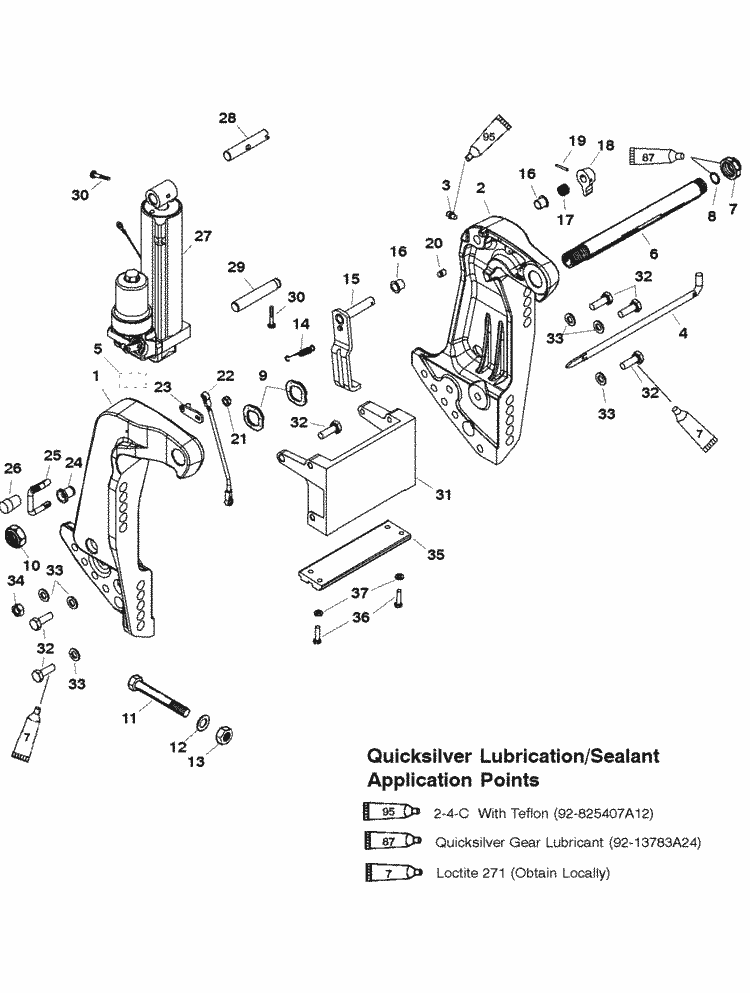

View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

Engine section

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#1	3426-828334F 1	TRANSOM BRACKET (1 required per assembly) (STARBOARD) BLACK
		3426-828334F 1 - 3426-828334F 1 - BRACKET Transom [ More info ] Unavailable Replaced by 3426-828334T02
		3426-828334T02 - BRACKET ASSEMBLY NLA [ More info ] Unavailable
#2	3425-828333A 3	TRANSOM BRACKET (1 required per assembly) (PORT) BLACK
		3425-828333A 3 - 3425-828333A 3 - BRACKET ASSEMBLY [ More info ] Unavailable Replaced by 3425-828333T07
		3425-828333T07 - BRACKET ASSEMBLY NLA [ More info ] Unavailable
#1	3426-828334F 2	TRANSOM BRACKET (1 required per assembly) (STARBOARD) GRAY
		3426-828334F 2 - BRACKET Transom NLA [ More info ] Unavailable

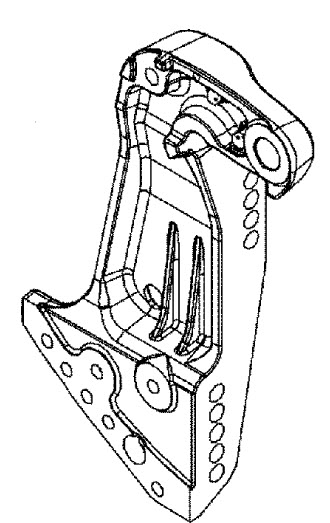

#2	3425-828333A 4	TRANSOM BRACKET (1 required per assembly) (PORT) GRAY
		3425-828333A 4 - Bracket Assembly - Port-gr, NLA [ More info ] $80.00 4 In Stock.
#3	22-98727	GREASE FITTING (1 required per assembly) (PORT)
		22-98727 - Fitting [ More info ] $2.50 9 In Stock.
		22-8M0169588 - FITTING [ More info ] Unavailable
#4	17-49930A 1	TILT PIN ASSEMBLY (1 required per assembly)
		17-49930A 1 - 17-49930A 1 - PIN ASSEMBLY Tilt [ More info ] Unavailable Replaced by 17-8M0026068
		17-8M0026068 - Pin Assembly - Tilt [ More info ] $53.25 Available to Order: Usually ships within 10 days.
#5	37-830253	DECAL-TILT/LOCK (1 required per assembly)
		37-830253 - Decal - Tilt/Lock [ More info ] $4.30 Available to Order: Usually ships within 10 days.
#6	99170A 2	TILT TUBE (1 required per assembly)
		99170A 2 - TUBE KIT Tilt NLA [ More info ] Unavailable
		826125A 1 - Tilt Tube Kit [ More info ] $276.42 1 In Stock.
#7	11-826135	NUT (1 required per assembly)
		11-826135 - Nut (1.0-14) [ More info ] $24.42 9 In Stock.
#8	25-45711	O-RING (1 required per assembly)
		25-45711 - Valve Cover O-Ring, Priced Individually [ More info ] $1.70 2 In Stock.
		18-7174-9 - O-Ring (PK5) 326649, 25-45711 [ More info ] $9.18 1 In Stock.
#9	13-88750	WAVE WASHER (2 required per assembly)
		13-88750 - Wave Washer - Priced Individually [ More info ] $6.50 3 In Stock.
#10	11-826164	NUT (1 required per assembly)
		11-826164 - Nut (7/8-14) [ More info ] $16.75 2 In Stock.
#11	10-67755 1	BOLT (4-1/2 IN.) (4 required per assembly)
		10-67755 1 - SCREW (.500-20 x [ More info ] Unavailable
#12	12-28421	WASHER (4 required per assembly)
		12-28421 - Washer, (1.5 X 3.05 X 0.13) Stainless Steel [ More info ] $2.99 10+ In Stock.
		12-8M0204648 - WASHER @5 Q=T [ More info ] Unavailable
#13	11-91962	NUT (4 required per assembly)
		11-91962 - SEE SERVICE BULLETIN 20NLA [ More info ] Unavailable
#14	24-830899	SPRING (1 required per assembly)
		24-830899 - Spring, Tension, Tilt Lock [ More info ] $6.60 Available to Order: Usually ships within 10 days.
#15	821176A 1	TILT LOCK LEVER (1 required per assembly)
		821176A 1 - 821176A 1 - LEVER ASSEMBLY Ti [ More info ] Unavailable Replaced by -821176T 1
		821176T 1 - 821176T 1 - LEVER ASSEMBLY Ti [ More info ] Unavailable Replaced by -821176T02
		821176T02 - 821176T02 - LEVER ASSEMBLY Ti [ More info ] Unavailable Replaced by -8M0109798
		8M0109798 - Tilt Lock Lever Assembly [ More info ] $48.50 Available to Order: Usually ships within 10 days.
#16	23-65830	BUSHING (2 required per assembly)
		23-65830 - NyLiner [ More info ] $5.50 3 In Stock.
#17	24-830900	SPRING (1 required per assembly)
		24-830900 - Spring, Compression [ More info ] $2.90 Available to Order: Usually ships within 10 days.
#18	99633	KNOB (1 required per assembly)
		99633 - Tilt Lock Lever Knob [ More info ] $4.40 Available to Order: Usually ships within 10 days.
#19	17-99615	GROOVE PIN (1 required per assembly)
		17-99615 - Pin, Groove [ More info ] $4.50 Available to Order: Usually ships within 10 days.
#20	17-99617	PIN (1 required per assembly)
		17-99617 - 17-99617 - PIN [ More info ] Unavailable Replaced by 17-893709
		17-893709 - Pin -grooved [ More info ] $3.60 Available to Order: Usually ships within 10 days.
#21	11-846128	NUT (1 required per assembly)
		11-846128 - 11-846128 - NUT (.312-18) Sta [ More info ] Unavailable Replaced by 11-826709110
		11-826709110 - Nut, (.312-18) Stainless Steel [ More info ] $3.30 Available to Order: Usually ships within 10 days.
#22	835351 1	LINK ROD (1 required per assembly)
		835351 1 - Link Rod [ More info ] $28.42 Available to Order: Usually ships within 10 days.
#23	832042	ARM (1 required per assembly)
		832042 - Tilt Lever Arm [ More info ] $30.50 Available to Order: Usually ships within 10 days.
#24	23-832040	BUSHING (1 required per assembly)
		23-832040 - Bushing [ More info ] $7.90 Available to Order: Usually ships within 10 days.
#25	832039	TILT LEVER (1 required per assembly)
		832039 - Tilt Lever [ More info ] $46.00 Available to Order: Usually ships within 10 days.
#26	19621	KNOB (1 required per assembly)
		19621 - 19621 - TILT KNOB [ More info ] Unavailable Replaced by -8M0007469
		8M0007469 - Knob - Tilt [ More info ] $12.10 Available to Order: Usually ships within 10 days.
#27	835249A 1	MANUAL TILT ASSEMBLY (1 required per assembly) (BREAKDOWN FOUND ON MANUAL TILT ASSIST COMPONENTS)
		835249A 1 - 835249A 1 - MANUAL TILT ASSEM [ More info ] Unavailable Replaced by -835249T 1
		835249T 1 - Manual Tilt Assembly [ More info ] $1,020.50 Available to Order: Usually ships within 10 days.
#28	99625 1	TILT SHAFT (UPPER) (1 required per assembly)
		99625 1 - 99625 1 - SHAFT [ More info ] Unavailable Replaced by -99625002
		99625002 - Upper Shaft [ More info ] $19.25 7 In Stock.
#29	17-818898	ANCHOR PIN (1 required per assembly)
		17-818898 - Anchor Pin [ More info ] $25.50 1 In Stock.
#30	17-821539	PIN (2 required per assembly)
		17-821539 - Pin, Trilobe, Groove [ More info ] $4.40 10+ In Stock.
#31	818771F 1	ANCHOR BRACKET (1 required per assembly) (BLACK)
		818771F 1 - 818771F 1 - BRACKET Anchor [ More info ] Unavailable Replaced by -818771T 1
		818771T 1 - 818771T 1 - BRACKET Anchor [ More info ] Unavailable Replaced by -8M0086406
		8M0086406 - Bracket-Anchor [ More info ] $325.92 Available to Order: Usually ships within 10 days.
#31	818771F 6	ANCHOR BRACKET (1 required per assembly) (GRAY)
		818771F 6 - 818771F 6 - BRACKET Anchor [ More info ] Unavailable Replaced by -818771T 7
		818771T 7 - 818771T 7 - BRACKET-ANCHOR [ More info ] Unavailable Replaced by -818771T 8
		818771T 8 - ORD 818771T 1 NLA [ More info ] Unavailable
#32	10-40003 77	SCREW (6 required per assembly)
		10-40003 77 - Screw [ More info ] $4.40 $3.74 10+ In Stock.
#33	12-40023 19	WASHER (6 required per assembly)
		12-40023 19 - Washer (M10) [ More info ] $3.10 Available to Order: Usually ships within 10 days.
#33	13-40025 6	LOCKWASHER (6 required per assembly) (JET)
		13-40025 6 - LockWasher - Priced Individually [ More info ] $1.70 $0.96 10+ In Stock.
#34	11-40114	NUT (1 required per assembly)
		11-40114 - Nut (M10 X 1.5) [ More info ] $6.50 3 In Stock.
#35	818298A 1	ANODE ASSEMBLY (1 required per assembly)
		818298A 1 - 818298A 1 - ANODE KIT [ More info ] Unavailable Replaced by 97-818298Q 1
		97-818298Q 1 - Anode Kit - Outboard Transom Aluminum [ More info ] $24.42 5 In Stock.
		18-6249A - Anode, Aluminum, 18-6249A [ More info ] $23.99 $21.71 3 In Stock.
		18-6249 - Zinc Anode, 818298A1 [ More info ] $23.79 $21.52 1 In Stock.
		97-818298T 1 - Anode - Outboard Transom Aluminum [ More info ] $24.42 Available to Order: Usually ships within 10 days.
#36	10-40003 30	SCREW (M6 X 25) (2 required per assembly)
		10-40003 30 - Screw - Priced Individually [ More info ] $2.49 10+ In Stock.
#37	12-29245	WASHER (2 required per assembly)
		12-29245 - Washer [ More info ] $0.80 10+ In Stock.
		12-8M0204649 - WASHER Note: Priced Individually [ More info ] $1.20 Available to Order: Usually ships within 10 days.
		18-4275 - SS Washer [ More info ] $0.79 $0.76 1 In Stock.
