Parts for Mercury Marine 75 HP (3 Cylinder) Transom Bracket (Non Power Trim & Power Trim)

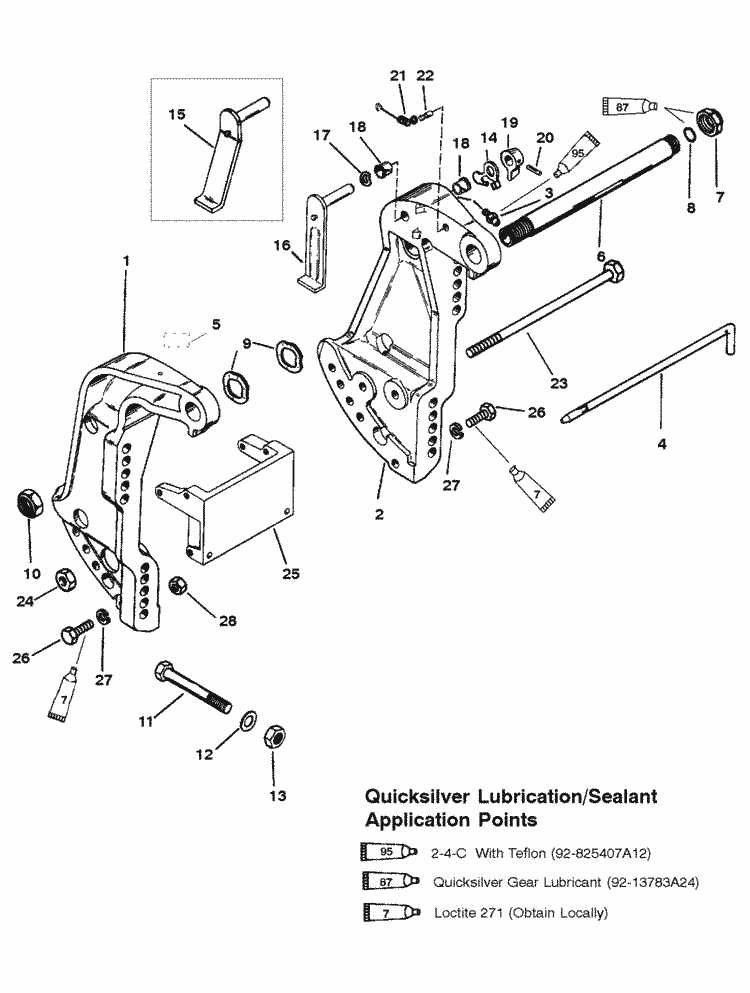

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| #1 | 3401-8718F 7 | TRANSOM BRACKET (1 required per assembly) (STARBOARD) BLACK |
  |
|
3401-8718F 7 - Bracket - Stbd- Black, NLA [ More info ]
|
| #2 | 3400-8716A 8 | TRANSOM BRACKET (1 required per assembly) (PORT) BLACK |
  |
|
3400-8716A 8 - Bracket - Port - Black, NLA [ More info ]
|
| #1 | 3401-8718F 8 | TRANSOM BRACKET (1 required per assembly) (STARBOARD) GRAY |
  |
|
3401-8718F 8 - Bracket - Stbd- Gray [ More info ]
|
| #2 | 3400-8716A 9 | TRANSOM BRACKET (1 required per assembly) (PORT) GRAY |
  |
|
3400-8716A 9 - BRACKET ASSEMBLY NLA [ More info ] Unavailable |
| #1 | 3401-8718F10 | TRANSOM BRACKET (1 required per assembly) (STARBOARD) TRACKER GRAPHITE GRAY |
 |
|
3401-8718F10 - BRACKET Transom NLA [ More info ] Unavailable |
| #2 | 3400-8716A10 | TRANSOM BRACKET (1 required per assembly) (PORT) TRACKER GRAPHITE GRAY |
  |
|
3400-8716A10 - Bracket Assembly -p-gra/G, NLA [ More info ]
|
| #3 | 22-98727 | GREASE FITTING (1 required per assembly) (PORT) |
|
|
22-98727 - Fitting [ More info ]
|
|
|
22-8M0169588 - FITTING [ More info ] Unavailable |
| #4 | 17-49930A 1 | TILT PIN ASSEMBLY (1 required per assembly) NON POWER TRIM |
|
|
17-49930A 1 - 17-49930A 1 - PIN ASSEMBLY Tilt [ More info ] Unavailable Replaced by 17-8M0026068 |
  |
|
17-8M0026068 - Pin Assembly - Tilt [ More info ]
|
| #5 | 37-830253 | DECAL-TILT/LOCK (1 required per assembly) NON POWER TRIM |
|
|
37-830253 - Decal - Tilt/Lock [ More info ]
|
| #6 | 99170A 2 | TILT TUBE (1 required per assembly) |
  |
|
99170A 2 - TUBE KIT Tilt NLA [ More info ] Unavailable |
  |
|
826125A 1 - Tilt Tube Kit [ More info ]
|
| #7 | 11-826135 | NUT (1 required per assembly) |
|
|
11-826135 - Nut (1.0-14) [ More info ]
|
| #8 | 25-45711 | O-RING (1 required per assembly) |
  |
|
25-45711 - Valve Cover O-Ring, Priced Individually [ More info ]
|
  |
|
18-7174-9 - O-Ring (PK5) 326649, 25-45711 [ More info ]
|
| #9 | 13-88750 | WAVE WASHER (2 required per assembly) |
|
|
13-88750 - Wave Washer - Priced Individually [ More info ]
|
| #10 | 11-826164 | NUT (1 required per assembly) |
|
|
11-826164 - Nut (7/8-14) [ More info ]
|
| #11 | 10-67755 1 | BOLT (4-1/2 IN.) (4 required per assembly) |
  |
|
10-67755 1 - SCREW (.500-20 x [ More info ] Unavailable |
| #12 | 12-28421 | WASHER (4 required per assembly) |
  |
|
12-28421 - Washer, (1.5 X 3.05 X 0.13) Stainless Steel [ More info ]
|
|
|
12-8M0204648 - WASHER @5 Q=T [ More info ] Unavailable |
| #13 | 11-91962 | NUT (4 required per assembly) |
  |
|
11-91962 - SEE SERVICE BULLETIN 20NLA [ More info ] Unavailable |

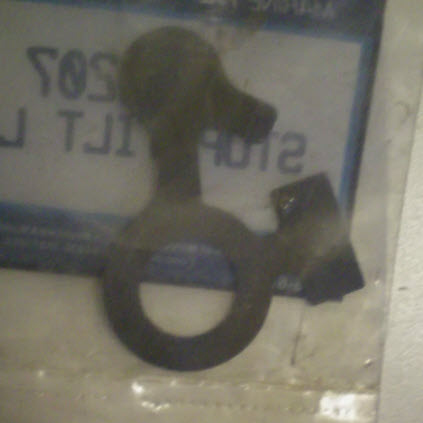

| #14 | 814207 | STOP (1 required per assembly) |
  |
|
814207 - Tilt Stop Lever [ More info ]
|

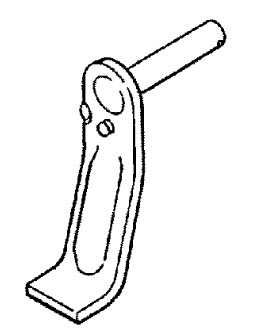

| #15 | 99629A 3 | TILT LOCK LEVER (1 required per assembly) (NON POWER TRIM) |
  |
|
99629A 3 - Lever Assembly [ More info ]
|
| #16 | 821176A 1 | TILT LOCK LEVER (1 required per assembly) (POWER TRIM) |
|
|
821176A 1 - 821176A 1 - LEVER ASSEMBLY Ti [ More info ] Unavailable Replaced by -821176T 1 |
|
|
821176T 1 - 821176T 1 - LEVER ASSEMBLY Ti [ More info ] Unavailable Replaced by -821176T02 |
|
|
821176T02 - 821176T02 - LEVER ASSEMBLY Ti [ More info ] Unavailable Replaced by -8M0109798 |
|
|
8M0109798 - Tilt Lock Lever Assembly [ More info ]
|
| #17 | 13-99611 | WAVE WASHER (1 required per assembly) |
|
|
13-99611 - Washer, NLA [ More info ]
|
| #18 | 23-65830 | BUSHING (2 required per assembly) |
|
|
23-65830 - NyLiner [ More info ]
|
| #19 | 99633 | KNOB (1 required per assembly) |
  |
|
99633 - Tilt Lock Lever Knob [ More info ]
|
| #20 | 17-99615 | GROOVE PIN (1 required per assembly) |
|
|
17-99615 - Pin, Groove [ More info ]
|
| #21 | 24-99622 | SPRING (1 required per assembly) |
|
|
24-99622 - Spring, Tilt Lock Tension [ More info ]
|
| #22 | 17-99604 | GROOVE PIN (1 required per assembly) |
|
|
17-99604 - Pin, Groove [ More info ]
|
| #23 | 10-96930A 1 | BOLT ASSEMBLY (1 required per assembly) |
  |
|
10-96930A 1 - Bolt Kit [ More info ]
|
| #24 | 11-23161 | NUT (1 required per assembly) |
  |
|
11-23161 - Nut (3/8X24) [ More info ]
|
| #25 | 818771F 1 | ANCHOR BRACKET (1 required per assembly) (BLACK) POWER TRIM |
|
|
818771F 1 - 818771F 1 - BRACKET Anchor [ More info ] Unavailable Replaced by -818771T 1 |
|
|
818771T 1 - 818771T 1 - BRACKET Anchor [ More info ] Unavailable Replaced by -8M0086406 |
  |
|
8M0086406 - Bracket-Anchor [ More info ]
|
| #25 | 818771F 6 | ANCHOR BRACKET (1 required per assembly) (GRAY) POWER TRIM |
|
|
818771F 6 - 818771F 6 - BRACKET Anchor [ More info ] Unavailable Replaced by -818771T 7 |
|
|
818771T 7 - 818771T 7 - BRACKET-ANCHOR [ More info ] Unavailable Replaced by -818771T 8 |
|
|
818771T 8 - ORD 818771T 1 NLA [ More info ] Unavailable |
| #25 | 818771F 8 | ANCHOR BRACKET (1 required per assembly) (TRACKER-GRAPHITE GRAY) POWER TRIM |
|
|
818771F 8 - 818771F 8 - BRACKET Anchor [ More info ] Unavailable Replaced by -818771T 8 |
| #26 | 10-40003 77 | SCREW (6 required per assembly) POWER TRIM |
  |
|
10-40003 77 - Screw [ More info ]
|
| #27 | 12-40023 19 | WASHER (6 required per assembly) POWER TRIM |
|
|
12-40023 19 - Washer (M10) [ More info ]
|
| #28 | 11-40114 | NUT (1 required per assembly) POWER TRIM |
|
|
11-40114 - Nut (M10 X 1.5) [ More info ]
|
