Parts for Mercury Marine 75 HP (3 Cylinder) Top Cowl (Serial No. USA - 0G301751 / Belgium - 9885505 & Up)
Tap to zoom. Scroll down to order.

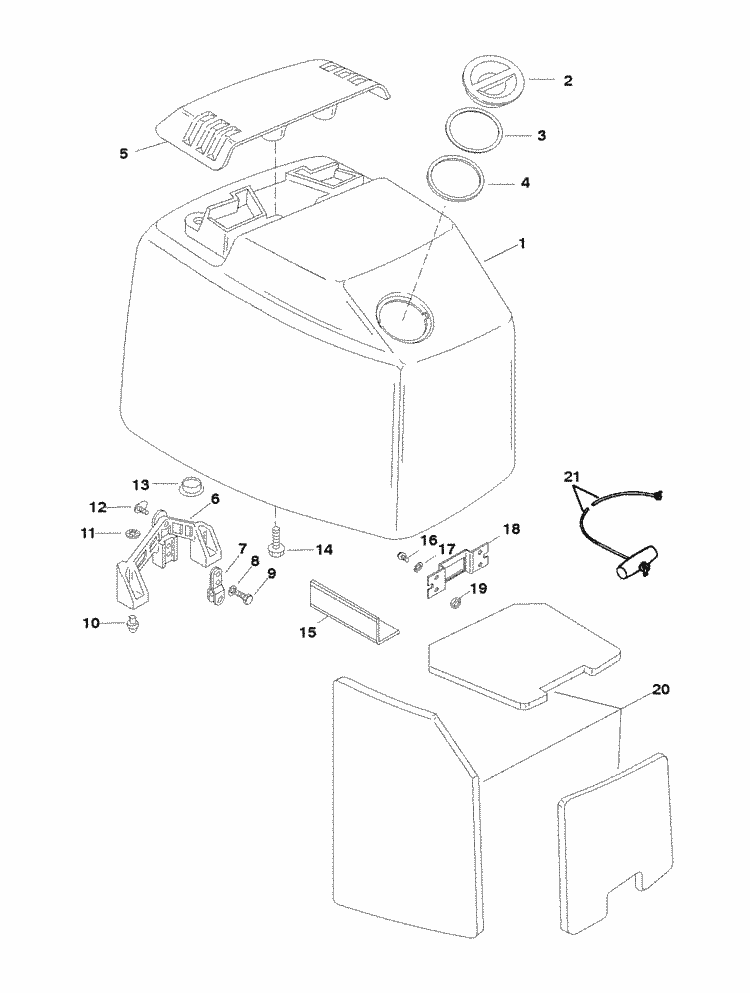

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
#1 | 4025-828353A 7 | TOP COWL ASSEMBLY (1 required per assembly) (BLACK-ELECTRIC) |
4025-828353A 7 - COWL-TOP-BLACK [ More info ] Unavailable |
||
4025-828353T 7 - Cowl - Top - Black [ More info ] Unavailable |
||
#1 | 4025-828353A 8 | TOP COWL ASSEMBLY (1 required per assembly) (SILVER-ELECTRIC) |
4025-828353A 8 - COWL-TOP-SILVER [ More info ] Unavailable |
||
#1 | 4025-828353A 9 | TOP COWL ASSEMBLY (1 required per assembly) (TRACKER-SILVER COWL/BLACK CAP) |
4025-828353A 9 - COWL-TOP-TRACKER [ More info ] Unavailable |
||
4025-828353T 9 - Cowl - Top -tracker, NLA [ More info ] Unavailable |
||
#1 | 4026-828354A 6 | TOP COWL ASSEMBLY (1 required per assembly) (BLACK-MANUAL) |
4026-828354A 6 - COWL-TOP-BLACK [ More info ] Unavailable |
||
#1 | 4026-828354A 7 | TOP COWL ASSEMBLY (1 required per assembly) (SILVER-MANUAL) |
#2 | 828716A 2 | CAP-COWL (1 required per assembly) |
#3 | 828352 | SEAL (1 required per assembly) |
#4 | 828351 1 | SEAL (1 required per assembly) |
#5 | 821875F 1 | UPPER CAP (1 required per assembly) (BLACK) |
821875F 1 - Cap - Upper, Black [ More info ] Unavailable |
||
#5 | 821875F 2 | UPPER CAP (1 required per assembly) (SILVER) |
821875F 2 - Ord 821875F 1, NLA [ More info ] Unavailable |
||
#6 | 819813 1 | BRACKET-COVER LATCH (1 required per assembly) |
819813 1 - Bracket [ More info ] Unavailable |
||
#7 | 18173 | BRACKET-ROLLER LATCH (1 required per assembly) |
18173 - Bracket Assembly [ More info ] Unavailable |
||
#8 | 13-53166 | LOCKWASHER (2 required per assembly) |
#9 | 10-90285 | SCREW (5/16-18 X 5/8) (2 required per assembly) |
#10 | F481434 | GUIDE (2 required per assembly) |
#11 | 11-91925 | PUSH NUT (4 required per assembly) |
#12 | 10-822512 | SCREW (1/4-20 X 1) (3 required per assembly) |
#13 | 19-823865 | CAP PLUG (2 required per assembly) |
#14 | 10-821300 16 | SCREW (M6 X 16) (4 required per assembly) |
#15 | 823830 | SUPPORT (2 required per assembly) |
#16 | 10-823187 1 | SCREW (M4 X 14.5) (4 required per assembly) |
#17 | 13-26995 | LOCKWASHER (4 required per assembly) |
#18 | 823394 1 | BRACKET (1 required per assembly) |
#19 | 11-823751 5 | NUT (4 required per assembly) |
#20 | 823685A 1 | SOUND BLANKET KIT (1 required per assembly) |
823685A 1 - Sound Blanket Kit [ More info ] Unavailable |
||
823685A02 - Sound Blanket Kit [ More info ] Unavailable |
||
#21 | 47341A 1 | STARTER ROPE (1 required per assembly) (MANUAL STARTING) |
47341A 1 - Rope And Handle [ More info ] Unavailable |
||
