Parts for Mercury Marine 75 HP (3 Cylinder) Top Cowl (Serial No. USA - 0G301750 / Belgium - 9885504 & Below)

Revise Search: All Models > 75 HP (3 Cylinder) > 9793577 - 0P016999 (Belgium) > Top Cowl (Serial No. USA - 0G301750 / Belgium - 9885504 & Below)

« Previous

NEED PARTS OR KITS?

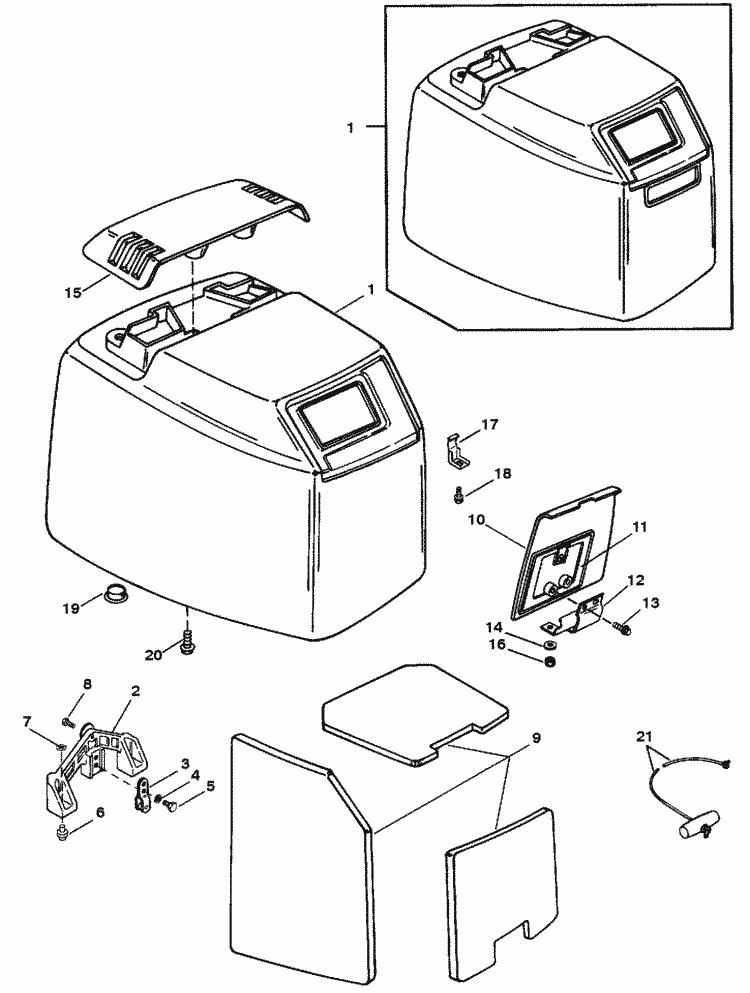

View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

Engine section

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#1	4012-822360A14	TOP COWL (1 required per assembly) (BLACK)(ELECTRIC) SEE NOTE
		4012-822360A14 - TOP COWL ASSEMBLY NLA [ More info ] Unavailable
#1	4012-822360A15	TOP COWL (1 required per assembly) (SILVER)(ELECTRIC) SEE NOTE
		4012-822360A15 - TOP COWL ASSEMBLY NLA [ More info ] Unavailable
#1	4012-822360A16	TOP COWL (1 required per assembly) (GRAY)(ELECTRIC)
		4012-822360A16 - 4012-822360A16 - TOP COWL ASSEMBLY [ More info ] Unavailable Replaced by 4012-822360A15
#1	4025-828353A12	TOP COWL (1 required per assembly) (TRACKER-GRAPHITE GRAY)(ELECTRIC)
		4025-828353A12 - TOP COWL ASSEMBLY NLA [ More info ] Unavailable
#1	4013-822361A15	TOP COWL (1 required per assembly) (BLACK)(MANUAL)
		4013-822361A15 - 4013-822361A15 - TOP COWL ASSEMBLY [ More info ] Unavailable Replaced by 4026-828354A6
		4026-828354A6 - 4026-828354A6 - ->828354T6 [ More info ] Unavailable Replaced by -828354T6
		4026-828354T 6 - Cowl - Top - Black [ More info ] $699.99 4 In Stock.
#1	4013-822361A16	TOP COWL (1 required per assembly) (GRAY)(MANUAL)
		4013-822361A16 - 4013-822361A16 - TOP COWL ASSEMBLY [ More info ] Unavailable Replaced by 4026-828354A7
		4026-828354A 7 - Top Cowl, Silver [ More info ] $195.00 7 In Stock.
		100-8M0107148 - COWL-TOP, MA [ More info ] Unavailable
#2	819813 1	BRACKET-COVER LATCH (1 required per assembly)
		819813 1 - 819813 1 - BRACKET Cover Lat [ More info ] Unavailable Replaced by -819813T 1
		819813T 1 - Bracket [ More info ] $209.92 Available to Order: Usually ships within 10 days.
#3	18173	BRACKET-ROLLER LATCH (1 required per assembly)
		18173 - 18173 - BRACKET ASSEMBLY [ More info ] Unavailable Replaced by -893763
		893763 - Roller Latch Bracket [ More info ] $30.50 Available to Order: Usually ships within 10 days.
#4	13-53166	LOCKWASHER (2 required per assembly)
		13-53166 - LockWasher - Priced Individually [ More info ] $1.70 10+ In Stock.
#5	10-90285	SCREW (2 required per assembly)
		10-90285 - Screw [ More info ] $1.70 Available to Order: Usually ships within 10 days.
#6	F481434	GUIDE (2 required per assembly)
		F481434 - Engine Cover Guide [ More info ] $17.17 Available to Order: Usually ships within 10 days.
#7	11-91925	PUSH NUT (4 required per assembly)
		11-91925 - Push Nut [ More info ] $1.10 Available to Order: Usually ships within 10 days.
#8	10-822512	SCREW (3/4 IN.) (3 required per assembly)
		10-822512 - Screw [ More info ] $7.00 Available to Order: Usually ships within 10 days.
#9	823685A 1	SOUND BLANKET KIT (1 required per assembly)
		823685A 1 - 823685A 1 - SOUND BLANKET KIT [ More info ] Unavailable Replaced by -823685A02
		823685A02 - Sound Blanket Kit [ More info ] $74.33 Available to Order: Usually ships within 10 days.
#10	821912A 1	TRAP DOOR (1 required per assembly) (BLACK) OIL INJECTED
		821912A 1 - TRAP DOOR NLA [ More info ] Unavailable
#10	821912A 2	TRAP DOOR (1 required per assembly) (SILVER) OIL INJECTED
		821912A 2 - Trap Door, Silver, NLA [ More info ] $55.00 4 In Stock.
#10	821912A 3	TRAP DOOR (1 required per assembly) (TRACKER-GRAPHITE GRAY) OIL INJECTED
		821912A 3 - Trap Door-tracker, NLA [ More info ] $59.00 2 In Stock.
#11	823967 1	SEAL-TRAP DOOR (1 required per assembly) OIL INJECTED
		823967 1 - Seal, NLA [ More info ] $6.00 10+ In Stock.
#12	17-822055 1	HINGE PIN (1 required per assembly) OIL INJECTED
		17-822055 1 - Hinge Pin, NLA [ More info ] $28.00 10+ In Stock.
#13	10-821045 12	SCREW (2 required per assembly) OIL INJECTED
		10-821045 12 - Screw [ More info ] $4.00 Available to Order: Usually ships within 10 days.
#14	12-40023 16	WASHER (2 required per assembly) OIL INJECTED
		12-40023 16 - Washer - Priced Individually [ More info ] $1.00 10+ In Stock.
#15	821875F 1	UPPER CAP (1 required per assembly) (BLACK)
		821875F 1 - 821875F 1 - CAP Upper [ More info ] Unavailable Replaced by -821875 1
		8218751 - Cap - Upper- Black [ More info ] $252.33 Available to Order: Usually ships within 10 days.
#15	821875F 2	UPPER CAP (1 required per assembly) (SILVER)
		821875F 2 - CAP Upper NLA [ More info ] Unavailable
#15	821875F 4	UPPER CAP (1 required per assembly) (GRAY)
		821875F 4 - Cap - Upper- Gray [ More info ] $60.00 1 In Stock.
#15	821875F 3	UPPER CAP (1 required per assembly) (TRACKER-GRAPHITE GRAY)
		821875F 3 - CAP Upper NLA [ More info ] Unavailable
#16	11-826833 6	NUT (2 required per assembly) ( OIL INJECTED)
		11-826833 6 - 11-826833 6 - NUT (M6) [ More info ] Unavailable Replaced by 11-40144
		11-40144 - 11-40144 - NUT (M6) [ More info ] Unavailable Replaced by 11-401386
		11-40138 6 - Nut - Priced Individually [ More info ] $4.90 10+ In Stock.

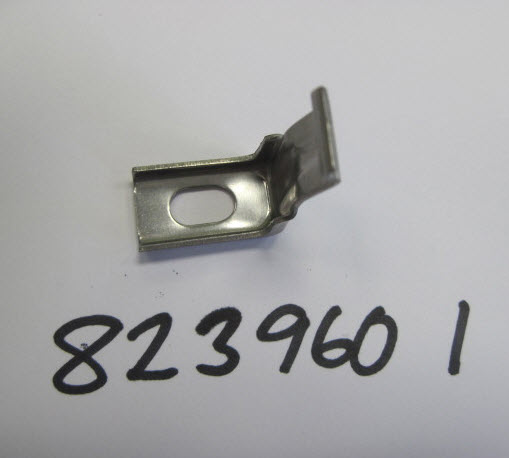

#17	823960 1	CATCH (1 required per assembly)
		823960 1 - Catch, NLA [ More info ] $5.00 10+ In Stock.
#18	10-812832	SCREW (1/2 IN.) (1 required per assembly)
		10-812832 - 10-812832 - SCREW (#10-16 x . [ More info ] Unavailable Replaced by 10-878608
		10-878608 - Screw [ More info ] $1.60 Available to Order: Usually ships within 10 days.
#19	19-823865	CAP PLUG (2 required per assembly)
		19-823865 - Cap [ More info ] $1.10 2 In Stock.
#20	10-821300 16	SCREW (4 required per assembly)
		10-821300 16 - Screw - Priced Individually [ More info ] $5.70 1 In Stock.
#21	47341A 1	STARTER ROPE (1 required per assembly) (MANUAL STARTING)
		47341A 1 - 47341A 1 - ROPE AND HANDLE K [ More info ] Unavailable Replaced by -47341A11
		47341A11 - Manual Start Rope And Handle [ More info ] $17.50 1 In Stock.
