Parts for Mercury Marine 75 HP (3 Cylinder) Starter Assembly (Manual)

Revise Search: All Models > 75 HP (3 Cylinder) > 9793577 - 0P016999 (Belgium) > Starter Assembly (Manual)

NEED PARTS OR KITS?

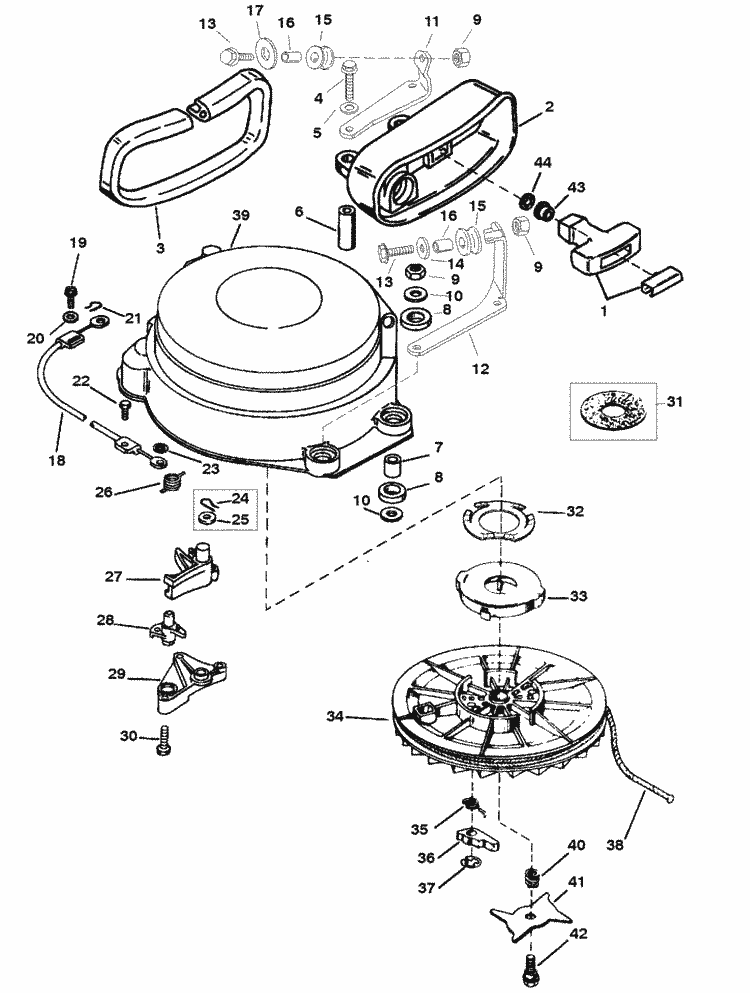

View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

Engine section

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#	816728A14	STARTER HOUSING (1 required per assembly)
		816728A14 - 816728A14 - STARTER ASSEMBLY [ More info ] Unavailable Replaced by -816728T14
		816728T14 - Starter Assembly -recoi [ More info ] $355.00 Available to Order: Usually ships within 10 days.
#1	85174A 2	HANDLE ASSEMBLY (1 required per assembly)
		85174A 2 - Handle Assembly -start [ More info ] $17.92 1 In Stock.
#2	822072 1	REST (1 required per assembly)
		822072 1 - Rest [ More info ] $30.17 Available to Order: Usually ships within 10 days.
#3	823241	SEAL (1 required per assembly)
		823241 - Seal [ More info ] $10.00 1 In Stock.
		8M0043270 - Seal [ More info ] $25.58 Available to Order: Usually ships within 10 days.
#4	10-821300 50	SCREW (M6 X 50) (2 required per assembly)
		10-821300 50 - Screw [ More info ] $4.30 $2.42 10+ In Stock.
#6	23-821702 1	SPACER (2 required per assembly)
		23-821702 1 - Spacer [ More info ] $17.10 Available to Order: Usually ships within 10 days.
#7	23-816086	BUSHING (4 required per assembly)
		23-816086 - Bushing [ More info ] $4.50 3 In Stock.
#8	25-815795	GROMMET (8 required per assembly)
		25-815795 - Grommet [ More info ] $4.00 1 In Stock.
#9	11-40026 4	NUT (4 required per assembly) (S/N-0G699128 & BELOW)
		11-40026 4 - Nut - Priced Individually [ More info ] $1.83 3 In Stock.
		11-40136 6 - Nut - Priced Individually [ More info ] $3.50 5 In Stock.
#9	11-826833 6	NUT (6 required per assembly) (S/N-0G699129 & UP)
		11-826833 6 - 11-826833 6 - NUT (M6) [ More info ] Unavailable Replaced by 11-40144
		11-40144 - 11-40144 - NUT (M6) [ More info ] Unavailable Replaced by 11-401386
		11-40138 6 - Nut - Priced Individually [ More info ] $4.90 10+ In Stock.
#10	12-69057	WASHER (6 required per assembly) S/N-0G699129 & UP
		12-69057 - Washer, (.281 X .734 X .063) [ More info ] $1.70 10 In Stock.
#11	855596	BRACKET (1 required per assembly) S/N-0G699129 & UP
		855596 - Bracket [ More info ] $18.42 1 In Stock.
#12	855597	BRACKET (1 required per assembly) S/N-0G699129 & UP
		855597 - Bracket [ More info ] $26.58 1 In Stock.
#13	10-40011129	SCREW (2 required per assembly) S/N-0G699129 & UP
		10-40011129 - Screw [ More info ] $5.10 1 In Stock.
#14	12-35462	WASHER (1 required per assembly) S/N-0G699129 & UP
		12-35462 - Washer, (.2656 X .625 X .0625) Stainless Steel [ More info ] $1.70 10+ In Stock.
#15	11704A 1	PULLEY KIT (2 required per assembly) S/N-0G699129 & UP
		11704A 1 - Pulley Kit, NLA [ More info ] $5.00 10+ In Stock.
#16	NSS	SPACER (2 required per assembly) S/N-0G699129 & UP
		NSS - NOT SOLD SEPARATE [ More info ] Unavailable
#17	12-67983	WASHER (1 required per assembly) S/N-0G699129 & UP
		12-67983 - Washer, Clamp Bracket Bolt [ More info ] $3.00 $1.68 10+ In Stock.
#18	816748 5	INTERLOCK CABLE (1 required per assembly)
		816748 5 - 816748 5 - CABLE Interlock [ More info ] Unavailable Replaced by -856754 1
		856754 1 - Cable - Interlock [ More info ] $28.33 1 In Stock.
#19	10-821428 1	SCREW (10-16 X 5/8) (1 required per assembly)
		10-821428 1 - Screw [ More info ] $1.70 2 In Stock.
#20	12-73288	WASHER (1 required per assembly)
		12-73288 - Washer, (.220 X .500 X .030) Stainless Steel [ More info ] $1.40 Available to Order: Usually ships within 10 days.
#22	10-812832	SCREW (1 required per assembly)
		10-812832 - 10-812832 - SCREW (#10-16 x . [ More info ] Unavailable Replaced by 10-878608
		10-878608 - Screw [ More info ] $1.60 Available to Order: Usually ships within 10 days.
#23	11-821027	PUSH NUT (1 required per assembly) (DESIGN I)
		11-821027 - Push Nut [ More info ] $0.60 Available to Order: Usually ships within 10 days.
#25	18-26811	COTTER PIN (1 required per assembly) DESIGN II
		18-26811 - Pigtail, GM HEI 2 Terminal [ More info ] $0.80 Available to Order: Usually ships within 10 days.
#26	24-826791	SPRING (1 required per assembly)
		24-826791 - Spring [ More info ] $5.90 Available to Order: Usually ships within 10 days.
#27	816690 2	INTERLOCK LEVER (1 required per assembly) (S/N-0G242650 & BELOW)
		816690 2 - Interlock Lever, NLA [ More info ] $6.00 1 In Stock.
#27	816690 3	INTERLOCK LEVER (1 required per assembly) (S/N-0G242651 & UP)
		816690 3 - Interlock Lever [ More info ] $26.00 Available to Order: Usually ships within 10 days.
#28	816712 1	CAM (1 required per assembly)
		816712 1 - CAM [ More info ] $6.00 1 In Stock.
		816712T01 - Cam [ More info ] $17.92 Available to Order: Usually ships within 10 days.
#29	816711	RETAINER (1 required per assembly)
		816711 - Retainer [ More info ] $13.00 Available to Order: Usually ships within 10 days.
#30	10-818249 1	SCREW (10-16 X 1) (3 required per assembly)
		10-818249 1 - Screw [ More info ] $3.60 Available to Order: Usually ships within 10 days.

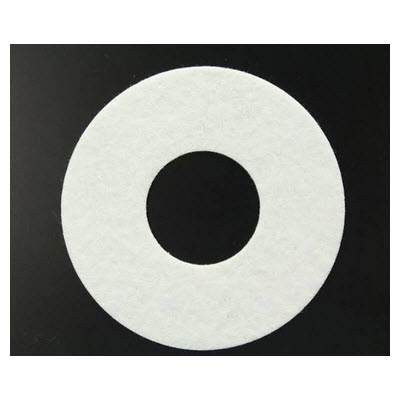

#31	90478	FELT PAD (1 required per assembly) (DESIGN I)
		90478 - 90478 - PAD [ More info ] Unavailable Replaced by -833161
		833161 - 833161 - FELT PAD [ More info ] Unavailable Replaced by -833161T
		833161T - Felt Pad [ More info ] $5.00 Available to Order: Usually ships within 10 days.
#32	13-826229	WASHER (1 required per assembly) (DESIGN II)
		13-826229 - Spring, Lockwasher [ More info ] $23.17 Available to Order: Usually ships within 10 days.
#33	24-86857 1	SPRING (1 required per assembly)
		24-86857 1 - 24-86857 1 - SPRING [ More info ] Unavailable Replaced by 24-86857T01
		24-86857T01 - Spring [ More info ] $43.42 2 In Stock.
#34	50-825269A 1	STARTER SHEAVE (1 required per assembly)
		50-825269A 1 - 50-825269A 1 - SHEAVE Starter [ More info ] Unavailable Replaced by 50-825269T01
		50-825269T01 - Starter Sheave [ More info ] $68.33 1 In Stock.
#35	24-86851 1	SPRING (2 required per assembly)
		24-86851 1 - 24-86851 1 - SPRING [ More info ] Unavailable Replaced by 24-86851 2
		24-86851 2 - 24-86851 2 - SPRING [ More info ] Unavailable Replaced by 24-86851T02
		24-86851T02 - Spring - Priced Individually [ More info ] $4.30 3 In Stock.
#36	86850 1	CAM (2 required per assembly)
		86850 1 - Cam Dog [ More info ] $18.25 Available to Order: Usually ships within 10 days.
#37	53-86849 1	RETAINING RING (2 required per assembly)
		53-86849 1 - 53-86849 1 - RING Retaining [ More info ] Unavailable Replaced by 53-86849T01
		53-86849T01 - Ring - Priced Individually [ More info ] $4.60 2 In Stock.
#38	50-12066A 9	STARTER ROPE (1 required per assembly)
		50-12066A 9 - 50-12066A 9 - ROPE [ More info ] Unavailable Replaced by 50-12066Q 9
		50-12066Q 9 - 50-12066Q 9 - ROPE [ More info ] Unavailable Replaced by 50-12066Q10
		50-12066Q10 - Starter Rope - Priced Individually [ More info ] $11.73 10+ In Stock.
		18-4915 - Pull Rope, 50-12066Q9 [ More info ] $12.06 3 In Stock.
		50-12066K10 - Starter Rope - Priced Individually [ More info ] $11.73 3 In Stock.
#39	816728 5	STARTER HOUSING (1 required per assembly)
		816728 5 - 816728 5 - HOUSING [ More info ] Unavailable Replaced by -816728T05
		816728T05 - Starter Housing [ More info ] $167.58 Available to Order: Usually ships within 10 days.
#40	24-86852 1	SPRING (1 required per assembly)
		24-86852 1 - 24-86852 1 - SPRING Cam [ More info ] Unavailable Replaced by 24-86852 3
		24-86852 3 - Spring [ More info ] $7.00 Available to Order: Usually ships within 10 days.
#41	86853 1	CAM (1 required per assembly)
		86853 1 - 86853 1 - CAM [ More info ] Unavailable Replaced by -86853T01
		86853T01 - Cam [ More info ] $8.60 Available to Order: Usually ships within 10 days.
#42	10-826253	SCREW (1/4-20) (1 required per assembly)
		10-826253 - Screw [ More info ] $3.80 Available to Order: Usually ships within 10 days.
#43	42690	BUSHING (1 required per assembly)
		42690 - 42690 - BUSHING [ More info ] Unavailable Replaced by -8M0183792
		8M0183792 - ROPE BUSHING [ More info ] Unavailable
#44	53-818853	RETAINING RING (1 required per assembly)
		53-818853 - Ring - Retaining [ More info ] $1.70 2 In Stock.
