Parts for Mercury Marine 75 HP (3 Cylinder) Starter Motor

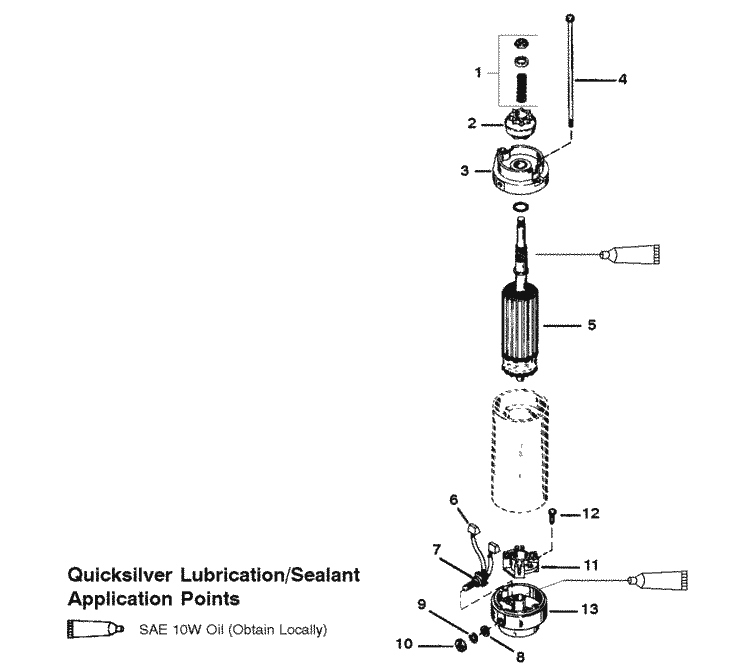

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| # | 50-66015 | STARTER MOTOR ASSEMBLY (1 required per assembly) |
 |
|
50-66015 - 50-66015 - STARTER MOTOR ASS [ More info ] Unavailable Replaced by 50-660152 |
|
|
50-660152 - 50-660152 - ->66015T1 [ More info ] Unavailable Replaced by -66015T1 |
  |
|
50-66015T1 - 50-66015T1 - ->893891T [ More info ] Unavailable Replaced by -893891T |
  |
|
50-893891T - Starter Assembly [ More info ]
|
  |
|
18-5642 - Starter 50-66015 See Detail Page for Important Information [ More info ]
|
  |
|
18-5602 - Starter, 50-67341 [ More info ]
|
  |
|
5375 - Starter, 50-66015, 10 Tooth [ More info ]
|
| #1 | 90643 | DRIVE KIT (1 required per assembly) |
  |
|
90643 - Drive Retainer Kit [ More info ]
|
| #2 | 68575 | DRIVE ASSEMBLY (1 required per assembly) |
  |
|
68575 - 68575 - DRIVE ASSEMBLY [ More info ] Unavailable Replaced by -685753 |
  |
|
|
  |
|
18-5656 - Drive Assembly, 385949, 68575 3 [ More info ]
|
  |
|
DV396 - Starter Drive [ More info ]
|
  |
|
DV377 - Starter Drive, 68575 [ More info ]
|
| #3 | 75660 | PLATE (1 required per assembly) |
  |
|
75660 - Drive End Cap [ More info ]
|
  |
|
18-5674 - Drive Assembly, 387683, 75661 [ More info ]
|
| #4 | 10-75385 | THRU BOLT (2 required per assembly) |
|
|
10-75385 - Thru Bolt, NLA [ More info ]
|
| #5 | 75386 | ARMATURE (1 required per assembly) |
|
|
75386 - ARMATURE NLA [ More info ] Unavailable |
| #6 | 75384 | BRUSH SET (1 required per assembly) |
  |
|
75384 - 75384 - BRUSH/SPRING KIT [ More info ] Unavailable Replaced by -898265016 |
  |
|
898265016 - BRUSH/SPRING KIT [ More info ] Unavailable |
  |
|
18-5697 - Brush Kit, 385952, 75384 [ More info ]
|
  |
|
0433850 - Brush And Spring Set [ More info ]
|
  |
|
0385952 - Brush & Spring Set [ More info ]
|
  |
|
BK900 - Brush Kit [ More info ]
|
| #7 | 23-57387 | BUSHING (1 required per assembly) |
|
|
23-57387 - Bushing - Priced Individually [ More info ]
|
| #9 | 13-26992 | LOCKWASHER (1 required per assembly) |
  |
|
13-26992 - LockWasher - Priced Individually [ More info ]
|
| #10 | 11-20890 | NUT (1 required per assembly) |
  |
|
11-20890 - Nut (1/4 x20) [ More info ]
|
| #11 | 61787 | BRUSH HOLDER (2 required per assembly) |
  |
|
61787 - Brush Holder [ More info ]
|
  |
|
898265014 - Brush Holder [ More info ]
|
| #12 | NSS | SCREW (AMER. BOSCH #02441-22-SC-30SM DRIVE TIGHT (2 required per assembly) |
|
|
NSS - NOT SOLD SEPARATE [ More info ] Unavailable |
| #13 | 15386 | END CAP (1 required per assembly) |
  |
|
15386 - 15386 - END CAP [ More info ] Unavailable Replaced by -15386001 |
  |
|
15386001 - END CAP [ More info ] Unavailable |
  |
|
SR398 - Repair Kit [ More info ]
|
  |
|
SR380 - Outboard Starter Repair Kit [ More info ]
|
