Parts for Mercury Marine 75 HP (3 Cylinder) Power Trim (Yellow Fill Plug) Serial No. USA - 0G360003 / Belgium - 9934137 &u

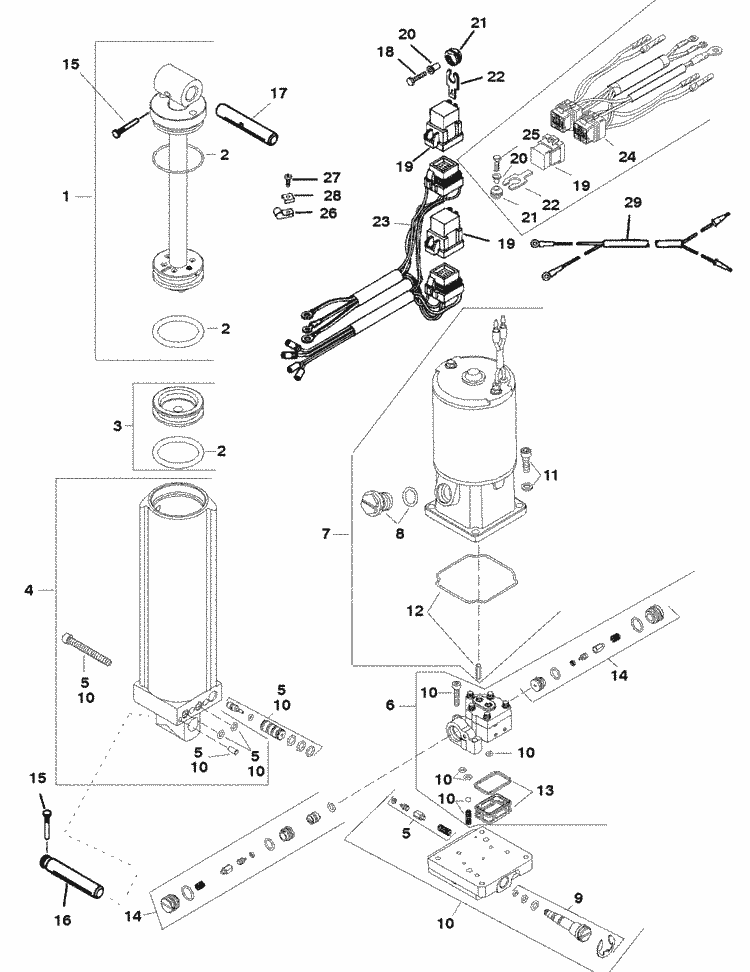

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| # | 25-809880A 1 | O RING KIT (COMPLETE TRIM) (1 required per assembly) |
  |
|
25-809880A 1 - 25-809880A 1 - O-RING KIT [ More info ] Unavailable Replaced by 25-893914A02 |
  |
|
25-893914A02 - O-RING KIT NLA [ More info ] Unavailable |
  |
|
25-8M0171820 - O-Ring Kit, Trim [ More info ]
|

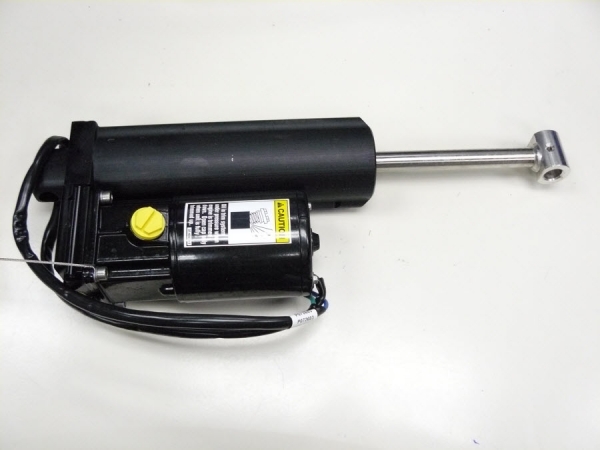

| # | 830250A 3 | POWER TRIM PUMP (1 required per assembly) |
  |
|
830250A 3 - 830250A 3 - PUMP ASSEMBLY Pow [ More info ] Unavailable Replaced by -830250T 3 |
  |
|
830250T 3 - 830250T 3 - PUMP ASSEMBLY Pow [ More info ] Unavailable Replaced by -830250T 5 |
  |
|
830250T 5 - 830250T 5 - PUMP ASSEMBLY Pow [ More info ] Unavailable Replaced by -830250T08 |
  |
|
830250T08 - 830250T08 - PUMP ASSEMBLY Pow [ More info ] Unavailable Replaced by -898447T01 |
  |
|
898447T01 - 898447T01 - PUMP ASSEMBLY Pow [ More info ] Unavailable Replaced by -8M0055014 |
  |
|
8M0055014 - 8M0055014 - POWER TRIM ASSY [ More info ] Unavailable Replaced by -8M0090335 |
  |
|
8M0090335 - 8M0090335 - POWER TRIM ASSEMB [ More info ] Unavailable Replaced by -8M0171818 |
  |
|
8M0171818 - Power Trim Assembly [ More info ]
|
  |
|
18-6777 - Tilt & Trim Motor [ More info ]
|
  |
|
6276 - Tilt Trim Motor, 809885A1, A2 [ More info ]
|
  |
|
TT2003 - Complete Trim Tilt System Mercury Single Ram 2-Wire Trim Motor [ More info ]
|
| #1 | 811666A 1 | SHOCK ROD KIT (1 required per assembly) |
 |
|
811666A 1 - 811666A 1 - SHOCK ROD KIT [ More info ] Unavailable Replaced by -893915A01 |
|
|
893915A01 - 893915A01 - SHOCK ROD KIT [ More info ] Unavailable Replaced by -8M0005542 |
|
|
8M0005542 - 8M0005542 - SHOCK ROD KIT [ More info ] Unavailable Replaced by -8M0089942 |
  |
|
8M0089942 - 8M0089942 - SHOCK ROD KIT [ More info ] Unavailable Replaced by -8M0171821 |
|
|
8M0171821 - SHOCK ROD KIT [ More info ]
|
| #2 | 25-809872A 2 | O RING REBUILD KIT (1 required per assembly) |
|
|
25-809872A 2 - 25-809872A 2 - O-RING KIT Rebuil [ More info ] Unavailable Replaced by 25-893902A01 |
  |
|
25-893902A01 - 25-893902A01 - O-RING KIT [ More info ] Unavailable Replaced by -8M0171819 |
  |
|
25-8M0171819 - O-Ring Kit [ More info ]
|
| #3 | 810776A 1 | MEMORY PISTON ASSEMBLY (1 required per assembly) |
|
|
810776A 1 - PISTON ASSEMBLY M [ More info ] Unavailable |
| #4 | 811669A 1 | CYLINDER ASSEMBLY (1 required per assembly) |
|
|
811669A 1 - 811669A 1 - CYLINDER ASSEMBLY [ More info ] Unavailable Replaced by -893916A01 |
  |
|
893916A01 - CYLINDER ASSEMBLY NLA [ More info ] Unavailable |
  |
|
8M0055015 - Trim Cylinder Shell Only [ More info ]
|
| #5 | 809873A 1 | TRIM LIMIT VALVE KIT (1 required per assembly) |
|
|
809873A 1 - 809873A 1 - VALVE KIT Trim Li [ More info ] Unavailable Replaced by -893905A02 |
|
|
893905A02 - VALVE KIT NLA [ More info ] Unavailable |
|
|
8M0090404 - Valve Kit Trim Limit [ More info ]
|
| #6 | 809874A 1 | PUMP ASSEMBLY (1 required per assembly) |
|
|
809874A 1 - 809874A 1 - PUMP ASSEMBLY [ More info ] Unavailable Replaced by -893906A02 |
|
|
893906A02 - PUMP ASSEMBLY NLA [ More info ] Unavailable |
  |
|
832021A 9 - Pump and Motor Assembly, See Detail Page for Important Info [ More info ]
|
|
|
8M0055019 - Pump Assembly Kit [ More info ]
|
| #7 | 809885A 1 | MOTOR KIT (1 required per assembly) |
|
|
809885A 1 - 809885A 1 - MOTOR KIT [ More info ] Unavailable Replaced by -809885A 2 |
  |
|
809885A 2 - 809885A 2 - MOTOR KIT [ More info ] Unavailable Replaced by -893907A02 |
  |
|
893907A02 - Motor Kit [ More info ]
|
| #8 | 22-813435 1 | RESERVOIR PLUG (1 required per assembly) |
  |
|
22-813435 1 - Reservoir Plug [ More info ]
|
| #9 | 813442A 2 | MANUAL RELEASE ASSEMBLY (1 required per assembly) |
  |
|
813442A 2 - 813442A 2 - MANUAL RELEASE AS [ More info ] Unavailable Replaced by -893929A01 |
  |
|
893929A01 - Relief Valve [ More info ]
|
  |
|
18-6751 - Relief Valve, 893929A01 [ More info ]
|
| #10 | 809875A 1 | MANIFOLD KIT (1 required per assembly) |
  |
|
809875A 1 - 809875A 1 - MANIFOLD KIT [ More info ] Unavailable Replaced by -893909A02 |
|
|
893909A02 - MANIFOLD KIT NLA [ More info ] Unavailable |
  |
|
8M0055018 - Trim Manifold Kit [ More info ]
|
| #11 | 10-809876A 1 | SCREW KIT (MOTOR) (1 required per assembly) |
|
|
10-809876A 1 - Screw Kit [ More info ]
|
| #12 | 809877A 1 | DRIVE SHAFT (1 required per assembly) |
  |
|
809877A 1 - Drive Shaft Seal Kit [ More info ]
|
| #13 | 809878A 1 | FILTER KIT (1 required per assembly) |
|
|
809878A 1 - 809878A 1 - FILTER KIT [ More info ] Unavailable Replaced by -893912A02 |
|
|
893912A02 - FILTER KIT [ More info ] Unavailable |
| #14 | 809879A 1 | P.O. CHECK ASSEMBLY KIT (1 required per assembly) |
  |
|
809879A 1 - 809879A 1 - POPPET KIT [ More info ] Unavailable Replaced by -893913A02 |
|
|
893913A02 - Poppet Kit [ More info ]
|
| #15 | 17-821539 | GROOVE PIN (2 required per assembly) |
  |
|
17-821539 - Pin, Trilobe, Groove [ More info ]
|
| #16 | 17-818898 | ANCHOR PIN (1 required per assembly) |
  |
|
17-818898 - Anchor Pin [ More info ]
|
| #17 | 99625 1 | SHAFT (1 required per assembly) |
  |
|
99625 1 - 99625 1 - SHAFT [ More info ] Unavailable Replaced by -99625002 |
  |
|
99625002 - Upper Shaft [ More info ]
|

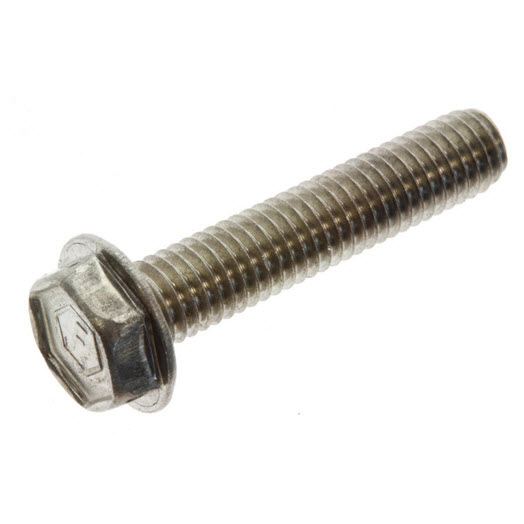

| #18 | 10-40011109 | SCREW (M6 X 25) (2 required per assembly) (USA-0G437999/BEL-9926999 & BELOW) |
  |
|
10-40011109 - Screw [ More info ]
|
| #19 | 828151A 1 | RELAY (2 required per assembly) |
  |
|
828151A 1 - 828151A 1 - RELAY ASSEMBLY [ More info ] Unavailable Replaced by -882751A 1 |
  |
|
882751A 1 - Trim Relay Assembly [ More info ]
|
  |
|
18-5849 - Relay, 882751A1 [ More info ]
|
  |
|
|
| #20 | 23-818968 | BUSHING (2 required per assembly) |
|
|
23-818968 - BUSHING [ More info ] Unavailable |
| #21 | 25-818967 | GROMMET (2 required per assembly) |
|
|
25-818967 - 25-818967 - GROMMET [ More info ] Unavailable Replaced by -8M0207785 |
|
|
25-8M0207785 - GROMMET [ More info ] Unavailable |
| #22 | 828102 | BRACKET (2 required per assembly) |
  |
|
828102 - Relay Mounting Bracket [ More info ]
|
|
|
8M0207771 - BRACKET [ More info ] Unavailable |

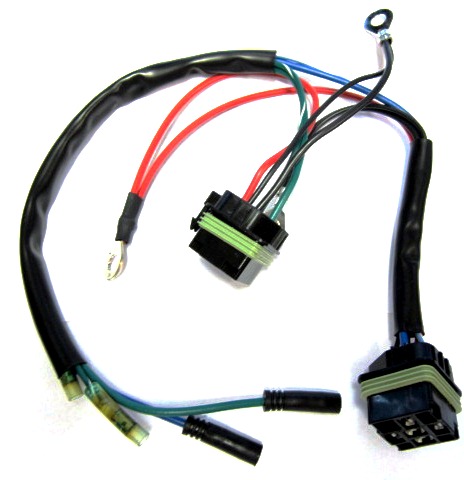

| #23 | 84-819514A 4 | HARNESS ASSEMBLY (1 required per assembly) (USA-0G437999/BEL-9926999 & BELOW) |
  |
|
84-819514A 4 - HARNESS ASSEMBLY [ More info ] Unavailable |
| #24 | 84-819514A15 | HARNESS ASSEMBLY (1 required per assembly) USA-0G438000/BEL-9927000 & UP |
  |
|
84-819514A15 - Harness Assembly [ More info ]
|
| #25 | 10-821291 25 | SCREW (M6 X 25) (2 required per assembly) USA-0G438000/BEL-9927000 & UP |
  |
|
10-821291 25 - Screw [ More info ]
|
| #26 | 54-22740 | CLAMP (2 required per assembly) |
|
|
|
| #27 | 10-812832 1 | SCREW (10-16 X 3/8) (2 required per assembly) |
|
|
10-812832 1 - 10-812832 1 - SCREW (#10-16 x . [ More info ] Unavailable Replaced by 10-878609 |
  |
|
10-878609 - Screw [ More info ]
|
| #28 | 69205 | C WASHER (2 required per assembly) |
  |
|
69205 - 69205 - C WASHER [ More info ] Unavailable Replaced by -8M0084613 |
|
|
8M0084613 - Washer [ More info ]
|

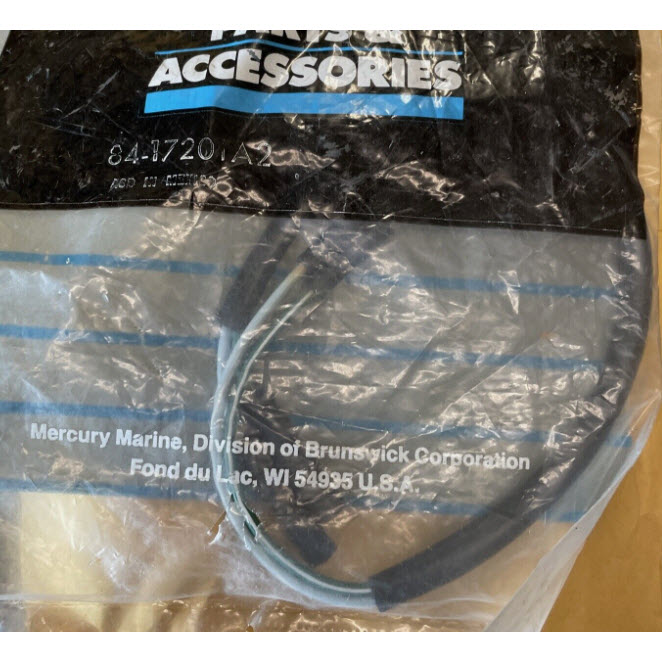

| #29 | 84-17201A 2 | TRIM HARNESS ASSEMBLY (1 required per assembly) (USE WHERE APPLICABLE) |
  |
|
84-17201A 2 - Cable Assembly, NLA [ More info ]
|
