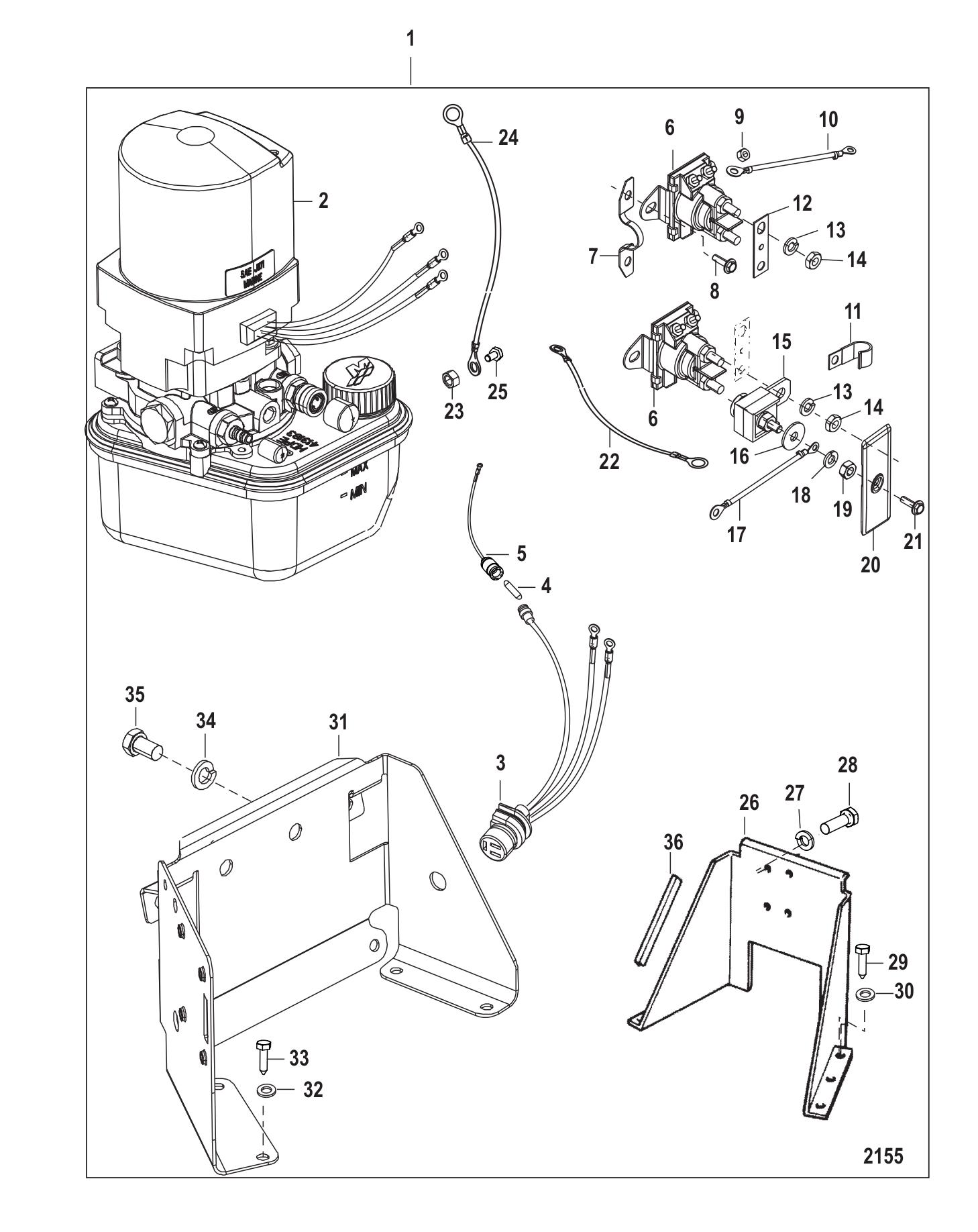

Parts for Bravo XZ One MerCruiser Outdrive Units Trim Pump Assembly (Complete)
Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| #1 | 14336A17 | PUMP ASSEMBLY TRIM COMPLETE (Bottom Mounted Reservoir) (Design I - Small Manufacturing Decal On Top Of Motor Cover And Wires Will Have White Sprial Line) (1 required per assembly) — Replaces: 14336A9, 14336A15 |
  |
14336A17 - Trim Pump Assembly [ More info ] Unavailable |
|
  |
14336A22 - Trim Pump Assembly [ More info ] Unavailable |
|
  |
14336A28 - Trim Pump [ More info ] Unavailable |
|
  |
865380A02 - Trim Pump [ More info ] Unavailable |
|
  |
865380A05 - Trim Pump [ More info ] Unavailable |
|
  |
865380A15 - Trim Pump [ More info ] Unavailable |
|
  |
|
865380A25 - Trim Pump Assembly [ More info ]
|
  |
|
18-6813 - Trim Motor, Pump and Reservior [ More info ]
|
  |
|
18-6753 - Pump Assembly, 14336A9 [ More info ]
|
  |
|
18-6752 - Trim Pump Assembly Complete, Non Quick Connect, 14336A9 [ More info ]
|
  |
|
18-6747 - Tilt Trim Pump Assembly Complete, Quick Connect [ More info ]
|
  |
|
9C-108SS - Trim Pump Assembly Stainless Steel Bracket, MerCruiser 865380A25, 1986 to Present [ More info ]
|
  |
|
9C-108 - Trim Pump Assembly, MerCruiser 865380A25, 1986 to Present [ More info ]
|
  |
|
6285 - Trim Pump Assembly Complete [ More info ]
|
  |
|
6275 - Tilt Trim Motor [ More info ]
|
| #1 | 14336A22 | PUMP ASSEMBLY TRIM COMPLETE (Bottom Mounted Reservoir) (Design I - Small Manufacturing Decal On Top Of Motor Cover And Wires Will Have White Sprial Line) (1 required per assembly) — Replaces: 14336A15, 14336A17 |
| #1 | 14336A28 | PUMP ASSEMBLY TRIM COMPLETE (Top Mounted Reservoir) (Design I - Small Manufacturing Decal On Top Of Motor Cover And Wires Will Have White Sprial Line) (1 required per assembly) — Replaces: 14336A17, 14336A22 |
| #1 | 865380A02 | PUMP ASSEMBLY TRIM - COMPLETE COMPLETE (Top Mounted Reservoir) (Design II - Etched Manufacturing Numbers On Top Of Cover And Wires Will Have White Straight Line) (1 required per assembly) — Replaces: 14336A22, 14336A28 |
| #2 | 14336A25 | PUMP/MOTOR ASSEMBLY (See Pump/Motor (Bottom Mounted Reservoir) (Design I) Section For Parts Breakdown) (1 required per assembly) — Replaces: 14336A8, 14336A20 |
  |
14336A25 - Pump/Motor Assembly [ More info ] Unavailable |
|
  |
14336A31 - Pump/Motor Assembly [ More info ] Unavailable |
|
  |
865380A03 - Pump/Motor Assembly [ More info ] Unavailable |
|
  |
|
865380A13 - Pump/Motor Assembly [ More info ]
|
  |
|
18-6769-1 - Tilt Trim Motor [ More info ]
|
  |
|
18-6274 - Tilt Trim Motor [ More info ]
|
| #2 | 14336A31 | PUMP/MOTOR ASSEMBLY (See Pump/Motor (Top Mounted Reservoir) (Design I) Section For Parts Breakdown) (1 required per assembly) — Replaces: 14336A20, 14336A25 |
| #2 | 865380A03 | PUMP/MOTOR ASSY (See Pump/Motor (Top Mounted Reservoir) (Design II) Section For Parts Breakdown) (1 required per assembly) — Replaces: 14336A25, 14336A31 |
| #3 | 79147A3 | HARNESS ASSEMBLY (1 required per assembly) |
  |
|
84-79147A 3 - Harness Assembly [ More info ]
|
| #4 | 8M0207796 | FUSE-20 AMP @5 (1 required per assembly) — Replaces: 79091 |
  |
|
888M0207796 - FUSE-20 AMP Note: Priced Individually [ More info ]
|
| #5 | 95084A2 | CABLE ASSEMBLY (1 required per assembly) |
  |
|
84-95084A 2 - Cable Assembly [ More info ]
|
| #6 | 8M0185622 | SOLENOID (2 required per assembly) — Replaces: 96158T |
  |
|
8M0185622 - Solenoid, Starter or Trim [ More info ]
|
  |
|
18-5817 - Solenoid 89-96158 [ More info ]
|
  |
|
89-02718 - Solenoid, 89-96158T [ More info ]
|
  |
|
SW058 - Solenoid [ More info ]
|
| #7 | 88075 | RETAINER (1 required per assembly) |
  |
|
88075 - Retainer [ More info ]
|
| #8 | 41508 | SCREW (.250-20 X .500) STAINLESS STEEL (4 required per assembly) |
  |
|
10-41508 - Screw [ More info ]
|
| #9 | 26419 | NUT (#8-32) BRASS (4 required per assembly) |
  |
|
11-26419 - Nut (#8-32) (brass) [ More info ]
|
| #10 | 86322A24 | CABLE ASSEMBLY (4.00 INCHES) (1 required per assembly) |
  |
|
84-86322A24 - Cable Assembly [ More info ]
|
| #11 | 55098 | J CLIP (1 required per assembly) |
  |
|
54-55098 - J Clip - Priced Individually [ More info ]
|
  |
|
54-8M0024808 - J-CLIP [ More info ] Unavailable |
| #12 | 94275 | LINK CONNECTOR (1 required per assembly) |
  |
|
94275 - Link, Solenoid to Solenoid [ More info ]
|
| #13 | 26992 | LOCKWASHER (.250) STAINLESS STEEL (4 required per assembly) |
  |
|
13-26992 - LockWasher - Priced Individually [ More info ]
|
| #14 | 94330 | NUT (.250-20) BRASS (4 required per assembly) |
  |
|
11-94330 - Nut, Brass (1/4-20) [ More info ]
|
| #15 | 79023T10 | FUSE ASSEMBLY 110 AMPERE (1 required per assembly) — Replaces: 79023A10 |
  |
|
88-79023T10 - Fuse, 110 Amp [ More info ]
|
| #16 | 25908 | WASHER (.265 X .812 X .0625) (1 required per assembly) |
  |
|
12-25908 - Washer, (.265 X .812 X .0625) [ More info ]
|
| #17 | 79139A12 | CABLE ASSEMBLY RED-POSITIVE BATTERY - POSITIVE (1 required per assembly) |
  |
|
84-79139A12 - Wire Assembly [ More info ]
|
| #18 | 26992 | LOCKWASHER (.250) STAINLESS STEEL (1 required per assembly) |
| #19 | 21825 | NUT (.250-28) (1 required per assembly) |
  |
|
11-21825 - Nut, (1/4x28) [ More info ]
|
| #20 | 861680 | INSULATOR (1 required per assembly) |
  |
|
85-861680 - Insulator [ More info ]
|
| #21 | 48409 | SCREW (#10-16 X .625) STAINLESS STEEL (1 required per assembly) |
  |
|
10-48409 - Screw - Priced Individually [ More info ]
|
| #22 | 86322A15 | CABLE ASSEMBLY (5.50 INCHES) BLACK (1 required per assembly) |
  |
|
84-86322A15 - Wire Assembly [ More info ]
|
| #23 | 8M0204668 | NUT (.312-18) (1 required per assembly) — Replaces: 68292 |
  |
|
11-8M0204668 - NUT @5 [ More info ] Unavailable |
| #24 | 79138A9 | CABLE ASSEMBLY (6.00 FEET) BLACK-NEGATIVE BATTERY - NEGATIVE (1 required per assembly) |
  |
|
84-79138A 9 - Wire Assembly [ More info ]
|
| #25 | 90285 | SCREW (.312-18 X .625) (1 required per assembly) |
  |
|
10-90285 - Screw [ More info ]
|
| #26 | 862548A1 | BRACKET KIT (14336A9 - Floor Mounted Only) (1 required per assembly) — Replaces: 42419A1 |
  |
|
862548A 1 - Bracket Kit [ More info ]
|
  |
|
18-6750 - Bracket, 862548A1 [ More info ]
|
  |
|
18-6749 - Bracket, 862548A1 [ More info ]
|
  |
|
6286 - Bracket,862548A1 [ More info ]
|
| #27 | 39107 | LOCKWASHER (.312-24) (4 required per assembly) |
  |
|
13-39107 - LockWasher - Priced Individually [ More info ]
|
| #28 | 35386 | SCREW (.312-18 X 1.00) (4 required per assembly) |
  |
|
10-35386 - Screw - Priced Individually [ More info ]
|
| #29 | 59784 | SCREW (.250-10 X 1.00) (6 required per assembly) |
  |
|
10-59784 - Screw [ More info ] Unavailable |
| #30 | 8M0204649 | WASHER @10 (6 required per assembly) — Replaces: 29245 |
  |
|
12-8M0204649 - WASHER Note: Priced Individually [ More info ]
|
| #31 | 862548A1 | BRACKET KIT (14336A15/A17/A22 Floor/Transom Mounted) (1 required per assembly) |
| #32 | 8M0204649 | WASHER @10 (4 required per assembly) — Replaces: 29245 |
| #33 | 59784 | SCREW (.250-10 X 1.00) (4 required per assembly) |
| #34 | 35048 | LOCKWASHER (.375) (2 required per assembly) |
  |
|
13-35048 - LockWasher - Priced Individually [ More info ]
|
| #35 | 98260 | SCREW (.375-16 X .620) (2 required per assembly) |
  |
|
10-98260 - Screw [ More info ]
|
| #36 | 58491 | CHANNEL-RUBBER (2 required per assembly) |
  |
|
58491 - Channel Rubber, NLA [ More info ]
|
