Parts for Blackhawk MerCruiser Outdrive Units Hydraulic Pump & Bracket

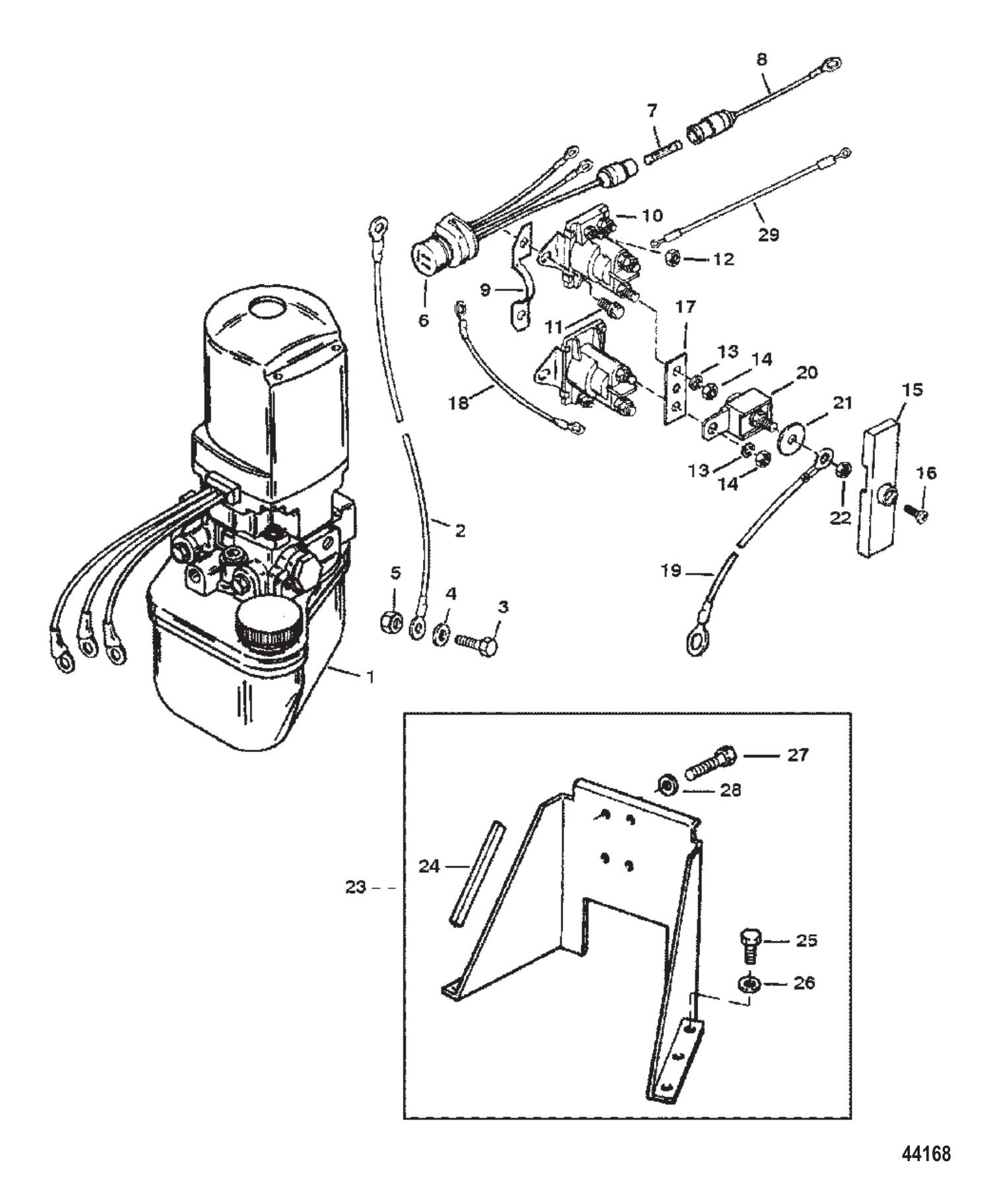

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| #- | 14336A17 | PUMP ASSY-TRIM (INCLUDES ALL PARTS ON THIS PAGE) (1 required per assembly) — Replaces: 14336A9, 14336A15 |
  |
14336A17 - Trim Pump Assembly [ More info ] Unavailable |
|
  |
14336A22 - Trim Pump Assembly [ More info ] Unavailable |
|
  |
14336A28 - Trim Pump [ More info ] Unavailable |
|
  |
865380A02 - Trim Pump [ More info ] Unavailable |
|
  |
865380A05 - Trim Pump [ More info ] Unavailable |
|
  |
865380A15 - Trim Pump [ More info ] Unavailable |
|
  |
|
865380A25 - Trim Pump Assembly [ More info ]
|
  |
|
18-6813 - Trim Motor, Pump and Reservior [ More info ]
|
  |
|
18-6753 - Pump Assembly, 14336A9 [ More info ]
|
  |
|
18-6752 - Trim Pump Assembly Complete, Non Quick Connect, 14336A9 [ More info ]
|
  |
|
18-6747 - Tilt Trim Pump Assembly Complete, Quick Connect [ More info ]
|
  |
|
9C-108SS - Trim Pump Assembly Stainless Steel Bracket, MerCruiser 865380A25, 1986 to Present [ More info ]
|
  |
|
9C-108 - Trim Pump Assembly, MerCruiser 865380A25, 1986 to Present [ More info ]
|
  |
|
6285 - Trim Pump Assembly Complete [ More info ]
|
  |
|
6275 - Tilt Trim Motor [ More info ]
|
| #1 | 14336A25 | PUMP/MOTOR ASSY (SEE "HYDRAULIC PUMP" FOR BREAKDOWN) (1 required per assembly) — Replaces: 14336A8, 14336A20 |
  |
14336A25 - Pump/Motor Assembly [ More info ] Unavailable |
|
  |
14336A31 - Pump/Motor Assembly [ More info ] Unavailable |
|
  |
865380A03 - Pump/Motor Assembly [ More info ] Unavailable |
|
  |
|
865380A13 - Pump/Motor Assembly [ More info ]
|
  |
|
18-6769-1 - Tilt Trim Motor [ More info ]
|
  |
|
18-6274 - Tilt Trim Motor [ More info ]
|
| #2 | 79138A9 | WIRE ASSY (1 required per assembly) |
  |
|
84-79138A 9 - Wire Assembly [ More info ]
|
| #3 | 90285 | SCREW (1 required per assembly) |
  |
|
10-90285 - Screw [ More info ]
|
| #4 | 56720 | WASHER (1 required per assembly) |
  |
|
12-56720 - Washer, (.330 X .750 X .060) Stainless Steel [ More info ]
|
| #5 | 8M0204668 | NUT @5 (1 required per assembly) — Replaces: 68292 |
  |
|
11-8M0204668 - NUT @5 [ More info ] Unavailable |
| #6 | 79147A3 | HARNESS ASSY (1 required per assembly) |
  |
|
84-79147A 3 - Harness Assembly [ More info ]
|
| #7 | 8M0207796 | FUSE-20 AMP @5 (1 required per assembly) — Replaces: 79091 |
  |
|
888M0207796 - FUSE-20 AMP Note: Priced Individually [ More info ]
|
| #8 | 95084A2 | CABLE ASSEMBLY (1 required per assembly) |
  |
|
84-95084A 2 - Cable Assembly [ More info ]
|
| #9 | 88075 | RETAINER (1 required per assembly) |
  |
|
88075 - Retainer [ More info ]
|
| #10 | 8M0185622 | SOLENOID (2 required per assembly) — Replaces: 96158, 96158T |
  |
|
8M0185622 - Solenoid, Starter or Trim [ More info ]
|
  |
|
18-5817 - Solenoid 89-96158 [ More info ]
|
  |
|
89-02718 - Solenoid, 89-96158T [ More info ]
|
  |
|
SW058 - Solenoid [ More info ]
|
| #11 | 41508 | SCREW (4 required per assembly) |
  |
|
10-41508 - Screw [ More info ]
|
| #12 | 26419 | NUT @5 (4 required per assembly) |
  |
|
11-26419 - Nut (#8-32) (brass) [ More info ]
|
| #13 | 26992 | LOCKWASHER @5 (4 required per assembly) |
  |
|
13-26992 - LockWasher - Priced Individually [ More info ]
|
| #14 | 94330 | NUT @2 (4 required per assembly) |
  |
|
11-94330 - Nut, Brass (1/4-20) [ More info ]
|
| #15 | 861680 | INSULATOR (1 required per assembly) — Replaces: 96535 |
  |
|
85-861680 - Insulator [ More info ]
|
| #16 | 48409 | SCREW @2 (1 required per assembly) |
  |
|
10-48409 - Screw - Priced Individually [ More info ]
|
| #17 | 94275 | LINK (1 required per assembly) |
  |
|
94275 - Link, Solenoid to Solenoid [ More info ]
|
| #18 | 86322A15 | WIRE ASSY (2 required per assembly) |
  |
|
84-86322A15 - Wire Assembly [ More info ]
|
| #19 | 79139A12 | WIRE ASSY (1 required per assembly) |
  |
|
84-79139A12 - Wire Assembly [ More info ]
|
| #20 | 79023T10 | FUSE ASSY-110 AMP (1 required per assembly) — Replaces: 79023A10 |
  |
|
88-79023T10 - Fuse, 110 Amp [ More info ]
|
| #21 | 96457 | WASHER (1 required per assembly) |
  |
|
12-96457 - Phenolic Washer [ More info ]
|
| #22 | 21825 | NUT @5 (1 required per assembly) |
  |
|
11-21825 - Nut, (1/4x28) [ More info ]
|
| #23 | 862548A1 | BRACKET KIT (FLOOR MOUNTED) (1 required per assembly) — Replaces: 42419A1 |
  |
|
862548A 1 - Bracket Kit [ More info ]
|
  |
|
18-6750 - Bracket, 862548A1 [ More info ]
|
  |
|
18-6749 - Bracket, 862548A1 [ More info ]
|
  |
|
6286 - Bracket,862548A1 [ More info ]
|
| #24 | 58491 | CHANNEL RUBBER (4.00 INCHES) (2 required per assembly) |
  |
|
58491 - Channel Rubber, NLA [ More info ]
|
| #25 | 59784 | SCREW (.250-10 X 1.00) (6 required per assembly) |
  |
|
10-59784 - Screw [ More info ] Unavailable |
| #26 | 8M0204649 | WASHER @10 (6 required per assembly) — Replaces: 29245 |
  |
|
12-8M0204649 - WASHER Note: Priced Individually [ More info ]
|
| #27 | 35386 | SCREW (.312-18 X 1.00) (4 required per assembly) |
  |
|
10-35386 - Screw - Priced Individually [ More info ]
|
| #28 | 39107 | LOCKWASHER (.312-24) (4 required per assembly) |
  |
|
13-39107 - LockWasher - Priced Individually [ More info ]
|
| #29 | 86322A24 | CABLE ASSEMBLY (4.00 INCHES) (BLACK) (1 required per assembly) |
  |
|
84-86322A24 - Cable Assembly [ More info ]
|
