Parts for V-220 Laser 2-Stroke EFI Mercury Outboard Motor Power Trim Components

Revise Search: Outboard > 2-Stroke EFI Mercury Outboard > V-220 Laser > 0B117316 & Up - USA > Power Trim Components

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

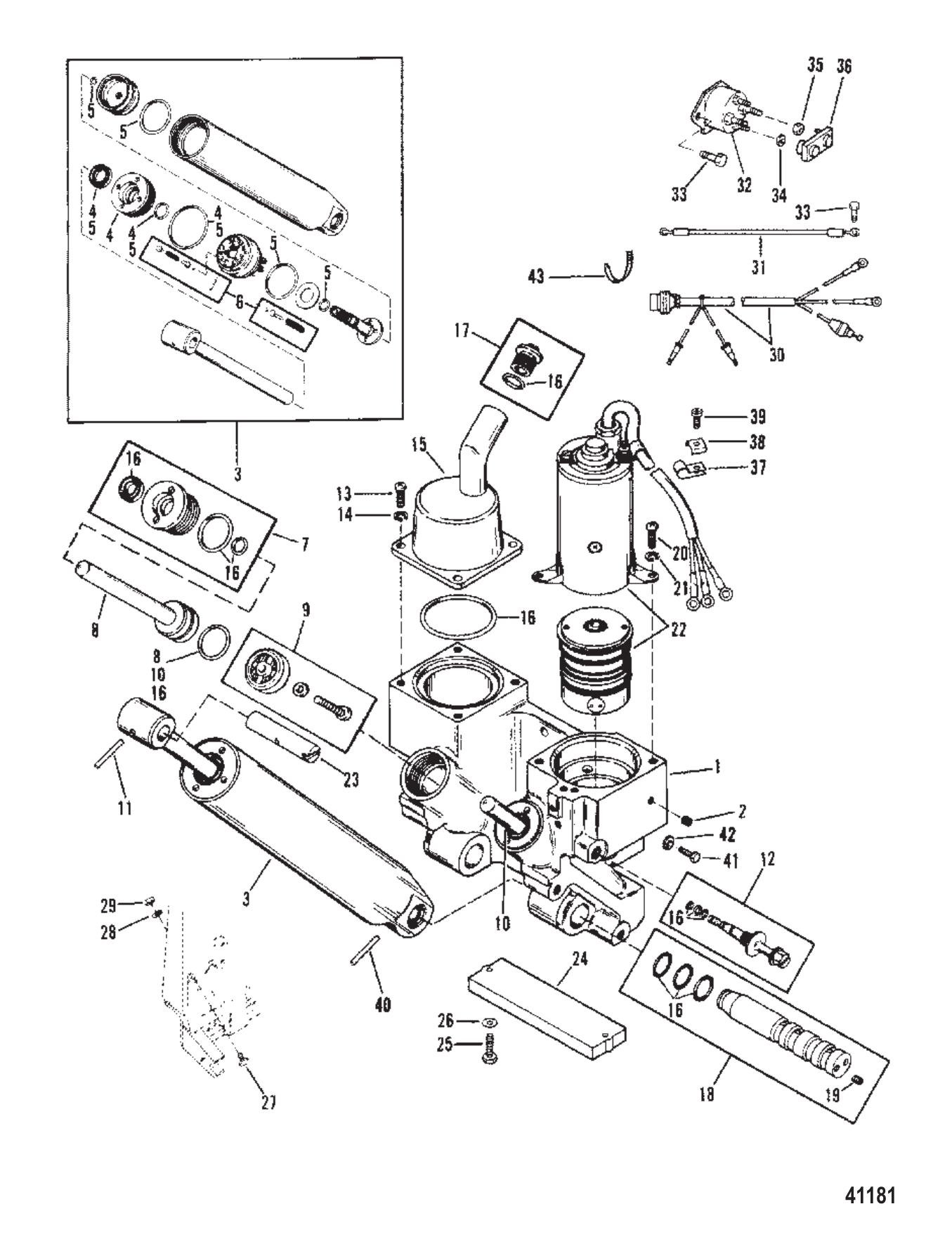

Power Trim Components

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#1	99659A21	MANIFOLD ASSY (BLACK) (1 required per assembly)
		99659A21 - Manifold, NLA [ More info ] $330.00 $279.51 1 In Stock.
#1	99659A22	MANIFOLD ASSY (GRAY) (1 required per assembly)
		99659A22 - Manifold, NLA [ More info ] Unavailable
#2	56800	PLUG PIPE (.0625-27) MANIFOLD (11 required per assembly) — Replaces: 99616
		22-56800 - Pipe Plug [ More info ] $26.49 $25.36 10+ In Stock.
#3	41493A7	TILT CYLINDER ASY (GRAY) (1 required per assembly) — Replaces: 41493A4
		41493A 7 - Tilt Cylinder Assembly [ More info ] Unavailable
#4	41492A1	GUIDE ASSEMBLY (1 required per assembly)
		41492A 1 - Guide Kit [ More info ] Unavailable
#5	41478A1	REPAIR KIT (1 required per assembly)
		25-41478A 1 - Tilt Cylinder Repair Kit [ More info ] $136.45 2 In Stock.
#6	41482A2	CHECK VALVE KIT (1 required per assembly)
		41482A 2 - Check Valve Assembly, NLA [ More info ] Unavailable
#7	8M0021648	END CAP ASSEMBLY TRIM ROD (2 required per assembly) — Replaces: 99638A1, 878243A1
		1100-8M0021648 - End Cap Assembly [ More info ] $188.49 Available to Order: Shipping delay up to 10 days.
#8	878413A1	PISTON ASSEMBLY PORT (1 required per assembly) — Replaces: 43397A6, 43397T6
		878413A 1 - Trim Rod Kit - Port [ More info ] $337.49 Available to Order: Shipping delay up to 10 days.
#9	12184A1	FILTER ASSY (1 required per assembly)
		35-12184A 1 - Filter Assembly, NLA [ More info ] $16.77 8 In Stock.
#10	878414A1	PISTON ASSEMBLY STARBOARD (1 required per assembly) — Replaces: 43398A3, 43398T3
		878414A 1 - Trim Rod Starboard [ More info ] Unavailable
		878414T01 - Trim Rod Starboard [ More info ] $371.49 Available to Order: Shipping delay up to 10 days.
#11	821539	PIN TRILOBE TRIM CYLINDER (UPPER) (1 required per assembly) — Replaces: 13794
		17-821539 - Pin, Trilobe, Groove [ More info ] $6.29 10+ In Stock.
#12	99660A1	VALVE ASSY (1 required per assembly)
		99660A 1 - Valve Assembly [ More info ] Unavailable
		812843A 1 - Relief Valve Kit [ More info ] Unavailable
		813442A 2 - Relief Valve [ More info ] Unavailable
		893929A01 - Relief Valve [ More info ] $75.01 3 In Stock.
		18-6751 - Relief Valve, 893929A01 [ More info ] $64.75 4 In Stock.
#13	4000327	SCREW (M6 X 14) COVER (4 required per assembly)
		10-40003 27 - Screw [ More info ] $2.99 Available to Order: Shipping delay up to 10 days.
#14	4002315	WASHER (6.60 X 12.5 X 1.5 MM -SS) COVER SCREW (4 required per assembly) — Replaces: 43450
		12-40023 15 - Washer - Priced Individually [ More info ] $0.80 Available to Order: Shipping delay up to 10 days.
#15	99642	COVER MANIFOLD (1 required per assembly)
		99642 - Cover [ More info ] Unavailable
#16	48462A4	O RING KIT (1 required per assembly) — Replaces: 48462A2, 48462A3
		25-48462A 4 - O-Ring Kit [ More info ] $140.37 1 In Stock.
#17	99609A1	PLUG (1 required per assembly)
		19-99609A 1 - Plug , NLA [ More info ] Unavailable
#18	99641A02	SHAFT ASSY (1 required per assembly) — Replaces: 99641A1
		99641A02 - Shaft Assembly [ More info ] Unavailable
#19	56800	PLUG PIPE (.0625-27) SHAFT (2 required per assembly) — Replaces: 99616
#20	4008820	SCREW (M6 X 20) PUMP AND MOTOR (2 required per assembly)
		10-40088 20 - Screw [ More info ] $2.89 Available to Order: Shipping delay up to 10 days.
#21	400256	LOCKWASHER @5 (2 required per assembly)
		13-40025 6 - LockWasher - Priced Individually [ More info ] $1.80 $1.01 10+ In Stock.
#22	826729A4	POWER TRIM KIT (1 required per assembly) — Replaces: 99186T, 991861
		826729A 4 - Power Trim Kit [ More info ] Unavailable
		TT2000 - PTT System 3-Wire Mercury Replaces Mercury 3-Ram 3-Wire 1985-95 [ More info ] $999.00 $999.00 Available to Order
		826729A07 - Power Trim Kit [ More info ] Unavailable
		826729A08 - Power Trim Kit [ More info ] Unavailable
		826729A09 - Power Trim Kit [ More info ] Unavailable
		826729A10 - Power Trim Kit [ More info ] Unavailable
		18-6273-1 - Tilt Trim Motor and Pump [ More info ] $837.99 $776.37 4 In Stock.
		13506 - Brush Card Kit, NLA [ More info ] $163.32 $138.34 4 In Stock.
		300-26070 - Tilt & Trim Motor Mercury 826729A08 [ More info ] $599.99 $458.77 Available to Order: Shipping delay up to 10 days.
#23	99625002	SHAFT UPPER (1 required per assembly) — Replaces: 99625, 996251
		99625002 - Upper Shaft [ More info ] $20.48 3 In Stock.
#24	818298A1	ANODE KIT (1 required per assembly) — Replaces: 43396A1, 43396A2
		818298A 1 - Anode Kit [ More info ] Unavailable
		97-818298Q 1 - Anode Kit - Outboard Transom Aluminum [ More info ] $25.49 4 In Stock.
		18-6249A - Anode, Aluminum, 18-6249A [ More info ] $23.09 $22.96 In Stock
		18-6249 - Zinc Anode, 818298A1 [ More info ] $25.05 1 In Stock.
		97-818298T 1 - Anode - Outboard Transom Aluminum [ More info ] $27.99 $27.92 Available to Order: Shipping delay up to 10 days.
#25	4000332	SCREW (M6 X 35) ANODE (2 required per assembly)
		10-40003 32 - Screw [ More info ] $2.29 Available to Order: Shipping delay up to 10 days.
#26	8M0204649	WASHER @10 ANODE SCREW (2 required per assembly) — Replaces: 29245
		12-8M0204649 - WASHER Note: Priced Individually [ More info ] $1.20 10+ In Stock.
#27	8M0045383	STRIKER PLATE TRIM SHAFT (2 required per assembly) — Replaces: 996301
		8M0045383 - Striker Plate [ More info ] $12.29 Available to Order: Shipping delay up to 10 days.
#28	58643	LOCKWASHER (2 required per assembly)
		13-58643 - LockWasher [ More info ] $1.80 $1.30 10+ In Stock.
#29	46335	NUT (23 required per assembly)
		11-46335 - Nut (.375-24) [ More info ] $2.97 Available to Order: Shipping delay up to 10 days.
#30	99695A1	HARNESS ASSEMBLY CONTROL POWER TRIM (3 WIRE) (1 required per assembly)
		84-99695A 1 - Harness Assembly, NLA [ More info ] $55.00 $46.58 1 In Stock.
#30	17201A2	CABLE ASSEMBLY (17.00 INCHES) POWER TRIM (2 WIRE) (1 required per assembly)
		84-17201A 2 - Cable Assembly, NLA [ More info ] $11.84 8 In Stock.
#31	79138A12	CABLE ASSY (11-1/2") (BLACK) (1 required per assembly)
		84-79138A12 - Wire Assembly, NLA [ More info ] $6.67 $5.65 2 In Stock.
#31	88807A21	CABLE ASSY (4-1/2") (BLACK) (1 required per assembly)
		84-88807A21 - Cable Assembly [ More info ] Unavailable
#31	88807A16	CABLE ASSY (1 required per assembly)
		84-88807A16 - Cable Assembly [ More info ] $5.09 Available to Order: Shipping delay up to 10 days.
#31	88807A8	CABLE ASSY (2 required per assembly)
		84-88807A 8 - Cable Assembly, NLA [ More info ] Unavailable
#32	8M0185622	SOLENOID (2 required per assembly) — Replaces: 96158, 96158T
		8M0185622 - Solenoid, Starter or Trim [ More info ] $41.99 In Stock
		18-5817 - Solenoid 89-96158 [ More info ] $28.99 $27.57 10+ In Stock.
		89-02718 - Solenoid, 89-96158T [ More info ] $21.49 $19.11 Available to Order: Shipping delay up to 10 days.
		SW058 - Solenoid [ More info ] $27.59 10+ In Stock.
#33	41508	SCREW (.250-20 X .500) STAINLESS STEEL STARTER SOLENOID (4 required per assembly)
		10-41508 - Screw [ More info ] $3.79 Available to Order: Shipping delay up to 10 days.
#34	45076	NUT (#10-32) BRASS SOLENOID TERMINAL (4 required per assembly)
		11-45076 - Nut (#10-32) (brass) [ More info ] $1.80 10+ In Stock.
#35	94330	NUT (.250-20) BRASS SOLENOID TERMINAL (4 required per assembly)
		11-94330 - Nut, Brass (1/4-20) [ More info ] $1.70 Available to Order: Shipping delay up to 10 days.
#36	97861	INSULATOR STARTER SOLENOID (2 required per assembly)
		85-97861 - Insulator [ More info ] $5.19 Available to Order: Shipping delay up to 10 days.
#37	22875	CLIP PUMP WIRE (2 required per assembly)
		54-22875 - Clip - Priced Individually [ More info ] $3.99 1 In Stock.
#38	8M0084613	C-WASHER CLIP SCREW (2 required per assembly) — Replaces: 69205
		8M0084613 - Washer [ More info ] $1.10 Available to Order: Shipping delay up to 10 days.
#39	69079	SCREW (#10-16 X .440) CLIP TO TRANSOM BRACKET (2 required per assembly)
		10-69079 - Screw [ More info ] $1.20 Available to Order: Shipping delay up to 10 days.
#40	878267	PIN TRIM CYLINDER (LOWER) (1 required per assembly) — Replaces: 44431
		17-878267 - Pin, Groove [ More info ] $27.99 Available to Order: Shipping delay up to 10 days.
#41	4000377	SCREW (M10 X 30) MANIFOLD (6 required per assembly)
		10-40003 77 - Screw [ More info ] Unavailable
#42	400258	LOCKWASHER (M10) STAINLESS STEEL MANIFOLD SCREW (6 required per assembly)
		13-40025 8 - LockWasher [ More info ] $1.50 Available to Order: Shipping delay up to 10 days.
#43	47483	J CLIP WIRE (1 required per assembly)
		54-47483 - J Clip [ More info ] $8.49 Available to Order: Shipping delay up to 10 days.
