Parts for MerCruiser Bravo Two Trim Pump Assembly (Complete)
Tap to zoom. Scroll down to order.
Reference numbers in this diagram can be found in a light blue row below — scroll down to order.

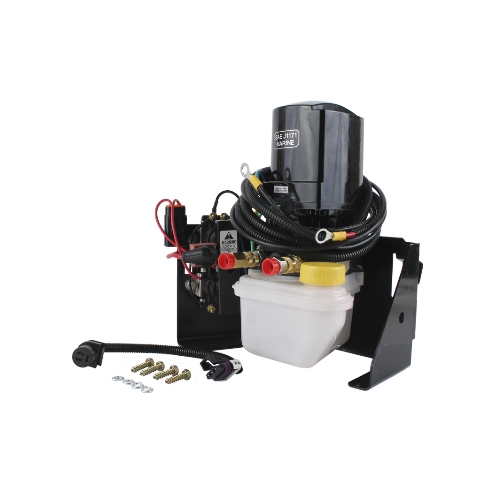

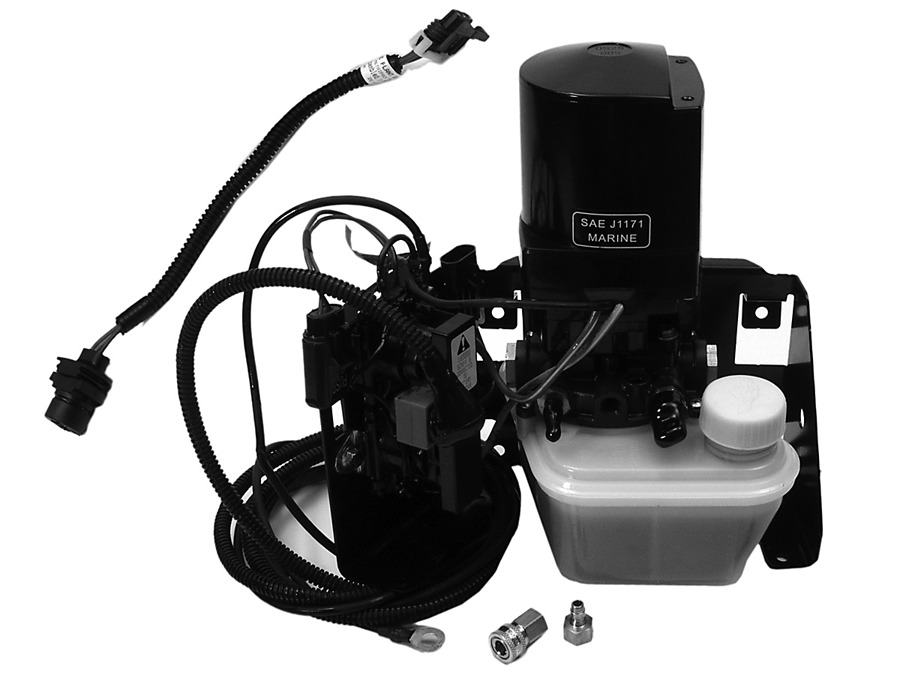

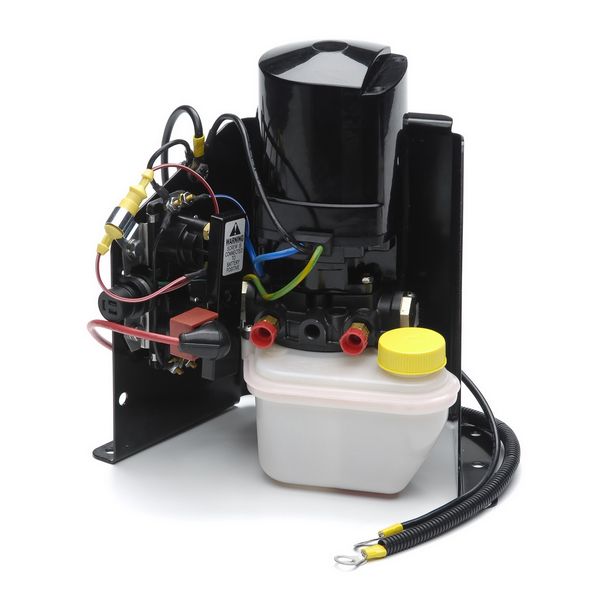

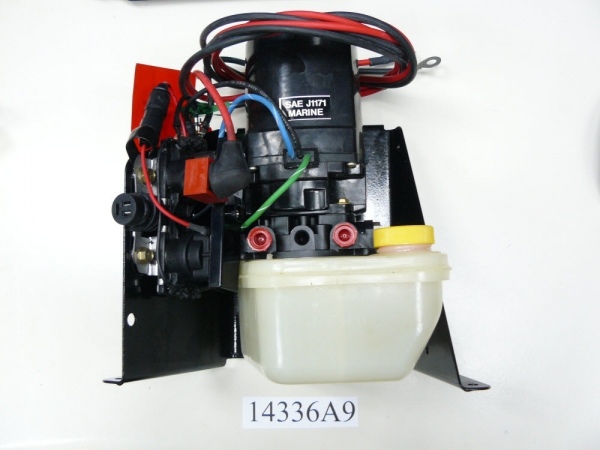

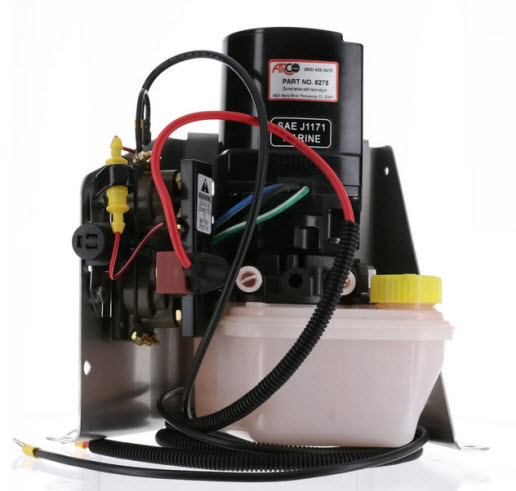

#1 | 14336A 9 | PUMP ASSEMBLY, Trim, Complete, (Bottom Mounted Reservoir) (1 required per assembly) (Design I - Small Manufacturing Decal On Top Of Motor Cover And Wires Will Have White Spiral Line) |
14336A 9 - Pump Assembly - Trim [ More info ] Unavailable |
||
14336A15 - PUMP ASSY-TRIM [ More info ] Unavailable |
||
14336A17 - Trim Pump Assembly [ More info ] Unavailable |
||
14336A22 - Trim Pump Assembly [ More info ] Unavailable |
||
14336A28 - PUMP ASSY-TRIM [ More info ] Unavailable |
||
865380A02 - PUMP ASSY-TRIM [ More info ] Unavailable |
||
865380A05 - PUMP ASSY-TRIM [ More info ] Unavailable |
||
865380A15 - PUMP ASSY-TRIM [ More info ] Unavailable |
||
#1 | 14336A15 | PUMP ASSEMBLY, Trim, Complete, (Bottom Mounted Reservoir) (1 required per assembly) (Design I - Small Manufacturing Decal On Top Of Motor Cover And Wires Will Have White Spiral Line) |
#1 | 14336A17 | PUMP ASSEMBLY, Trim, Complete, (Top Mounted Reservoir) (1 required per assembly) (Design I - Small Manufacturing Decal On Top Of Motor Cover And Wires Will Have White Sprial Line) |

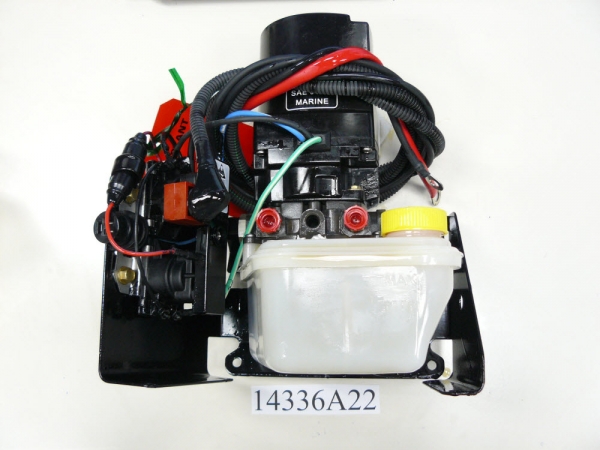

#1 | 14336A22 | PUMP ASSEMBLY, Trim, Complete, (Top Mounted Reservoir) (1 required per assembly) (Design II - Etched Manufacturing Numbers On Top Of Cover And Wires Will Have White Straight Line) |

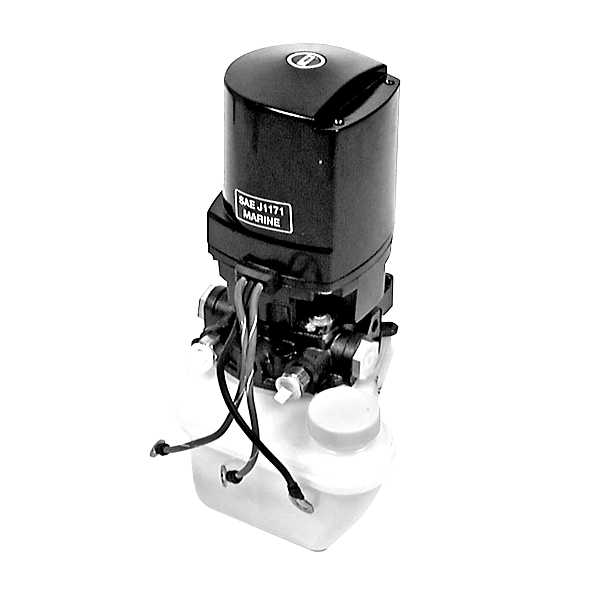

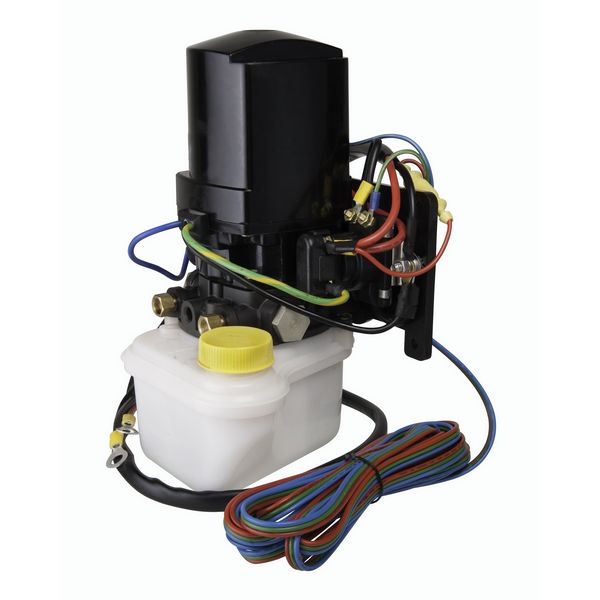

#2 | 14336A 8 | PUMP/MOTOR ASSEMBLY, Bottom Mounted Reservoir (1 required per assembly) (See PUMP/MOTOR (DESIGN I) Section For Parts Breakdown) |
14336A 8 - Pump/Motor Assembly [ More info ] Unavailable |
||
14336A20 - Pump/Motor Assembly [ More info ] Unavailable |
||
14336A25 - Pump/Motor Assembly [ More info ] Unavailable |
||
14336A31 - Pump/Motor Assembly [ More info ] Unavailable |
||
865380A03 - Pump/Motor Assembly [ More info ] Unavailable |
||
#2 | 14336A20 | PUMP/MOTOR ASSEMBLY, Top Mounted Reservoir (1 required per assembly) (See PUMP/MOTOR (DESIGN I) Section For Parts Breakdown) |
#2 | 14336A25 | PUMP/MOTOR ASSEMBLY, Top Mounted Reservoir (1 required per assembly) (See PUMP/MOTOR (DESIGN II) Section For Parts Breakdown) |

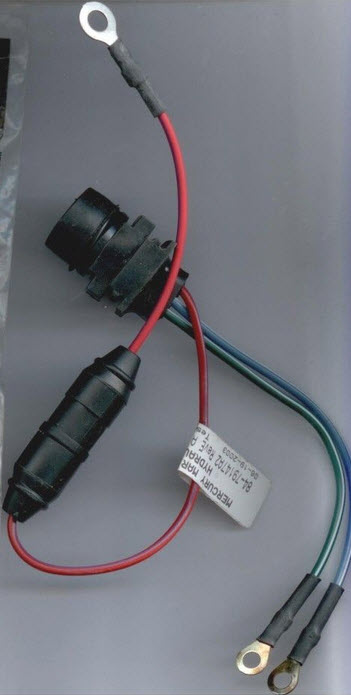

#3 | 84-79147A 3 | HARNESS ASSEMBLY (1 required per assembly) |
#4 | 88-79091 | FUSE, 20 Ampere (1 required per assembly) |

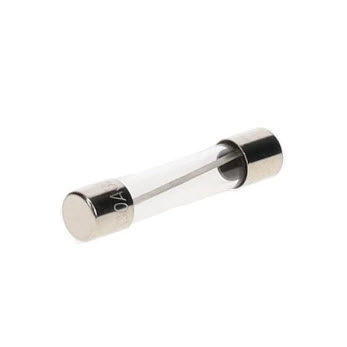

88-79091 - Fuse - 20 Amp - Priced Individually [ More info ] |
||
888M0207796 - FUSE-20 AMP Note: Priced Individually [ More info ] |
||

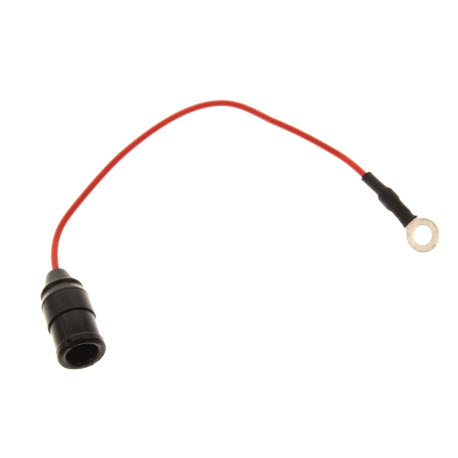

#5 | 84-95084A 2 | CABLE ASSEMBLY (1 required per assembly) |
#6 | 89-96158T | SOLENOID (2 required per assembly) |
89-96158T - Solenoid, NLA Order 8M0185622 [ More info ] Unavailable |
||

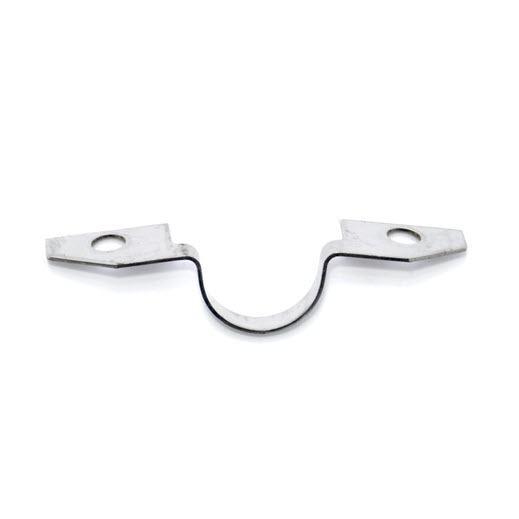

#7 | 88075 | RETAINER (1 required per assembly) |
#8 | 10-41508 | SCREW, (.250-20 x .500) Stainless Steel (4 required per assembly) |

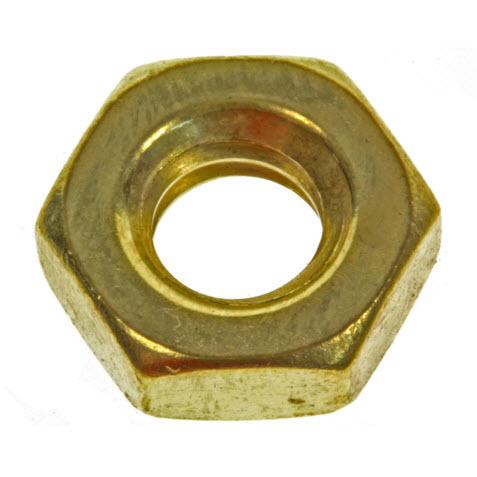

#9 | 11-26419 | NUT, (#8-32) Brass (4 required per assembly) |

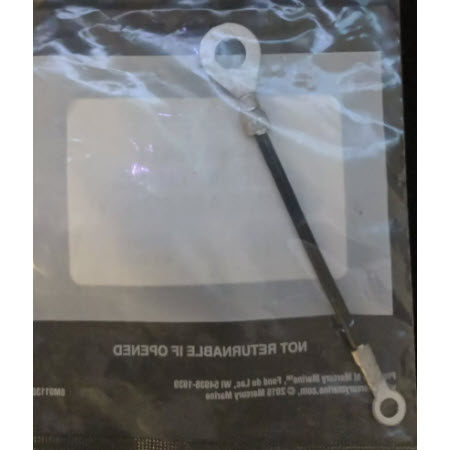

#10 | 84-86322A24 | CABLE ASSEMBLY, (4.00 Inches) (1 required per assembly) |

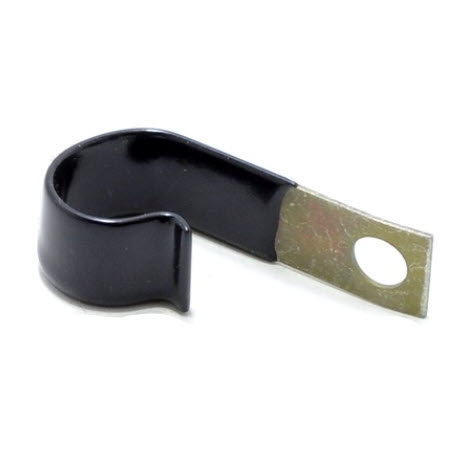

#11 | 54-55098 | J CLIP (1 required per assembly) |
54-8M0024808 - J-CLIP [ More info ] Unavailable |
||

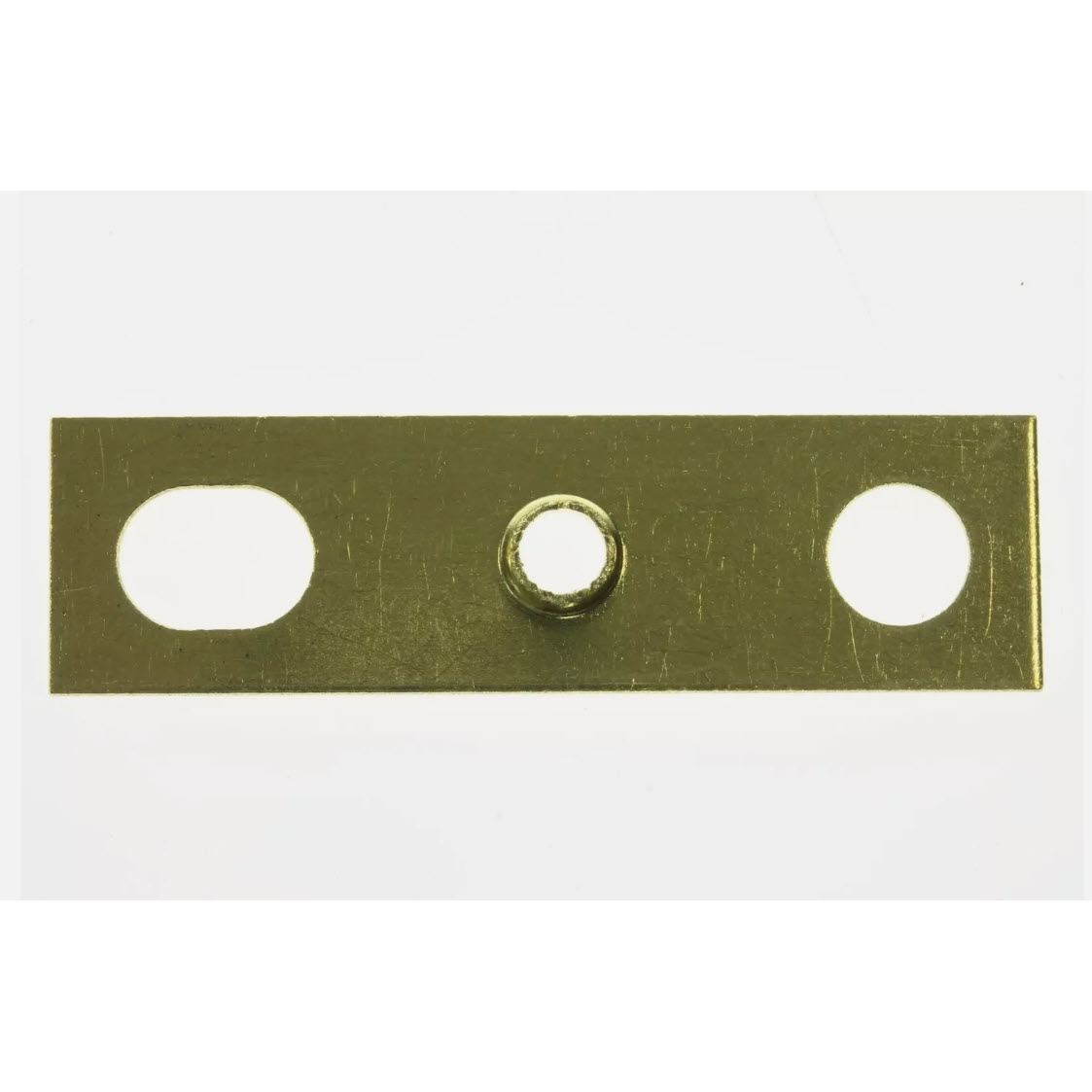

#12 | 94275 | LINK, Connector (1 required per assembly) |
#13 | 13-26992 | LOCKWASHER, (.250) Stainless Steel (4 required per assembly) |
#14 | 11-94330 | NUT, (.250-20) Brass (4 required per assembly) |

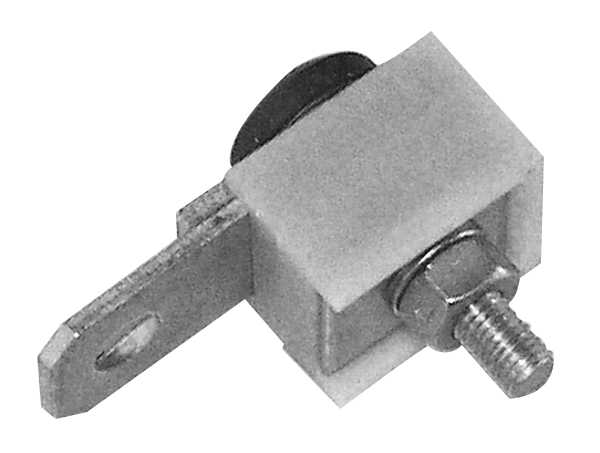

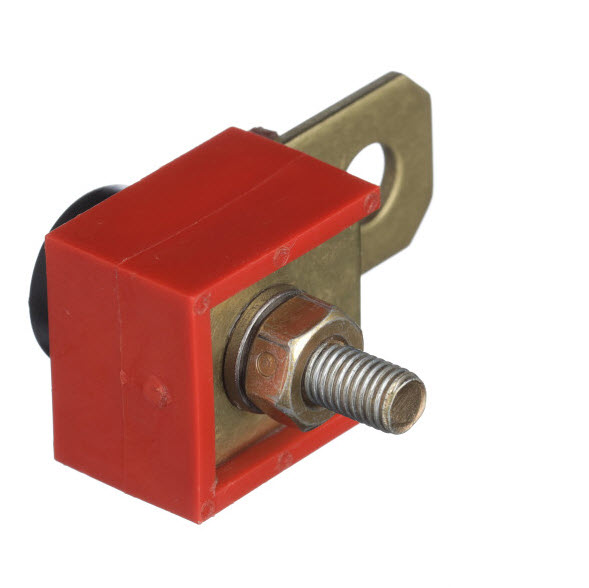

#15 | 88-79023A10 | FUSE ASSEMBLY, 110 Ampere (1 required per assembly) |
88-79023A10 - Fuse, 110 AMP [ More info ] Unavailable |
||

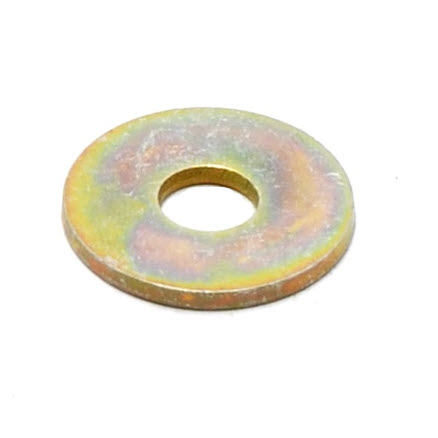

#16 | 12-25908 | WASHER, (.265 x .812 x .0625) (1 required per assembly) |

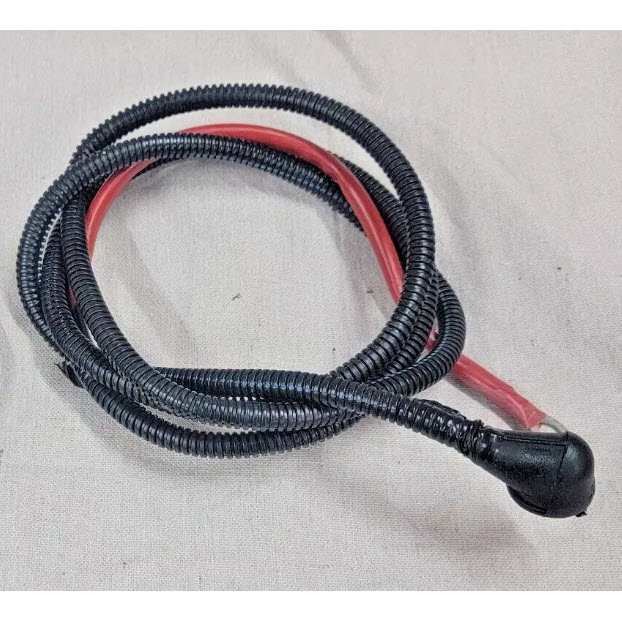

#17 | 84-79139A12 | CABLE ASSEMBLY, Red-Positive, Positive (1 required per assembly) |
#19 | 11-21825 | NUT, (.250-28) (1 required per assembly) |

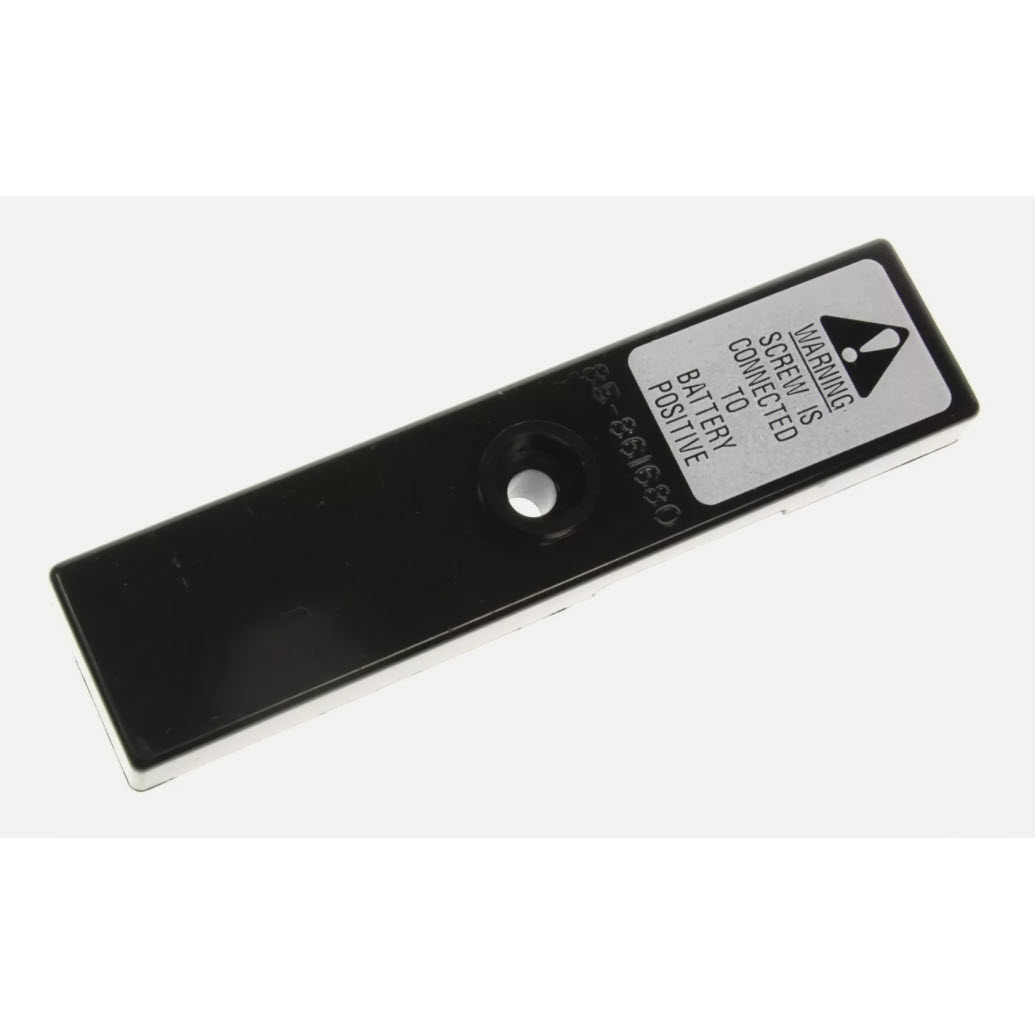

#20 | 85-861680 | INSULATOR (1 required per assembly) |
#21 | 10-48409 | SCREW, (#10-16 x .625) Stainless Steel (1 required per assembly) |
#22 | 84-86322A15 | CABLE ASSEMBLY, (5.50 Inches) Black (1 required per assembly) |

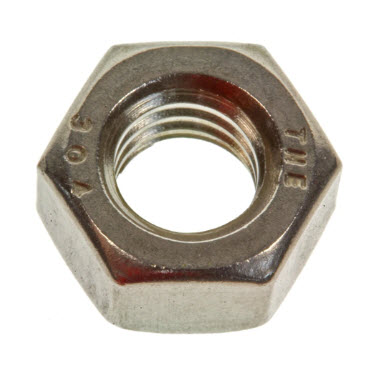

#23 | 11-68292 | NUT, (.312-18) (1 required per assembly) |

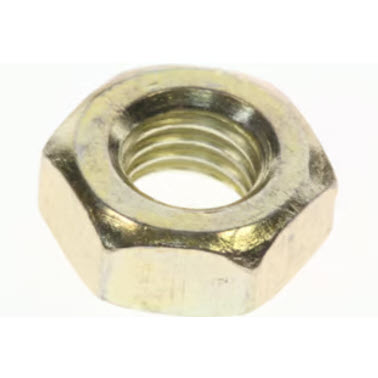

11-8M0204668 - NUT @5 [ More info ] Unavailable |
||

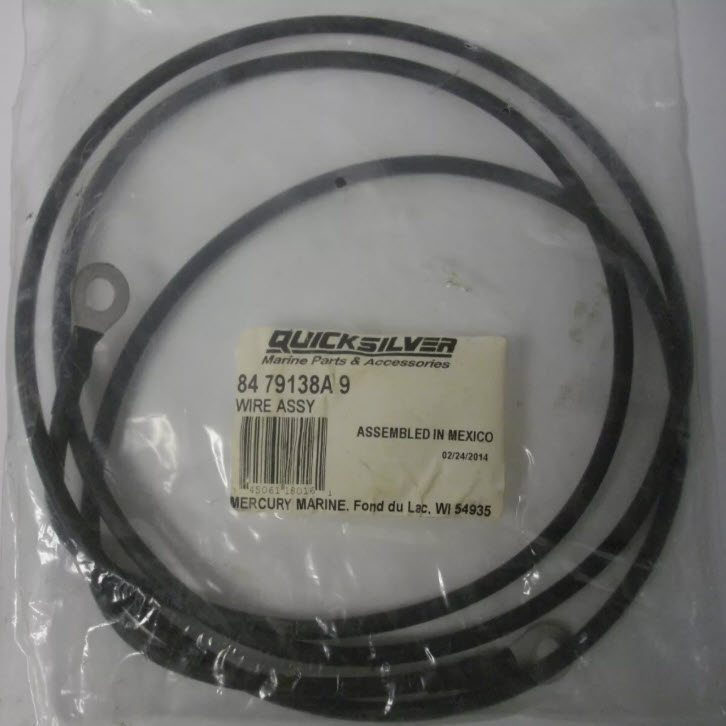

#24 | 84-79138A 9 | CABLE ASSEMBLY, (6.00 Feet) Black-Negative, Negative (1 required per assembly) |
#25 | 10-90285 | SCREW, (.312-18 x .625) (1 required per assembly) |

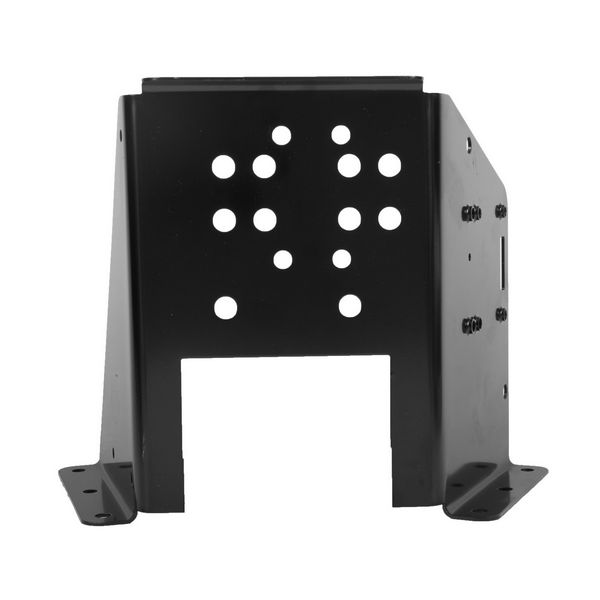

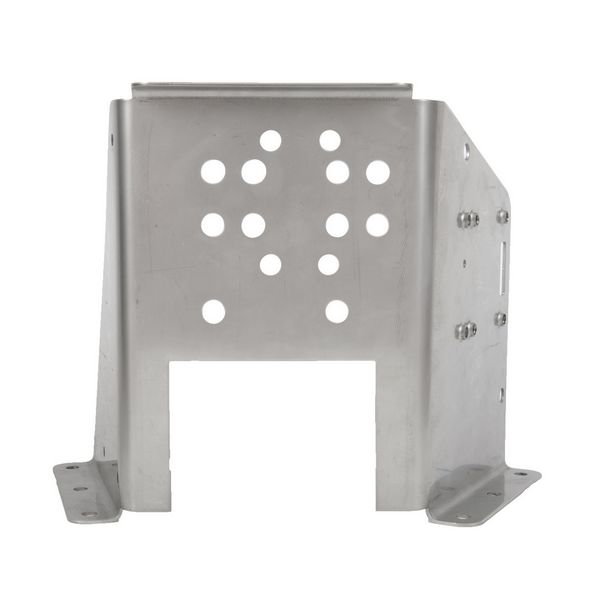

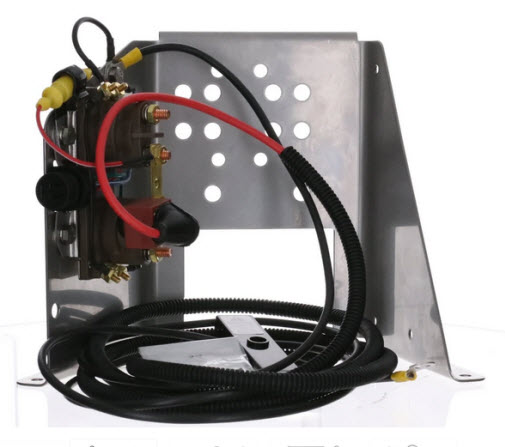

#26 | 42419A 1 | BRACKET ASSEMBLY (1 required per assembly) (14336A9 - Floor Mounted Only) |
42419A 1 - Bracket Kit [ More info ] Unavailable |
||

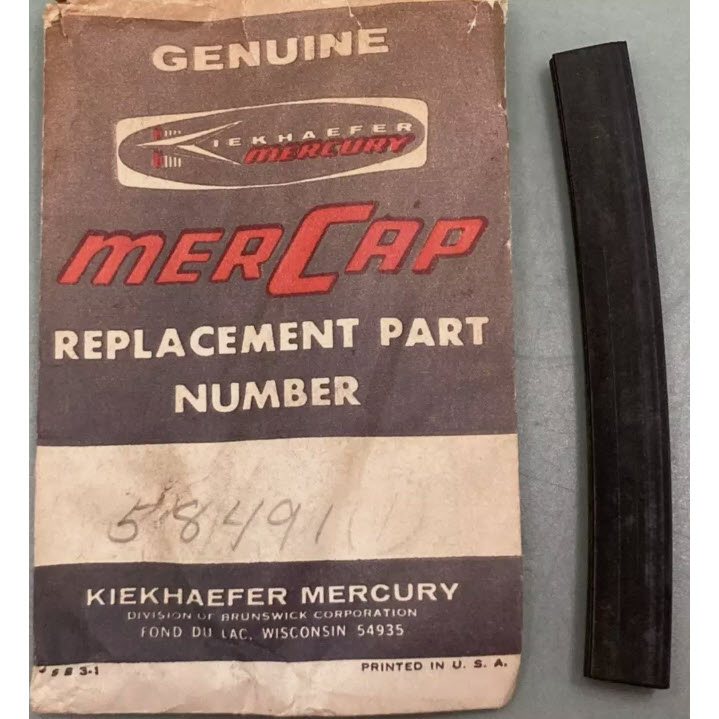

#27 | 58491 | CHANNEL, Rubber (4.00 Inches) (2 required per assembly) |

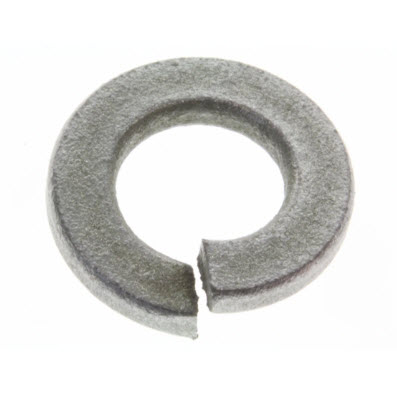

#28 | 13-39107 | LOCKWASHER, (.312-24) (4 required per assembly) |
#29 | 10-35386 | SCREW, (.312-18 x 1.00) (4 required per assembly) |
#30 | 10-59784 | SCREW, (.250-10 x 1.00) (6 required per assembly) |
10-59784 - Screw [ More info ] Unavailable |
||

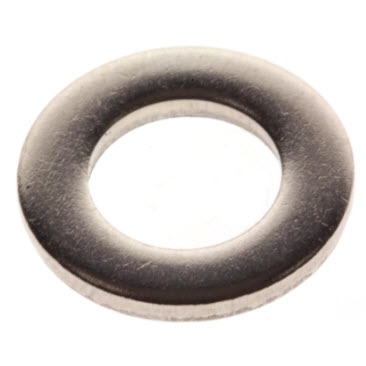

#31 | 12-29245 | WASHER, (.281 x .500 x .060) Stainless Steel (6 required per assembly) |
12-8M0204649 - WASHER Note: Priced Individually [ More info ] |
||

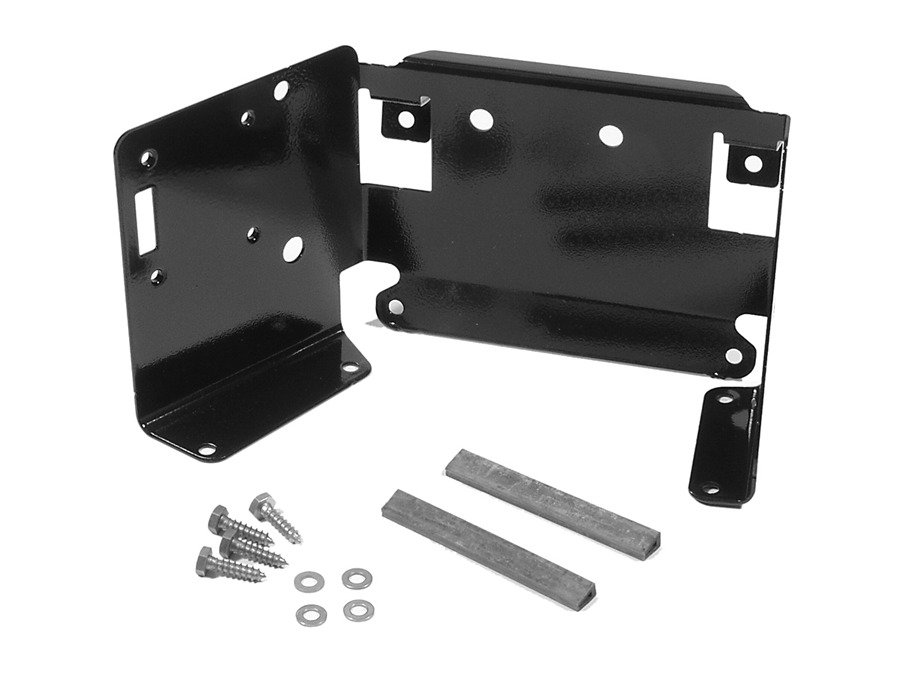

#32 | 862548A 1 | BRACKET KIT (1 required per assembly) (14336A15/A17/A22 Floor/Transom Mounted) |
#36 | 13-35048 | LOCKWASHER, (.375) (2 required per assembly) |

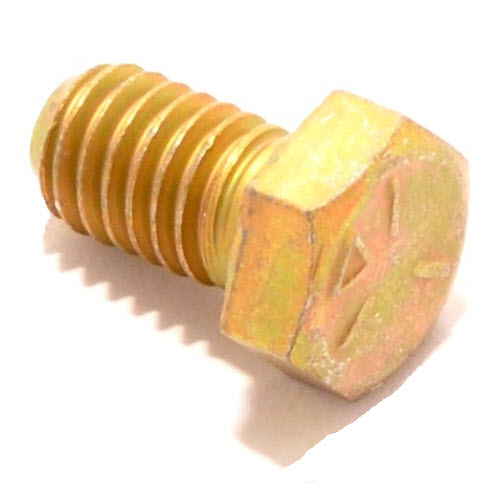

#37 | 10-98260 | SCREW, (.375-16 x .620) (2 required per assembly) |
