Parts for MerCruiser 496 Mag (Base Model) Trim Pump Assembly, Complete

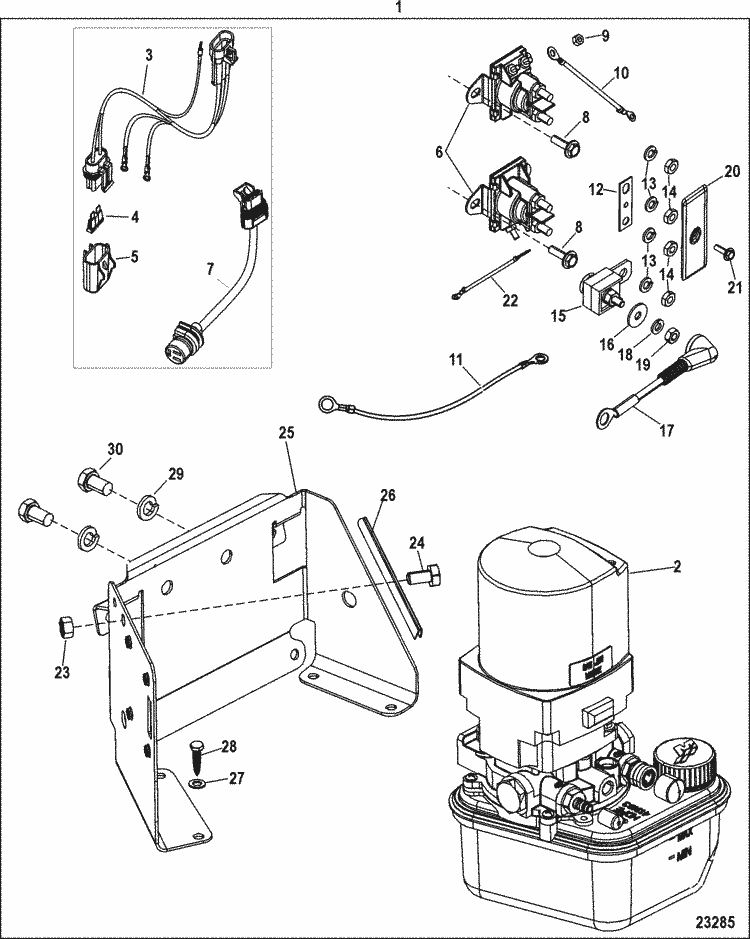

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| #1 | 865380A25 | PUMP ASSEMBLY, Trim - Complete (1 required per assembly) |
  |
|
865380A25 - Trim Pump Assembly [ More info ]
|
  |
|
18-6813 - Trim Motor, Pump and Reservior [ More info ]
|
  |
|
18-6753 - Pump Assembly, 14336A9 [ More info ]
|
  |
|
18-6752 - Trim Pump Assembly Complete, Non Quick Connect, 14336A9 [ More info ]
|
  |
|
18-6747 - Tilt Trim Pump Assembly Complete, Quick Connect [ More info ]
|
  |
|
9C-108SS - Trim Pump Assembly Stainless Steel Bracket, MerCruiser 865380A25, 1986 to Present [ More info ]
|
  |
|
9C-108 - Trim Pump Assembly, MerCruiser 865380A25, 1986 to Present [ More info ]
|
  |
|
6285 - Trim Pump Assembly Complete [ More info ]
|
  |
|
6275 - Tilt Trim Motor [ More info ]
|
| #1 | 807378A 2 | PUMP ASSEMBLY, Trim - 24 Volt - Complete (1 required per assembly) Used In Special Diesel Applications Only |
  |
|
807378A 2 - Trim Pump Assembly [ More info ]
|
| #2 | 865380A13 | PUMP/MOTOR ASSEMBLY, Trim - 12 Volt (1 required per assembly) |
  |
|
865380A13 - Pump/Motor Assembly [ More info ]
|
  |
|
18-6769-1 - Tilt Trim Motor [ More info ]
|
  |
|
18-6274 - Tilt Trim Motor [ More info ]
|
| #2 | 807378T | PUMP/MOTOR ASSEMBLY, 24 Volt (1 required per assembly) Used In Special Diesel Applications Only |
  |
|
807378T - Pump/Motor Assembly [ More info ]
|
| #3 | 84-79147A09 | HARNESS ASSEMBLY, With Packard Connector (1 required per assembly) |
  |
|
84-79147A09 - Harness Assembly [ More info ]
|
| #4 | 88-812619 | FUSE, Yellow - 20 Ampere (1 required per assembly) |
  |
|
88-812619 - Fuse - Yellow - 20 Amp [ More info ]
|
| #5 | 828054 | COVER, Fuse (1 required per assembly) |
  |
|
828054 - Fuse Cover [ More info ]
|
| #6 | 89-96158T | SOLENOID, 12 Volt (2 required per assembly) |
  |
89-96158T - Solenoid, NLA Order 8M0185622 [ More info ] Unavailable |
|
  |
|
8M0185622 - Solenoid, Starter or Trim [ More info ]
|
  |
|
18-5817 - Solenoid 89-96158 [ More info ]
|
  |
|
SW058 - Solenoid [ More info ]
|
  |
|
89-02718 - Solenoid, 89-96158T [ More info ]
|
| #6 | 89-807377T | SOLENOID, 24 Volt (2 required per assembly) Used In Special Diesel Applications Only |
  |
89-807377T - Solenoid [ More info ] Unavailable |
|
  |
|
89-8M0188531 - SOLENOID [ More info ] Unavailable |
| #7 | 84-865771A02 | HARNESS ASSEMBLY, Adaptor - Molded 3 Pin Male To Packard 3 Pin Male (1 required per assembly) |
  |
|
84-865771A02 - Harness Assembly [ More info ]
|
| #8 | 10-41508 | SCREW, (.250-20 x .500) Stainless Steel (4 required per assembly) |
  |
|
10-41508 - Screw [ More info ]
|
| #9 | 11-26419 | NUT, (#8-32) Brass (4 required per assembly) |
  |
|
11-26419 - Nut (#8-32) (brass) [ More info ]
|
| #10 | 84-86322A24 | CABLE ASSEMBLY, (4.00 Inches) (1 required per assembly) |
  |
|
84-86322A24 - Cable Assembly [ More info ]
|
| #11 | 84-79138A 9 | CABLE ASSEMBLY, (6.00 Feet) Black-Negative, Negative (1 required per assembly) |
  |
|
84-79138A 9 - Wire Assembly [ More info ]
|
| #12 | 94275 | LINK, Connector (1 required per assembly) |
  |
|
94275 - Link, Solenoid to Solenoid [ More info ]
|
| #13 | 13-26992 | LOCKWASHER, (.250) Stainless Steel (4 required per assembly) |
  |
|
13-26992 - LockWasher - Priced Individually [ More info ]
|
| #14 | 11-94330 | NUT, (.250-20) Brass (4 required per assembly) |
  |
|
11-94330 - Nut, Brass (1/4-20) [ More info ]
|
| #15 | 88-79023A10 | FUSE ASSEMBLY, 110 Ampere (1 required per assembly) |
  |
88-79023A10 - Fuse, 110 AMP [ More info ] Unavailable |
|
  |
|
88-79023T10 - Fuse, 110 Amp [ More info ]
|
| #16 | 12-25908 | WASHER, (.265 x .812 x .0625) (1 required per assembly) |
  |
|
12-25908 - Washer, (.265 X .812 X .0625) [ More info ]
|
| #17 | 84-79139A12 | CABLE ASSEMBLY, Red-Positive, Battery - Positive (1 required per assembly) |
  |
|
84-79139A12 - Wire Assembly [ More info ]
|
| #19 | 11-21825 | NUT, (.250-28) (1 required per assembly) |
  |
|
11-21825 - Nut, (1/4x28) [ More info ]
|
| #20 | 85-861680 | INSULATOR (1 required per assembly) |
  |
|
85-861680 - Insulator [ More info ]
|
| #21 | 10-48409 | SCREW, (#10-16 x .625) Stainless Steel (1 required per assembly) |
  |
|
10-48409 - Screw - Priced Individually [ More info ]
|
| #22 | 84-86322A15 | CABLE ASSEMBLY, (5.50 Inches) Black (1 required per assembly) |
  |
|
84-86322A15 - Wire Assembly [ More info ]
|
| #23 | 11-68292 | NUT, (.312-18) (1 required per assembly) |
  |
|
11-68292 - Nut (5/16 Inch) [ More info ]
|
  |
|
11-8M0204668 - NUT @5 [ More info ] Unavailable |
| #24 | 10-90285 | SCREW, (.312-18 x .625) (1 required per assembly) |
  |
|
10-90285 - Screw [ More info ]
|
| #25 | 862548A 1 | BRACKET KIT, Floor or Transom Mounted (1 required per assembly) |
  |
|
862548A 1 - Bracket Kit [ More info ]
|
  |
|
18-6750 - Bracket, 862548A1 [ More info ]
|
  |
|
18-6749 - Bracket, 862548A1 [ More info ]
|
  |
|
6286 - Bracket,862548A1 [ More info ]
|
| #26 | 58491 | CHANNEL, Rubber (4.00 Inches) (2 required per assembly) |
  |
|
58491 - Channel Rubber, NLA [ More info ]
|
| #27 | 12-29245 | WASHER, (.281 x .500 x .060) Stainless Steel (4 required per assembly) |
  |
|
12-29245 - Washer [ More info ]
|
  |
|
12-8M0204649 - WASHER Note: Priced Individually [ More info ]
|
| #28 | 10-59784 | SCREW, (.250-10 x 1.00) (4 required per assembly) |
  |
|
10-59784 - Screw [ More info ] Unavailable |
| #29 | 13-35048 | LOCKWASHER, (.375) (2 required per assembly) |
  |
|
13-35048 - LockWasher - Priced Individually [ More info ]
|
| #30 | 10-98260 | SCREW, (.375-16 x .620) (2 required per assembly) |
  |
|
10-98260 - Screw [ More info ]
|
