Parts for Mariner Magnum II Power Trim Components

Revise Search: All Models > Magnum II > 0B242885 - 0C100860 (USA) > Power Trim Components

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

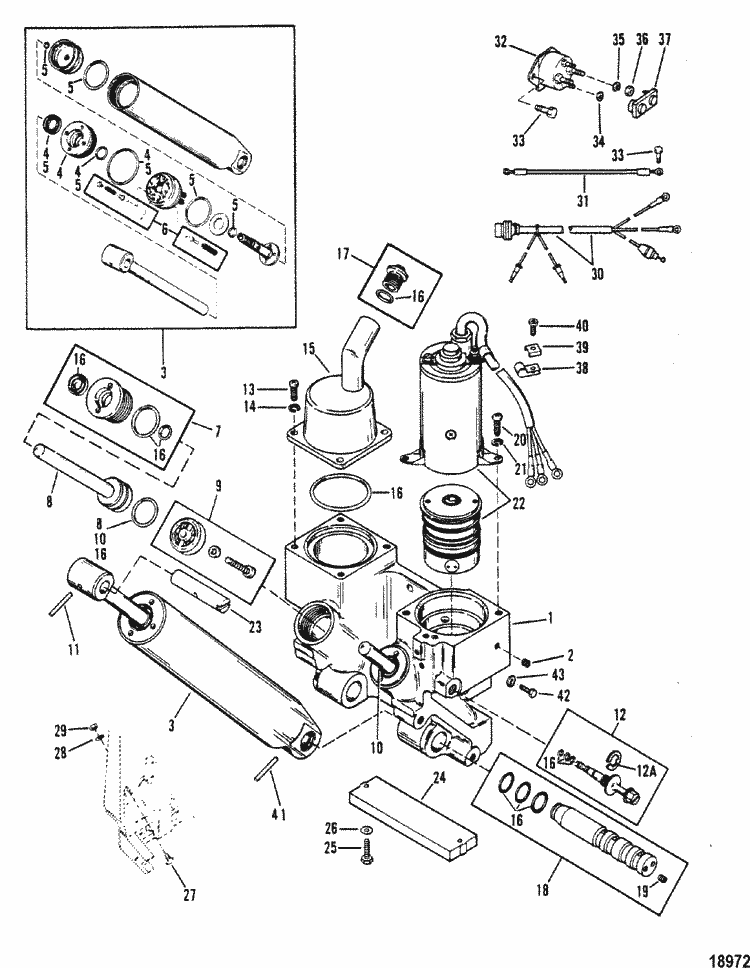

Engine section

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#1	99659A21	MANIFOLD ASSEMBLY (BLACK) (1 required per assembly)
		99659A21 - Manifold, NLA [ More info ] $330.00 $279.51 1 In Stock.
#1	99659A22	MANIFOLD ASSEMBLY (GRAY) (1 required per assembly)
		99659A22 - Manifold, NLA [ More info ] Unavailable
#2	22-99616	PIPE PLUG, MANIFOLD (11 required per assembly)
		22-99616 - Plug [ More info ] $5.56 10 In Stock.
		22-56800 - Pipe Plug [ More info ] $26.49 $25.36 10+ In Stock.
#3	41493A 7	TRIM CYLINDER ASSEMBLY (BLACK) (1 required per assembly)
		41493A 7 - Tilt Cylinder Assembly [ More info ] Unavailable
#3	41493A 4	TRIM CYLINDER ASSEMBLY (GRAY) (1 required per assembly)
		41493A 4 - Tilt Cylinder Assembly [ More info ] Unavailable
#4	41492A 1	GUIDE ASSEMBLY (1 required per assembly)
		41492A 1 - Guide Kit [ More info ] Unavailable
#5	25-41478A 1	REPAIR KIT (1 required per assembly)
		25-41478A 1 - Tilt Cylinder Repair Kit [ More info ] $136.45 2 In Stock.
#6	41482A 2	CHECK VALVE KIT (1 required per assembly)
		41482A 2 - Check Valve Assembly, NLA [ More info ] Unavailable
#7	99638A 1	GUIDE ASSEMBLY, TRIM ROD (2 required per assembly)
		99638A 1 - Guide Assembly [ More info ] Unavailable
		878243A 1 - End Cap Kit [ More info ] Unavailable
		1100-8M0021648 - End Cap Assembly [ More info ] $188.49 Available to Order: Shipping delay up to 10 days.
#8	43397A 6	PISTON AND ROD ASSEMBLY, PORT (1 required per assembly)
		43397A 6 - Trim Rod Port [ More info ] Unavailable
		43397T 6 - Piston/Rod Assembly [ More info ] Unavailable
		878413A 1 - Trim Rod Kit - Port [ More info ] $337.49 Available to Order: Shipping delay up to 10 days.
#9	35-12184A 1	TRIM FILTER ASSEMBLY (1 required per assembly)
		35-12184A 1 - Filter Assembly, NLA [ More info ] $16.77 8 In Stock.
#10	43398A 3	PISTON AND ROD ASSEMBLY, STARBOARD (1 required per assembly)
		43398A 3 - Trim Rod Starboard [ More info ] $69.99 1 In Stock.
		43398T 3 - Piston/ROD ASSY [ More info ] Unavailable
		878414A 1 - Trim Rod Starboard [ More info ] Unavailable
		878414T01 - Trim Rod Starboard [ More info ] $371.49 Available to Order: Shipping delay up to 10 days.
#11	17-13794	PIN, Groove, TRIM CYLINDER (UPPER) (1 required per assembly)
		17-13794 - Pin, Groove [ More info ] Unavailable
		17-821539 - Pin, Trilobe, Groove [ More info ] $6.29 7 In Stock.
#12	99660A 1	VALVE ASSEMBLY (1 required per assembly)
		99660A 1 - Valve Assembly [ More info ] Unavailable
		812843A 1 - Relief Valve Kit [ More info ] Unavailable
		813442A 2 - Relief Valve [ More info ] Unavailable
		893929A01 - Relief Valve [ More info ] $75.01 3 In Stock.
		18-6751 - Relief Valve, 893929A01 [ More info ] $64.75 4 In Stock.

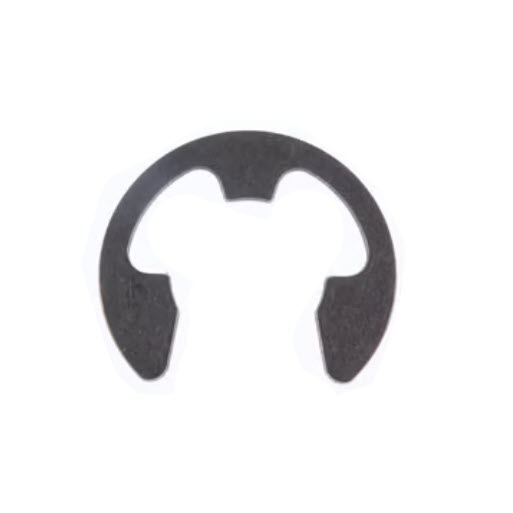

#12A	53-812844	E RING (1 required per assembly)
		53-812844 - E-RING [ More info ] $1.81 3 In Stock.
		53-815949001 - E-Ring [ More info ] $5.69 2 In Stock.
#13	10-40003 27	SCREW, (M6 x 14), COVER (4 required per assembly)
		10-40003 27 - Screw [ More info ] $2.99 Available to Order: Shipping delay up to 10 days.
#14	12-43450	WASHER, COVER SCREW (4 required per assembly)
		12-43450 - Washer, Cover Screw [ More info ] Unavailable
		12-40023 15 - Washer - Priced Individually [ More info ] $0.80 Available to Order: Shipping delay up to 10 days.
#15	99642	COVER, MANIFOLD (1 required per assembly)
		99642 - Cover [ More info ] Unavailable
#16	25-48462A 2	O-RING KIT (1 required per assembly)
		25-48462A 2 - O-Ring Kit [ More info ] Unavailable
		25-48462A 3 - O-Ring Kit [ More info ] Unavailable
		25-48462A 4 - O-Ring Kit [ More info ] $140.37 1 In Stock.
#17	19-99609A 1	PLUG ASSEMBLY (1 required per assembly)
		19-99609A 1 - Plug , NLA [ More info ] Unavailable
#18	99641A 1	SHAFT ASSEMBLY (1 required per assembly)
		99641A 1 - Shaft Assembly - 99641A02 [ More info ] Unavailable
#20	10-40088 20	SCREW, (M6 x 20), PUMP AND MOTOR (2 required per assembly)
		10-40088 20 - Screw [ More info ] $2.89 Available to Order: Shipping delay up to 10 days.
#21	13-40025 6	LOCKWASHER, (M6) (2 required per assembly)
		13-40025 6 - LockWasher - Priced Individually [ More info ] $1.80 $1.01 10+ In Stock.
#22	99186T	PUMP AND MOTOR (1 required per assembly)
		99186T - POWER TRIM PUMP [ More info ] Unavailable
		99186 1 - PUMP AND MOTOR [ More info ] Unavailable
		826729A 4 - Power Trim Kit [ More info ] Unavailable
		826729A07 - Power Trim Kit [ More info ] Unavailable
		826729A08 - Power Trim Kit [ More info ] Unavailable
		826729A09 - Power Trim Kit [ More info ] Unavailable
		826729A10 - Power Trim Kit [ More info ] Unavailable
		TT2000 - PTT System 3-Wire Mercury Replaces Mercury 3-Ram 3-Wire 1985-95 [ More info ] $999.00 $999.00 Available to Order
		18-6273-1 - Tilt Trim Motor and Pump [ More info ] $837.99 $776.37 4 In Stock.
		13506 - Brush Card Kit, NLA [ More info ] $163.32 $138.34 4 In Stock.
		300-26070 - Tilt & Trim Motor Mercury 826729A08 [ More info ] $599.99 $458.77 Available to Order: Shipping delay up to 10 days.
#23	99625	SHAFT, UPPER (1 required per assembly)
		99625 - Shaft [ More info ] Unavailable
		99625 1 - Shaft [ More info ] Unavailable
		99625002 - Upper Shaft [ More info ] $20.48 1 In Stock.
#24	43396A 1	ANODE ASSEMBLY (1 required per assembly)
		43396A 1 - ANODE ASSY [ More info ] Unavailable
		43396A 2 - Anode Assembly [ More info ] Unavailable
		818298A 1 - Anode Kit [ More info ] Unavailable
		97-818298Q 1 - Anode Kit - Outboard Transom Aluminum [ More info ] $25.49 4 In Stock.
		18-6249A - Anode, Aluminum, 18-6249A [ More info ] $23.09 $22.96 In Stock
		18-6249 - Zinc Anode, 818298A1 [ More info ] $25.05 1 In Stock.
		97-818298T 1 - Anode - Outboard Transom Aluminum [ More info ] $27.99 $27.92 Available to Order: Shipping delay up to 10 days.
#25	10-40003 32	SCREW, (M6 x 35), ANODE (2 required per assembly)
		10-40003 32 - Screw [ More info ] $2.29 Available to Order: Shipping delay up to 10 days.
#26	12-29245	WASHER, (.281 x .500 x .060), ANODE SCREW (2 required per assembly)
		12-29245 - Washer [ More info ] $0.89 10+ In Stock.
		12-8M0204649 - WASHER Note: Priced Individually [ More info ] $1.20 7 In Stock.
#27	99630 1	STRIKER PLATE, TRIM SHAFT (2 required per assembly)
		99630 1 - Striker Plate [ More info ] Unavailable
		8M0045383 - Striker Plate [ More info ] $12.29 Available to Order: Shipping delay up to 10 days.
#28	13-58643	LOCKWASHER, (.375) (2 required per assembly)
		13-58643 - LockWasher [ More info ] $1.80 $1.30 10+ In Stock.
#29	11-46335	NUT, (.375-24) (2 required per assembly)
		11-46335 - Nut (.375-24) [ More info ] $2.97 Available to Order: Shipping delay up to 10 days.
#30	84-17201A 2	CABLE ASSEMBLY, (17.00 Inches), POWER TRIM (1 required per assembly)
		84-17201A 2 - Cable Assembly, NLA [ More info ] $11.84 8 In Stock.
#31	84-79138A12	WIRE ASSEMBLY (13-1/4") (BLACK) (1 required per assembly)
		84-79138A12 - Wire Assembly, NLA [ More info ] $6.67 $5.65 2 In Stock.
#31	84-87379A25	WIRE ASSEMBLY, (4.750 Inches) (1 required per assembly)
		84-87379A25 - Cable Assembly, NLA [ More info ] $1.50 $1.28 5 In Stock.
#31	84-88807A 8	WIRE ASSEMBLY, (Black- 3.5 Inches) (2 required per assembly)
		84-88807A 8 - Cable Assembly, NLA [ More info ] Unavailable
#32	89-96158	SOLENOID STARTER (2 required per assembly)
		89-96158 - Solenoid [ More info ] Unavailable
		89-96158T - Solenoid, NLA Order 8M0185622 [ More info ] Unavailable
		8M0185622 - Solenoid, Starter or Trim [ More info ] $41.99 1 In Stock.
		18-5817 - Solenoid 89-96158 [ More info ] $28.99 $28.63 10+ In Stock.
		SW058 - Solenoid [ More info ] $27.59 10+ In Stock.
		89-02718 - Solenoid, 89-96158T [ More info ] $21.49 $19.11 In Stock
#33	10-28635	SCREW, (.250-20 x .620), SOLENOID (4 required per assembly)
		10-28635 - Screw - Priced Individually [ More info ] $1.80 10+ In Stock.
#34	11-26419	NUT, (#8-32), SOLENOID TERMINAL (4 required per assembly)
		11-26419 - Nut (#8-32) (brass) [ More info ] $1.70 10+ In Stock.
#35	13-26992	LOCKWASHER, (.250), SOLENOID TERMINAL (4 required per assembly)
		13-26992 - LockWasher - Priced Individually [ More info ] $1.20 10+ In Stock.
#36	11-94330	NUT, (.250-20), SOLENOID TERMINAL (4 required per assembly)
		11-94330 - Nut, Brass (1/4-20) [ More info ] $1.70 Available to Order: Shipping delay up to 10 days.
#37	85-97861	INSULATOR, SOLENOID (2 required per assembly)
		85-97861 - Insulator [ More info ] $5.19 Available to Order: Shipping delay up to 10 days.
#38	54-22875	CLIP, PUMP WIRE (2 required per assembly)
		54-22875 - Clip - Priced Individually [ More info ] $3.99 1 In Stock.
#39	69205	C WASHER, CLIP SCREW (2 required per assembly)
		69205 - C Washer [ More info ] Unavailable
		8M0084613 - Washer [ More info ] $1.10 Available to Order: Shipping delay up to 10 days.
#40	10-69079	SCREW, (#10-16 x .440), CLIP TO TRANSOM BRACKET (2 required per assembly)
		10-69079 - Screw [ More info ] $1.20 Available to Order: Shipping delay up to 10 days.
#41	17-44431	PIN, Groove, TRIM CYLINDER (LOWER) (1 required per assembly)
		17-44431 - Groove Pin [ More info ] $7.77 10+ In Stock.
		17-878267 - Pin, Groove [ More info ] $27.99 Available to Order: Shipping delay up to 10 days.
#42	10-40003 77	SCREW, (M10 x 30), MANIFOLD (6 required per assembly)
		10-40003 77 - Screw [ More info ] Unavailable
#43	13-40025 8	LOCKWASHER, SS, MANIFOLD SCREW (6 required per assembly)
		13-40025 8 - LockWasher [ More info ] $1.50 6 In Stock.
