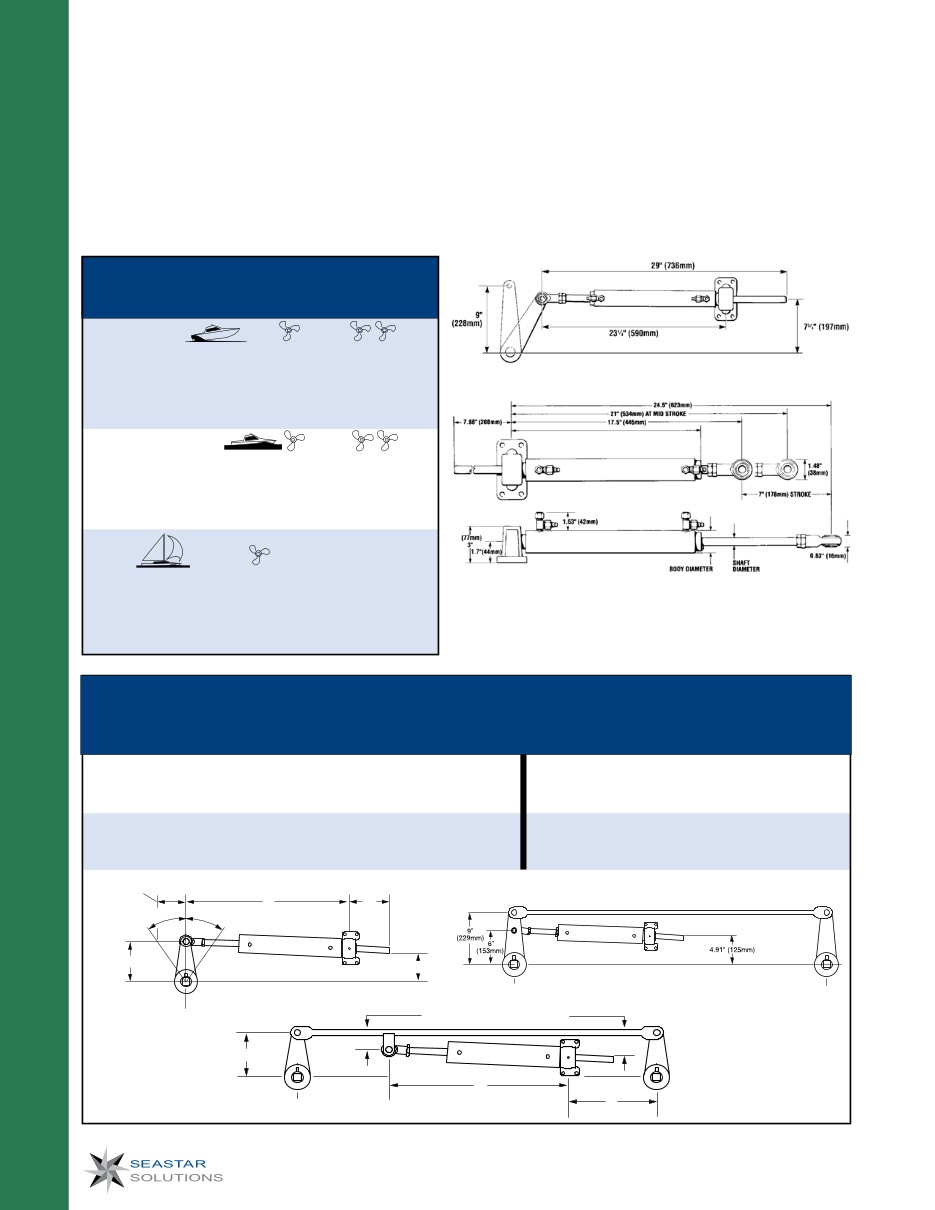

APPLICATION GUIDE: SEASTAR 2-LINE INBOARD STEERING
INBOARD CYLINDER DIMENSIONS
APPLICATION GUIDE
(INBOARD STEERING)
TM (BRASS BODY) INBOARD CYLINDERS
Use “System Numbers” in chart below to
select the components from ordering guide on
previous page.
Planing Hull: maximum hull speed normally exceeds 18 knots.
Displacement Hull: maximum hull speed does not normally
exceed 18 knots.
System Numbers
System Numbers
BOAT TYPE/
1 ENGINE
2 ENGINES
LENGTH
Pleasure
Work
Pleasure
Work
PLANING HULLS
To 26 Ft. (8m)
1
4
1
4
To 32 Ft. (10m)
2
4
1
4
To 38 Ft. (11.5m)
3
5
2
5
To 44 Ft. (13.5m)
5
—
3
5
To 50 Ft. (15m)
—
—
5
—
DISPLACEMENT HULLS
To 26 Ft. (8m)
2
4
2
4
To 32 Ft. (10m)
3
4
3
4
To 38 Ft. (11.5m)
5
5
3
5
To 44 Ft. (13.5m)
—
—
5
—
To 50 Ft. (15m)
—
—
—
—
SAIL
To 26 Ft. (8m)
4
4
—
—
To 32 Ft. (10m)
4
4
—
—
To 38 Ft. (11.5m)
4
5
—
—
To 44 Ft. (13.5m)
5
—
—
—
To 50 Ft. (15m)
—
—
—
—
A
35deg.
35deg.
3.44" (88mm)
6" (153mm)
4.91" (125mm)
B
A
C
6" (153mm)
2.5" (64mm)
3.59" (91mm)
CYLINDER DIMENSIONS & MOUNTING CONFIGURATIONS SPECIFIC TO MODEL
CYLINDER
PART
BODY
SHAFT
DIM.
DIM.
DIM.
MODEL
NO.
DIAMETER
DIAMETER
A
B
C
(SEE DIAGRAMS ABOVE)
(SEE DIAGRAMS BELOW)
BA125-7ATM
1.375” (34.9mm)
.50” (12.7mm)
20” (508mm)
6.5” (165mm)
8.5” (216mm)
BA135-7ATM
1.50” (38.1mm)
.625” (15.9mm)
20” (508mm)
6.5” (165mm)
8.5” (216mm)
BA150-7ATM
1.75” (44.4mm)
.625” (15.9mm)
20” (508mm)
6.5” (165mm)
8.5” (216mm)
BA150-7TM
1.75” (44.4mm)
.625” (15.9mm)
21” (534mm)
8.0” (204mm)
10.0” (254mm)
BA150-9TM
1.75” (44.4mm)
.625” (15.9mm)
21” (534mm)
8.0” (204mm)
10.0” (254mm)
BA175-7TM
2.00” (50.8mm)
.75” (19.0mm)
21” (534mm)
8.0” (204mm)
10.0” (254mm)
STEERING - Inboard (Hydraulic)
