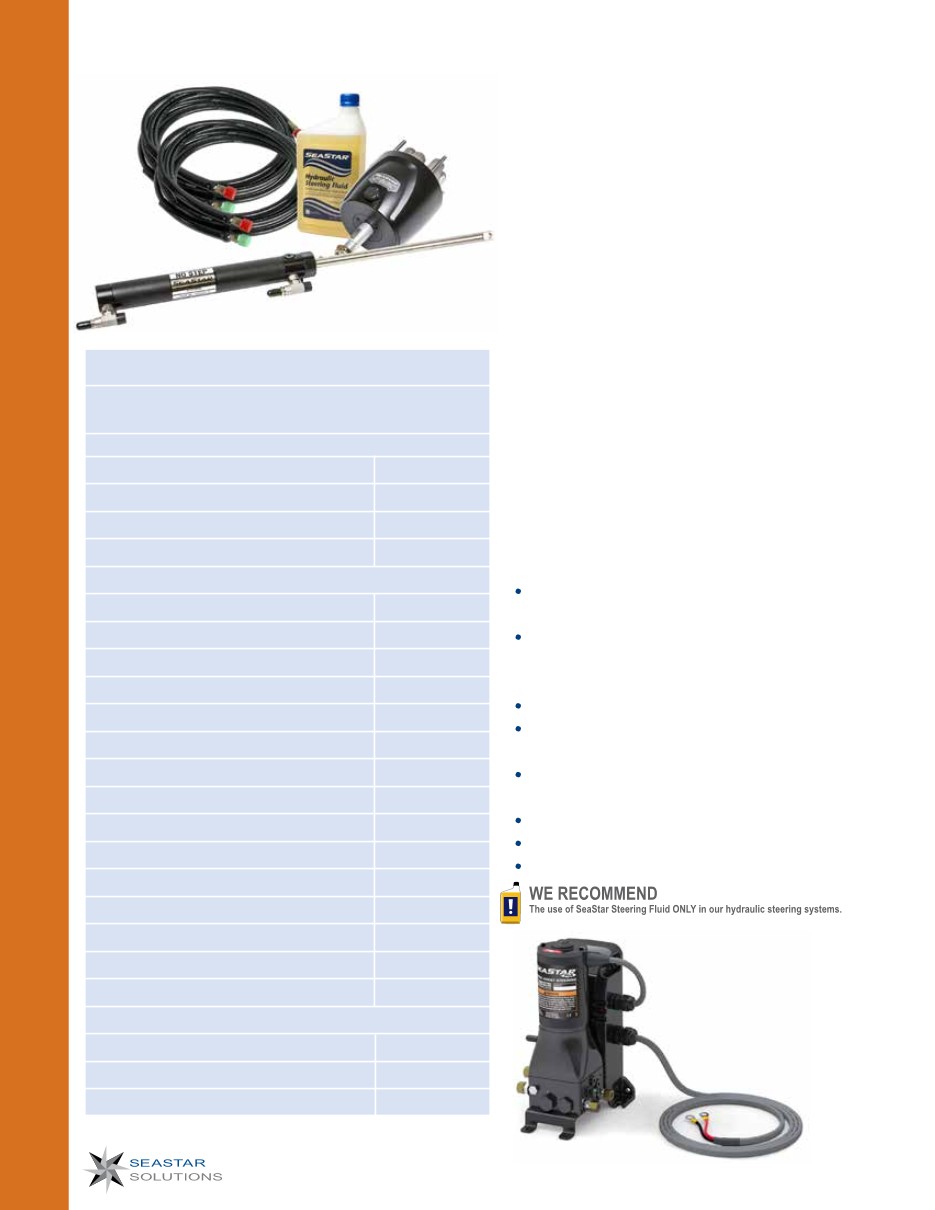

56
®
SEASTAR STEERING (SIDE MOUNT
CYLINDER) SYSTEM:
A great alternative for wide, shallow splashwells.
SeaStar side mount steering is a good choice for
engines with threaded tilt tubes that comply with
ABYC P17/NMMA/BIA standards for mechanical
steering. The cylinder attaches to an engine tilt tube
which meets the above standards.
APPLICATIONS:
Single and dual non-power-assisted outboard
engines up to 300 HP (600 combined HP for
counter-rotating duals) that have standard engine
tilt tube.
Suitable for speeds up to 60 MPH and dual station
use (with purchase of extra helm, hose & fittings).
Dual engines require purchase of a tie bar kit
and extra hardware. For power steered engines,
contact SeaStar Solutions Technical Service.
FEATURES:
Drag link design fits most engines with
threaded tilt tubes. Fast, easy installation.
Alternative to front mount cylinder where space
allows, especially useful in boats with shallow
splashwells.
Suitable for use on engines with power steering.
4.8/5.7 turns lock-to-lock using SeaStar 1.7 helm
(unbalanced cylinder).
Compact helm has only a 4-7/16” footprint —
needs only 3” dash hole (Tilt requires larger hole).
Standard 3/4” tapered steering shaft.
Meets A.B.Y.C. standards.
Meets N.M.M.A. certification requirements.
COMPLETE SYSTEM
System components sold separately. See application and
ordering guides to select appropriate components.
COMPONENTS
SeaStar 1.7 Helm
Side Mount Outboard Cylinder
Hose Kit (2 hoses)
SeaStar Oil (1 Quart Mil Spec H5006)
OPTIONS
SeaStar 1.7
- Front Mt. Commercial Helm
HH5217-3**
SeaStar 1.7 - Rear Mount Helm
SeaStar 1.7 - Sport Tilt Helm
SeaStar 1.7 - Classic Tilt Helm
SeaStar 2.4 - Front Mount Helm
SeaStar 2.4
- Front Mt. Commercial Helm
SeaStar 2.4 - Sport Tilt Helm
SeaStar 2.4 - Classic Tilt Helm
Power Assist, 15' Harness
SeaStar Round Bezel Kit
SeaStar Backplate Kit
SeaStar 20° Dash Wedge Kit
SeaStar Bulkhead Hose Kit (2 hoses)
SeaStar Twin Engine Tie Bar Kit
Add-A-Station/Autopilot Fitting Kit
SERVICE ITEMS
Cylinder tee/bleeder hose fitting
Cylinder seal kit
Extension rod/pin kit
STEERING - Outboard (Hydraulic)
(Side Mount)
UPGRADE WITH
SEASTAR POWER ASSIST
**Stainless steel shaft / robust shaft seal area
See Page 148
