ORDERING GUIDE: SPLASHWELL MOUNT SYSTEMS
NOTES:
These recommendations apply to factory stock outboards only. Modified installations may require a higher capacity steering system.
If in doubt, contact SeaStar Solutions technical service for assistance. (Cylinder volume / helm displacement = number of turns.) The
splashwell mount cylinder can be used on all engines complying with ABYC P17/NMMA/BIA standards provided they have a threaded
attachment hole (3/8"-24 UNF thread) in the steering arm. The splashwell mount cylinder (part no. HC5380) is not suitable for use on
engines ftted with Factory power steering. ±or dual engines, use SeaStar or engine manuFacturer’s tie bar.
For all Seastar outboard systems: Use following option A or B:
A) Outboard hose: order standard lengths (cannot be cut to length.) Part No. HO51xx/HO57xx, where last two digits = length
in feet.
B) Copper tube: 3/8" diameter copper tube and hose kit part No. HF5508.
ENGINE/CYLINDER
QTY.
CONFIGURATION
COMPONENT DESCRIPTION
REQ’D
MODEL
PART NO.
SINGLE ENGINE
CYLINDER
1
SPLASHWELL MOUNT
(SINGLE CYLINDER)
HELM
1
SEASTAR 1.7
Applications up to 300 HP maximum HOSE KIT
1
OUTBOARD HOSE
NUMBER OF TURNS: 5.5/6.5
OIL
3
SEASTAR OIL (QT.)
FOR EXTRA STEERING STATION ADD:
HELM
1
SEASTAR 1.7
FITTING KIT
1
ADD A STATION
HOSE KIT
1
OUTBOARD HOSE
OIL
1
SEASTAR OIL (QT.)
DUAL ENGINE
CYLINDER
1
SPLASHWELL MOUNT
(SINGLE CYLINDER)
TIE BAR KIT
1
TIE BAR ONLY
Non-Counter-Rotating Applications
HELM
1
SEASTAR 1.7
to 300 HP max; Counter-Rotating
HOSE KIT
1
OUTBOARD HOSE
Applications to 600 HP maximum.
OIL
3
SEASTAR OIL (QT.)
NUMBER OF TURNS: 5.5/6.5
FOR EXTRA STEERING STATION ADD:
HELM
1
SEASTAR 1.7
FITTING KIT
1
ADD A STATION
HOSE KIT
1
OUTBOARD HOSE
OIL
1
SEASTAR OIL (QT.)
OPTIONAL EQUIPMENT
BACK PLATE KIT
FOR STANDARD HELMS)
20 DEGREE WEDGE
(FOR STANDARD HELMS)
AUTOPILOT FITTING KIT:
(FOR ALL HELMS)
TILT HELM-SEASTAR 1.7
REAR MOUNT HELM - SEASTAR 1.7
POWER ASSIST STEERING

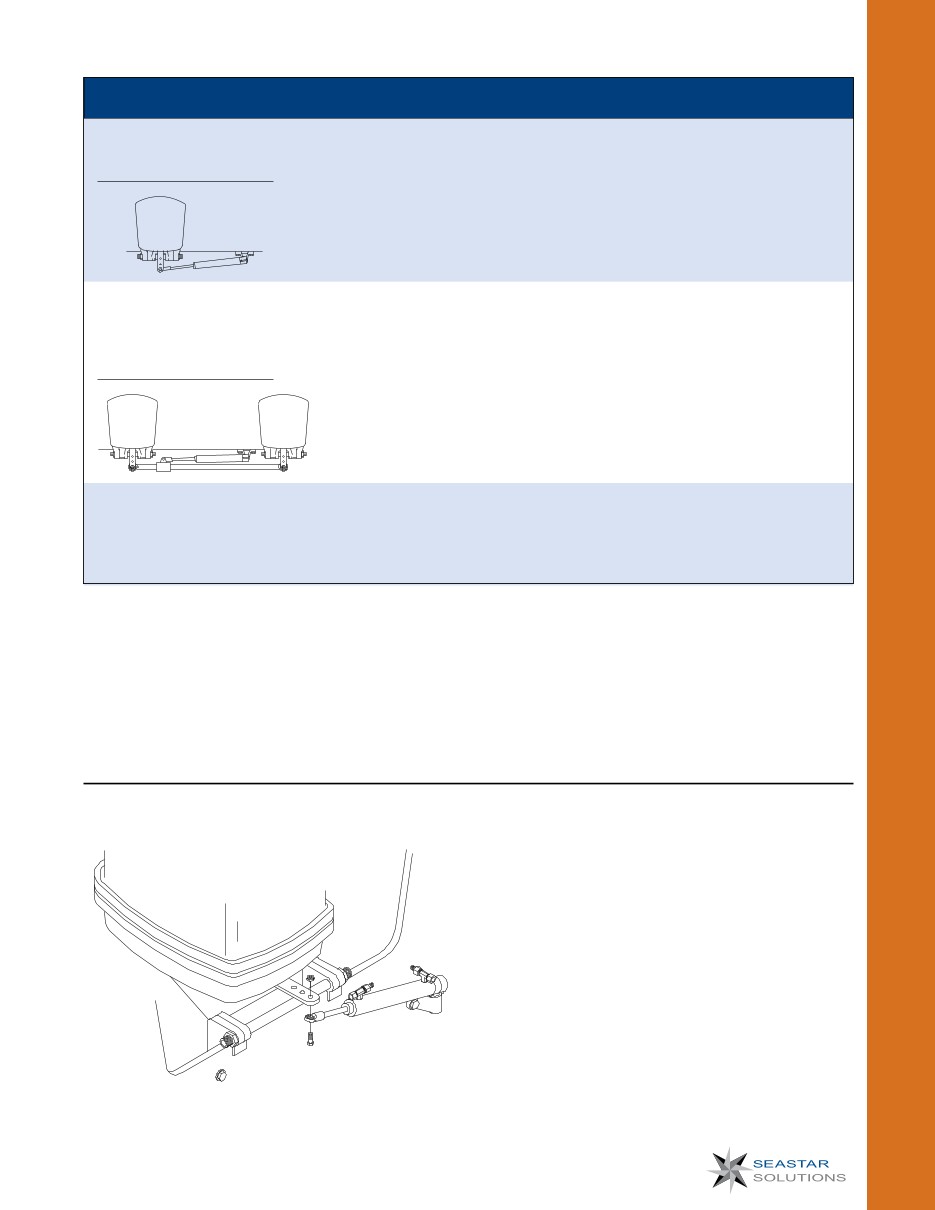

HC5380-3 SPLASHWELL CYLINDER
TYPICAL SINGLE ENGINE MOUNTING
SINGLE ENGINE
CYLINDER CONNECTION TO ENGINE
WARNING:
Do NOT use SeaStar PRO helms
with the
unbalanced splashwell cylinder. Doing so
may cause steering wheel to lock up leading
to possible loss of steering causing property
damage and/or personal injury.
