Ignition Components for Mercury / Mariner (6 / 8 / Sailmate 9.9 / Sailpower 15 HP) Engine

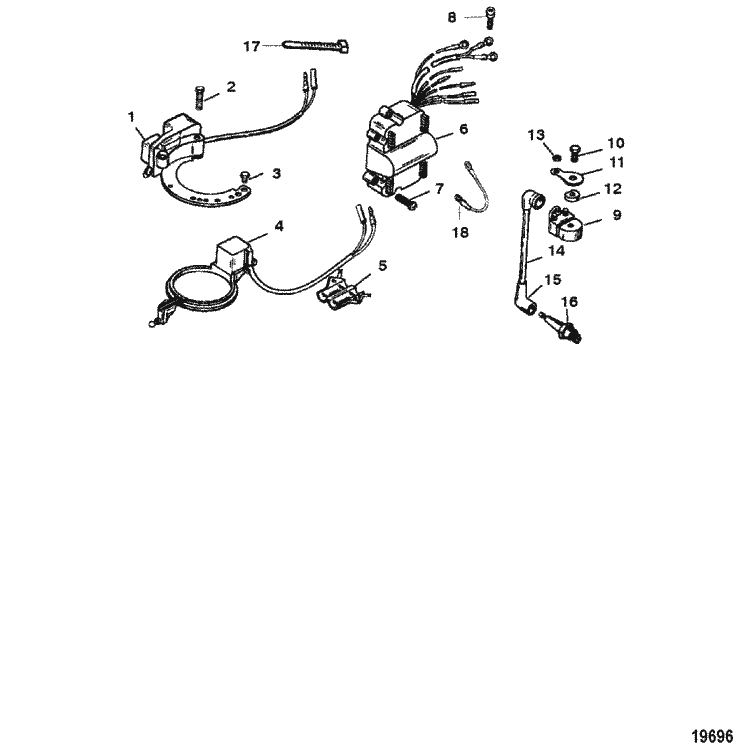

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]
Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]
| #1 — 86617A20 — STATOR ASSEMBLY (1 required per assembly) | ||
  |
|
86617A20 - Stator [ More info ]
|
 |
|
18-58641 - Stator, Mercury MC#86617A20 [ More info ]
|
| #2 — 40001 20 — SCREW, (M5 x 25) (2 required per assembly) | ||
  |
|
10-40001 20 - Screw, NLA [ More info ]
|
| #3 — 40001 8 — SCREW, (M5 x 12) (MANUAL) (1 required per assembly) | ||
  |
|
10-40001 8 - Screw - Priced Individually [ More info ]
|
| #4 — 98450A 5 — TRIGGER ASSEMBLY (1 required per assembly) | ||
  |
98450A 5 - Trigger Assembly [ More info ] Unavailable |
|
  |
|
98450A10 - Trigger Assembly [ More info ]
|
| #5 — 11100 — CLIP (1 required per assembly) | ||
  |
|
11100 - Trigger Lead Clip [ More info ]
|
| #6 — 7452A19 — SWITCHBOX ASSEMBLY (1 required per assembly) | ||
  |
|
339-7452A19 - Switch Box [ More info ]
|
  |
|
18-5777-1 - Switch Box [ More info ]
|
  |
|
18-5777 - Switch Box 339-7452A19 [ More info ]
|
  |
|
300-33900 - Switch Box, 339-7452A19 [ More info ]
|
| #7 — 40019108 — SCREW, (M5 x 20) (2 required per assembly) | ||
  |
|
10-40019108 - Screw [ More info ] Unavailable |
| #8 — 48408 — SCREW, (#10-16 x .500) (1 required per assembly) | ||
  |
|
10-48408 - Screw - Priced Individually [ More info ]
|
| #9 — 832757A 4 — COIL KIT (2 required per assembly) | ||
  |
|
339-832757A 4 - Ignition Coil [ More info ] Unavailable |
  |
|
18-5186 - Ignition Coil 339-7370A13 [ More info ]
|
  |
|
8M0230859 - Ignition Coil [ More info ]
|
| #10 — 40112 — SCREW, (M6 x 45) (2 required per assembly) | ||
  |
|
10-40112 - Screw [ More info ] Unavailable |
| #11 — 88173 — TAB WASHER (2 required per assembly) | ||
  |
|
88173 - Tab [ More info ]
|
| #12 — 88171 — BUSHING (2 required per assembly) | ||
  |
|
23-88171 - Bushing [ More info ]
|
| #13 — 45076 — NUT, (#10-32) Brass (4 required per assembly) | ||
  |
|
11-45076 - Nut (#10-32) (brass) [ More info ]
|
| #14 — 813715A 2 — CABLE SET, High Tension (5 and 8.25 Inch) (1 required per assembly) | ||
  |
|
84-813715A 2 - Ignition Cable Set [ More info ]
|
| #15 — 63709A 1 — BOOT/TERMINAL KIT (2 required per assembly) | ||
  |
|
85-63709A 1 - Boot Kit - Black - Priced Individually [ More info ]
|
| #16 — 816737 2 — SPARK PLUG (NGK#BP8H-N-10) (2 required per assembly) — (6/8) | ||
  |
33-816737 2 - NGK BP8HN-10 Note: Priced Individually [ More info ] Unavailable |
|
  |
|
33-816737Q - NGK BP8HN-10 - Priced Individually [ More info ] Unavailable |
  |
|
BP8H-N-10 - NGK Spark Plug, 4838 [ More info ]
|
| #16 — 816837 2 — SPARK PLUG (NGK#BPZ-8H-N-10) (2 required per assembly) — (6/8) | ||
  |
33-816837 2 - NGKBPZ8HN-10 Note: Priced Individually [ More info ] Unavailable |
|
  |
33-816837Q - NGKBPZ8HN-10 - Priced Individually [ More info ] Unavailable |
|
  |
|
BPZ8H-N-10 - NGK Spark Plug, 4495 [ More info ]
|
  |
|
QL78YC - Champion Spark Plug ( #938M) [ More info ]
|
  |
|
33-938 - Spark Plug - QL78YC - Priced Individually [ More info ] Unavailable |
| #16 — 19424 — SPARK PLUG (NGK#BP8HS-15) (2 required per assembly) — (9.9) SN# USA-0G112450/BEL-9831800 & Up | ||
  |
33-19424 - NGK BP8HS-15 - Priced Individually [ More info ] Unavailable |
|
  |
|
BP8HS-15 - NGK Spark Plug, 6729 [ More info ]
|
  |
|
33-8M0114746 - Spark Plug BP8HS-15 - Priced Individually [ More info ] Unavailable |
| #16 — 14814568 — SPARK PLUG (NGK#BPZ8HS-15) (2 required per assembly) — (9.9) SN# USA-0G112450/BEL-9831800 & Up | ||
  |
|
33-14814568 - NGKBPZ8HS-15 - Priced Individually [ More info ] Unavailable |
  |
|
BPZ8HS-10 - NGK Spark Plug, 3133 [ More info ]
|
| #17 — 816311 — TIE STRAP, (8.00 Inches) (AR required per assembly) | ||
  |
54-816311 - TIE STRAP Note: Priced Individually [ More info ] Unavailable |
|
  |
|
54-816311T - Tie Strap, 8 Inches, Priced Individually [ More info ]
|
| #18 — 88807A16 — CABLE ASSEMBLY, (4.00 Inches) Black (1 required per assembly) | ||
  |
|
84-88807A16 - Cable Assembly [ More info ]
|
