Parts for Mercury Marine V-200 Hydraulic Pump & Mounting Brackets

Revise Search: All Models > V-200 > 5624878 - 0C100860 > Hydraulic Pump & Mounting Brackets

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

Engine section

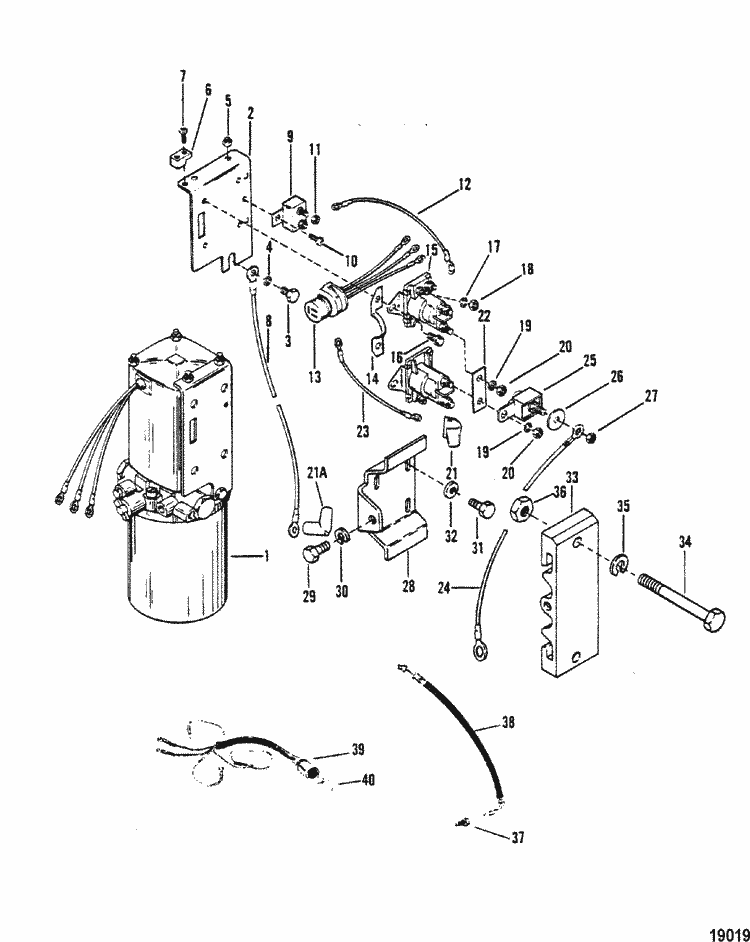

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#1	92459A 4	HYDRAULIC PUMP (1 required per assembly)
		92459A 4 - Hydraulic Pump [ More info ] Unavailable
		823653A 5 - Hydraulic Pump Kit [ More info ] Unavailable
		823653A 9 - Pump Kit - Hydraulic [ More info ] Unavailable
		18-6765 - Tilt Trim Assembly [ More info ] $851.35 1 In Stock.
		89495 - Pump - 823653A [ More info ] $159.99 4 In Stock.
#2	90318	BRACKET (1 required per assembly)
		90318 - Bracket, NLA [ More info ] $10.00 $8.47 1 In Stock.
#3	10-90285	SCREW, (.312-18 x .625) (1 required per assembly)
		10-90285 - Screw [ More info ] $1.80 Available to Order: Shipping delay up to 10 days.
#4	12-56720	WASHER, (.330 x .750 x .060) (1 required per assembly)
		12-56720 - Washer, (.330 X .750 X .060) Stainless Steel [ More info ] $1.80 Available to Order: Shipping delay up to 10 days.
#5	11-29488	NUT, (#10-32) (2 required per assembly)
		11-29488 - Nut, (#10-32) [ More info ] $3.61 10+ In Stock.
		11-826709106 - Nut, (#10-32) Stainless Steel [ More info ] $4.50 6 In Stock.
		11-8M0204718 - NUT [ More info ] $4.69 Available to Order: Shipping delay up to 10 days.
#6	45915	TERMINAL BLOCK (1 required per assembly)
		86-45915 - Terminal Block [ More info ] $0.90 1 In Stock.
#7	10-62568	SCREW, (#10-16 x .375) (2 required per assembly)
		10-62568 - Screw - Priced Individually [ More info ] $1.10 $0.88 10+ In Stock.
#8	32988	BATTERY LEAD (NEGATIVE) (1 required per assembly) SN# Merc-USA-5464485/AUS-8061769/Mariner-5875388 & Below
		32988 - Battery Lea, NLA [ More info ] Unavailable
#8	84-79138A 4	BATTERY CABLE (NEGATIVE) (1 required per assembly) SN# Merc-5464486/Mariner-5624878 THRU Merc-6073191/Mariner-6055032
		84-79138A 4 - Cable Assembly, NLA [ More info ] $20.00 $16.94 1 In Stock.
#8	84-79138A 9	CABLE ASSEMBLY, Black (NEGATIVE) (1 required per assembly) SN# Merc-6073192/Mariner-6055033 THRU Merc/Mariner-6625220
		84-79138A 9 - Wire Assembly [ More info ] $72.99 $69.92 5 In Stock.
#9	88-79149	CIRCUIT BREAKER (20 AMP.) (1 required per assembly) SN# Merc-6073192/Mariner-6055033 THRU Merc/Mariner-6625220
		88-79149 - Circuit Breaker [ More info ] $29.99 10+ In Stock.
		888M0085705 - Circuit Breaker [ More info ] $40.99 Available to Order: Shipping delay up to 10 days.
#10	10-69014	SCREW, (#10-24 x .375) (1 required per assembly) SN# Merc-6073192/Mariner-6055033 THRU Merc/Mariner-6625220
		10-69014 - Screw Note: Priced Individually [ More info ] Unavailable
		10-807754 - Screw - Priced Individually [ More info ] Unavailable
		108M0113176 - Screw - Priced Individually [ More info ] $1.10 1 In Stock.
#11	11-45076	NUT, (#10-32) (2 required per assembly) SN# Merc-6073192/Mariner-6055033 THRU Merc/Mariner-6625220
		11-45076 - Nut (#10-32) (brass) [ More info ] $1.80 10+ In Stock.
#12	84-87379A 2	WIRE (1 required per assembly) (RED - 3")
		84-87379A 2 - Wire Assembly, NLA [ More info ] Unavailable
#12	84-61600A 9	WIRE (1 required per assembly) (BLACK - 3-1/4")
		84-61600A 9 - Wire Assembly, NLA [ More info ] Unavailable
#12	84-87379A 5	WIRE (1 required per assembly) (RED - 5-1/2")
		84-87379A 5 - Wire Assembly, NLA [ More info ] Unavailable
#13	84-74023A 1	CONNECTOR AND HARNESS (1 required per assembly) (3 RING TERMINALS)
		84-74023A 1 - Harness Assembly, NLA [ More info ] $30.20 $25.58 10+ In Stock.
#13	84-79147A 3	HARNESS ASSEMBLY (1 required per assembly) (W/FUSE HOLDER)
		84-79147A 3 - Harness Assembly [ More info ] $100.86 1 In Stock.
#14	88075	RETAINER (1 required per assembly)
		88075 - Retainer [ More info ] $31.23 1 In Stock.
#15	89-68258A 4	STARTER SOLENOID (2 required per assembly) SN# Merc-6073191/Mariner-6055032 & Below
		89-68258A 4 - Solenoid [ More info ] Unavailable
		89-853654A 1 - Solenoid [ More info ] $47.01 2 In Stock.
		18-5815 - Solenoid 89-853654A1 [ More info ] $39.87 7 In Stock.
		89-02815 - Solenoid, 89-853654A1 [ More info ] $24.49 $24.18 9 In Stock.
		SW275 - Solenoid, 89-853654A 1 [ More info ] $33.75 $32.09 In Stock
#15	89-96158	SOLENOID STARTER (2 required per assembly) SN# Merc-6073192/Mariner-6055033 THRU Merc/Mariner-6625220
		89-96158 - Solenoid [ More info ] Unavailable
		89-96158T - Solenoid, NLA Order 8M0185622 [ More info ] Unavailable
		8M0185622 - Solenoid, Starter or Trim [ More info ] $41.99 1 In Stock.
		18-5817 - Solenoid 89-96158 [ More info ] $28.99 $28.63 10+ In Stock.
		SW058 - Solenoid [ More info ] $27.59 10+ In Stock.
		89-02718 - Solenoid, 89-96158T [ More info ] $21.49 $19.11 In Stock
#16	10-41508	SCREW, (.250-20 x .500) (4 required per assembly)
		10-41508 - Screw [ More info ] $3.79 Available to Order: Shipping delay up to 10 days.
#17	13-26995	LOCKWASHER, (#8) (4 required per assembly)
		13-26995 - Lock Washer - Priced Individually [ More info ] Unavailable
#18	11-26419	NUT, (#8-32) (4 required per assembly)
		11-26419 - Nut (#8-32) (brass) [ More info ] $1.70 10+ In Stock.
#19	13-26992	LOCKWASHER, (.250) (4 required per assembly)
		13-26992 - LockWasher - Priced Individually [ More info ] $1.20 10+ In Stock.
#20	11-94330	NUT, (.250-20) (4 required per assembly)
		11-94330 - Nut, Brass (1/4-20) [ More info ] $1.70 Available to Order: Shipping delay up to 10 days.
#17	13-26996	LOCKWASHER, (#10) (4 required per assembly)
		13-26996 - LockWasher - Priced Individually [ More info ] $1.20 10+ In Stock.
#18	11-68219	NUT, (#10-32) (4 required per assembly)
		11-68219 - Nut (#10-32) [ More info ] $2.99 10+ In Stock.
#19	13-26993	LOCKWASHER, (.312) (4 required per assembly)
		13-26993 - LockWasher - Priced Individually [ More info ] $0.80 10+ In Stock.
		138M0204647 - LOCKWASHER, Priced Individually [ More info ] $1.80 Available to Order: Shipping delay up to 10 days.
#20	11-68292	NUT, (.312-18) (4 required per assembly)
		11-68292 - Nut (5/16 Inch) [ More info ] $1.50 10+ In Stock.
		11-8M0204668 - NUT @5 [ More info ] Unavailable
#21A	46265	BOOT (4 required per assembly)
		46265 - Boot [ More info ] $4.19 $3.36 5 In Stock.
#21	85-96535	BOOT (4 required per assembly) SN# Merc-6073192/Mariner-6055033 THRU Merc/Mariner-6625220
		85-96535 - Insulator [ More info ] Unavailable
		85-861680 - Insulator [ More info ] $8.79 Available to Order: Shipping delay up to 10 days.
#22	94275	LINK (1 required per assembly) SN# Merc-6073192/Mariner-6055033 THRU Merc/Mariner-6625220
		94275 - Link, Solenoid to Solenoid [ More info ] $9.79 Available to Order: Shipping delay up to 10 days.
#23	84-86322A15	CABLE ASSEMBLY, (5.50 Inches) (1 required per assembly) SN# Merc-6073192/Mariner-6055033 THRU Merc/Mariner-6625220
		84-86322A15 - Wire Assembly [ More info ] $8.99 2 In Stock.
#24	32979	BATTERY LEAD (POSITIVE) (1 required per assembly) SN# Merc-USA-5464485/AUS-8061769/Mariner-5875388 & Below
		32979 - Battery Lea, NLA [ More info ] Unavailable
#24	84-79139A 9	BATTERY LEAD (POSITIVE) (1 required per assembly) SN# Merc-5464486/Mariner-5624878 THRU Merc-6073191/Mariner-6055032
		84-79139A 9 - Cable Assembly, NLA [ More info ] $9.00 $7.62 2 In Stock.
#24	84-79139A12	CABLE ASSEMBLY, Red (POSITIVE) (1 required per assembly) SN# Merc-6073192/Mariner-6055033 THRU Merc/Mariner-6625220
		84-79139A12 - Wire Assembly [ More info ] $74.58 3 In Stock.
#25	88-79023A10	FUSE ASSEMBLY, (110 Ampere) (1 required per assembly) SN# Merc-6073192/Mariner-6055033 THRU Merc/Mariner-6625220
		88-79023A10 - Fuse, 110 AMP [ More info ] Unavailable
		88-79023T10 - Fuse, 110 Amp [ More info ] $45.99 In Stock
#26	12-96457	WASHER (1 required per assembly) SN# Merc-6073192/Mariner-6055033 THRU Merc/Mariner-6625220
		12-96457 - Phenolic Washer [ More info ] $1.70 Available to Order: Shipping delay up to 10 days.
#27	11-21825	NUT, (.250-28) (1 required per assembly) SN# Merc-6073192/Mariner-6055033 THRU Merc/Mariner-6625220
		11-21825 - Nut, (1/4x28) [ More info ] $1.70 10+ In Stock.
#28	87760	PLATE (1 required per assembly)
		87760 - Plate [ More info ] Unavailable
		87760T - Plate [ More info ] $81.99 Available to Order: Shipping delay up to 10 days.
#29	10-39349	SCREW, (.312-18 x .750) (1 required per assembly)
		10-39349 - Screw - Priced Individually [ More info ] $1.80 $1.44 10+ In Stock.
#31	10-90271	SCREW, (.375-16 x .62) (2 required per assembly)
		10-90271 - Screw - Priced Individually [ More info ] $1.80 Available to Order: Shipping delay up to 10 days.
#32	13-58643	LOCKWASHER, (.375) (2 required per assembly)
		13-58643 - LockWasher [ More info ] $1.80 $1.30 10+ In Stock.
#33	87762	BRACKET (1 required per assembly)
		87762 - Bracket [ More info ] $149.99 $143.92 9 In Stock.
#34	10-31830	BOLT, (.375-24 x 1.75) (2 required per assembly)
		10-31830 - Screw, NLA [ More info ] $2.14 10+ In Stock.
#36	11-46335	NUT, (.375-24) (2 required per assembly)
		11-46335 - Nut (.375-24) [ More info ] $2.97 Available to Order: Shipping delay up to 10 days.
#37	22-89029	ADAPTOR (1 required per assembly) (1/4 Inch Flare) SN# Merc-USA-5464485/AUS-8061769/Mariner-5875388 & Below
		22-89029 - Fitting [ More info ] $7.59 10+ In Stock.
#37	22-77366	FITTING (1 required per assembly) (3/16 Inch Flare) SN# Merc-USA-5464485/AUS-8061769/Mariner-5875388 & Below
		22-77366 - Connector [ More info ] $12.79 5 In Stock.
#38	32-67740	HOSE (PORT) (1 required per assembly) SN# Merc-USA-5464485/AUS-8061769/Mariner-5875388 & Below
		32-67740 - Hose [ More info ] $158.99 $152.64 1 In Stock.
#38	32-67742	HOSE (STARBOARD) (1 required per assembly) SN# Merc-USA-5464485/AUS-8061769/Mariner-5875388 & Below
		32-67742 - Hose [ More info ] $158.99 Available to Order: Shipping delay up to 10 days.
#39	84-89017A 1	TRIM SENDER HARNESS (1 required per assembly) SN# Merc-USA-5464485/AUS-8061769/Mariner-5875388 & Below
		84-89017A 1 - Harness Assembly, NLA [ More info ] Unavailable
#40	54-75343	CLAMP (1 required per assembly) SN# Merc-USA-5464485/AUS-8061769/Mariner-5875388 & Below
		54-75343 - Clamp, NLA [ More info ] $1.25 $1.06 10 In Stock.
