Parts for Mercury Marine Model 800 80 HP (6 Cylinder) Top Cowl & Starter Assembly

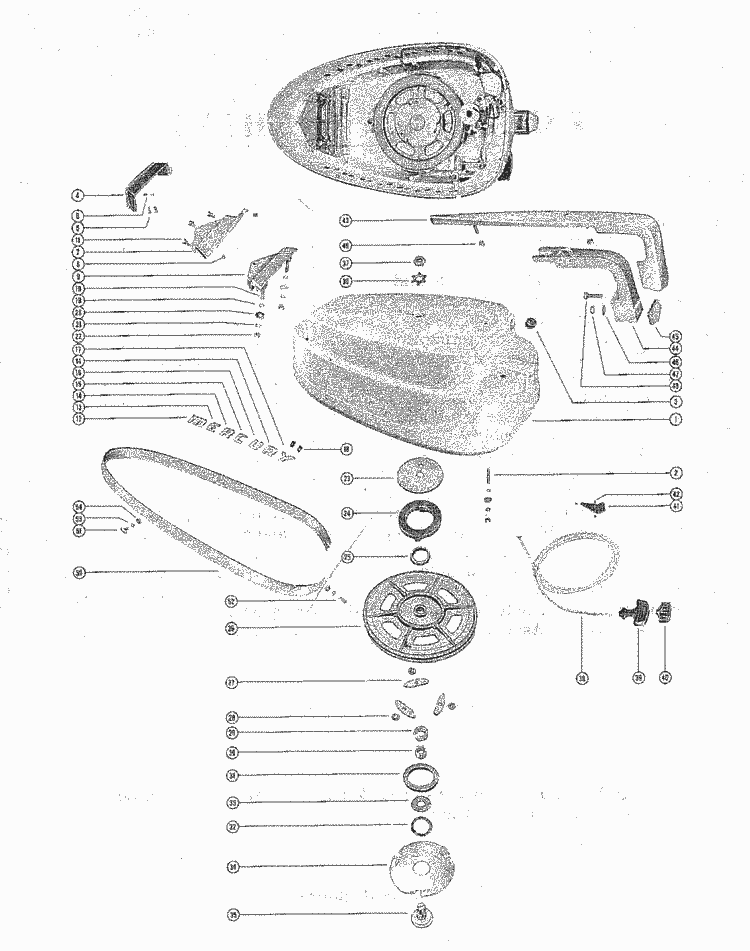

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| # | 37-46023A 1 | DECAL, TOP COWL - STARBOARD SIDE (1,1 required per assembly) STARTED WITH SERIAL 1402844 ON MERC 800E AND WITH SERIAL 1404354 ON MERC 800EL. |
 |
|
37-46023A 1 - DECAL SET NLA [ More info ] Unavailable |
| #1 | 182-1809A 2 | TOP COWL ASSEMBLY (1, required per assembly) USE THRU SERIAL #1402843 ON MERC 800E AND THRU SERIAL #1404353 ON MERC 800EL. |
|
|
182-1809A 2 - TOP COWL NLA [ More info ] Unavailable |
| #2 | 16-20353 | STUD, FRONT - TOP COWL TO CRANKCASE (2, required per assembly) USE THRU SERIAL #1402843 ON MERC 800E AND THRU SERIAL #1404353 ON MERC 800EL. |
|
|
16-20353 - Stud - Priced Individually [ More info ]
|
| #3 | 25-20116 | GROMMET, CHOKE KNOB (1, required per assembly) USE THRU SERIAL #1402843 ON MERC 800E AND THRU SERIAL #1404353 ON MERC 800EL. |
  |
|
25-20116 - Grommet - Priced Individually [ More info ]
|
| #1 | 182-1895A 2 | TOP COWL ASSEMBLY (1,1 required per assembly) STARTED WITH SERIAL 1402844 ON MERC 800E AND WITH SERIAL 1404354 ON MERC 800EL. |
|
|
182-1895A 2 - TOP COWL ASSY NLA [ More info ] Unavailable |
| #4 | -31476 | REVEAL, AIR INTAKE (1,1 required per assembly) |
|
|
31476 - REVEAL NLA [ More info ] Unavailable |
| #5 | 10-37370 | SCREW, REVEAL TO TOP COWL (2,2 required per assembly) |
  |
|
10-37370 - Screw - Priced Individually [ More info ]
|
| #6 | 13-26996 | LOCKWASHER, REVEAL TO TOP COWL FASTENIING SCREW (2,2 required per assembly) |
  |
|
13-26996 - LockWasher - Priced Individually [ More info ]
|
| #7 | -31475 | SCREEN, VENT - TOP COWL (1,1 required per assembly) |
|
|
31475 - Screen, NLA [ More info ]
|
| #8 | 10-26668 | SCREW, VENT SCREEN TO TOP COWL (2,2 required per assembly) |
|
|
10-26668 - Screw, NLA [ More info ]
|
| #9 | -29981A 1 | PLATE ASSEMBLY - COWL MOUNTING (1,1 required per assembly) |
|
|
29981A 1 - Plate Assembly [ More info ]
|
| #11 | 10-29282 | SCREW, PLATE ASSEMBLY TO TOP COWL (3, required per assembly) |
|
|
10-29282 - SCREW @5 NLA [ More info ] Unavailable |
| #11 | 10-28668 | SCREW, PLATE ASSEMBLY TO TOP COWL (,3 required per assembly) |
  |
|
10-28668 - Screw - Priced Individually [ More info ]
|
| #12 | -29939M | LETTER "M" - STARBOARD (1, required per assembly) USE THRU SERIAL #1402843 ON MERC 800E AND THRU SERIAL #1404353 ON MERC 800EL. |
|
|
29939M - LETTER M NLA [ More info ] Unavailable |
| #13 | -29939 E | LETTER "E" - STARBOARD (1, required per assembly) USE THRU SERIAL #1402843 ON MERC 800E AND THRU SERIAL #1404353 ON MERC 800EL. |
|
|
29939 E - LETTER E NLA [ More info ] Unavailable |
| #14 | -29939 R | LETTER "R" - STARBOARD (2, required per assembly) USE THRU SERIAL #1402843 ON MERC 800E AND THRU SERIAL #1404353 ON MERC 800EL. |
|
|
29939 R - LETTER R NLA [ More info ] Unavailable |
| #15 | -29939 C | LETTER "C" - STARBOARD (1, required per assembly) USE THRU SERIAL #1402843 ON MERC 800E AND THRU SERIAL #1404353 ON MERC 800EL. |
|
|
29939 C - LETTER C NLA [ More info ] Unavailable |
| #16 | -29939 U | LETTER "U" - STARBOARD (1, required per assembly) USE THRU SERIAL #1402843 ON MERC 800E AND THRU SERIAL #1404353 ON MERC 800EL. |
|
|
29939 U - LETTER U NLA [ More info ] Unavailable |
| #17 | -29939 Y | LETTER "Y" - STARBOARD (1, required per assembly) USE THRU SERIAL #1402843 ON MERC 800E AND THRU SERIAL #1404353 ON MERC 800EL. |
|
|
29939 Y - LETTER Y NLA [ More info ] Unavailable |
| #12 | -29940M | LETTER "M" - PORT (1, required per assembly) USE THRU SERIAL #1402843 ON MERC 800E AND THRU SERIAL #1404353 ON MERC 800EL. |
|
|
29940M - LETTER M NLA [ More info ] Unavailable |
| #13 | -29940 E | LETTER "E" - PORT (1, required per assembly) USE THRU SERIAL #1402843 ON MERC 800E AND THRU SERIAL #1404353 ON MERC 800EL. |
|
|
29940 E - LETTER E NLA [ More info ] Unavailable |
| #14 | -29940 R | LETTER "R" - PORT (2, required per assembly) USE THRU SERIAL #1402843 ON MERC 800E AND THRU SERIAL #1404353 ON MERC 800EL. |
|
|
29940 R - LETTER R NLA [ More info ] Unavailable |
| #15 | -29940 C | LETTER "C" - PORT (1, required per assembly) USE THRU SERIAL #1402843 ON MERC 800E AND THRU SERIAL #1404353 ON MERC 800EL. |
|
|
29940 C - LETTER C NLA [ More info ] Unavailable |
| #16 | -29940 U | LETTER "U" - PORT (1, required per assembly) USE THRU SERIAL #1402843 ON MERC 800E AND THRU SERIAL #1404353 ON MERC 800EL. |
|
|
29940 U - LETTER U NLA [ More info ] Unavailable |
| #17 | -29940 Y | LETTER "Y" - PORT (1, required per assembly) USE THRU SERIAL #1402843 ON MERC 800E AND THRU SERIAL #1404353 ON MERC 800EL. |
|
|
29940 Y - LETTER Y NLA [ More info ] Unavailable |
| #18 | 53-30022 | FASTENER, LETTER TO TOP COWL (28, required per assembly) USE THRU SERIAL #1402843 ON MERC 800E AND THRU SERIAL #1404353 ON MERC 800EL. |
|
|
53-30022 - Fastener, NLA [ More info ]
|
| #19 | 12-20028 | WASHER, TOP COWL STUD (1/16") (4,4 required per assembly) |
|
|
12-20028 - Washer, (.265 X .437 X .060) [ More info ]
|
| #20 | 12-20346 | WASHER, TOP COWL STUD (3/4" OD) (4,4 required per assembly) |
|
|
12-20346 - Washer, 3/4 O.D. [ More info ]
|
  |
|
12-69057 - Washer, (.281 X .734 X .063) [ More info ]
|
| #21 | 12-20583 | WASHER, TOP COWL STUD (1/32") (AR,AR required per assembly) |
|
|
12-20583 - Washer - Priced Individually [ More info ]
|
| #22 | 11-20361 | NUT, TOP COWL FASTENING (4,4 required per assembly) |
  |
|
11-20361 - 11-20361 - NUT (.250-28) [ More info ] Unavailable Replaced by 11-8267089 |
  |
|
11-826708 9 - Nut - Priced Individually [ More info ]
|
  |
|
18-3722 - Lock Nut, 121731, 11-35888 [ More info ]
|
| #23 | -30755 | RETAINER, STARTER SPRING (1,1 required per assembly) |
|
|
30755 - Retainer, NLA [ More info ]
|
| #24 | 24-30753 | SPRING, STARTER REWING (1,1 required per assembly) |
|
|
24-30753 - Spring, Starter Rewind [ More info ]
|
| #25 | 23-30754 | BUSHING, SPRING GUIDE (1,1 required per assembly) |
|
|
23-30754 - Bushing, NLA [ More info ]
|
| #26 | 50-30749 | SHEAVE ASSEMBLY (1,1 required per assembly) |
|
|
SHEAVE,NLA 50-30749 [ More info ]
|

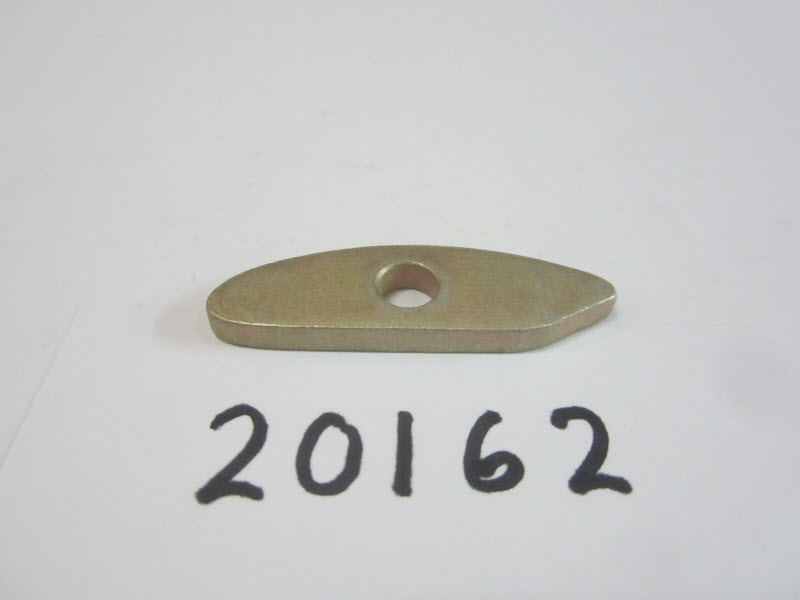

| #27 | -20162 | PAWL, STARTER (3,3 required per assembly) |
  |
|
20162 - Starter Pawl - Priced Individually [ More info ]
|
| #28 | 13-29402 | WASHER, WAVE - STARTER PAWL (3,3 required per assembly) |
|
|
13-29402 - Wave Washer - Priced Individually [ More info ]
|
| #29 | 23-30752 | BUSHING, NYLON - SHEAVE SHAFT SPACER (1,1 required per assembly) |
|
|
23-30752 - Bushing, NLA [ More info ]
|
| #30 | 23-30759 | SPACER, SHEAVE SHAFT (1,1 required per assembly) |
|
|
23-30759 - Spacer - Sheave Shaft [ More info ]
|
| #31 | 12-26180 | WASHER, SHEAVE SHAFT TO STARTER SHEAVE (1,1 required per assembly) |
|
|
12-26180 - Washer, Wave, NLA [ More info ]
|

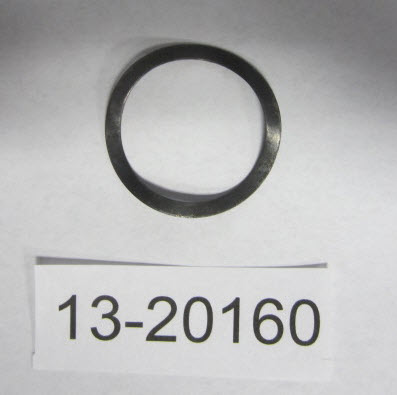

| #32 | 13-20160 | WASHER, WAVE - WASHER TENSION (1,1 required per assembly) |
  |
|
13-20160 - Wave Washer - Priced Individually [ More info ]
|
| #33 | 12-30758 | WASHER, EQUALIZING RING - STARTER SHEAVE (1,1 required per assembly) |
|
|
12-30758 - Washer, Equalizing Ring - Starter Sheave,NLA [ More info ]
|
| #34 | -30757 | PLATE, RETAINER - STARTER PAWL (1,1 required per assembly) |
|
|
|
| #35 | -30756 | SHAFT, SHEAVE (1,1 required per assembly) |
|
|
30756 - Shaft, NLA [ More info ]
|

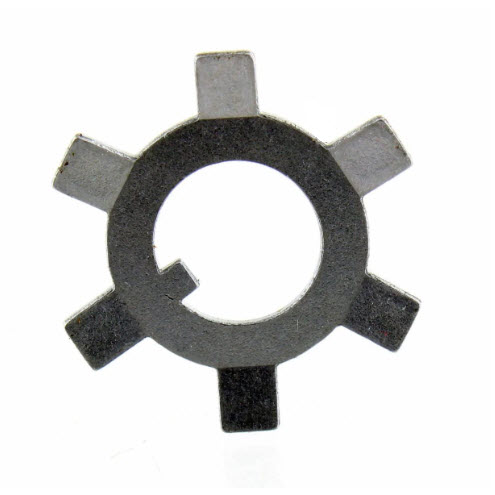

| #36 | 14-20165 | TAB WASHER, SHEAVE SHAFT NUT (1,1 required per assembly) |
  |
|
14-20165 - Tab Washer - Priced Individually [ More info ]
|

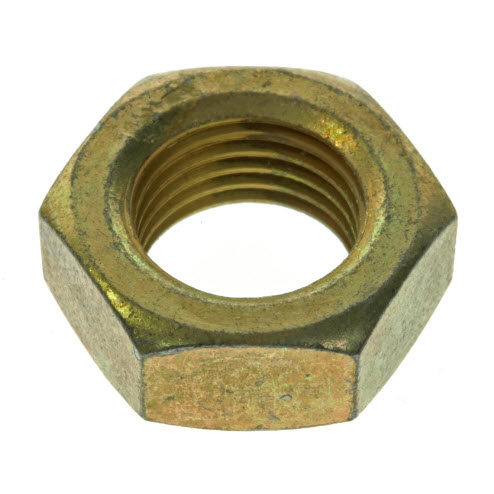

| #37 | 11-20166 | NUT, SHEAVE SHAFT (LEFT HAND THREAD) (1,1 required per assembly) |
  |
|
11-20166 - Nut, Sheave Shaft ( Left Hand Thread) [ More info ]
|
| #38 | 50-28985A 1 | STARTER CABLE ASSEMBLY (1,1 required per assembly) |
|
|
50-28985A 1 - 50-28985A 1 - CABLE ASSEMBLY St [ More info ] Unavailable Replaced by 50-28985A 2 |
  |
|
50-28985A 2 - 50-28985A 2 - CABLE ASSEMBLY St [ More info ] Unavailable Replaced by 50-12066A 9 |
  |
|
50-12066A 9 - 50-12066A 9 - ROPE [ More info ] Unavailable Replaced by 50-12066Q 9 |
  |
|
50-12066Q 9 - 50-12066Q 9 - ROPE [ More info ] Unavailable Replaced by 50-12066Q10 |
  |
|
50-12066Q10 - Starter Rope - Priced Individually [ More info ]
|
  |
|
18-4915 - Pull Rope, 50-12066Q9 [ More info ]
|
  |
|
50-12066K10 - Starter Rope - Priced Individually [ More info ]
|

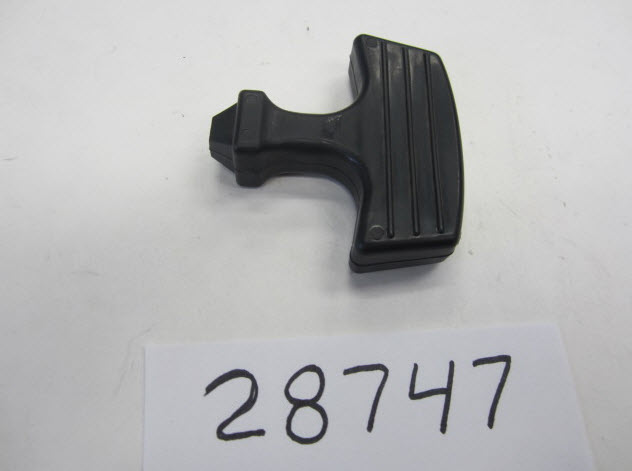

| #39 | -28747 | HANDLE, STARTER CABLE (1,1 required per assembly) |
  |
|
28747 - Starter Cable Handle, NLA [ More info ]
|

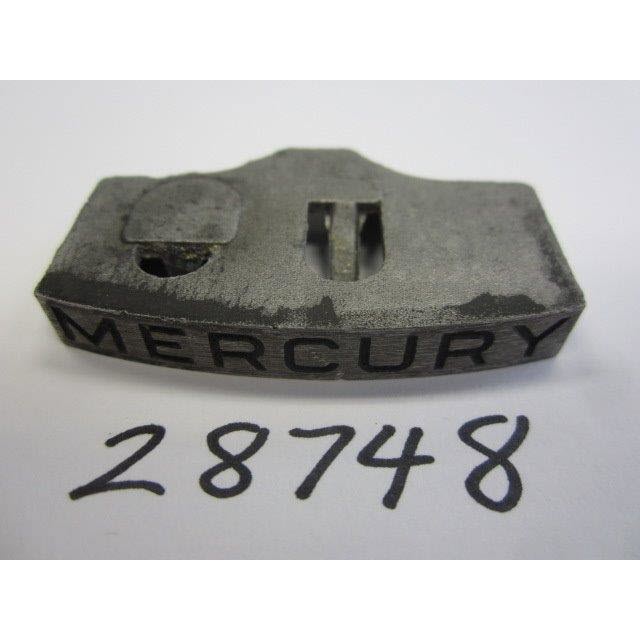

| #40 | -28748 | RETAIINER, STARTER CABLE AND HANDLE (1,1 required per assembly) |
  |
|
28748 - 28748 - RETAINER [ More info ] Unavailable Replaced by -77997A1 |
|
|
77997A1 - 77997A1 - ->79470A1 [ More info ] Unavailable Replaced by -79470A1 |
  |
|

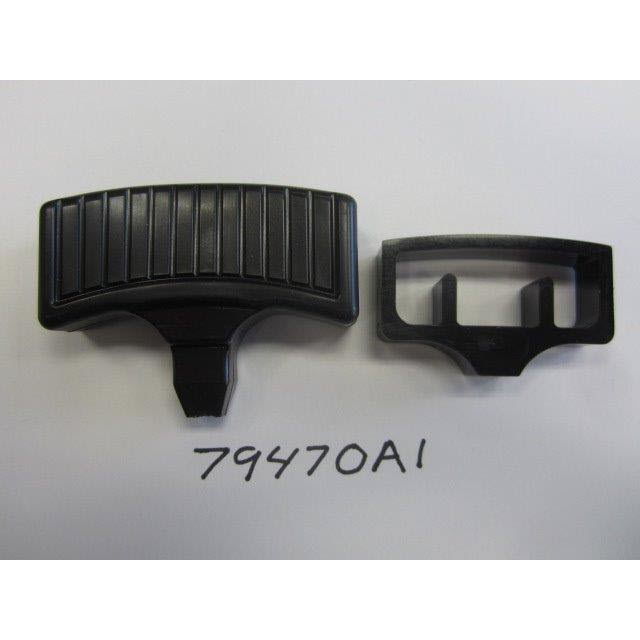

79470A 1 - Rope Start Handle and Retainer [ More info ]
|
| #41 | -30045 | PLATE, ROPE GUIDE (1,1 required per assembly) |
|
|
|
| #42 | 10-28642 | SCREW, DRIVE, ROPE GUIDE PLATE TO TOP COWL (3,3 required per assembly) |
|
|
10-28642 - Screw - Priced Individually [ More info ]
|
| #43 | -31463 | HANDLE, CHROME - TOP COWL (1,1 required per assembly) |
|
|
31463 - HANDLE NLA [ More info ] Unavailable |
| #44 | -31487 | HANDLE ASSEMBLY, INSIDE - TOP COWL (1,1 required per assembly) |
|
|
31487 - Handle, NLA [ More info ]
|
| #45 | -30896 | PAD, BUMPER - TOP COWL HANDLE (1,1 required per assembly) |
|
|
30896 - PAD NLA [ More info ] Unavailable |
| #46 | 12-29245 | WASHER, CHROME HANDLE TO INSIDE HANDLE STUD (1,1 required per assembly) |
  |
|
12-29245 - Washer [ More info ]
|
|
|
12-8M0204649 - WASHER Note: Priced Individually [ More info ]
|
  |
|
18-4275 - SS Washer [ More info ]
|
| #47 | 11-35045 | NUT, CHROME HANDLE TO INSIDE HANDLE FASTENING (1,1 required per assembly) |
  |
|
11-35045 - 11-35045 - NUT (.250-28) [ More info ] Unavailable Replaced by 11-826709109 |
  |
|
11-826709109 - Nut, (.250-28) Stainless Steel [ More info ]
|
| #48 | 10-29199 | SCREW, FRONT - HANDLE TO TOP COWL (1") (1,1 required per assembly) |
|
|
10-29199 - SCREW @5 NLA [ More info ] Unavailable |
| #50 | -29980A 1 | TRIM MOULDING ASSEMBLY - TOP COWL (1,1 required per assembly) |
|
|
29980A 1 - MOULDING ASSY NLA [ More info ] Unavailable |
| #51 | 10-29226 | SCREW, DECORATIVE - MOULDING TO TOP COWL (2,2 required per assembly) |
|
|
10-29226 - SCREW @5 NLA [ More info ] Unavailable |
| #52 | 10-29227 | SCREW, BRASS - MOULDING TO TOP COWL (2,2 required per assembly) |
  |
|
10-29227 - Screw [ More info ]
|
| #53 | 13-26995 | LOCKWASHER, MOULDING FASTENING SCREW (4,4 required per assembly) |
  |
|
13-26995 - Lock Washer - Priced Individually [ More info ]
|
| #54 | 11-26419 | NUT, MOULDING FASTENING SCREW (4,4 required per assembly) |
  |
|
11-26419 - Nut (#8-32) (brass) [ More info ]
|
