Engine section

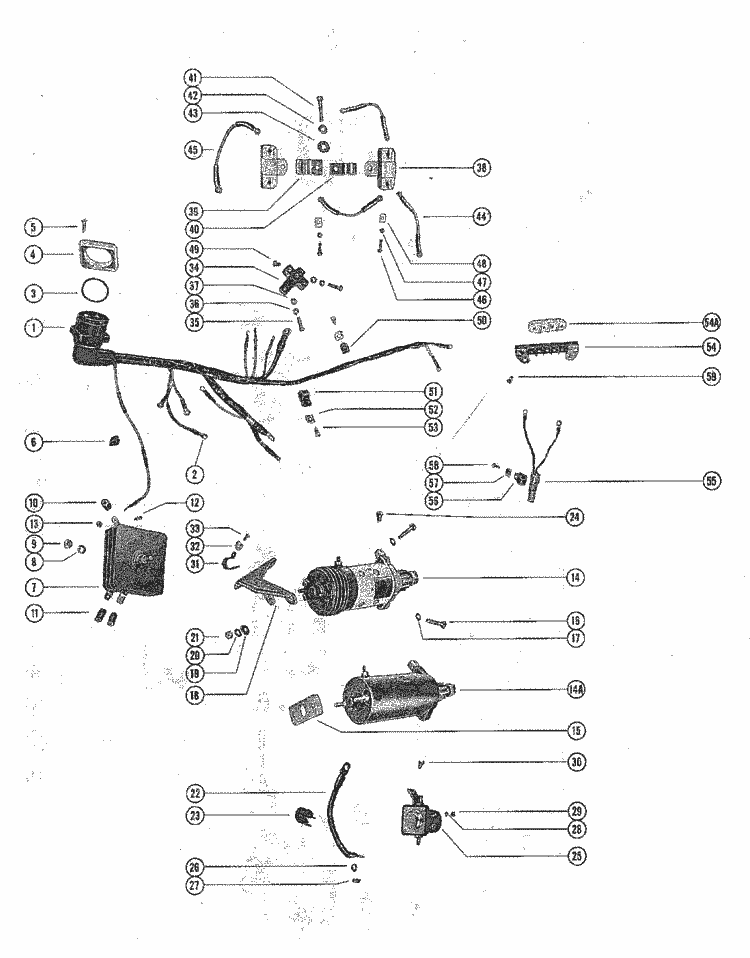

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#	-21098	BUMPER, RUBBER-STARTER MOTOR DRIVE END PLATE (1, required per assembly) USE ONLY WITH 50-30842 STARTER MOTOR ON EARLY PRODUCTION ENGINES
		21098 - BUMPER,NLA [ More info ] Unavailable
#	12-31364	WASHER, RUBBER-STARTER MOTOR DRIVE END PLATE (1, required per assembly) USE ONLY WITH 50-30842 STARTER MOTOR ON EARLY PRODUCTION ENGINES
		12-31364 - WASHER,NLA [ More info ] Unavailable
#	37-30649	LABEL, TERMINAL BLOCK COLOR LEADS (1, required per assembly)
		37-30649 - DECAL,NLA [ More info ] Unavailable
#1	-30472	WIRING HARNESS, INTERNAL (1,1 required per assembly)
		30472 - Wiring Harness, NLA [ More info ] Unavailable
#2	-30050	TERMINAL, HARNESS AND MERCURY SWITCH LEADS (AR,AR required per assembly)
		30050 - Terminal, NLA [ More info ] Unavailable
#3	24-28975	SPRING, GARTER-INTERNAL WIRING HARNESS (1,1 required per assembly)
		24-28975 - Spring, Garter - Harness,NLA [ More info ] $8.76 10+ In Stock.
#4	-26079A 2	PLATE, WIRING HARNESS TO BOTTOM COWL (1,1 required per assembly)
		26079A 2 - Plate Kit [ More info ] $19.50 Available to Order: Usually ships within 10 days.
#5	10-45893	SCREW,HARNESS PLATE FASTENING (4,4 required per assembly)
		10-45893 - Screw - Priced Individually, NLA [ More info ] $3.38 10+ In Stock.
#6	54-22783	"S" CLIP, RECTIFIER HARNESS LEAD TO BOTTOM COWL (2,2 required per assembly)
		54-22783 - Clip, NLA [ More info ] Unavailable
#7	-32177A 2	RECTIFIER ASSEMBLY (1,1 required per assembly)
		32177A 2 - Rectifier Assembly , NLA [ More info ] $59.99 4 In Stock.
#8	13-26993	LOCKWASHER, RECTIFIER MOUNTING SCREW (1,1 required per assembly)
		13-26993 - LockWasher - Priced Individually [ More info ] $0.99 10+ In Stock.
		138M0204647 - LOCKWASHER, Priced Individually [ More info ] $1.70 Available to Order: Usually ships within 10 days.
#9	11-21929	NUT, RECTIFIER MOUNTING SCREW (1,1 required per assembly)
		11-21929 - Nut, NLA [ More info ] $1.25 10+ In Stock.
#10	32-28052	SLEEVE, RUBBER- RECTIFIER HARNESS LEAD (1,1 required per assembly)
		32-28052 - Tubing, NLA [ More info ] Unavailable
#11	32-28373	SLEEVE, RUBBER-RECTIFIER STATOR LEAD (2,2 required per assembly)
		32-28373 - SLEEVE,NLA [ More info ] Unavailable
#13	11-29488	NUT, HARNESS AND STATOR LEADS FASTENING SCREW (3,3 required per assembly)
		11-29488 - Nut, (#10-32) [ More info ] $3.61 1 In Stock.
		11-826709106 - Nut, (#10-32) Stainless Steel [ More info ] $4.50 3 In Stock.
		11-8M0204718 - NUT [ More info ] $4.50 Available to Order: Usually ships within 10 days.
#14	50-30575	STARTER MOTOR ASSEMBLY(BOSCH) (1, required per assembly) THE 50-30575 STARTER MOTOR (BOSCH) USED ON EARLY PRODUCTION ENGINES IS NO LONGER AVAILABE, FOR REPLACEMENT, ORDER 50-30842 STARTER MOTOR (DELCO-REMY) AND COMPONENT PARTS.
#14A	50-30842	STARTER MOTOR ASSEMBLY (DELCO-REMY) (1,1 required per assembly)
		50-30842 - NLA NLA [ More info ] Unavailable
		5374X - Starter, 50-30842 & 32411 [ More info ] $199.05 $187.98 1 In Stock.
#15	-31057	PLATE, SPACER-STARTER MOTOR- (1,1 required per assembly) USE ONLY WITH 50-30842 STARTER MOTOR ON EARLY PRODUCTION ENGINES
		31057 - Plate [ More info ] $1.25 10 In Stock.
#16	10-22698	SCREW, STARTER MOTOR TO CRANKCASE FLANGE (2,2 required per assembly)
		10-22698 - Screw - Priced Individually, NLA [ More info ] $1.50 10+ In Stock.
#18	-38747	BRACKET, SUPPORT-STARTER MOTOR (1,1 required per assembly)
		38747 - Bracket, NLA [ More info ] $20.00 8 In Stock.
#19	12-24664	WASHER, THRU BOLT-BRACKET TO STARTER MOTOR (1,1 required per assembly)
		12-24664 - Washer, (M4 X 20) [ More info ] $1.30 $0.74 10+ In Stock.
#20	13-26992	LOCKWASHER, THRU BOLT-BRACKET TO STARTER MOTOR (2,2 required per assembly)
		13-26992 - LockWasher - Priced Individually [ More info ] $1.20 10+ In Stock.
#21	11-20890	NUT, THRU BOLT-BRACKET TO STARTER MOTOR (2,2 required per assembly)
		11-20890 - Nut (1/4 x20) [ More info ] $1.60 7 In Stock.
#22	-25596	CABLE,WIRE-STARTER TO STARTER SOLENOID (1,1 required per assembly)
		25596 - Wire [ More info ] Unavailable
		54651 - Jumper Wire [ More info ] Unavailable
		84-93389A12 - Cable Assembly, NLA [ More info ] Unavailable
#23	54-20534	CLAMP, LOWER CABLE-STARTER TO SOLENOID (1,1 required per assembly)
		54-20534 - CLIP,NLA [ More info ] Unavailable
#24	10-69035	SCREW, WIRING HARNESS GROUND LEAD TO STARTER MOTOR (1,1 required per assembly)
		10-69035 - Screw/LockWasher [ More info ] $1.70 $1.44 9 In Stock.
#25	-32268	SOLENOID, STARTER (1,1 required per assembly)
		32268 - Starter Solenoid, NLA [ More info ] Unavailable
#27	11-22053	NUT, SOLENOID TERMINAL (5/16) (2,2 required per assembly)
		11-22053 - Nut (5/16x24) [ More info ] $2.50 10+ In Stock.
#28	13-26996	LOCKWASHER, SOLENOID TERMINAL (#10) (2,2 required per assembly)
		13-26996 - LockWasher - Priced Individually [ More info ] $1.20 10+ In Stock.
#29	11-68219	NUT, SOLENOID TERMINAL(#10) (2,2 required per assembly)
		11-68219 - Nut (#10-32) [ More info ] $2.90 10+ In Stock.
#30	10-29238	SCREW< SOLENOID TO STARTER MOTOR (2,2 required per assembly)
		10-29238 - Screw, NLA [ More info ] Unavailable
#31	54-22627	CLAMP, WIRING HARNESS TO STARTER SUPPORT BRACKET (1,1 required per assembly)
		54-22627 - Clip, NLA [ More info ] Unavailable
#33	10-26548	SCREW, HARNESS CLAMP FASTENING (1,1 required per assembly)
		10-26548 - Screw - Priced Individually [ More info ] Unavailable
		10-62568 - Screw - Priced Individually [ More info ] $1.10 10+ In Stock.
#34	-29714	BLOCK, TERMINAL-UPPER FUEL PUMP PAD (1,1 required per assembly)
		29714 - Terminal Bl, NLA [ More info ] $1.25 10+ In Stock.
#35	10-22245	SCREW, TERMINAL BLOCK FASTENING (2,2 required per assembly)
		10-22245 - SCREW,NLA [ More info ] Unavailable
#37	12-26014	WASHER, TERMINAL BLOCK FASTENING SCREW (2,2 required per assembly)
		12-26014 - Washer, NLA [ More info ] $5.50 10+ In Stock.
#38	393-1572	RESISTOR (2,2 required per assembly)
		393-1572 - Resistor, NLA [ More info ] Unavailable
#39	-30449	SNUBBER, RESISTOR TO TRANSFER PORT COVER SCREW (1,1 required per assembly)
		30449 - Snubber, NLA [ More info ] $5.00 2 In Stock.
#41	10-24770	SCREW,RESISTOR, SNUBBER AND COVER MOUNTING (1 3/8") (1,1 required per assembly)
		10-24770 - SCREW,NLA [ More info ] Unavailable
#43	12-20346	WASHER, RESISTOR, SNUBBER AND COVER MOUNTING SCREW (1,1 required per assembly)
		12-20346 - Washer, 3/4 O.D. [ More info ] Unavailable
		12-69057 - Washer, (.281 X .734 X .063) [ More info ] $1.70 10+ In Stock.
#44	-29112	JUMPER, RESISTOR TO RESISTOR AND RESISTOR TO TERMINAL BLOCK (3,3 required per assembly)
		29112 - Jumper, NLA [ More info ] $2.63 1 In Stock.
#45	-30020	JUMPER, RESISTOR TO TERMINAL BLOCK (1,1 required per assembly)
		30020 - JUMPER,NLA [ More info ] Unavailable
#46	10-46718	SCREW,JUMPER LEADS TO RESISTOR (4,4 required per assembly)
		10-46718 - Screw, NLA [ More info ] $1.78 10+ In Stock.
#47	13-26995	LOCKWASHER, JUMPER LEADS FASTENING SCREW (4,4 required per assembly)
		13-26995 - Lock Washer - Priced Individually [ More info ] $1.10 $0.62 10+ In Stock.
#48	12-30191	WASHER, JUMPER LEADS FASTENING SCREW (4,4 required per assembly)
		12-30191 - Washer, NLA [ More info ] $1.50 10+ In Stock.
#50	54-26836	CLIP, WIRING HARNESS TO CRANKCASE FLANGE (1,1 required per assembly)
		26836 - Lever [ More info ] $7.00 5 In Stock.
#51	54-24836	CLIP, WIRING HARNESS TO CYLINDER BLOCK COVER (1,1 required per assembly)
		54-24836 - Clip - Priced Individually [ More info ] $4.00 Available to Order: Usually ships within 10 days.
#53	10-69014	SCREW, HARNESS CLIP FASTENING (2,2 required per assembly)
		10-69014 - Screw Note: Priced Individually [ More info ] $1.29 10+ In Stock.
		10-807754 - Screw - Priced Individually [ More info ] Unavailable
		108M0113176 - Screw - Priced Individually [ More info ] $1.10 3 In Stock.
#54	-29765A 1	TERMINAL BLOCK ASSEMBLY, EXHAUST COVER (1, required per assembly)
		29765A 1 - BLOCK ASSY,NLA [ More info ] Unavailable
#54A	-30212	TERMINAL BLOCK, EXHAUST COVER (,1 required per assembly)
		30212 - Terminal Bl, NLA [ More info ] $2.92 10+ In Stock.
#55	-30000	SWITCH, MERCURY (1,1 required per assembly)
		30000 - MERCURY Switch [ More info ] Unavailable
		33385A 1 - Switch Assembly [ More info ] $54.43 4 In Stock.
		58124A 1 - Switch Assembly, NLA [ More info ] $48.99 10+ In Stock.
#56	54-22875	CLAMP, MERCURY SWITCH (1,1 required per assembly)
		54-22875 - Clip - Priced Individually [ More info ] $4.90 2 In Stock.
#57	-22789	"D" WASHER, CLAMP FASTENING SCREW (1,1 required per assembly)
		22789 - C Washer - Priced Individually [ More info ] Unavailable
		69205 - C Washer [ More info ] Unavailable
		8M0084613 - Washer [ More info ] $1.10 Available to Order: Usually ships within 10 days.
#58	10-20401	SCREW, MERCURY SWITCH CLAMP TO EXHAUST COVER (1,1 required per assembly)
		10-20401 - Screw [ More info ] $1.67 10+ In Stock.
#59	10-35400	SCREW, HARNESS LEADS TO TERMINAL BLOCK (2, required per assembly)
		10-35400 - Screw - Priced Individually, NLA [ More info ] Unavailable
#59	10-28192	SCREW, HARNESS LEADS TO TERMINAL BLOCK (,2 required per assembly)
		10-28192 - Screw - Priced Individually [ More info ] $0.61 5 In Stock.

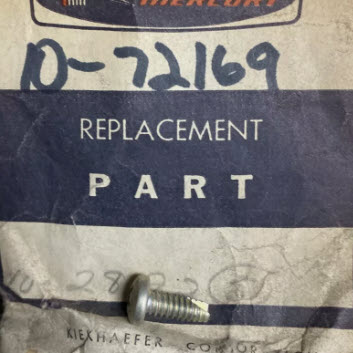

		10-72169 - Screw [ More info ] $1.10 $0.94 9 In Stock.
#59	10-30663	SCREW, HARNESS LEADS TO TERMINAL BLOCK (,2 required per assembly)
		10-30663 - Screw Note: Priced Individually [ More info ] Unavailable
