Parts for Mercury Marine Model 800 80 HP (6 Cylinder) Gear Housing Assembly, Complete (Continued)

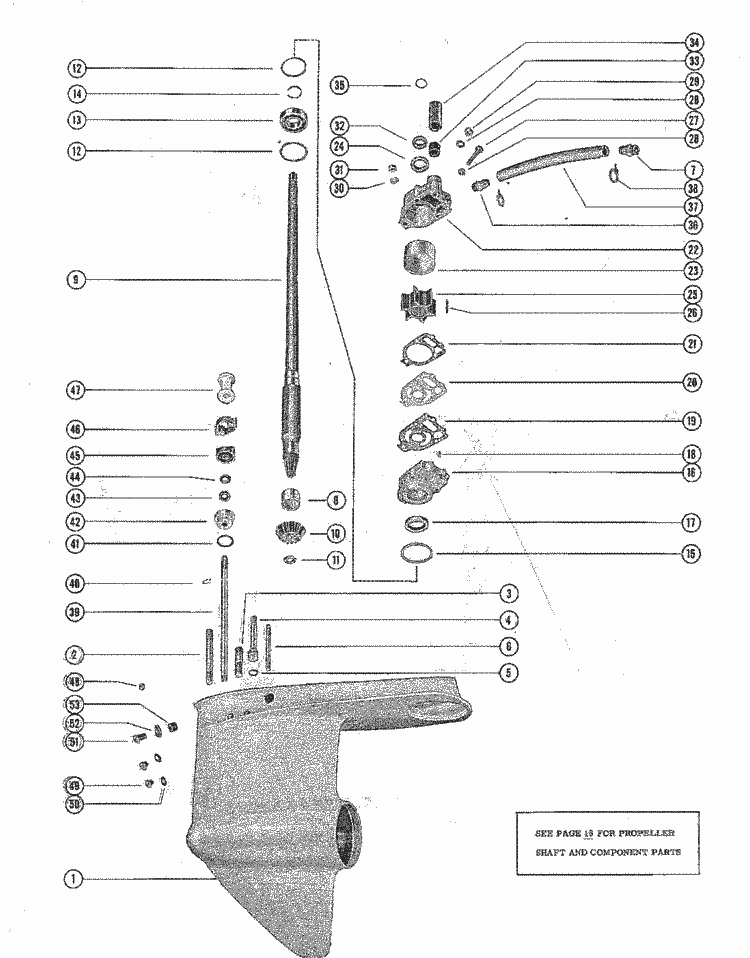

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| # | 1623-1780A 4 | GEAR HOUSING ASSEMBLY, COMPLETE (LONG SHAFT) (,1 required per assembly) USE ON ENGINES FROM SERIAL #1406323 AND UP |
 |
|
1623-1780A 4 - 1623-1780A 4 - GEAR HOUSING ASSY [ More info ] Unavailable Replaced by 1623-2022A 2 |
|
|
1623-2022A 2 - 1623-2022A 2 - GEAR HOUSING ASSY [ More info ] Unavailable Replaced by 1623-2022A 6 |
|
|
1623-2022A 6 - GEAR HOUSING ASSY NLA [ More info ] Unavailable |
| # | 1623-1780A 2 | GEAR HOUSING ASSEMBLY, COMPLETE (LONG SHAFT) (1,1 required per assembly) USE ON ENGINES FROM SERIAL #1406322 AND BELOW |
|
|
1623-1780A 2 - 1623-1780A 2 - GEAR HOUSING ASSY [ More info ] Unavailable Replaced by 1623-2022A 2 |
| # | 1623-1780A 5 | GEAR HOUSING ASSEMBLY, COMPLETE (SHORT SHAFT) (,1 required per assembly) USE ON ENGINES FROM SERIAL #1406323 AND UP |
|
|
1623-1780A 5 - 1623-1780A 5 - GEAR HOUSING ASSY [ More info ] Unavailable Replaced by 1623-2022A 5 |
|
|
1623-2022A 5 - 1623-2022A 5 - GEAR HOUSING ASSY [ More info ] Unavailable Replaced by 1623-2022A 7 |
  |
|
1623-2022A 7 - GEAR HOUSING ASSY NLA [ More info ] Unavailable |
| # | 1623-1780A 3 | GEAR HOUSING ASSEMBLY, COMPLETE (SHORT SHAFT) (1,1 required per assembly) USE ON ENGINES FROM SERIAL #1406322 AND BELOW |
|
|
1623-1780A 3 - 1623-1780A 3 - GEAR HOUSING ASSY [ More info ] Unavailable Replaced by 1623-2022A 5 |
| #1 | 1623-1780A 1 | GEAR HOUSING ASSEMBLY (1,1 required per assembly) |
|
|
1623-1780A 1 - 1623-1780A 1 - GEAR HOUSING ASSY [ More info ] Unavailable Replaced by 1623-2041A 2 |
|
|
1623-2041A 2 - GEAR HOUSING ASSY NLA [ More info ] Unavailable |
| #2 | 16-30661 | STUD, GEAR HOUSING TO DRIVE SHAFT HOUSING (3 15/16") (1,1 required per assembly) |
|
|
16-30661 - 16-30661 - STUD [ More info ] Unavailable Replaced by 16-45199 |
|
|
16-45199 - 16-45199 - STUD [ More info ] Unavailable Replaced by 16-57921 |
|
|
|
| #3 | 16-29078 | STUD, GEAR HOUSING TO DRIVE SHAFT HOUSING (2") (2,2 required per assembly) |
|
|
16-29078 - 16-29078 - STUD [ More info ] Unavailable Replaced by 16-45198 |
|
|
16-45198 - 16-45198 - STUD [ More info ] Unavailable Replaced by 16-52614 |
|
|
16-52614 - 16-52614 - STUD [ More info ] Unavailable Replaced by 16-57920 |
|
|
16-57920 - 16-57920 - STUD (.44 x 2.06) [ More info ] Unavailable Replaced by 16-579201 |
|
|
16-579201 - 16-579201 - ->579203 [ More info ] Unavailable Replaced by -579203 |
|
|
16-57920 3 - Stud [ More info ]
|
|
|
168M0133358 - Stud [ More info ]
|
| #4 | 16-30901 | STUD, WATER PUMP BASE AND BODY TO GEAR HOUSING (3 1/4") (1, required per assembly) |
|
|
16-30901 - Stud, NLA [ More info ]
|
| #5 | 25-20633 | "O" RING, GEAR HOUSING STUD (16-30901) (1, required per assembly) |
|
|
25-20633 - 25-20633 - O RING [ More info ] Unavailable Replaced by 25-62704 |
  |
|
25-62704 - O-ring, (.362 X .103) [ More info ]
|
  |
|
18-7116 - O-Ring 303067, 25-62704 [ More info ]
|
| #4 | 16-30669 | STUD, WATER PUMP BASE AN DBODY TO GEAR HOIUSING (3 1/4") (1,1 required per assembly) |
|
|
16-30669 - Stud, NLA [ More info ]
|
| #6 | 16-30667 | STUD, WATER PUMP BASE AND BODY TO GEAR HOUSING (3 1/8") (2,2 required per assembly) |
|
|
|
|
|
|
| #7 | 22-30570 | FITTING, GEAR HOUSING TO WATER INTAKE HOSE (1,1 required per assembly) |
|
|
22-30570 - FITTING NLA [ More info ] Unavailable |
| #8 | 31-29982 | BEARING, ROLLER - DRIVE SHAFT (1,1 required per assembly) |
|
|
31-29982 - 31-29982 - ROLLER BEARING [ More info ] Unavailable Replaced by 31-32898 |
  |
|
31-32898 - 31-32898 - BEARING [ More info ] Unavailable Replaced by 31-32898T |
  |
|
31-32898T - Bearing [ More info ]
|
| #9 | 45-38459 | DRIVE SHAFT (SHORT SHAFT) (1,1 required per assembly) |
|
|
45-38459 - DRIVE SHAFT NLA [ More info ] Unavailable |
| #9 | 45-38460 | DRIVE SHAFT (LONG SHAFT) (1,1 required per assembly) |
|
|
45-38460 - DRIVE SHAFT NLA [ More info ] Unavailable |
| #10 | 43-30566 | GEAR, PINION - DRIVE SHAFT (1,1 required per assembly) USE ON ENGINES FROM SERIAL #1406322 AND BELOW |
  |
|
43-30566 - Gear, Pinion - Drive Shaft, NLA [ More info ]
|

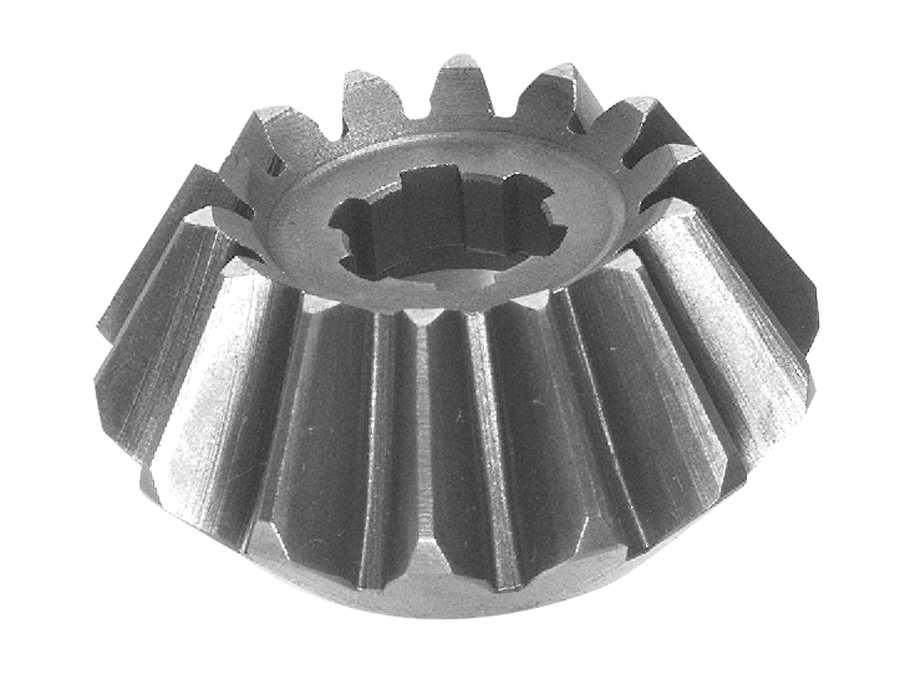

| #10 | 43-31419 | GEAR, PINION - DRIVE SHAFT (1,1 required per assembly) USE ON ENGINES FROM SERIAL #1406323 AND UP |
  |
|
43-31419 - Gear, Pinion - Drive Shaft, NLA [ More info ]
|

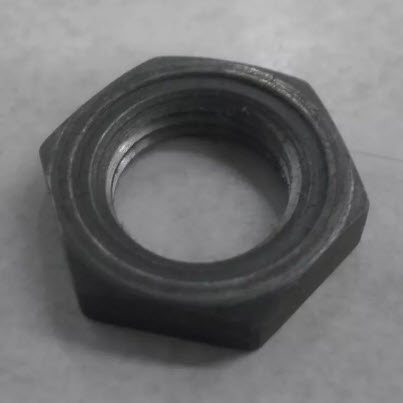

| #11 | 11-30932 | NUT, PINION GEAR TO DRIVE SHAFT (1,1 required per assembly) |
  |
|
11-30932 - Nut, Pinion Gear [ More info ]
|
| #12 | 15-30278A 1 | SHIM, DRIVE SHAFT BALL BEARING TO GEAR HOUSING (AR,AR required per assembly) |
|
|
15-30278A 1 - SHIM SET NLA [ More info ] Unavailable |
| #13 | 30-20464 | BEARING, BALL - DRIVE SHAFT (1,1 required per assembly) |
|
|
30-20464 - 30-20464 - BALL BEARING [ More info ] Unavailable Replaced by 30-63326 |
|
|
30-63326 - 30-63326 - BEARING [ More info ] Unavailable Replaced by 30-63326T |
  |
|
30-63326T - Ball Bearing [ More info ]
|
  |
|
18-1153 - Bearing 30-63326 [ More info ]
|

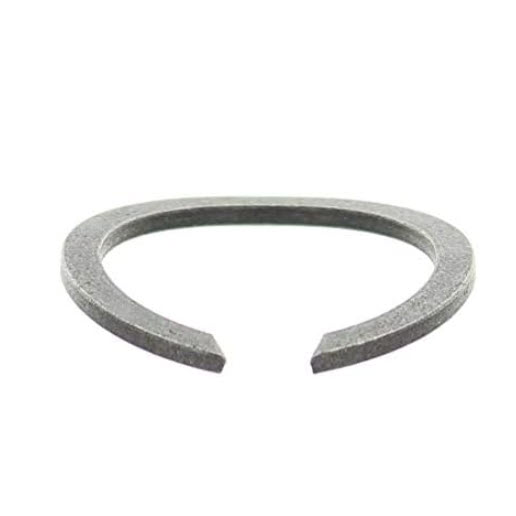

| #14 | 53-30726 | RING, RETAINING - BALL BEARING (1,1 required per assembly) |
  |
|
53-30726 - Snap Ring, NLA [ More info ]
|
| #15 | 25-30224 | "O" RING, ATER PUMP BASE (1,1 required per assembly) |
  |
|
25-30224 - O-ring, (1.859 X .139) [ More info ]
|
  |
|
25-8M0204651 - O RING Note: Priced Individually [ More info ]
|
  |
|
18-7173-9 - O-Ring (PK5) 310327, 25-30224 [ More info ]
|
| #16 | 46-30600A 1 | WATER PUMP BASE ASSEMBLY (1,1 required per assembly) |
|
|
46-30600A 1 - 46-30600A 1 - BASE ASSY [ More info ] Unavailable Replaced by 46-31277A 2 |
|
|
46-31277A 2 - Water Pump Kit, NLA [ More info ]
|
| #17 | 26-31489 | OIL SEAL, WATER PUMP BASE (1,1 required per assembly) |
|
|
26-31489 - 26-31489 - OIL SEAL @3 [ More info ] Unavailable Replaced by 26-94038 |
  |
|
26-94038 - Seal - Priced Individually [ More info ]
|
  |
|
18-2007 - Seal 26-94038 [ More info ]
|
| #18 | 17-29596 | DOWEL PIN, WATER PUMP BASE TO BODY (2,2 required per assembly) |
|
|
17-29596 - Dowel Pin, Water Pump Base [ More info ]
|
|
|
17-29596T - Pin -Dowel - Priced Individually [ More info ]
|

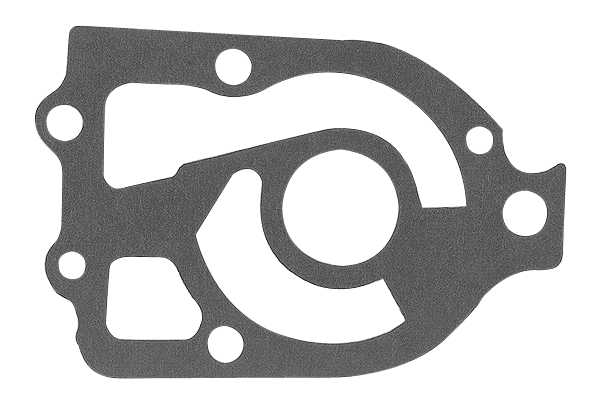

| #19 | 27-32433 | GASKET, LOWER - WATER PUMP BASE TO FACE PLATE (1,1 required per assembly) |
  |
|
27-32433 - 27-32433 - GASKET [ More info ] Unavailable Replaced by 27-85608 |
  |
|
27-85608 - 27-85608 - GASKET [ More info ] Unavailable Replaced by 27-856081 |
  |
|
27-85608 1 - Gasket - Priced Individually [ More info ]
|
  |
|
27-8M0090319 - Water Pump Gasket - Priced Individually [ More info ]
|
  |
|
18-2914-9 - Gasket 27-85608 2-Pack [ More info ]
|

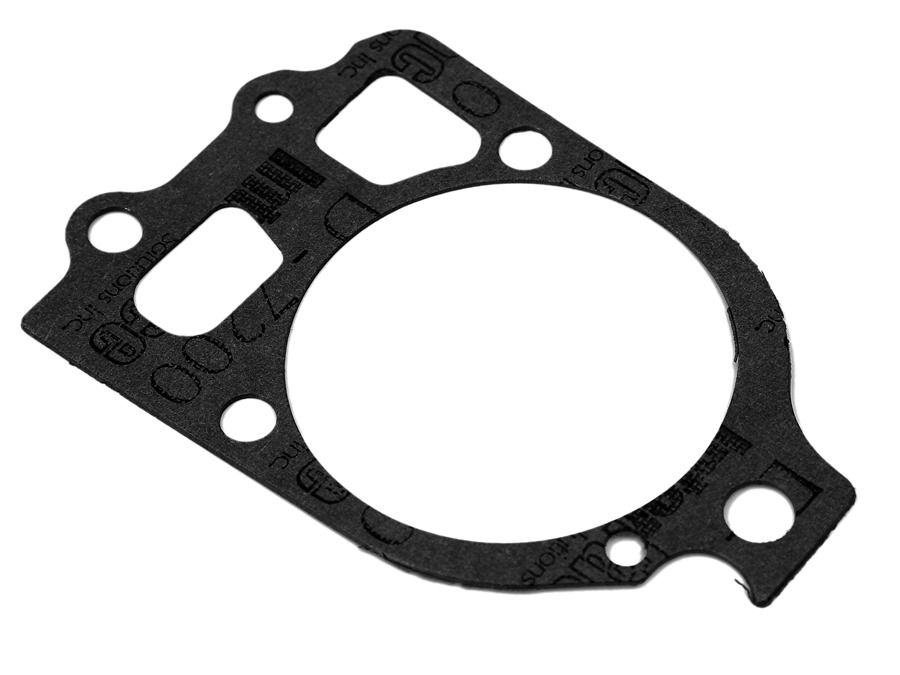

| #21 | 27-32434 | GASKET, FACE PLATE TO WATER PUMP BODY (1,1 required per assembly) |
  |
|
27-32434 - 27-32434 - GASKET [ More info ] Unavailable Replaced by 27-85609 |
  |
|
27-85609 - 27-85609 - GASKET [ More info ] Unavailable Replaced by 27-856091 |
  |
|
27-856091 - 27-856091 - ->858524 [ More info ] Unavailable Replaced by -858524 |
  |
|
27-858524 - Water Pump Base Gasket [ More info ]
|
  |
|
18-2915-9 - Gasket 27-858524 2-Pack [ More info ]
|
| #22 | 46-30698A 1 | WATER PUMP BODY ASSEMBLY (1,1 required per assembly) |
|
|
46-30698A 1 - 46-30698A 1 - BODY ASSY [ More info ] Unavailable Replaced by 46-31277A 2 |
| #23 | -30915 | INSERT, WATER PUMP BODY (1,1 required per assembly) |
  |
|
|
| #24 | 26-31507 | OIL SEAL, WATER PUMP BODY (1,1 required per assembly) |
|
|
26-31507 - 26-31507 - SEAL Oil [ More info ] Unavailable Replaced by 26-79884 |
  |
|
26-79884 - 26-79884 - SEAL Oil [ More info ] Unavailable Replaced by 26-16977 |
  |
|
26-16977 - SEAL Oil [ More info ] In Stock |
  |
|
18-2026 - Seal, 321453 [ More info ]
|
  |
|
18-2013 - Seal, 26-16977 [ More info ]
|
| #25 | 47-30221 | IMPELLER, WATER PUMP (1,1 required per assembly) |
|
|
47-30221 - 47-30221 - IMPELLER @2 [ More info ] Unavailable Replaced by 47-65960 |
|
|
47-65960 - 47-65960 - IMPELLER [ More info ] Unavailable Replaced by 47-89984 |
  |
|
47-89984 - 47-89984 - IMPELLER [ More info ] Unavailable Replaced by 47-899842 |
  |
|
47-899842 - 47-899842 - ->899844 [ More info ] Unavailable Replaced by -899844 |
  |
|
47-899844 - 47-899844 - ->89984T4 [ More info ] Unavailable Replaced by -89984T4 |
  |
|
47-89984T 4 - Impeller [ More info ]
|
  |
|
18-3017 - Impeller 47-89984 [ More info ]
|
| #26 | 17-29967 | PIN, IMPELLER DRIVE (1,1 required per assembly) |
|
|
17-29967 - Pin, Impeller Drive [ More info ]
|
|
|
17-8M0034466 - Pin - Priced Individually [ More info ]
|
| #27 | 10-30720 | SCREW, WATER PUMP BODY TO GEAR HOUSING (1/4") (1,1 required per assembly) |
  |
|
10-30720 - Screw, NLA [ More info ]
|
| #28 | 13-26992 | LOCKWASHER, WATER PUMP BODY FASTENING SCREW AND STUDS (1/4" (3,3 required per assembly) |
  |
|
13-26992 - LockWasher - Priced Individually [ More info ]
|
| #29 | 11-29598 | NUT, WATER PUMP BODY FASTENING STUDS (1/4") (2,2 required per assembly) |
  |
|
11-29598 - Nut (1/4-28) [ More info ]
|
| #30 | 13-26993 | LOCKWASHER, WATER PUMP BODY FASTENING STUDS (5/16") (1,1 required per assembly) |
|
|
13-26993 - LockWasher - Priced Individually [ More info ]
|
|
|
13-8M0204647 - LOCKWASHER @5 [ More info ] Unavailable |
| #31 | 11-28770 | NUT, WATER JPUMP BODY FASTENING STUD (5/16") (1,1 required per assembly) |
  |
|
11-28770 - Nut (5/16-24) [ More info ]
|
| #32 | 25-30271 | RING, RUBBER - CENTRIFUGAL SLINGER (DRIVE SHAFT) (1,1 required per assembly) |
  |
|
25-30271 - Ring - Priced Individually [ More info ]
|
  |
|
18-7426-9 - O-Ring (PK2) 25-30271 [ More info ]
|
| #33 | 26-36557A 1 | SEAL, RUBBER - WATER PUMP BODY (1,1 required per assembly) |
|
|
26-36557A 1 - Seal - Priced Individually [ More info ]
|
  |
|
26-38970 - Seal - Priced Individually [ More info ]
|
  |
|
18-3110 - Seal, 26-38970 [ More info ]
|
| #34 | 23-29804 | SLEEVE, GUIDE - WATER INLET TUBE (1,1 required per assembly) |
  |
|
|
  |
|
23-29804T - Sleeve - Priced Individually [ More info ]
|
  |
|
18-3109 - Tube 23-29804 [ More info ]
|
| #35 | 25-30613 | "O" RING, UPPER - DRIVE SHAFT (1,1 required per assembly) |
  |
|
25-30613 - O-ring, Upper Drive Shaft [ More info ]
|
  |
|
18-7158-9 - (PK5) O-Ring 25-30613 [ More info ]
|
| #37 | 32-30556 | HOSE, WATER INTAKE-GEAR HOUSING (1,1 required per assembly) |
|
|
32-30556 - HOSE NLA [ More info ] Unavailable |
| #38 | 54-30558 | CLAMP, WATER INTAKE HOSE TO FITTINGS (2,2 required per assembly) |
|
|
54-30558 - CLAMP NLA [ More info ] Unavailable |

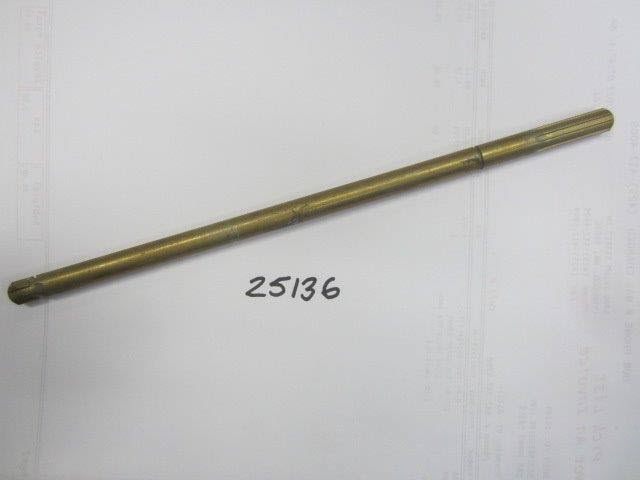

| #39 | -25136 | SHAFT, SHIFT - LOWER (1,1 required per assembly) |
  |
|
25136 - Shaft, NLA [ More info ]
|

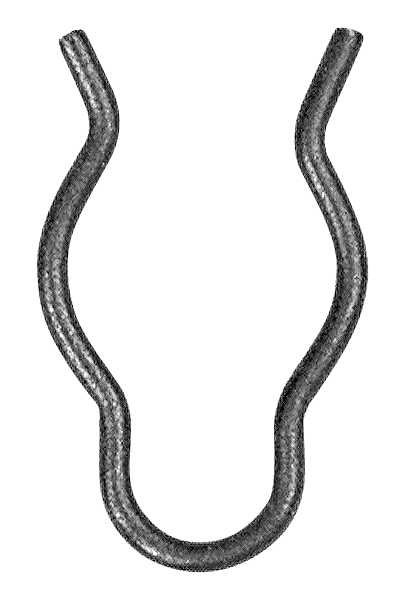

| #40 | 18-20233 | CLIP, RETAINING - SHIFT SHAFT (1,1 required per assembly) |
  |
|
18-20233 - Pin, Hair-Ext, Priced Individually [ More info ]
|
  |
|
53-29641 - E Ring - Priced Individually [ More info ]
|
| #41 | 25-25439 | "O"RING, SHIFT SHAFT BUSHING (1,1 required per assembly) |
  |
|
25-25439 - O-Ring, Shaft Shaft Bushing [ More info ]
|
  |
|
18-7420-9 - O-Ring (PK5) 25-21836 [ More info ]
|

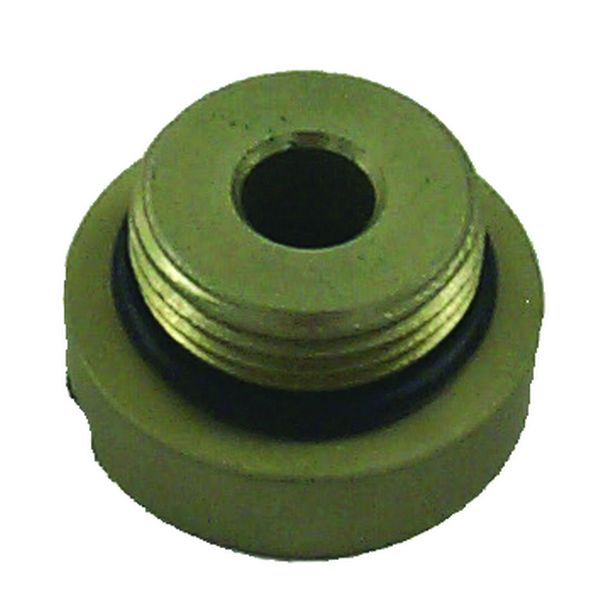

| #42 | 23-30617A 1 | BUSHING ASSEMBLY, SHIFT SHAFT (1,1 required per assembly) |
|
|
23-30617A 1 - 23-30617A 1 - BUSHING ASSY [ More info ] Unavailable Replaced by 23-30617A 2 |
  |
|
23-30617A 2 - Bushing Assembly [ More info ]
|
|
|
23-8M0112749 - Shift Shaft Bushing ZZ [ More info ]
|
  |
|
18-2154 - Bushing, 23-30617A2 [ More info ]
|
| #43 | 26-31249 | OIL SEAL, SHIFT SHAFT BUSHING (1,1 required per assembly) |
  |
|
26-31249 - 26-31249 - OIL SEAL @5 [ More info ] Unavailable Replaced by 26-46021 |
  |
|
26-46021 - 26-46021 - SEAL Oil [ More info ] Unavailable Replaced by 26-89236 |
  |
|
|
  |
|
26-89236 1 - Seal [ More info ]
|
  |
|
18-2009 - Seal, 26-89236 [ More info ]
|

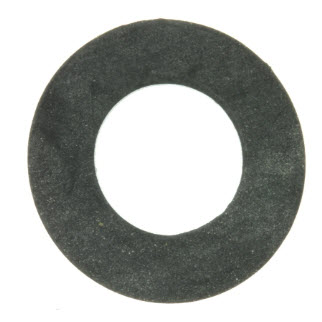

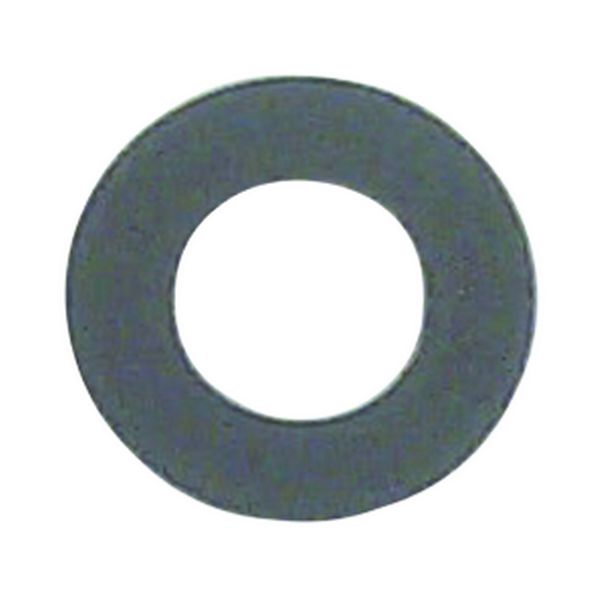

| #44 | 12-31266 | WASHER, RUBBER - SHIFT SHAFT BUSHING (,1 required per assembly) |
  |
|
12-31266 - Washer (rubber) [ More info ]
|
  |
|
18-2340-9 - Washer, 12-31266, 5PK [ More info ]
|
| #45 | -25138 | CAM, LOWER - REVERSE LOCKING (1,1 required per assembly) |
|
|
25138 - 25138 - CAM [ More info ] Unavailable Replaced by -52918 |
  |
|
52918 - Reverse Locking Lower Cam, NLA [ More info ]
|
| #46 | -29823 | CAM, UPPER - REVERSE LOCKING (1,1 required per assembly) |
|
|
29823 - 29823 - CAM [ More info ] Unavailable Replaced by -52919 |
  |
|
52919 - Reverse Locking Upper Cam, NLA [ More info ]
|
| #47 | 23-30607 | SPACER, NYLON - REVERSE LOCKING CAM (1,1 required per assembly) |
|
|
23-30607 - Spacer - Nylon - Reverse Locking Cam [ More info ]
|

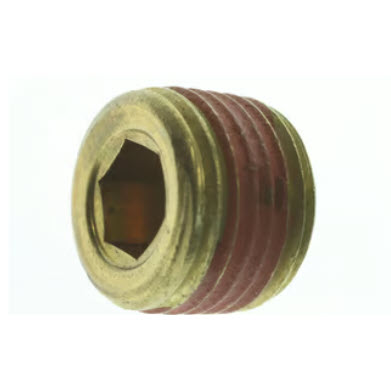

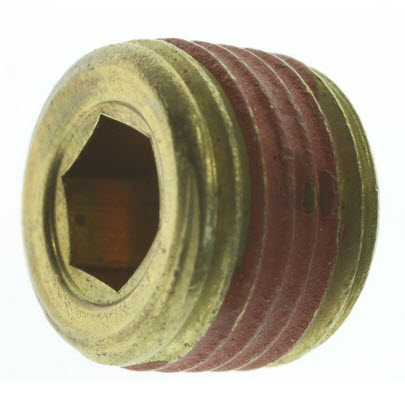

| #48 | 22-21290 | PLUG, PIPE - SHIFT SHAFT GREASE FILLER HOLE (1,1 required per assembly) |
|
|
22-21290 - 22-21290 - PLUG @5 [ More info ] Unavailable Replaced by 22-52644 |
|
|
|
|
|
22-35268 - 22-35268 - SCREW [ More info ] Unavailable Replaced by 22-39072 |
  |
|
|
  |
|
22-39072 1 - Plug - Priced Individually [ More info ]
|
| #49 | 10-28634 | SCREW, GREASE FILLER AND VENT HOLE (2,2 required per assembly) |
  |
|
10-28634 - 10-28634 - SCREW (.375-16) [ More info ] Unavailable Replaced by 10-79953 |
  |
|
10-79953 - 10-79953 - SCREW (.375-16 x [ More info ] Unavailable Replaced by 10-79953A2 |
  |
|
10-79953A2 - 10-79953A2 - ->79953Q2 [ More info ] Unavailable Replaced by -79953Q2 |
  |
|
10-79953Q2 - 10-79953Q2 - ->79953Q04 [ More info ] Unavailable Replaced by -79953Q04 |
  |
|
10-79953Q04 - Screw Kit - Priced Individually [ More info ]
|
  |
|
18-2244 - Plug Kit, 10-79953A2 [ More info ]
|
  |
|
10-79953K04 - Drain Screw - Priced Individually [ More info ]
|
| #50 | 12-20260 | WASHER GREASE FILLER AND VENT HOLE SCREW (2,2 required per assembly) |
  |
|
12-20260 - 12-20260 - WASHER [ More info ] Unavailable Replaced by 12-19183 |
  |
|
12-19183 - 12-19183 - WASHER Fiber [ More info ] Unavailable Replaced by 12-191832 |
  |
|
12-191832 - 12-191832 - ->191833 [ More info ] Unavailable Replaced by -191833 |
  |
|
12-19183 3 - Seal -Blue - Priced Individually [ More info ]
|
  |
|
18-2945-9 - Gasket 12-19183 2-Pack [ More info ]
|
  |
|
12-19183Q02 - Seals, Pack of 4 (yes this is actually a pack of 4) [ More info ]
|
  |
|
12-19183K02 - Seal, Pack of 4 [ More info ]
|
| #51 | 10-29608 | SCREW, GEAR HOUSING FLUSHING HOLE (1,1 required per assembly) |
  |
|
10-29608 - Screw, NLA [ More info ]
|
| #52 | 27-29586 | GASKET, GEAR HOUSING FLUSHING HOLE SCREW (1,1 required per assembly) |
  |
|
27-29586 - Gear Housing Flushing Hole Screw Gasket [ More info ]
|
| #53 | 26-29612 | SEAL, GEAR HOUSING FLUSHING HOLE (1,1 required per assembly) |
  |
|
26-29612 - Seal - Priced Individually [ More info ]
|
