Parts for Mercury Marine Model 800 80 HP (6 Cylinder) Fuel Pump & Fuel Lines

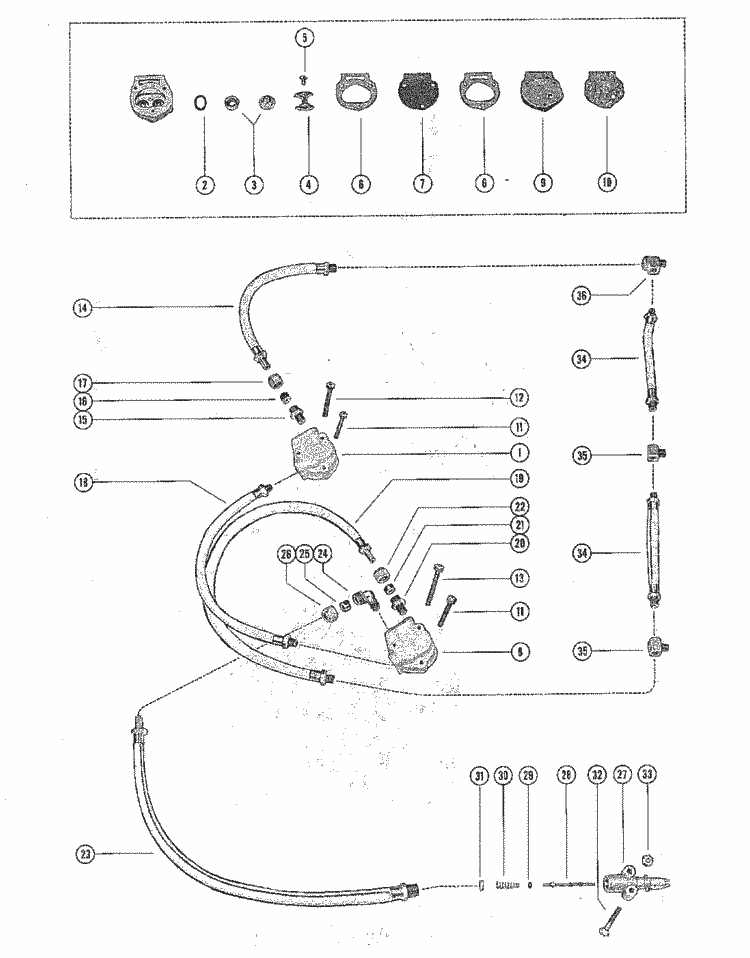

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| #1 | -30269A 2 | FUEL PUMP ASSEMBLY-UPPER (1,1 required per assembly) |
 |
|
30269A 2 - FUEL PUMP ASSY NLA [ More info ] Unavailable |
| #2 | 27-23005 | GASKET, CHECK VALVE TO HOUSING (2,2 required per assembly) |
|
|
27-23005 - Check Valve Gasket [ More info ]
|
| #8 | -30461A 2 | FUEL PUMP ASSEMBLY-LOWER (1,1 required per assembly) |
  |
|
30461A 2 - Fuel Pump Assembly, NLA [ More info ]
|
| #3 | 21-30430 | VALVE, CHECK-FUEL PUMP (2,2 required per assembly) |
|
|
21-30430 - 21-30430 - CHECK VALVE [ More info ] Unavailable Replaced by 21-8M0082362 |
  |
|
218M0082362 - Check Valve [ More info ]
|
| #4 | -23004 | RETAINER,CHECK VALVE (1,1 required per assembly) |
  |
|
23004 - Check Valve Retainer, NLA [ More info ]
|
| #5 | 10-43725 | SCREW,RETAINER TO HOUSING (2,2 required per assembly) |
  |
|
10-43725 - Screw [ More info ]
|
| #6 | 27-24863 | GASKET, FUEL PUMP (2,2 required per assembly) |
|
|
27-24863 - Fuel Pump Gasket [ More info ]
|
| #7 | -23014 | DIAPHRAGM, FUEL PUMP (1,1 required per assembly) |
|
|
23014 - DIAPHRAGM [ More info ] Unavailable |
| #9 | -30275 | COVER, FUEL PUMP (2,2 required per assembly) |
|
|
30275 - Fuel Pump Cover, NLA [ More info ]
|
| #10 | 27-30276 | GASKET, FUEL PUMP COVER (2,2 required per assembly) |
|
|
27-30276 - Pump Cover Gasket [ More info ]
|
| #11 | 10-29878 | SCREW, FUEL PUMP MOUNTING (1 1/2") (2,2 required per assembly) |
|
|
10-29878 - SCREW @5 NLA [ More info ] Unavailable |
| #12 | 10-30274 | SCREW, FUEL PUMP MOUNTING (1 3/4")-UPPER MOUNTING (2,2 required per assembly) |
|
|
10-30274 - Screw, NLA [ More info ]
|
| #13 | 10-30273 | SCREW, FUEL PUMP MOUNTING (1 7/8")-LOWER PUMP (2,2 required per assembly) |
|
|
10-30273 - Screw, NLA [ More info ]
|
| #14 | 32-30467 | FUEL LINE,UPPER FUEL PUMP OUTLET TO UPPER CARBURETOR (1,1 required per assembly) |
|
|
32-30467 - FUEL LINE NLA [ More info ] Unavailable |
| #15 | 22-30468 | CONNECTOR, UPPER FUEL PUMP OUTLET (1,1 required per assembly) |
  |
|
22-30468 - Connector, NLA [ More info ]
|
| #16 | 22-30175 | SLEEVE, FUEL PUMP OUTLET CONNECTOR (1,1 required per assembly) |
|
|
22-30175 - Fitting, NLA [ More info ]
|
| #17 | 22-30177 | NUT, FUEL PUMP OUTLET CONNECTOR (1,1 required per assembly) |
|
|
22-30177 - Nut, NLA [ More info ]
|
| #18 | 32-17008 | FUEL LINE, LOWER PUMP OUTLET TO UPPER PUMP INLET (1,1 required per assembly) |
  |
|
32-17008 - Fuel Line, NLA [ More info ]
|
| #19 | 32-30233 | FUEL LINE, LOWER FUEL PUMP OUTLET TO LOWER CARBURETOR (1,1 required per assembly) |
|
|
32-30233 - FUEL LINE NLA [ More info ] Unavailable |
| #23 | 32-30176 | FUEL LINE, ADAPTOR TO LOWER FUEL PUMP INLET (1,1 required per assembly) |
  |
|
32-30176 - Fuel Line [ More info ]
|
| #24 | 22-30174 | ELBOW, LOWER FUEL PUMP INLET (1,1 required per assembly) |
|
|
22-30174 - Elbow, NLA [ More info ]
|
| #27 | -30186 | ADAPTOR, CHECK UNIT (FUEL LINE) (1,1 required per assembly) |
  |
|
30186 - Check Unit Adapter, See Detail Page for Important Info [ More info ]
|
| #28 | -30187 | STEM, CHECK UNIT ADAPTOR (1,1 required per assembly) |
  |
|
30187 - Bayonet Body Stem - Priced Individually [ More info ]
|
  |
|
30185Q 3 - Fuel Connector, 5/16 Inch Barb - Priced Individually [ More info ]
|
| #29 | 25-20415 | "O" RING, ADAPTOR STEM (1,1 required per assembly) |
  |
|
25-20415 - 25-20415 - O-RING [ More info ] Unavailable Replaced by 25-16524 |
  |
|
25-16524 - O Ring-fuel Connector [ More info ]
|
| #30 | 24-30189 | SPRING, ADAPTOR STEM (1,1 required per assembly) |
  |
|
24-30189 - Spring, Adaptor Stem [ More info ]
|
| #31 | -30188 | CUP WASHER, ADAPTOR (1,1 required per assembly) |
  |
|
30188 - Cup Washer Adaptor - Priced Individually [ More info ]
|
| #32 | 10-56500 | SCREW, ADAPTOR TO BOTTOM COWL (2,2 required per assembly) |
|
|
10-56500 - Screw, NLA [ More info ]
|
| #33 | 11-20184 | NUT, ADAPTOR FASTENING SCREW (2,2 required per assembly) |
  |
|
11-20184 - Nut, (1/4-28x7/32) [ More info ]
|
|
|
118M0207775 - NUT Note: Priced Individually [ More info ]
|
| #34 | 32-30230 | FUEL LINE, UPPER TO CENTER TO LOWER CARBURETOR (2,2 required per assembly) |
|
|
32-30230 - Fuel Line,NLA [ More info ]
|
| #35 | 22-25956 | TEE, CENTER AND LOWER CARBURETOR (2,2 required per assembly) |
|
|
22-25956 - Fitting, NLA [ More info ]
|
| #36 | 22-28624 | TEE, UPPER CARBURETOR (1,1 required per assembly) |
|
|
22-28624 - 22-28624 - FITTING T [ More info ] Unavailable Replaced by 22-286241 |
|
|
22-28624 1 - Fitting -tee [ More info ]
|
