Parts for Mercury Marine Model 800 80 HP (6 Cylinder) Flywheel Assembly & Stator

Revise Search: All Models > Model 800 80 HP (6 Cylinder) > 1398630 - 1566239 ( ) > Flywheel Assembly & Stator

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

Engine section

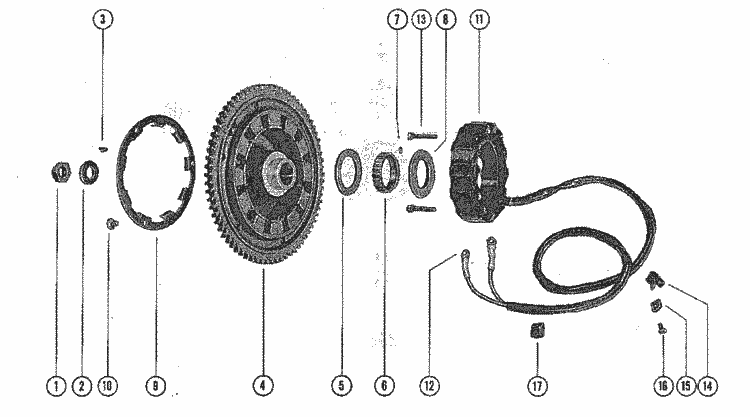

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#1	11-22339	NUT, FLYWHEEL (1,1 required per assembly)
		11-22339 - NUT (.625-18) [ More info ] Unavailable
		18-3713 - Nut, 11-22339 [ More info ] $5.59 $5.10 Available to Order: Usually ships within 10 days.
#2	12-26617	WASHER, FLYWHEEL NUT (1,1 required per assembly)
		12-26617 - WASHER NLA [ More info ] Unavailable
#3	28-45554	KEY, FLYWHEEL DRIVE (1,1 required per assembly)
		28-45554 - Key, NLA [ More info ] $4.13 10+ In Stock.
#4	213-1683A 4	FLYWHEEL ASSEMBLY (1,1 required per assembly)
		213-1683A 4 - FLYWHEEL NLA [ More info ] Unavailable
#5	-29788	FLANGE, FLYWHEEL PULLEY (1,1 required per assembly)
		29788 - Flywheel Pulley Flange, NLA [ More info ] $1.50 10+ In Stock.

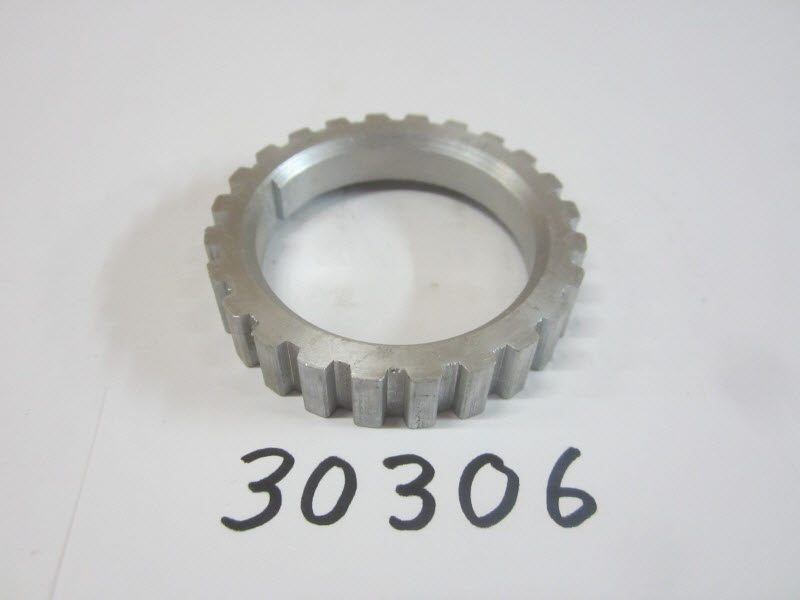

#6	-30306	PULLEY, FLYWHEEL (1,1 required per assembly)
		30306 - Flywheel Pulley, NLA [ More info ] $20.00 10+ In Stock.
#7	17-26618	PIN, DOWEL - PULLEY TO FLYWHEEL (1,1 required per assembly)
		17-26618 - Pin -Dowel, NLA [ More info ] $4.00 10+ In Stock.

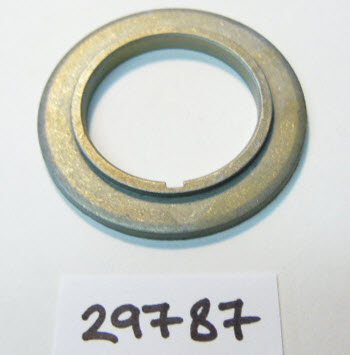

#8	-29787	HUB, FLYWHEEL PULLEY (1,1 required per assembly)
		29787 - Flywheel Pulley Hub, NLA [ More info ] $10.00 10+ In Stock.
#9	50-30745	RATCHET, FLYWHEEL (1,1 required per assembly)
		50-30745 - RATCHET NLA [ More info ] Unavailable
#10	10-29238	SCREW, RATCHET TO FLYWHEEL (3,3 required per assembly) WHERE NO LOCKWASHER IS INCLUDED WITH 10-31208 SCREW, USE 13-26992 LOCKWASHER
		10-29238 - SCREW @5 NLA [ More info ] Unavailable
#11	398-2035	STATOR, ALTERNATOR (1,1 required per assembly)
		398-2035 - STATOR NLA [ More info ] Unavailable
#12	-30050	TERMINAL, STATOR LEAD WIRE (2,2 required per assembly)
		30050 - TERMINAL NLA [ More info ] Unavailable
#13	10-29283	SCREW, STATOR TO UPPER END CAP (4,4 required per assembly)
		10-29283 - Screw, NLA [ More info ] $1.25 10+ In Stock.
#14	54-24836	CLIP, STATOR LEAD TO EXHAUST COVER (1,1 required per assembly)
		54-24836 - Clip - Priced Individually [ More info ] $4.00 3 In Stock.
#15	-22789	"D" WASHER, CLIP FASTENING SCREW (1,1 required per assembly)
		22789 - 22789 - D WASHER [ More info ] Unavailable Replaced by -69205
		69205 - 69205 - C WASHER [ More info ] Unavailable Replaced by -8M0084613
		8M0084613 - Washer [ More info ] $1.10 Available to Order: Usually ships within 10 days.
#16	10-69014	SCREW, STATOR LEAD CLIP FASTENING (1,1 required per assembly)
		10-69014 - Screw Note: Priced Individually [ More info ] $1.29 10+ In Stock.
		10-807754 - 10-807754 - SCREW (#10-24 x . [ More info ] Unavailable Replaced by -8M0113176
		108M0113176 - Screw - Priced Individually [ More info ] $1.10 Available to Order: Usually ships within 10 days.
#17	54-22783	"S" CLIP, STATOR LEAD TO BOTTOM COWL (3,3 required per assembly)
		54-22783 - CLIP NLA [ More info ] Unavailable
