Parts for Mercury Marine Model 800 80 HP (6 Cylinder) Clamp & Swivel Bracket Assembly

Revise Search: All Models > Model 800 80 HP (6 Cylinder) > 1335465 - 1398629 ( ) > Clamp & Swivel Bracket Assembly

« Previous

NEED PARTS OR KITS?

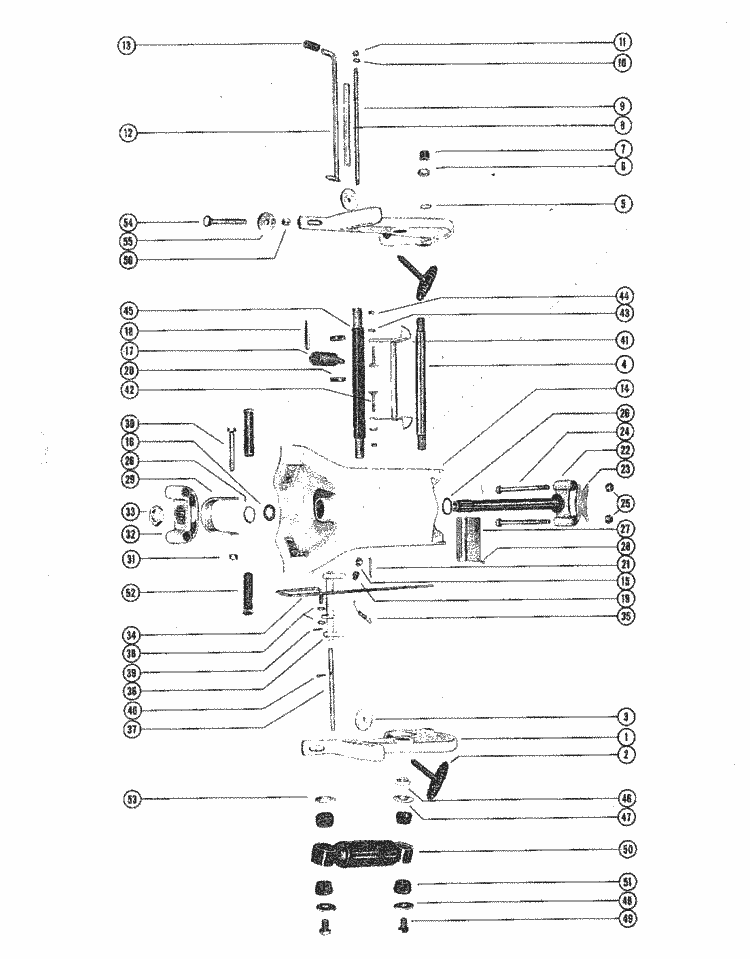

View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

Engine section

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#	11-20361	NUT, LOWER SHOCK PIN SCREW (,2 required per assembly)
		118267089 [ More info ] $1.00 10+ In Stock.
		11-826708 9 - Nut - Priced Individually [ More info ] $1.40 10+ In Stock.
		18-3722-9 - Lock Nut, 121731, 11-35888, Pack of 5 [ More info ] $11.99 $6.88 Available to Order: Usually ships within 10 days.
#	55-28414	PIN, LOWER SHOCK MOUNTING (,2 required per assembly)
		55-28414 - Shock Pin, NLA [ More info ] $22.22 2 In Stock.
#	10-28424	SCREW, LOWER SHOCK PIN TO DRIVE SHAFT HOUSING (,2 required per assembly)
		10-28424 - Screw, NLA [ More info ] $2.00 4 In Stock.
#1	1440-1468A 1	CLAMP BRACKET ASSEMBLY (2,2 required per assembly)
		1440-1468A 1 - Clamp Bracket, NLA [ More info ] Unavailable
#2	-28403A 3	THUMB SCREW ASSEMBLY (2,2 required per assembly)
		28403A 3 - Thumb Screw , NLA [ More info ] Unavailable
#3	12-28404	WASHER, THUMB SCREW (2,2 required per assembly)
		12-28404 - Wahser, Thumb Screw, NLA [ More info ] $7.15 10+ In Stock.
#4	-28122	TUBE, TILT - CLAMP BRACKET TO SWIVEL BRACKET (1,1 required per assembly)
		28122 - HP/Ob Tilt Tube, NLA [ More info ] $25.00 1 In Stock.
#5	15-25600	SHIM, CLAMP BRACKET TILT TUBE (.010 - .020) (2,2 required per assembly)
#6	11-25599	NUT, TILT TUBE FASTENING (2,2 required per assembly)
		11-25599 - Nut (3/4-16) [ More info ] $4.99 10 In Stock.
		11-826713 23 - Nut, (.750-16) [ More info ] $7.77 10+ In Stock.
		11-8M2014641 - Nut - Priced Individually [ More info ] $15.50 1 In Stock.
#7	-25606	CAP, PLASTIC - TILT TUBE (2,2 required per assembly)
		25606 - CAP,NLA [ More info ] Unavailable
#8	23-20222	SPACER, CLAMP BRACKET STUD (1,1 required per assembly)
		23-20222 - Spacer, NLA [ More info ] Unavailable
		23-59624 - Spacer - Clamp Bracket Stud [ More info ] $10.00 9 In Stock.
#9	16-20221	STUD, CLAMP BRACKET (1,1 required per assembly)
		16-20221 - Stud, NLA [ More info ] Unavailable
		16-59625 - Stud, NLA [ More info ] $21.67 1 In Stock.
#10	13-36993	LOCKWASHER, CLAMP STUD (2,2 required per assembly)
		27-36993 - Cover Plate Gasket [ More info ] Unavailable
#11	11-20083	NUT, CLAMP BRACKET STUD (2,2 required per assembly)
		11-20083 - Nut, Starter Solenoid Terminal (5/16X24) [ More info ] $1.22 10+ In Stock.
		11-22053 - Nut (5/16x24) [ More info ] $2.50 10+ In Stock.
#12	17-29219A 1	TILT LOCK PIN ASSEMBLY (1,1 required per assembly)
		17-29219A 1 - TILT LOCK PIN [ More info ] Unavailable
		17-30687A 1 - TILT LOCK PIN [ More info ] Unavailable
		17-49930A 1 - Tilt Pin Assembly [ More info ] Unavailable
		17-8M0026068 - Pin Assembly - Tilt [ More info ] $54.53 1 In Stock.
#13	32-28052	SLEEVE, RUBBER - TILT LOCK PIN BUMPER (1,1 required per assembly)
		32-28052 - Tubing, NLA [ More info ] Unavailable
#14	1446-1592A 1	SWIVEL BRACKET ASSEMBLY (1, required per assembly)
		1446-1592A 1 - Swivel Bracket,NLA [ More info ] Unavailable
#14	1447-1448A 1	SWIVEL BRACKET ASSEMBLY (,1 required per assembly)
		1447-1448A 1 - Swivel Bracket,NLA [ More info ] Unavailable
#15	22-23612	FITTING, GREASE (1,1 required per assembly)
		22-23612 - Fitting - Priced Individually [ More info ] $0.95 10+ In Stock.
		22-69059 - Fitting, Grease - Priced Individually [ More info ] $5.99 10+ In Stock.
#16	26-26209	OIL SEAL (2 USED ON LATER ENGINES) ((2) 1,(2) required per assembly)
		26-26209 - Seal [ More info ] $5.00 8 In Stock.
		26-32911 - Seal [ More info ] $15.00 10+ In Stock.
		18-0517 - Seal, 26-32911 [ More info ] $14.99 In Stock
#17	24-28659	SPRING, COIL - SWIVEL BRACKET (1,1 required per assembly)
		24-28659 - Spring, Coil - Swivel Bracket [ More info ] Unavailable
		24-94891 - Spring, Coil - Swivel Bracket,NLA [ More info ] $38.50 3 In Stock.
#18	17-28658	PIN, COIL SPRING MOUNTING (1,1 required per assembly)
		17-28658 - Roll Pin, NLA [ More info ] $1.25 2 In Stock.
#19	-29359	LUBRICAP, SWIVEL PIN GEAR FITTING (1,1 required per assembly)
		29359 - Lubricap - Priced Individually [ More info ] $1.04 10+ In Stock.
		19-77633 - Cap - Priced Individually [ More info ] $1.39 10+ In Stock.
		19-77633Q - Cap - Pack of 5 as shown [ More info ] $6.70 10+ In Stock.
#20	23-28688	SPACER, RUBBER - COIL SPRING POSITIONING (2,2 required per assembly)
		23-28688 - Spacer, NLA [ More info ] Unavailable
#21	17-25598	PIN, REVERSE LOCK SPRING ATTACHING (1,1 required per assembly)
		17-25598 - Pin -roll, NLA [ More info ] $2.78 10+ In Stock.

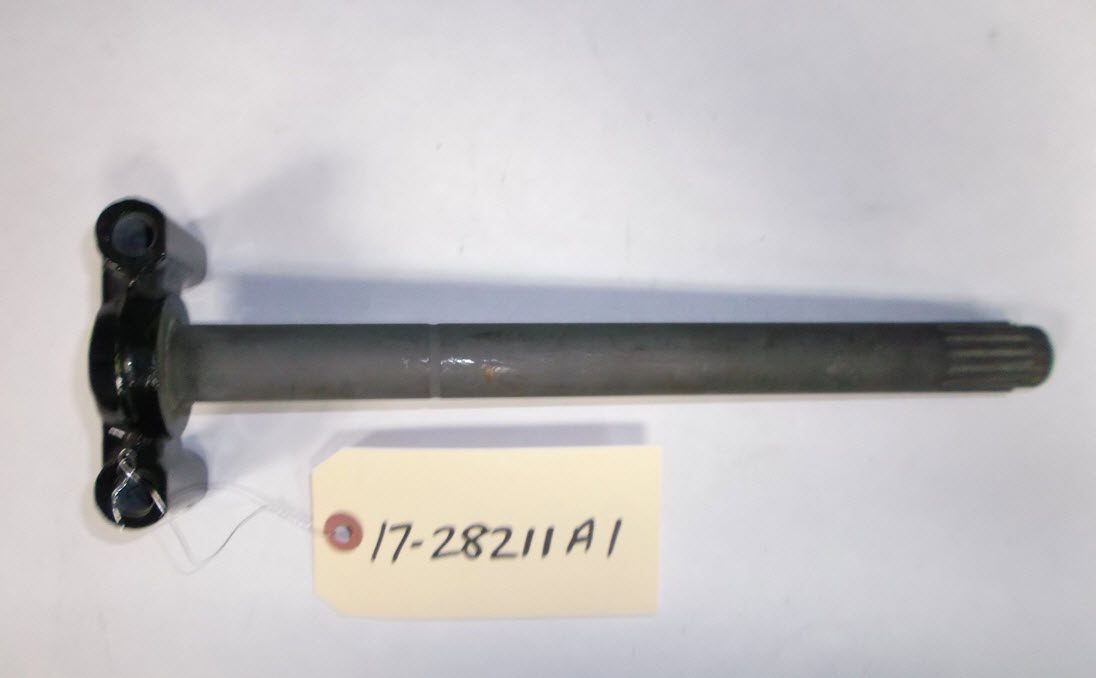

#22	17-28211A 1	SWIVEL PIN AND TOP YOKE ASSEMBLY (1, required per assembly)
		17-28211A 1 - Swivel Pin, NLA [ More info ] $28.00 4 In Stock.
#22	17-28211A 2	SWIVEL PIN AND TOP YOKE ASSEEMBLY (1, required per assembly)
		17-28211A 2 - SWIVEL PIN,NLA [ More info ] Unavailable
#22	17-28254A 1	SWIVEL PIN AND TOP YOKE ASSEMBLY (,1 required per assembly)
		17-28254A 1 - SWIVEL PIN ASSY [ More info ] Unavailable
		17-28254A 2 - SWIVEL PIN,NLA [ More info ] Unavailable
#22	17-28254A 3	SWIVEL PIN AND TOP YOKE ASSEMBLY (,1 required per assembly)
		17-28254A 3 - SWIVEL PIN,NLA [ More info ] Unavailable
#23	-28203	BUMPER, TOP YOKE (1,1 required per assembly)
		28203 - Bumper, NLA [ More info ] $13.32 10+ In Stock.
#24	10-28255	BOLT, TOP YOKE TO UPPER MOUNT (2,2 required per assembly)
		10-28255 - Bolt,NLA [ More info ] $1.25 4 In Stock.
#24	10-30453	BOLT, TOP YOKE TO UPPER MOUNT (2,2 required per assembly)
		10-30453 - Screw, NLA [ More info ] $20.00 5 In Stock.
#25	11-22178	NUT, TOP YOKE BOLT FASTENING (2,2 required per assembly)
		11-22178 - Nut, (7/16) [ More info ] Unavailable
		11-34933 - Nut (7/16-20) [ More info ] Unavailable
		11-8M0204653 - Prop Lock Nut 7/16-20 , Priced Individually [ More info ] $5.10 8 In Stock.
		18-3721-9 - Lock Nut, 11-34933, 5PK [ More info ] $19.49 $13.18 Available to Order: Usually ships within 10 days.
#26	12-25176	WASHER, SWIVEL PIN - LOWER (TOP WASHER OPTIONAL) (1,1 required per assembly)
		12-25176 - Washer (.060), NLA [ More info ] $3.88 10+ In Stock.
#27	38-29538	SERIAL PLATE (1,1 required per assembly)
		38-29538 - SERIAL PLATE,NLA [ More info ] Unavailable
#28	10-25612	SCREW, DRIVE - SERIAL PLATE TO SWIVEL BRACKET (4,4 required per assembly)
		10-25612 - Screw, NLA [ More info ] $1.66 10+ In Stock.
#29	-28205	STRAP STOP, DRIVE SHAFT HOUSING TO SWIVEL BRACKET (1,1 required per assembly)
		28205 - Strap [ More info ] $2.40 6 In Stock.
		28205T - Strap, NLA [ More info ] $8.00 10+ In Stock.
#30	10-28200	SCREW, STRAP STOP TO DRIVE SHAFT HOUSING (1,1 required per assembly)
		10-28200 - Screw, NLA [ More info ] $6.00 10+ In Stock.
#31	11-25269	NUT, STRAP STOP FASTENING SCREW (1,1 required per assembly)
		11-25269 - Nut (3/8-24) [ More info ] $1.99 10+ In Stock.
#32	-30197	YOKE, BOTTOM (1,1 required per assembly)
		30197 - YOKE,NLA [ More info ] Unavailable
#32	-30451	YOKE, BOTTOM (1,1 required per assembly)
		30451 - Yoke, NLA [ More info ] $15.00 2 In Stock.
#33	11-28202	NUT, SWIVEL PIN RETAINING (1,1 required per assembly)
		11-28202 - Nut, Retaining-swivel Pin [ More info ] Unavailable
		11-71956 - Nut, Bottom Yoke [ More info ] $24.99 10 In Stock.
#34	-29484	ROD, PUSH - REVERSE LOCK (1, required per assembly)
		29484 - ROD,NLA [ More info ] Unavailable
#34	-29485	ROD, PUSH - REVERSE LOCK (,1 required per assembly)
		29485 - ROD,NLA [ More info ] Unavailable
#35	24-26625	SPRING, REVERSE LOCK TENSION (1,1 required per assembly)
		24-26625 - Spring, Reverse Lock,NLA [ More info ] $3.00 9 In Stock.
#36	-26903A 4	REVERSE LOCK ASSEMBLY (1,1 required per assembly)
		26903A 4 - Reverse Lock, NLA [ More info ] $14.00 4 In Stock.
#37	-20208	SHAFT, REVERSE LOCK PIVOT (1,1 required per assembly)
		20208 - Shaft, NLA [ More info ] Unavailable
		56349 - Shaft, NLA [ More info ] $39.11 10+ In Stock.
#38	12-20546	WASHER, PUSH ROD (2,2 required per assembly)
		12-20546 - Washer, (.330 X .500 X .060) [ More info ] Unavailable
#39	18-25191	COTTER PIN, PUSH ROD TO REVERSE LOCK (1,1 required per assembly)
		18-25191 - Cotter Pin - Priced Individually [ More info ] $4.60 7 In Stock.
#40	18-20209	COTTER PIN, REVERSE LOCK TO SHAFT (1,1 required per assembly)
		18-20209 - Cotter Pin - Priced Individually [ More info ] Unavailable
		18-45882 - Cotter Pin - Priced Individually [ More info ] $2.82 Available to Order: Usually ships within 10 days.
#41	-30200A 1	TILT STOP LEVER ASSEMBLY (1,1 required per assembly)
		30200A 1 - Lever Assembly [ More info ] $25.00 3 In Stock.
#42	10-28339	SCREW, TILT STOP LEVER ANCHOR (2,2 required per assembly)
		10-28339 - Screw, NLA [ More info ] $2.00 10+ In Stock.
#43	13-20846	WASHER, WAVE - LEVER ANCHOR SCREW (2,2 required per assembly)
		13-20846 - Washer, Wave, NLA [ More info ] $1.96 10+ In Stock.
#44	11-20184	NUT, LEVER ANCHOR SCREW (2,2 required per assembly)
		11-20184 - Nut, (1/4-28x7/32) [ More info ] $1.70 10+ In Stock.
#45	55-28416	PIN, UPPER SHOCK MOUNTING (1,1 required per assembly)
		55-28416 - Upper Shock Pin, NLA [ More info ] $44.43 10+ In Stock.
#46	23-28199	SPACER, UPPER SHOCK BUSHING TO CLAMP BRACKET (2,2 required per assembly)
		23-28199 - Spacer - Upper Shock Bushing To Clamp Bracket - NLA [ More info ] $7.88 10+ In Stock.
#47	12-28196	WASHER, UPPER BUSHING RETAINER (INNER) (2,2 required per assembly)
		12-28196 - Washer, Upper Bushing Reainer(inner), NLA [ More info ] $1.25 10+ In Stock.
#48	12-28421	WASHER, UPPER AND LOWER BUSHING RETAINER (OUTER) (4,4 required per assembly)
		12-28421 - Washer, (1.5 X 3.05 X 0.13) Stainless Steel [ More info ] $3.32 10+ In Stock.
		12-8M0204648 - WASHER @5 Q=T [ More info ] Unavailable
#49	10-28450	SCREW, NYLOCK - UPPER AND LOWER SHOCK MOUNTING PIN (4,4 required per assembly)
		10-28450 - Bolt, NLA [ More info ] $2.00 9 In Stock.
#50	55-28209	SHOCK ABSORBER (2,2 required per assembly)
		55-28209 - SHOCK ABSOR,NLA [ More info ] Unavailable
#51	23-28198	BUSHING, RUBBER - SHOCK ABSORBER (8,8 required per assembly)
		23-28198 - Bushing, NLA [ More info ] $16.50 1 In Stock.
#52	55-29247	PIN, LOWER SHOCK MOUNTING (2, required per assembly)
		55-29247 - SHOCK PIN [ More info ] Unavailable
		55-65447 - Pin, Lower Shock Mounting [ More info ] Unavailable
		55-69653 - Pin, Lower Shock [ More info ] $20.00 1 In Stock.
		55-69653 1 - Pin, NLA [ More info ] $27.50 3 In Stock.
#53	12-28264	WASHER, LOWER BUSHING RETAINER (INNER) (2,2 required per assembly)
		12-28264 - 12840400 [ More info ] Unavailable
		12-63099 - Washer, (1.50 X .766 X .125) [ More info ] Unavailable
		12-840400 - Washer [ More info ] Unavailable
		12-8M0204695 - WASHER [ More info ] Unavailable
#54	10-28009	BOLT, CLAMP BRACKET TO BOAT TRANSOM (2,2 required per assembly)
		10-28009 - Screw, NLA [ More info ] Unavailable
		10-68298 - Screw, NLA [ More info ] $8.76 10+ In Stock.
#55	12-28008	WASHER, CLAMP BRACKET BOLT (2,2 required per assembly)
		12-28008 - Washer - Priced Individually [ More info ] Unavailable
		12-68410 - Washer, NLA [ More info ] $3.32 10+ In Stock.
#56	11-28010	NUT, CLAMP BRACKET BOLT (2,2 required per assembly)
		11-28010 - Nut - Priced Individually [ More info ] Unavailable
		11-68411 - Nut (3/8-16) [ More info ] $6.66 10+ In Stock.
		11-826709 12 - Nut, (.375-16) Stainless Steel [ More info ] $6.50 10+ In Stock.
