Parts for Mercury Marine Model 800 80 HP (6 Cylinder) Carburetor Linkage & Choke Solenoid

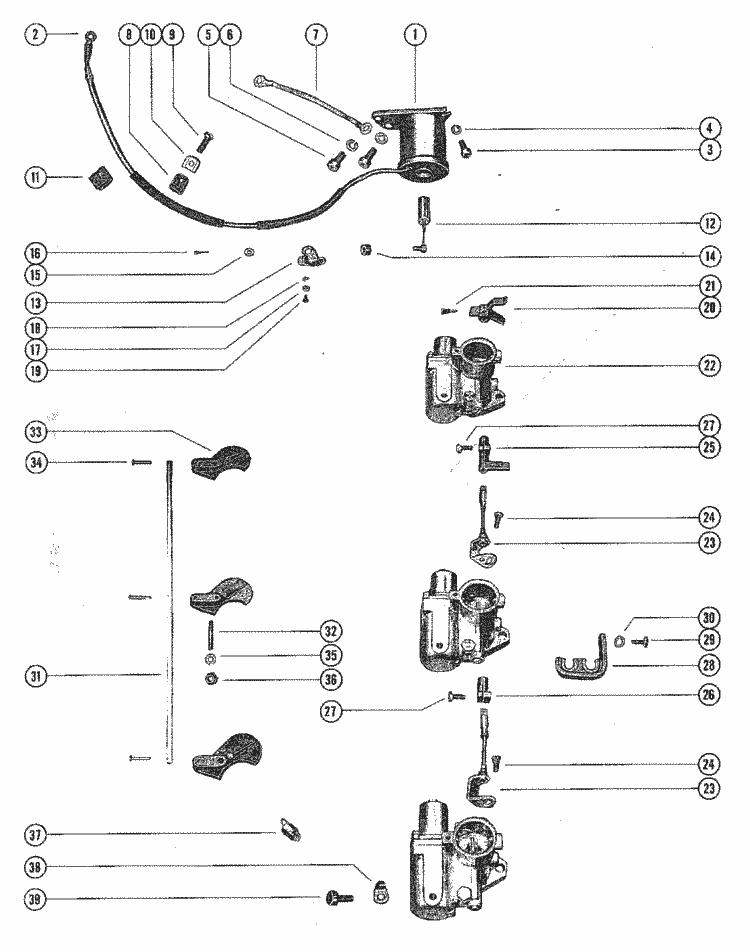

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| # | 23-30438 | BUSHING, NYLON - UPPER CHOKE SHUTTER (1,1 required per assembly) |
 |
|
23-30438 - Bushing, NLA [ More info ]
|
| # | 12-30164 | WASHER, CLAMP FASTENING SCREW (2,2 required per assembly) |
|
|
12-30164 - Washer, (.192 X .375 X .0312) [ More info ]
|
| #1 | -29690 | CHOKE SOLENOID, TOOP COWL (1,1 required per assembly) |
  |
|

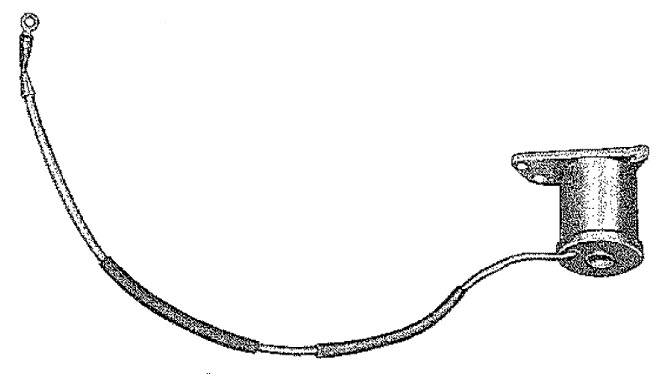

29690 - CHOKE SOLENOID NLA [ More info ] Unavailable |
| #2 | -30050 | TERMINAL, CHOKE SOLENOID LEAD (1,1 required per assembly) |
|
|
30050 - TERMINAL NLA [ More info ] Unavailable |
| #3 | 10-24773 | SCREW, CHOKE SOLENOID TO TOP COWL (1,1 required per assembly) |
|
|
10-24773 - Screw, NLA [ More info ]
|
| #4 | 13-26991 | LOCKWASHER, CHOKE SOLENOID SCREW (1,1 required per assembly) |
|
|
13-26991 - LOCKWASHER @5 NLA [ More info ] Unavailable |
| #5 | 10-20540 | SCREW, CHOKE SOLENOID TO TOP COWL (2,2 required per assembly) |
|
|
10-20540 - SCREW (.250-20 x NLA [ More info ] Unavailable |
| #6 | 13-26992 | LOCKWASHER, CHOKE SOLENOID SCREW (2,2 required per assembly) |
  |
|
13-26992 - LockWasher - Priced Individually [ More info ]
|
| #7 | 397-421A 1 | GROUND STRAP ASSEMBLY, CHOKE SOLENOID TO ADAPTOR (1,1 required per assembly) |
|
|
397-421A 1 - 397-421A 1 - GROUND STRAP ASSY [ More info ] Unavailable Replaced by 397-421A 2 |
|
|
397-421A 2 - Ground Strap, NLA [ More info ]
|
| #8 | 54-26538 | CLIP, CHOKE SOLENOID WIRE (1,1 required per assembly) |
|
|
|
|
|
|
|
|
54-64855 2 - Clamp [ More info ]
|
| #9 | 10-24239 | SCREW, WIRE CLIP TO TOP COWL (1,1 required per assembly) |
|
|
10-24239 - SCREW NLA [ More info ] Unavailable |
| #10 | -22789 | "D" WASHER, WIRE CLIP FASTENING SCREW (1,1 required per assembly) |
|
|
22789 - 22789 - D WASHER [ More info ] Unavailable Replaced by -69205 |
  |
|
69205 - 69205 - C WASHER [ More info ] Unavailable Replaced by -8M0084613 |
|
|
8M0084613 - Washer [ More info ]
|
| #11 | 54-22783 | "S" CLIP, CHOKE SOLENOID WIRE TO TOP COWL (3,3 required per assembly) |
|
|
54-22783 - CLIP NLA [ More info ] Unavailable |
| #12 | -27031A 1 | PLUNGER AND LINK ASSEMBLY, CHOKE SOLENOID (1,1 required per assembly) |
|
|
27031A 1 - PLUNGER ASSY NLA [ More info ] Unavailable |
| #13 | -27126 | PLATE, ADAPTOR - PLUNGER TO CHOKE ROD (1,1 required per assembly) |
|
|
|
| #14 | 25-26633 | GROMMET, ADAPTOR PLATE (1,1 required per assembly) |
|
|
25-26633 - Grommet, Adaptor Plate,NLA [ More info ]
|
| #15 | 12-26014 | WASHER, PLUNGER LINK (1,1 required per assembly) |
|
|
12-26014 - Washer, NLA [ More info ]
|
| #16 | 18-26953 | COTTER PIN, PLATE TO PLUNGER LINK (1,1 required per assembly) |
|
|
18-26953 - Cotter Pin - Priced Individually [ More info ]
|
| #17 | 12-27882 | WASHER, ADAPTOR PLATE SCREW (1,1 required per assembly) |
|
|
12-27882 - Washer - Priced Individually [ More info ]
|
| #18 | 13-26994 | LOCKWASHER, ADAPTOR PLATE SCREW (1,1 required per assembly) |
  |
|

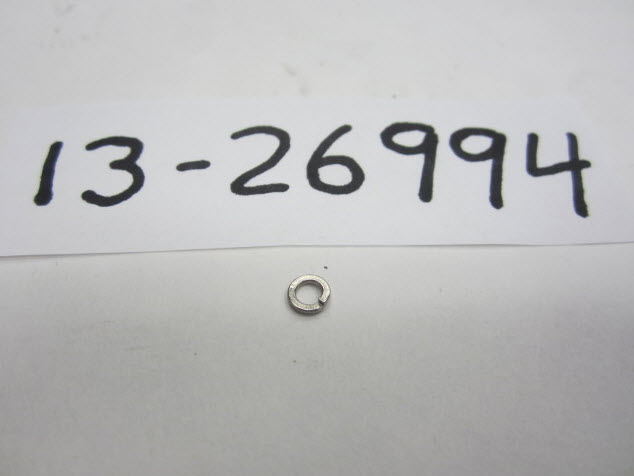

13-26994 - LockWasher, NLA [ More info ]
|
| #19 | 10-21281 | SCREW, ADAPTOR PLATE TO CHOKE ROD (1,1 required per assembly) |
|
|
10-21281 - Screw, NLA [ More info ]
|
| #20 | -27977 | CLUSTER, THROTTLE LEVER (UPPER CARBURETOR) (1,1 required per assembly) |
|
|
27977 - Cluster, NLA [ More info ]
|
| #21 | 10-20847 | SCREW, CLUSTER TO THROTTLE LEVER (1,1 required per assembly) |
|
|
10-20847 - 10-20847 - SCREW [ More info ] Unavailable Replaced by 1395-6027 |
|
|
1395-6027 - Screw [ More info ]
|
| #22 | 1333-1707 | CARBURETOR ASSEMBLY, COMPLETE (3,3 required per assembly) |
|
|
1333-1707 - NLA NLA [ More info ] Unavailable |
| #23 | -28007A 2 | THROTTLE PICK-UP BRACKET ASSEMBLY (2,2 required per assembly) |
|
|
28007A 2 - 28007A 2 - BRACKET ASSY [ More info ] Unavailable Replaced by -28007A 6 |
|
|
28007A 6 - 28007A 6 - BRACKET ASSY [ More info ] Unavailable Replaced by -53649A 2 |
  |
|

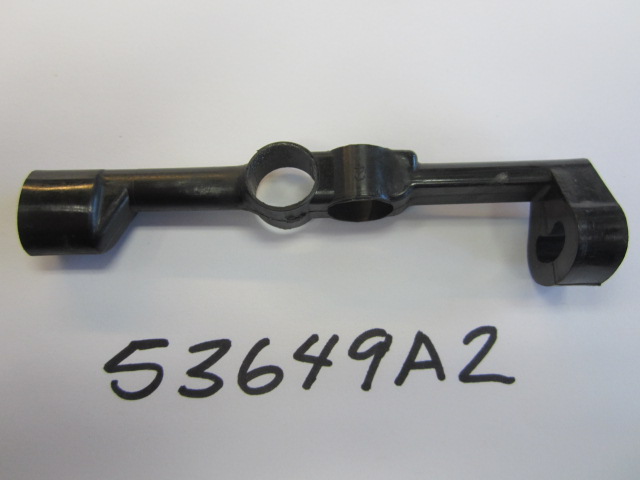

53649A 2 - Coupling [ More info ]
|
| #24 | 10-29239 | SCREW, THROTTLE BRACKET MOUNTING (2,2 required per assembly) |
|
|
10-29239 - Screw, NLA [ More info ]
|
| #25 | -27869 | CLAMP, UPPER - THROTTLE PICK-UP BRAKCET (1,1 required per assembly) |
|
|
|
| #26 | -27870 | CLAMP, LOWER - THROTTLE PICK-UP BRACKET (1,1 required per assembly) |
|
|
27870 - CLAMP NLA [ More info ] Unavailable |
| #27 | 10-20100 | SCREW, UPPER AND LOWER CLAMP FASTENING (2,2 required per assembly) |
|
|
10-20100 - Screw - Priced Individually [ More info ]
|
  |
|
10-69022 - Screw [ More info ]
|
| #28 | -26977 | BRACKET, COIL LEAD RETAINER (1,1 required per assembly) |
|
|
26977 - Bracket, NLA [ More info ]
|
| #29 | 10-20031 | SCREW, RETAINER BRACKET TO CENTER CARBURETOR (1,1 required per assembly) |
|
|
10-20031 - Screw - Priced Individually [ More info ]
|
  |
|
10-98253 - Screw [ More info ]
|
| #30 | 13-21272 | LOCKWASHER, BRACKET FASTENING SCREW (1,1 required per assembly) |
|
|
13-21272 - LockWasher - Priced Individually [ More info ]
|
| #31 | -30170 | ROD, CHOKE (1,1 required per assembly) |
|
|
30170 - ROD NLA [ More info ] Unavailable |
| #32 | 16-30172 | STUD, CARBURETOR - CHOOKE LEVER PIVOT (3,3 required per assembly) |
|
|
|
| #33 | -30437 | SHUTTER, CHOKE - CARBURETOR (SEE NOTE BELOW) (3,3 required per assembly) |
|
|
30437 - 30437 - LEVER [ More info ] Unavailable Replaced by -38604 |
  |
|

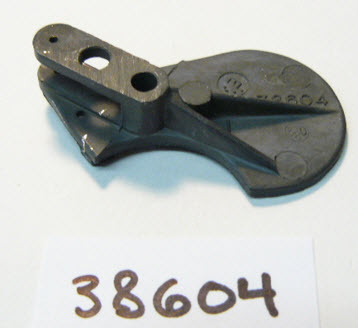

38604 - Choke Shutt, NLA [ More info ]
|
| #34 | 17-25391 | RIVET, CHOKE LEVER TO CHOKE ROD (3,3 required per assembly) |
  |
|

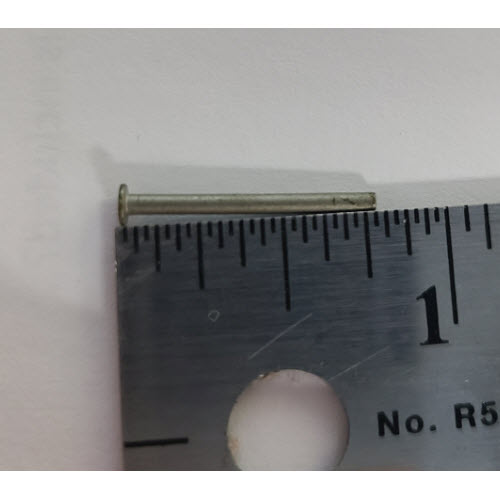

17-25391 - Rivet, NLA [ More info ]
|
| #36 | 11-20110 | NUT, CHOKE LEVER TO CARBURETOR STUD (3,3 required per assembly) |
  |
|
11-20110 - Nut (M10X32) [ More info ]
|
| #37 | 24-28965 | SPRING, CHOKE ROD TENSION (1,1 required per assembly) |
|
|
24-28965 - Spring, Choke Rod Tension,NLA [ More info ]
|
| #38 | -27711 | RETAINER, CHOKE ROD SPRING TO CARBURETOR (1,1 required per assembly) |
|
|
27711 - Retainer, NLA [ More info ]
|
| #39 | 10-28713 | SCREW, RETAINER TO LOWER CARBURETOR (1,1 required per assembly) |
|
|
10-28713 - Screw, NLA [ More info ]
|
