Parts for Mercury Marine 800 (4 Cylinder) , 80 (4 Cylinder) Swivel Bracket Assembly

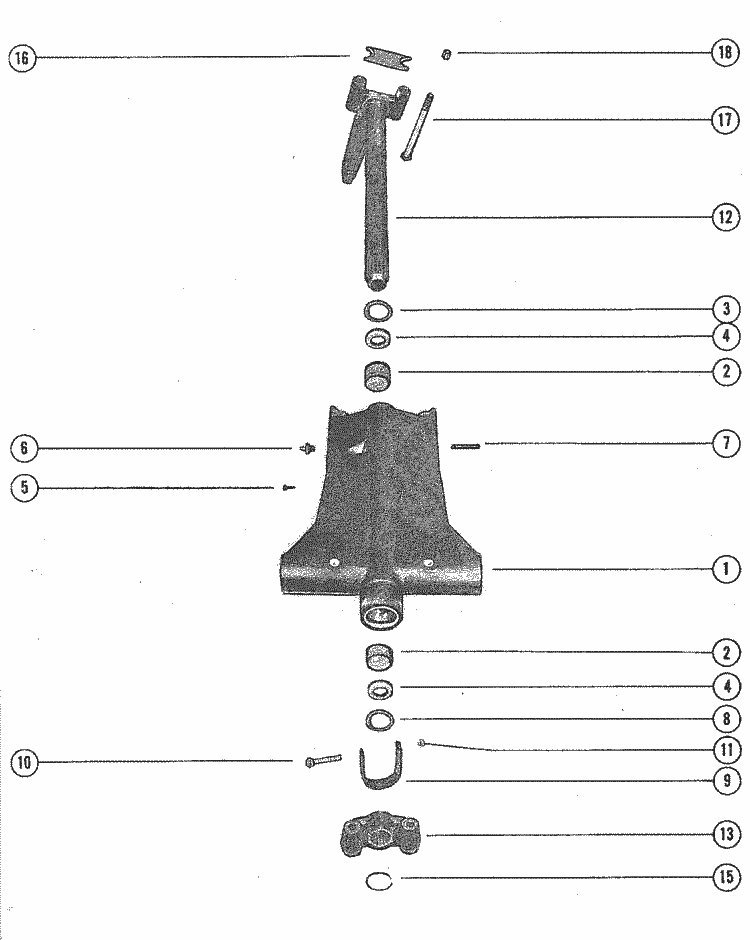

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| #1 | 1453-6019A 2 | SWIVEL BRACKET ASS'Y(SHORT SHAFT) (1 required per assembly) |
 |
|
1453-6019A 2 - 1453-6019A 2 - SWIVEL BRACKET [ More info ] Unavailable Replaced by 1490-7256A 2 |
|
|
1490-7256A 2 - SWIVEL BRACKET AS NLA [ More info ] Unavailable |
| #1 | 1482-6386A 4 | SWIVEL BRACKET ASS'Y (LONG SHAFT) (1 required per assembly) |
|
|
1482-6386A 4 - SWIVEL BRACKET NLA [ More info ] Unavailable |

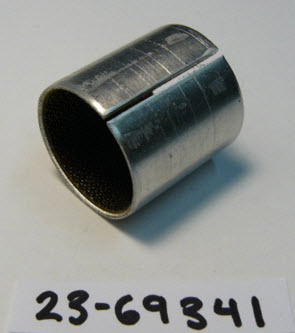

| #2 | 23-69341 | BUSHING, SWIVEL BRACKET (2 required per assembly) |
  |
|
23-69341 - BUSHING [ More info ] Unavailable |
| #3 | 12-69342 | WASHER, SWIVEL PIN - UPPER (1 required per assembly) |
  |
|
12-69342 - Washer, Swivel Pin - Upper, NLA [ More info ]
|
| #4 | 26-37448 | OIL SEAL, SWIVEL BRACKET (2 required per assembly) |
  |
|
26-37448 - Seal, NLA [ More info ]
|
| #5 | 10-47828 | SCREW, DRIVE - SWIEL BRACKET (1 required per assembly) |
|
|
10-47828 - Screw, NLA [ More info ]
|
| #6 | 22-74036 | FITTING, GREASE (3 required per assembly) |
  |
|
22-74036 - Fitting - Priced Individually [ More info ]
|
|
|
228M0169589 - FITTING Note: Priced Individually [ More info ]
|
| #7 | 17-25598 | PIN, REVERSE LOCK SPRING ATTACHING (1 required per assembly) |
|
|
17-25598 - Pin -roll, NLA [ More info ]
|
| #8 | 12-69380 | WASHER, SWIVEL PIN - LOWER (1 required per assembly) |
|
|
12-69380 - 12-69380 - WASHER [ More info ] Unavailable Replaced by 12-37429 |
  |
|
12-37429 - Washer [ More info ]
|
| #9 | 28205 | STRAP STOP (1 required per assembly) DRIVE SHAFT HOUSING TO SWIVEL BRACKET |
|
|
|
  |
|
28205T - Strap, NLA [ More info ]
|

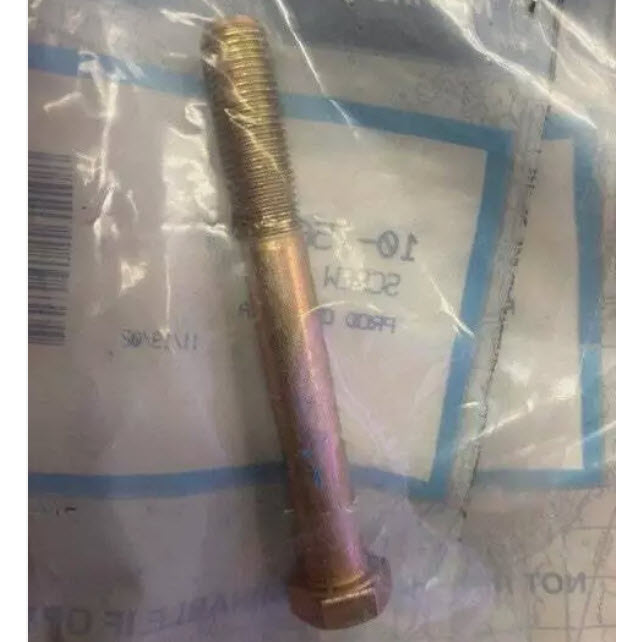

| #10 | 10-56743 | SCREW (1 required per assembly) STRAP STOP TO HOUSING (3 1/8")-SHORT SHAFT |
  |
|
10-56743 - Screw [ More info ]
|
| #10 | 10-28200 | SCREW (1 required per assembly) STRAP STOP TO HOUSING (3 7/8")-LONG SHAFT |
|
|
10-28200 - Screw, NLA [ More info ]
|
| #11 | 11-25269 | NUT, STRAP STOP FASTENING SCREW (1 required per assembly) |
  |
|
11-25269 - Nut (3/8-24) [ More info ]
|
| #12 | 17-73594A 1 | SWIVEL PIN ASS'Y (SHORT SHAFT) (1 required per assembly) |
|
|
17-73594A 1 - 17-73594A 1 - SWIVEL PIN ASSY [ More info ] Unavailable Replaced by 17-73594A 2 |
|
|
17-73594A 2 - SWIVEL PIN ASSEMB NLA [ More info ] Unavailable |
| #12 | 17-73593A 1 | SWIVEL PIN ASS'Y (LONG SHAFT) (1 required per assembly) |
|
|
17-73593A 1 - 17-73593A 1 - SWIVEL PIN ASSY [ More info ] Unavailable Replaced by 17-73593A 2 |
|
|
17-73593A 2 - SWIVEL PIN ASSEMB NLA [ More info ] Unavailable |
| #13 | 73984 | YOKE, BOTTOM (1 required per assembly) |
|
|
73984 - Bottom Yoke [ More info ]
|
|
|
73984T - BOTTOM YOKE NLA [ More info ] Unavailable |
| #15 | 53-73591 | SNAP RING, YOKE ATTACHING (1 required per assembly) |
|
|
53-73591 - Retaining Ring, NLA [ More info ]
|
| #16 | 28203 | BUMPER, STEERING ARM (1 required per assembly) |
  |
|
28203 - Bumper, NLA [ More info ]
|
| #17 | 10-49554 | BOLT, STEERING ARM TO UPPER MOUNT (5 7/8") (2 required per assembly) |
|
|
10-49554 - Screw, NLA [ More info ]
|
| #18 | 11-34933 | NUT, STEERING ARM BOLT FASTENING (2 required per assembly) |
  |
|
11-34933 - 11-34933 - NUT (.437-20) Sta [ More info ] Unavailable Replaced by -8M0204653 |
|
|
11-8M0204653 - Prop Lock Nut 7/16-20 , Priced Individually [ More info ]
|
  |
|
18-3721-9 - Lock Nut, 11-34933, 5PK [ More info ]
|
