Parts for Mercury Marine 800 (4 Cylinder) , 80 (4 Cylinder) Starter Motor & Wiring Harness

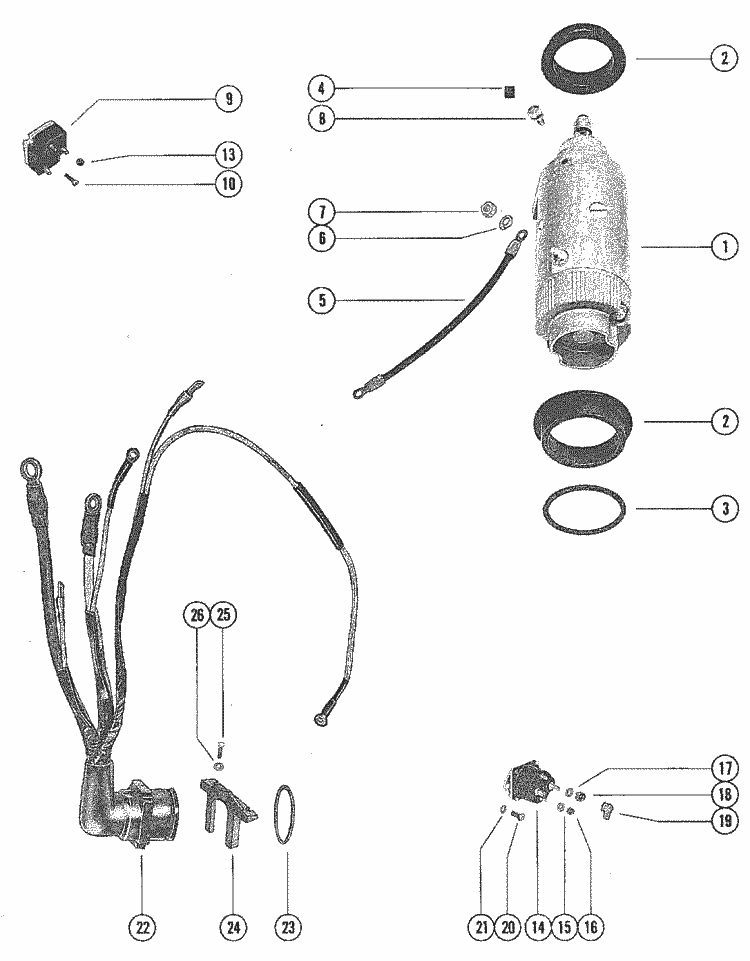

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| #1 | 50-66015 | STARTER MOTOR (1 required per assembly) |
 |
|
50-66015 - 50-66015 - STARTER MOTOR ASS [ More info ] Unavailable Replaced by 50-660152 |
|
|
50-660152 - 50-660152 - ->66015T1 [ More info ] Unavailable Replaced by -66015T1 |
  |
|
50-66015T1 - 50-66015T1 - ->893891T [ More info ] Unavailable Replaced by -893891T |
  |
|
50-893891T - Starter Assembly [ More info ]
|
  |
|
18-5642 - Starter 50-66015 See Detail Page for Important Information [ More info ]
|
  |
|
18-5602 - Starter, 50-67341 [ More info ]
|
  |
|
5375 - Starter, 50-66015, 10 Tooth [ More info ]
|
| #2 | 56703 | COLLAR, RUBBER - STARTER MOTOR (2 required per assembly) |
  |
|
56703 - 56703 - COLLAR [ More info ] Unavailable Replaced by 23-8M0001391 |
  |
|
23-8M0001391 - 23-8M0001391 - COLLAR Starter Mo [ More info ] Unavailable Replaced by 23-8M0034918 |
  |
|
23-8M0034918 - Collar [ More info ]
|
| #3 | 23-56774 | SPACER, COLLAR TO BRACKET (1 required per assembly) |
  |
|
23-56774 - SPACER NLA [ More info ] Unavailable |
| #4 | 57247 | STOP, RUBBER - STARTER MOTOR (2 required per assembly) |
|
|
57247 - 57247 - STOP [ More info ] Unavailable Replaced by -68042 |
|
|
68042 - 68042 - STOP Rubber [ More info ] Unavailable Replaced by -8M0043376 |
|
|
8M0043376 - Stop [ More info ]
|
| #5 | 84-66053A 1 | WIRE ASS'Y (1 required per assembly) STARTER MOTOR/STARTER SOLENOID (YELLOW) |
|
|
84-66053A 1 - 84-66053A 1 - CABLE ASSEMBLY [ More info ] Unavailable Replaced by 84-93389A 1 |
|
|
84-93389A 1 - WIRE NLA [ More info ] Unavailable |
| #6 | 13-26992 | LOCKWASHER, STARTER MOTOR TERMINAL (1 required per assembly) |
  |
|
13-26992 - LockWasher - Priced Individually [ More info ]
|
| #7 | 11-64015 | NUT, STARTER MOTOR TERMINAL (1 required per assembly) |
|
|
11-64015 - Nut (1 /4-20) [ More info ]
|
| #8 | 10-69035 | SCREW (1 required per assembly) WIRING HARNESS TO STARTER MOTOR (5/8") |
  |
|
10-69035 - Screw/LockWasher [ More info ]
|
| #9 | 62351A 1 | RECTIFIER ASSEMBLY (1 required per assembly) |
  |
|
62351A 1 - 62351A 1 - RECTIFIER [ More info ] Unavailable Replaced by -816770 |
  |
|
816770 - 816770 - RECTIFIER [ More info ] Unavailable Replaced by -816770T |
  |
|
816770T - 816770T - RECTIFIER [ More info ] Unavailable Replaced by -8M0058226 |
  |
|
8M0058226 - Rectifier - Outboard [ More info ]
|
  |
|
18-5707 - Rectifier 816770 [ More info ]
|
  |
|
193-5114 - Regulated Rectifier [ More info ]
|
  |
|
154-6770 - Rectifier [ More info ]
|
  |
|
AR351 - Rectifier [ More info ]
|
| #10 | 10-37656 | SCREW, RECTIFIER TO PLATE (5/8") (2 required per assembly) |
|
|
10-37656 - Screw, NLA [ More info ]
|
| #13 | 11-45076 | NUT, RECTIFIER TERMINAL (3 required per assembly) |
  |
|
11-45076 - Nut (#10-32) (brass) [ More info ]
|

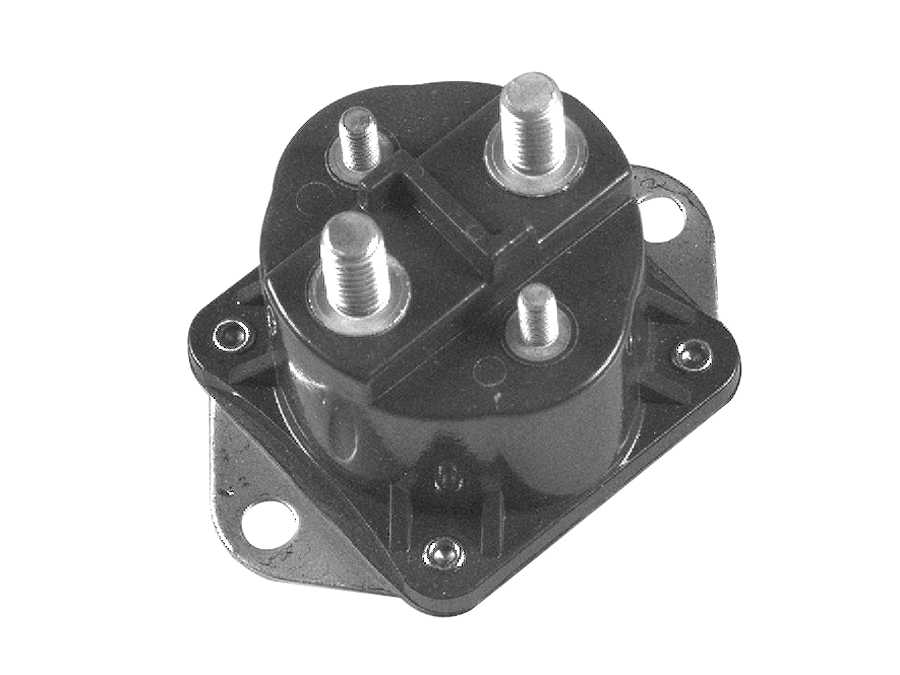

| #14 | 89-68258 | STARTER SOLENOID (1 required per assembly) |
  |
|
89-68258 - 89-68258 - SOLENOID Starter [ More info ] Unavailable Replaced by 89-68258A4 |
  |
|
89-68258A4 - 89-68258A4 - ->853654A1 [ More info ] Unavailable Replaced by -853654A1 |
  |
|
89-853654A 1 - Solenoid [ More info ]
|
  |
|
18-5815 - Solenoid 89-853654A1 [ More info ]
|
  |
|
SW275 - Solenoid, 89-853654A 1 [ More info ]
|
| #15 | 13-26996 | LOCKWASHER, SOLENOID TERMINAL (#10) (2 required per assembly) |
  |
|
13-26996 - LockWasher - Priced Individually [ More info ]
|
| #16 | 11-68219 | NUT, SOLENOID TERMINAL (#10) (2 required per assembly) |
  |
|
11-68219 - Nut (#10-32) [ More info ]
|
| #17 | 13-26993 | LOCKWASHER, WOLENOID TERMINAL (5/16") (2 required per assembly) |
|
|
13-26993 - LockWasher - Priced Individually [ More info ]
|
|
|
13-8M0204647 - LOCKWASHER @5 [ More info ] Unavailable |
| #18 | 11-68292 | NUT, SOLENOID TERMINAL (5/16") (2 required per assembly) |
|
|
11-68292 - Nut (5/16 Inch) [ More info ]
|
|
|
11-8M0204668 - NUT @5 [ More info ] Unavailable |

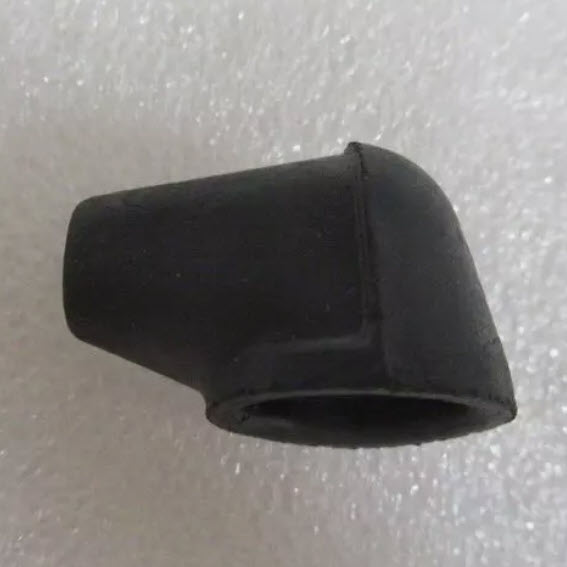

| #19 | 46265 | BOOT, TERMINAL - STARTER SOLENOID (1 required per assembly) |
  |
|
|

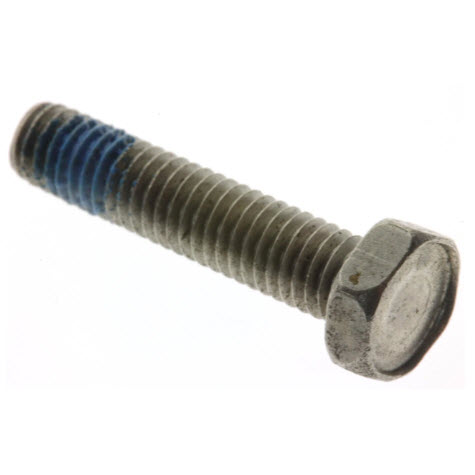

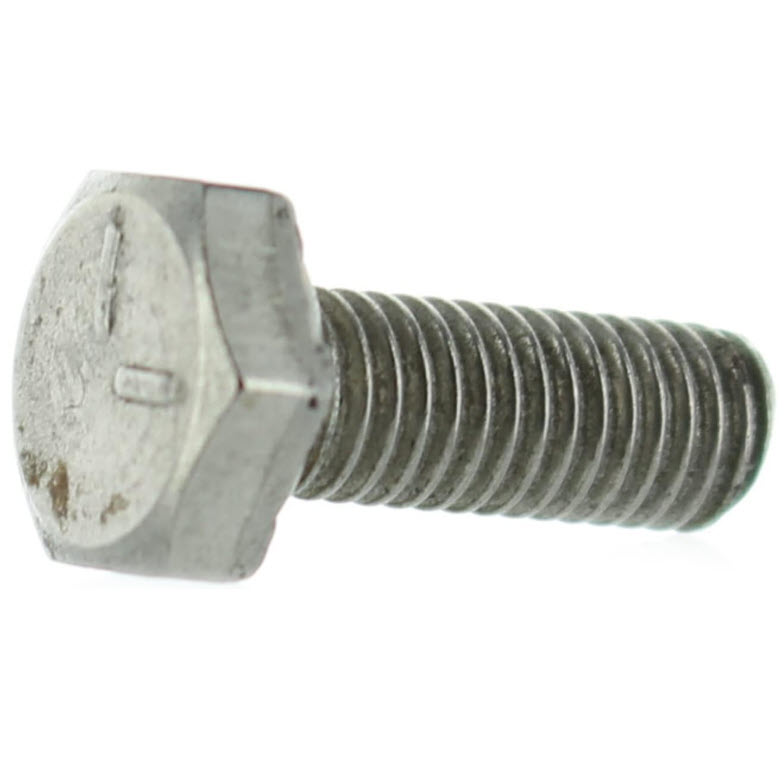

| #20 | 10-38601 | SCREW, SOLENOID TO BOTTOM COWL (5/8") (2 required per assembly) |
  |
|
10-38601 - Screw - Priced Individually [ More info ]
|

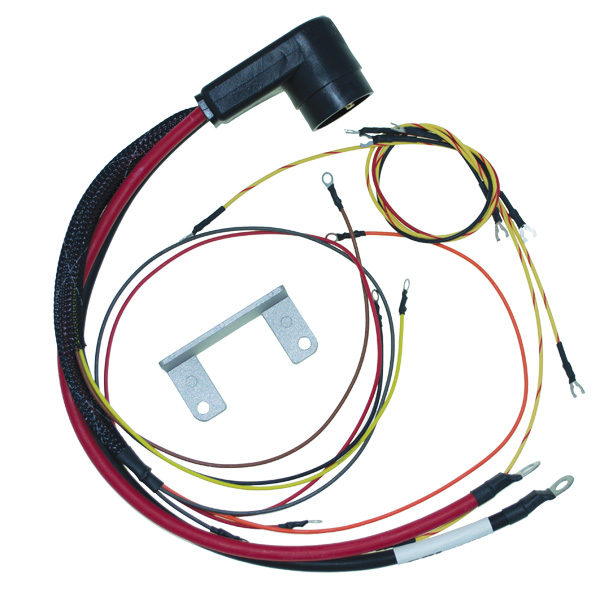

| #22 | 84-73369 | WIRING HARNESS (INTERNAL) (1 required per assembly) |
|
|
84-73369 - 84-73369 - HARNESS [ More info ] Unavailable Replaced by 84-73369A1 |
|
|
84-73369A 1 - Wiring Harness [ More info ]
|
  |
|
414-3369 - Harness, 84-64997, 84-76295A1 [ More info ]
|
| #23 | 24-28975 | SPRING, GARTER - INTERNAL WIRING HARNESS (1 required per assembly) |
|
|
24-28975 - Spring, Garter - Harness,NLA [ More info ]
|
| #24 | 54-76368 | CLAMP, WIRING HARNESS (1 required per assembly) |
  |
|
54-76368 - Clamp [ More info ]
|
| #25 | 10-69020 | SCREW (2 required per assembly) WIRING HARNESS CLAMP TO BOTTOM COWL (7/8") |
|
|
10-69020 - Screw - Priced Individually [ More info ]
|
  |
|
10-69020 1 - Screw [ More info ]
|
| #26 | 12-30164 | WASHER, WIRING HARNESS CLAMP SCREW (2 required per assembly) |
|
|
12-30164 - Washer, (.192 X .375 X .0312) [ More info ]
|
