Parts for Mercury Marine 75 HP EFI (4-Stroke) Intergrated Air Fuel Module Components

Revise Search: All Models > 75 HP EFI (4-Stroke) > 1B366823 & Up (USA) > Intergrated Air Fuel Module Components

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

Engine section

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#1	892952T04	IAFM ASSEMBLY (1 required per assembly) SN# 1B587015 & Below
		892952T04 - 892952T04 - IAFM ASSEMBLY [ More info ] Unavailable Replaced by -892952T06
		892952T06 - IAFM ASSEMBLY NLA [ More info ] Unavailable
#1	892952T06	IAFM ASSEMBLY (1 required per assembly) SN# 1B587016 & Up
#2	8M0006027	INJECTOR, Fuel (4 required per assembly)
		8M0006027 - 8M0006027 - INJECTOR Fuel [ More info ] Unavailable Replaced by -8M0041571
		8M0041571 - Fuel Injector [ More info ] $226.00 Available to Order: Usually ships within 10 days.
#3	898103T97	FUEL RAIL ASSEMBLY (1 required per assembly)
		898103T97 - Fuel Rail [ More info ] $199.00 Available to Order: Usually ships within 10 days.
#4	10-897445502	SCREW, (M6 x 20) (2 required per assembly)
		10-897445502 - Screw Kit [ More info ] $17.50 Available to Order: Usually ships within 10 days.
#5	891663001	SENSOR ASSEMBLY, Temperature (1 required per assembly)
		891663001 - Temperature Sensor Assembly [ More info ] $219.42 Available to Order: Usually ships within 10 days.
#6	10-895054	SCREW, (M4 x 16) (3 required per assembly)
		10-895054 - Screw - Priced Individually [ More info ] $4.30 Available to Order: Usually ships within 10 days.
#7	897445503	BRACKET, Retaining (1 required per assembly)
		897445503 - Bracket [ More info ] $37.00 Available to Order: Usually ships within 10 days.
#8	854445	SENSOR, MAP (1 required per assembly)
		854445 - MAP Sensor Manifold Absolute Pressure [ More info ] $124.50 Available to Order: Usually ships within 10 days.
		18-7668 - Sensor, 854445 [ More info ] $84.99 $76.72 2 In Stock.
#9	10-897445501	SCREW, (M6 x 20) (5 required per assembly)
		10-897445501 - Screw [ More info ] $5.30 Available to Order: Usually ships within 10 days.

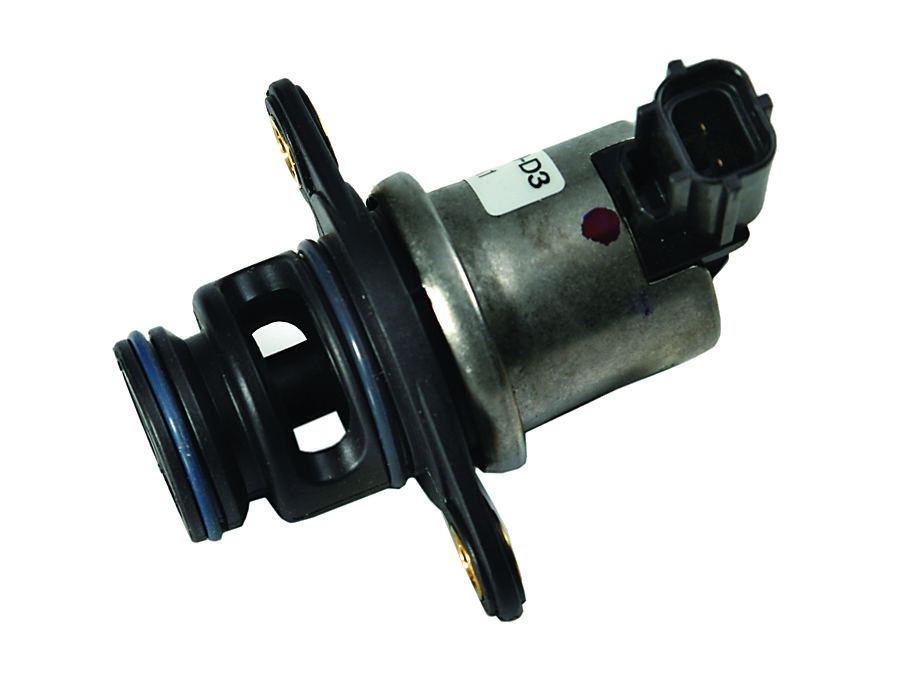

#10	897526T	IAC VALVE (1 required per assembly)
		897526T - IAC Valve Idle Air Control [ More info ] $173.25 Available to Order: Usually ships within 10 days.
#11	8M0005933	CLAMP KIT (1 required per assembly)
		54-8M0005933 - Clamp Kit [ More info ] $16.92 Available to Order: Usually ships within 10 days.
#12	8M0005528	HOSE, Idle Air Discharge (1 required per assembly)
		32-8M0005528 - Hose [ More info ] $79.50 Available to Order: Usually ships within 10 days.
#13	8M0005529	HOUSING, Manifold (1 required per assembly)
		8M0005529 - Housing [ More info ] $86.92 Available to Order: Usually ships within 10 days.
#14	8M0005527	HOSE, Idle Air Feed (1 required per assembly)
		32-8M0005527 - Hose [ More info ] $48.50 Available to Order: Usually ships within 10 days.
#15	898103T98	THROTTLE BODY ASSEMBLY (1 required per assembly)
		898103T98 - Throttle Body [ More info ] $305.17 Available to Order: Usually ships within 10 days.

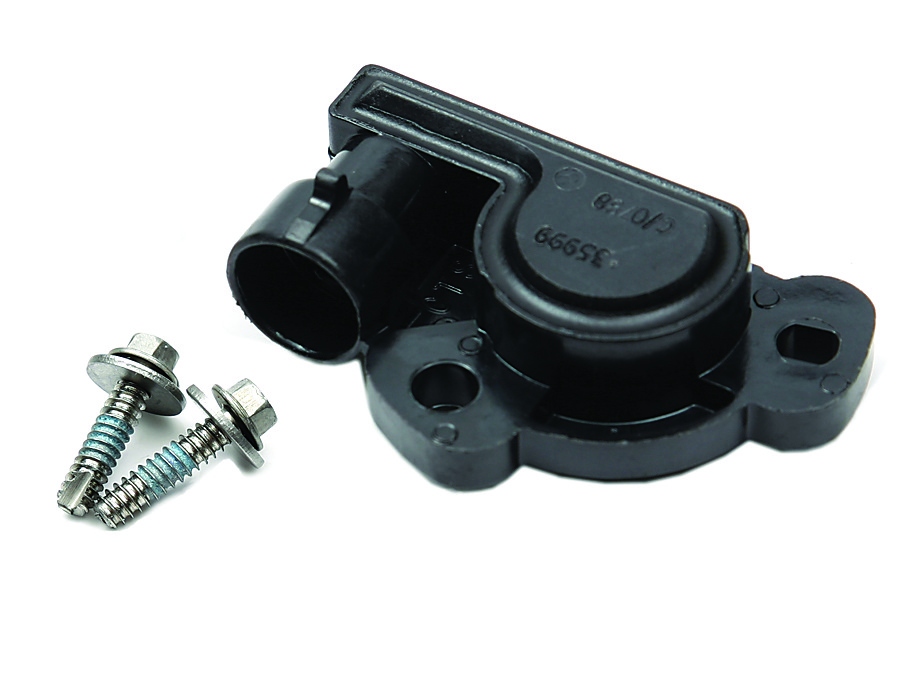

#16	881070T	SENSOR, Throttle Position (1 required per assembly)
		881070T - 881070T - SENSOR Position [ More info ] Unavailable Replaced by -8M0125617

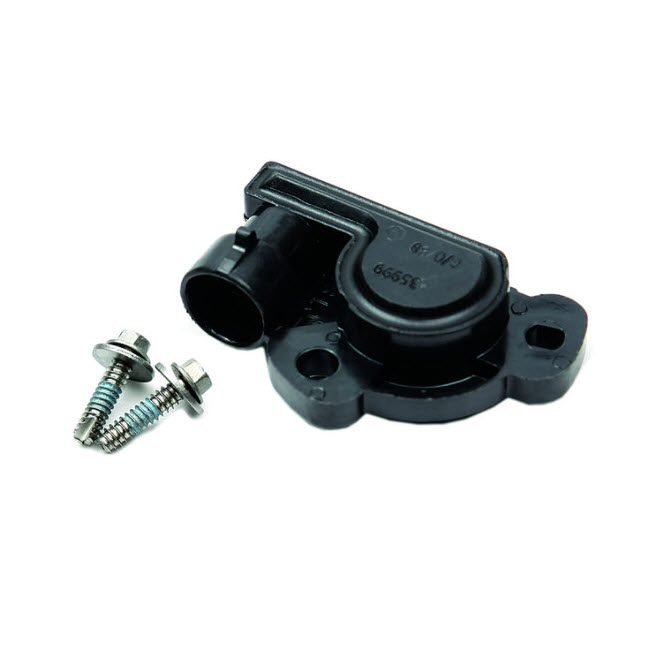

		8M0125617 - TPS Sensor Throttle Position Sensor [ More info ] $122.25 Available to Order: Usually ships within 10 days.
#17	8M0009542	SCREW KIT, (M5 x 17), Contains 2 Screws (1 required per assembly)
		10-8M0009542 - Screw Kit [ More info ] $18.33 Available to Order: Usually ships within 10 days.
#18	26-897445505	SEAL (4 required per assembly)
		26-897445505 - Seal [ More info ] $64.75 Available to Order: Usually ships within 10 days.
