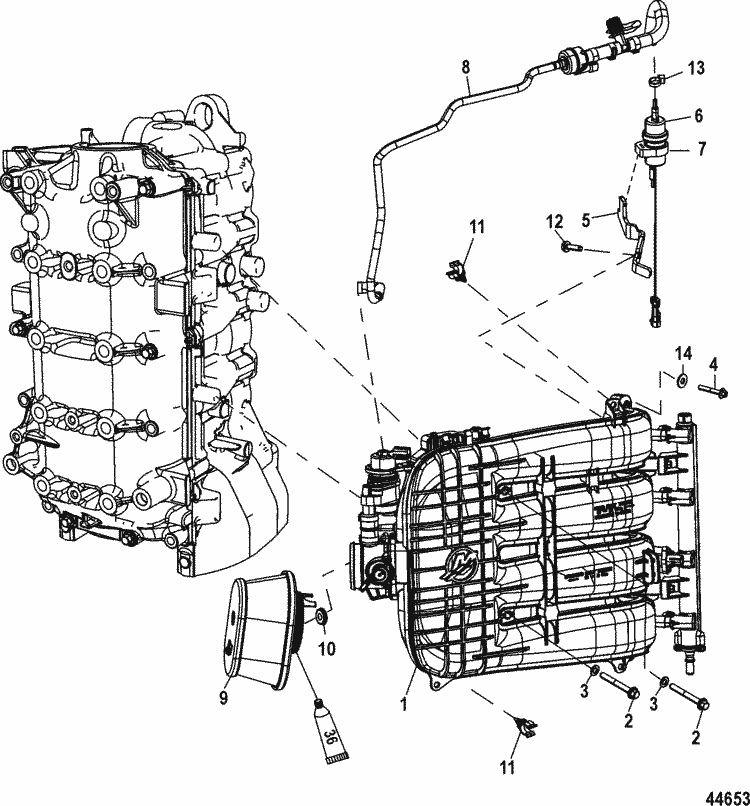

Parts for Mercury Marine 75 HP EFI (4-Stroke) Integrated Air Fuel Module
Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| #1 | 892952T04 | IAFM ASSEMBLY (1 required per assembly) SN# 1B587015 & Below |
 |
|
892952T04 - 892952T04 - IAFM ASSEMBLY [ More info ] Unavailable Replaced by -892952T06 |
|
|
892952T06 - IAFM ASSEMBLY NLA [ More info ] Unavailable |
| #1 | 892952T06 | IAFM ASSEMBLY (1 required per assembly) SN# 1B587016 & Up |
| #2 | 10-885525 50 | SCREW, (M6 x 50) Stainless Steel (2 required per assembly) |
|
|
10-885525 50 - Screw - Priced Individually [ More info ]
|
| #3 | 12-40023 16 | WASHER (2 required per assembly) |
  |
|
12-40023 16 - Washer - Priced Individually [ More info ]
|
| #4 | 10-8M0005430 | SCREW, (M6 x 30) Stainless Steel (5 required per assembly) |
  |
|
10-8M0005430 - 10-8M0005430 - SCREW @5 [ More info ] Unavailable Replaced by 10-8M0048051 |
|
|
10-8M0048051 - Screw , Priced Individually [ More info ]
|
| #5 | 897646001 | BRACKET, Vent Canister (1 required per assembly) |
  |
|
897646001 - Bracket [ More info ]
|
| #6 | 884545A02 | CANISTER ASSEMBLY, Vent (1 required per assembly) |
|
|
884545A02 - 884545A02 - CANISTER ASSEMBLY [ More info ] Unavailable Replaced by -8M0175814 |
|
|
8M0175814 - CANISTER-VENT ASY [ More info ]
|
| #7 | 25-897434 | GROMMET (1 required per assembly) |
|
|
25-897434 - Grommet [ More info ]
|
| #8 | 8M0001824 | PURGE VENT ASSEMBLY (1 required per assembly) |
|
|
8M0001824 - 8M0001824 - PURGE VENT ASSEMB [ More info ] Unavailable Replaced by -8M0081798 |
|
|
8M0081798 - 8M0081798 - PURGE VENT ASSY [ More info ] Unavailable Replaced by -8M0126307 |
|
|
8M0126307 - PURGE VENT ASSY [ More info ] Unavailable |
| #9 | 35-897575T01 | FILTER, Air (1 required per assembly) |
|
|
35-897575T01 - 35-897575T01 - FILTER Air [ More info ] Unavailable Replaced by 35-897575T02 |
|
|
35-897575T02 - 35-897575T02 - FILTER-AIR [ More info ] Unavailable Replaced by 35-8M0082911 |
  |
|

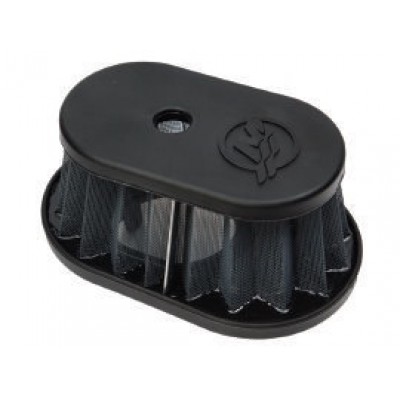

35-8M0082911 - Air Filter [ More info ]
|
| #10 | 8M0006918 | RESTRICTOR PLATE (1 required per assembly) 75/80EU SN# 1B521878 & Below |
|
|
8M0006918 - 8M0006918 - RESTRICTOR PLATE [ More info ] Unavailable Replaced by -8M0032134 |
|
|
8M0032134 - Restrictor Plate [ More info ]
|
| #10 | 8M0032134 | RESTRICTOR PLATE (1 required per assembly) 75/80EU SN# 1B521879 & Up |
| #11 | 54-897559 | CLIP (1 required per assembly) |
|
|
54-897559 - Clip [ More info ]
|
| #12 | 10-897445501 | SCREW, (M6 x 20) (1 required per assembly) |
  |
|
10-897445501 - Screw [ More info ]
|
| #13 | 54-816311T | TIE STRAP, (8.00 Inches) (1 required per assembly) |
  |
|
54-816311T - Tie Strap, 8 Inches, Priced Individually [ More info ]
|
| #14 | 12-35462 | WASHER, (.2656 x .625 x .0625) Stainless Steel (5 required per assembly) |
  |
|
12-35462 - Washer, (.2656 X .625 X .0625) Stainless Steel [ More info ]
|
