Parts for Mercury Marine 75 HP EFI (4-Stroke) Electrical Components
Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| # | 61-897148A09 | LONG BLOCK ASSEMBLY, 75/80/90/100 (1 required per assembly) |
 |
|
61-897148A09 - 61-897148A09 - LONG BLOCK ASSEMB [ More info ] Unavailable Replaced by -8M8033014 |
|
|
8M8033014 - PH L4NA 4S [ More info ] Unavailable |
| # | 61-897148A08 | LONG BLOCK ASSEMBLY, 115 (1 required per assembly) |
|
|
61-897148A08 - LONG BLOCK ASSEMB [ More info ] Unavailable |
| #1 | NSS | NOT SOLD SEPARATE, Electricl Plate Assembly-Complete (1 required per assembly) |
|
|
NSS - NOT SOLD SEPARATE [ More info ] Unavailable |
| #2 | 23-850234 1 | BUSHING (2 required per assembly) |
|
|
23-850234 1 - Bushing [ More info ]
|
| #3 | 25-833155 | GROMMET (2 required per assembly) |
|
|
25-833155 - Grommet [ More info ]
|
| #4 | 12-817274 | WASHER, (.344 x 1.00 x .063) Stainless Steel (2 required per assembly) |
|
|
12-817274 - Washer, (.344 X 1.00 X .063) Stainless Steel [ More info ]
|
| #5 | 10-885526 35 | SCREW, (M8 x 35) (2 required per assembly) |
  |
|
10-885526 35 - SCREW (M8 x 35 MM [ More info ] Unavailable |
| #8 | 50-897525T03 | STARTER MOTOR ASSEMBLY (1 required per assembly) SN# 1B580803 & Below |
|
|
50-897525T03 - 50-897525T03 - STARTER MOTOR ASS [ More info ] Unavailable Replaced by 50-897525T05 |
|
|
50-897525T05 - STARTER MOTOR ASS NLA [ More info ] Unavailable |
  |
|
50-879150A85 - Starter Motor Kit [ More info ]
|
| #8 | 50-897525T05 | STARTER MOTOR ASSEMBLY, Complete (1 required per assembly) SN# 1B580804 THRU 1B759587 |

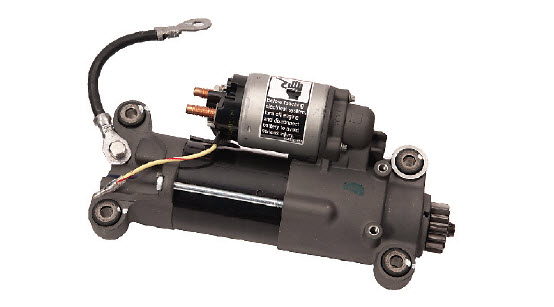

| #8 | 50-879345T77 | STARTER MOTOR ASSEMBLY, Complete (1 required per assembly) SN# 1B759588 & Up |
  |
|
50-879345T77 - Starter Motor [ More info ]
|

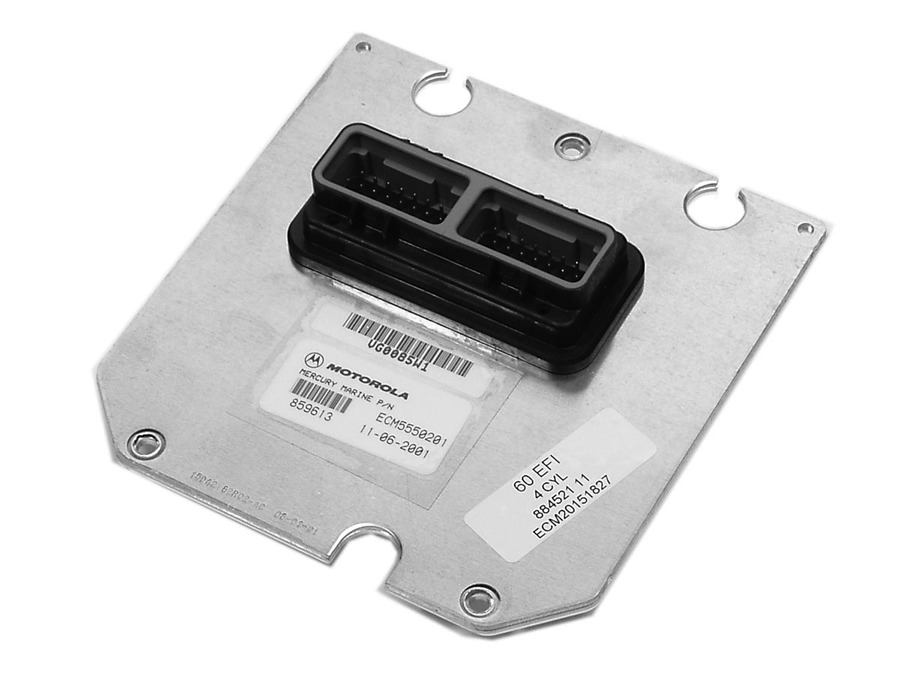

| #9 | 89772707T | ECM, Engine Control Module - 75 (1 required per assembly) SN# USA-1B423432/BEL-0P472362 & Below |
|
|
89772707T - 89772707T - ECM Engine Contro [ More info ] Unavailable Replaced by -89772713T |
  |
|
89772713T - 89772713T - ECM Engine Contro [ More info ] Unavailable Replaced by -8M0083202 |
|
|
8M0083202 - ECM [ More info ] Unavailable |
| #9 | 89772713T | ECM, Engine Control Module - 75 (1 required per assembly) SN# USA-1B423433/BEL-0P472363 THRU USA-1B501341/BEL-0P519763 |
| #9 | 89772719T | ECM, Engine Control Module - 75 (1 required per assembly) SN# USA-1B501342/BEL-0P519764 & Up |
  |
|
89772719T - 89772719T - ECM Engine Contro [ More info ] Unavailable Replaced by -8M0083208 |
|
|
8M0083208 - ECM [ More info ] Unavailable |
| #9 | 89772710T | ECM, Engine Control Module - 80 (1 required per assembly) SN# USA-1B423432/BEL-0P472362 & Below |
|
|
89772710T - 89772710T - ECM Engine Contro [ More info ] Unavailable Replaced by -89772714T |
  |
|
89772714T - 89772714T - ECM Engine Contro [ More info ] Unavailable Replaced by -8M0083203 |
|
|
8M0083203 - ECM [ More info ] Unavailable |
| #9 | 89772714T | ECM, Engine Control Module - 80 (1 required per assembly) SN# USA-1B423433/BEL-0P472363 THRU USA-1B501341/BEL-0P519763 |
| #9 | 89772722T | ECM, Engine Control Module - 80 EU (1 required per assembly) SN# USA-1B501342/BEL-0P519764 & Up |
  |
|
89772722T - 89772722T - ECM Engine Contro [ More info ] Unavailable Replaced by -8M0083211 |
|
|
8M0083211 - ECM [ More info ] Unavailable |
| #9 | 89772708T | ECM, Engine Control Module - 90 (1 required per assembly) SN# USA-1B423432/BEL-0P472362 & Below |
|
|
89772708T - 89772708T - ECM Engine Contro [ More info ] Unavailable Replaced by -89772715T |
  |
|
89772715T - 89772715T - ECM Engine Contro [ More info ] Unavailable Replaced by -8M0083204 |
|
|
8M0083204 - ECM [ More info ] Unavailable |
| #9 | 89772715T | ECM, Engine Control Module - 90 (1 required per assembly) SN# USA-1B423433/BEL-0P472363 THRU USA-1B501341/BEL-0P519763 |
| #9 | 89772720T | ECM, Engine Control Module - 90 (1 required per assembly) SN# USA-1B501342/BEL-0P519764 & Up |
  |
|
89772720T - 89772720T - ECM Engine Contro [ More info ] Unavailable Replaced by -8M0083209 |
|
|
8M0083209 - ECM [ More info ] Unavailable |
| #9 | 89772711T | ECM, Engine Control Module - 100 (1 required per assembly) SN# USA-1B423432/BEL-0P472362 & Below |
|
|
89772711T - 89772711T - ECM Engine Contro [ More info ] Unavailable Replaced by -89772716T |
  |
|
89772716T - 89772716T - ECM Engine Contro [ More info ] Unavailable Replaced by -8M0083205 |
|
|
8M0083205 - ECM [ More info ] Unavailable |
| #9 | 89772716T | ECM, Engine Control Module - 100 (1 required per assembly) SN# USA-1B423433/BEL-0P472363 THRU USA-1B501341/BEL-0P519763 |
| #9 | 89772723T | ECM, Engine Control Module - 100 EU (1 required per assembly) SN# USA-1B501342/BEL-0P519764 & Up |
  |
|
89772723T - 89772723T - ECM Engine Contro [ More info ] Unavailable Replaced by -8M0083212 |
|
|
8M0083212 - ECM [ More info ] Unavailable |
| #9 | 89772709T | ECM, Engine Control Module - 115 (1 required per assembly) SN# USA-1B423432/BEL-0P472362 & Below |
|
|
89772709T - 89772709T - ECM Engine Contro [ More info ] Unavailable Replaced by -89772717T |
  |
|
89772717T - 89772717T - ECM Engine Contro [ More info ] Unavailable Replaced by -8M0083206 |
|
|
8M0083206 - ECM [ More info ] Unavailable |
| #9 | 89772717T | ECM, Engine Control Module - 115 (1 required per assembly) SN# USA-1B423433/BEL-0P472363 THRU USA-1B501341/BEL-0P519763 |
| #9 | 89772721T | ECM, Engine Control Module - 115 (1 required per assembly) SN# USA-1B501342/BEL-0P519764 & Up |
  |
|
89772721T - 89772721T - ECM Engine Contro [ More info ] Unavailable Replaced by -8M0083210 |
|
|
8M0083210 - ECM [ More info ] Unavailable |
| #9 | 89772712T | ECM, Engine Control Module - 115 EU (1 required per assembly) SN# USA-1B423432/BEL-0P472362 & Below |
|
|
89772712T - 89772712T - ECM Engine Contro [ More info ] Unavailable Replaced by -89772718T |
  |
|
89772718T - 89772718T - ECM Engine Contro [ More info ] Unavailable Replaced by -8M0083207 |
|
|
8M0083207 - ECM [ More info ] Unavailable |
| #9 | 89772718T | ECM, Engine Control Module - 115 EU (1 required per assembly) SN# USA-1B423433/BEL-0P472363 THRU USA-1B501341/BEL-0P519763 |
| #9 | 89772724T | ECM, Engine Control Module - 115 EU (1 required per assembly) SN# USA-1B501342/BEL-0P519764 & Up |
  |
|
89772724T - 89772724T - ECM Engine Contro [ More info ] Unavailable Replaced by -8M0083213 |
|
|
8M0083213 - ECM [ More info ] Unavailable |
| #10 | 10-885525 25 | SCREW, (M6 x 25) Stainless Steel (2 required per assembly) |
  |
|
10-885525 25 - 10-885525 25 - SCREW (M6 x 25 MM [ More info ] Unavailable Replaced by 10-8M0103807 |
|
|
108M0103807 - Screw (M6 x 25 MM) Stai [ More info ]
|
| #11 | 12-65567 | WASHER, (.265 x .750 x .048) Stainless Steel (2 required per assembly) |
|
|
12-65567 - Washer, (.265 X .750 X .048) Stainless Steel [ More info ]
|
| #12 | 25-834985 | GROMMET (3 required per assembly) |
|
|
25-834985 - Grommet [ More info ]
|
| #13 | 23-856954 | BUSHING (2 required per assembly) |
|
|
23-856954 - Bushing [ More info ]
|
| #14 | 858953 | BRACKET (2 required per assembly) |
  |
|
858953 - Bracket [ More info ]
|
| #15 | 84-858414A04 | CABLE ASSEMBLY, Brass (1 required per assembly) |
|
|
84-858414A04 - Cable [ More info ]
|
| #16 | 12-29245 | WASHER, (.281 x .500 x .060) Stainless Steel (1 required per assembly) |
  |
|
12-29245 - Washer [ More info ]
|
|
|
12-8M0204649 - WASHER Note: Priced Individually [ More info ]
|
  |
|
18-4275 - SS Washer [ More info ]
|
| #17 | 10-885525 16 | SCREW, (M6 x 16) Stainless Steel (1 required per assembly) |
  |
|
10-885525 16 - 10-885525 16 - SCREW (M6 x 16 MM [ More info ] Unavailable Replaced by 10-8M0103805 |
|
|
108M0103805 - Screw (M6 x 16MM) Stain [ More info ]
|
| #18 | 11-40021 3 | NUT, (M8) Stainless Steel (1 required per assembly) |
  |
|
11-40021 3 - Nut - Priced Individually [ More info ]
|
| #19 | 13-26993 | LOCKWASHER, (.312) (1 required per assembly) |
|
|
13-26993 - LockWasher - Priced Individually [ More info ]
|
|
|
13-8M0204647 - LOCKWASHER @5 [ More info ] Unavailable |
| #20 | 17-897757 | PIN (2 required per assembly) |
|
|
17-897757 - Pin - Priced Individually [ More info ]
|
| #21 | 54-816311T | TIE STRAP, (8.00 Inches) (7 required per assembly) |
  |
|
54-816311T - Tie Strap, 8 Inches, Priced Individually [ More info ]
|
| #22 | 84-88439A26 | CABLE ASSEMBLY, Battery - Negative (1 required per assembly) |
  |
|
84-88439A26 - Cable Assembly -neg [ More info ]
|
| #23 | 10-885526 12 | SCREW, (M8 x 12) (2 required per assembly) |
  |
|
10-885526 12 - Screw - Priced Individually [ More info ]
|
| #24 | 54-891520001 | CLIP (1 required per assembly) |
|
|
54-891520001 - Clip [ More info ]
|
