Parts for Mercury Marine 75 HP (4-Stroke) Flywheel

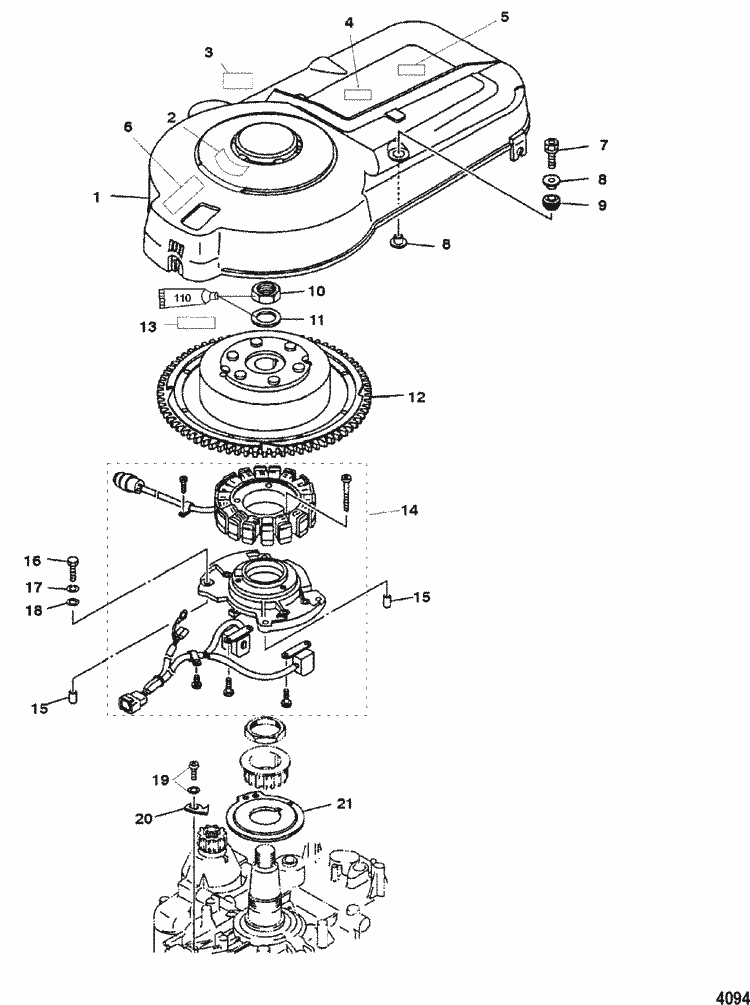

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| # | 804070T 2 | POWERHEAD ASSEMBLY (1 required per assembly) SN# 0T178500 & Up |
 |
|
804070T 2 - 804070T 2 - POWERHEAD ASSEMBL [ More info ] Unavailable Replaced by -804070T02 |
|
|
804070T02 - 804070T02 - POWERHEAD ASSEMBL [ More info ] Unavailable Replaced by -804070T03 |
|
|
804070T03 - 804070T03 - PH 75/90 4S [ More info ] Unavailable Replaced by -804070T04 |
|
|
804070T04 - 804070T04 - PH 75/90 4S [ More info ] Unavailable Replaced by -804070T05 |
|
|
804070T05 - PH 75/90 4S NLA [ More info ] Unavailable |
| # | 883548T02 | POWERHEAD ASSEMBLY (1 required per assembly) SN# 0T178499 & Below |
  |
|
883548T02 - POWERHEAD ASSEMBL NLA [ More info ] Unavailable |

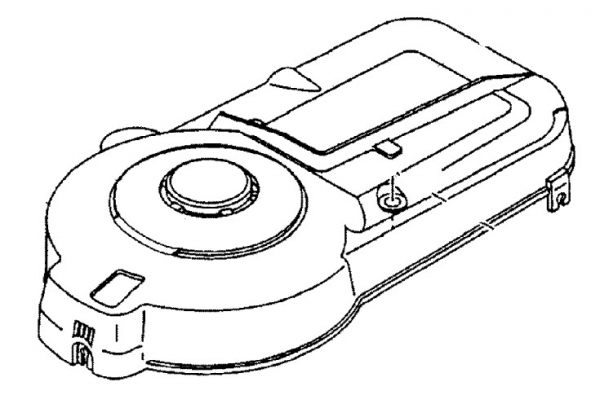

| #1 | 804268T | FLYWHEEL COVER (1 required per assembly) |
  |
|
804268T - 804268T - FLYWHEEL COVER [ More info ] Unavailable Replaced by -881343T1 |
  |
|
881343T1 - COVER-FLYWHEEL NLA [ More info ] Unavailable |
| #2 | NSS | NOT SOLD SEPARATE, Decal-Warning-Spinning Flywheel (1 required per assembly) |
|
|
NSS - NOT SOLD SEPARATE [ More info ] Unavailable |
| #5 | 37-804656A00 | DECAL, EPA Label Information (1 required per assembly) (2000) |
|
|
37-804656A00 - DECAL EPA Label I NLA [ More info ] Unavailable |
| #5 | 37-804656A01 | DECAL, EPA Label Information (1 required per assembly) (2001) |
|
|
37-804656A01 - DECAL EPA Label I NLA [ More info ] Unavailable |
| #5 | 37-804656A02 | DECAL, EPA Label Information (1 required per assembly) (2002) |
|
|
37-804656A02 - DECAL EPA Label I NLA [ More info ] Unavailable |
| #5 | 37-804656A03 | DECAL, EPA Label Information (1 required per assembly) (2003) |
|
|
37-804656A03 - DECAL EPA Label I NLA [ More info ] Unavailable |
| #7 | 10-804348 | BOLT, (M6 x 20) (2 required per assembly) |
  |
|
10-804348 - Bolt [ More info ]
|
| #8 | 825665 | COLLAR (4 required per assembly) |
  |
|
|
| #9 | 25-11416M | GROMMET (2 required per assembly) |
|
|
25-11416M - Grommet [ More info ]
|
|
|
25-11416T - Grommet [ More info ]
|
| #10 | 11-804265 | NUT, Hex (36 mm) (1 required per assembly) SN# 0T598999 & Below |
|
|
11-804265 - 11-804265 - NUT Hex (36 mm) [ More info ] Unavailable Replaced by 11-804265A1 |
|
|
11-804265A 1 - Nut/Washer Kit [ More info ]
|
| #10 | 11-804265A 1 | NUT/WASHER KIT, Hex (36 mm) (1 required per assembly) SN# 0T599000 & Up |
| #11 | 12-804264 1 | WASHER, Plate (1 required per assembly) SN# 0T599000 & Up |
|
|
12-804264 1 - Washer [ More info ]
|
| #11 | 12-804264 | WASHER (1 required per assembly) SN# 0T598999 & Below |
|
|
12-804264 - WASHER NLA [ More info ] Unavailable |

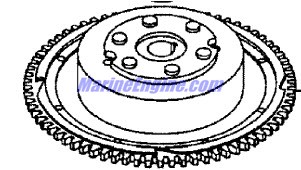

| #12 | 280-804261T | FLYWHEEL (1 required per assembly) |
  |
|
280-804261T - FLYWHEEL [ More info ] Unavailable |

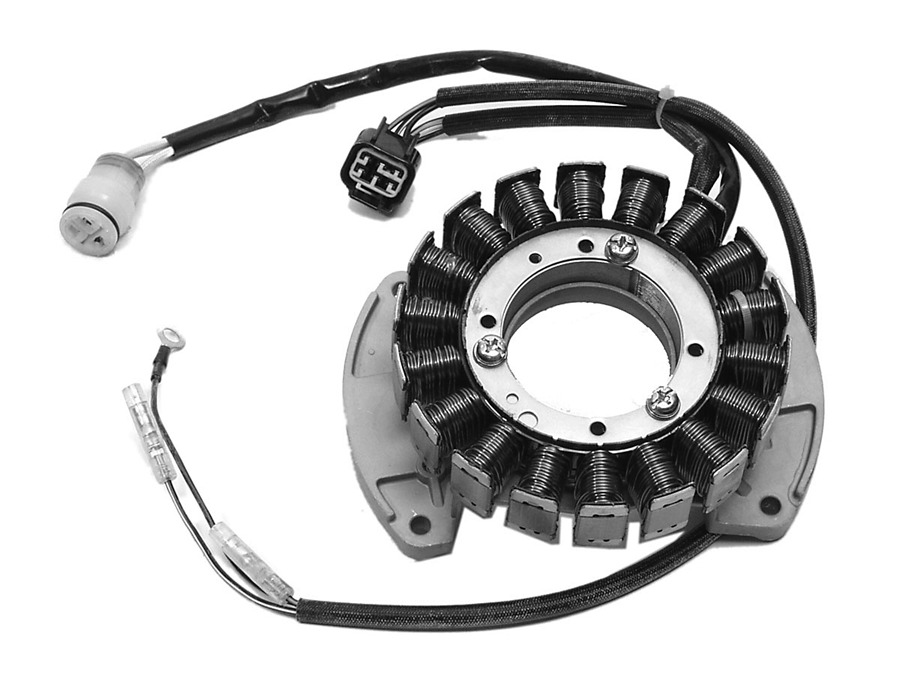

| #14 | 398-804262T | STATOR KIT (1 required per assembly) |
  |
|
398-804262T - STATOR KIT [ More info ] Unavailable |
| #15 | 17-825010 | PIN, Dowel (2 required per assembly) |
|
|
17-825010 - Pin -Dowel [ More info ]
|
| #16 | 10-804124 | BOLT (4 required per assembly) |
|
|
10-804124 - Bolt, NLA [ More info ]
|
| #17 | 13-82212M | LOCKWASHER (4 required per assembly) |
|
|
13-82212M - LockWasher - Priced Individually [ More info ]
|
| #18 | 12-82214M | WASHER (4 required per assembly) |
|
|
12-82214M - Washer - Priced Individually [ More info ]
|
| #19 | 10-804267 | SCREW (1 required per assembly) |
  |
|
10-804267 - Screw [ More info ]
|
| #20 | 804266 | TIMING PLATE (1 required per assembly) |
|
|
804266 - Timing Plate [ More info ]
|
  |
|
804266001 - Timing Plate [ More info ]
|

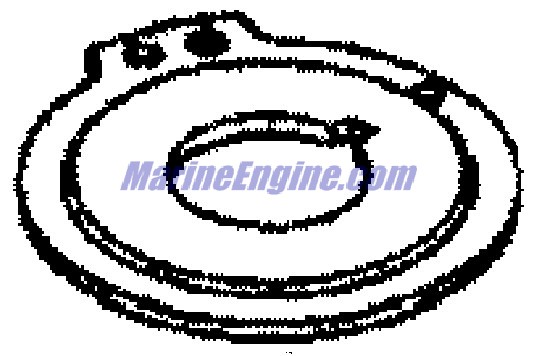

| #21 | 804263 | ROTOR (1 required per assembly) |
  |
|
804263 - ROTOR [ More info ] Unavailable |
