Parts for Mercury Marine 75 HP (4-Stroke) Exhaust Plate

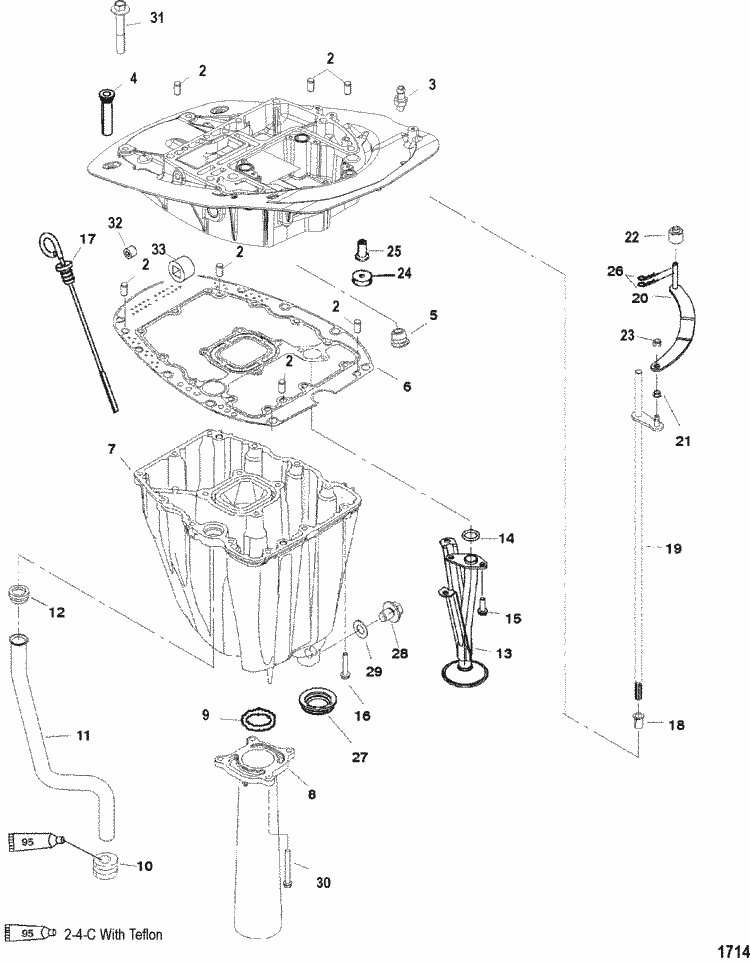

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| #1 | 858582T | ADAPTOR PLATE ASSEMBLY (1 required per assembly) |
 |
|
858582T - ADAPTER PLATE ASS [ More info ] Unavailable |
| #2 | 17-23784 | PIN, Dowel (7 required per assembly) |
|
|
17-23784 - Pin, Dowel [ More info ]
|
| #3 | 22-29111 2 | FITTING (1 required per assembly) |
|
|
22-29111 2 - Fitting [ More info ]
|
| #4 | 21-817519A 2 | CHECK VALVE ASSEMBLY, Drain (2 required per assembly) |
|
|
21-817519A 2 - Check Valve Assembly [ More info ]
|
| #5 | 25-12602 1 | GROMMET (1 required per assembly) |
  |
|
25-12602 1 - Grommet [ More info ]
|
  |
|
25-12602002 - Grommet (.44 I.d.) [ More info ]
|
| #6 | 27-858583 1 | GASKET (1 required per assembly) |
  |
|
27-858583 1 - Gasket [ More info ]
|
| #7 | 858572T | SUMP, Oil (1 required per assembly) |
  |
|
858572T - 858572T - SUMP Oil [ More info ] Unavailable Replaced by -858572T01 |
  |
|
858572T01 - Sump- Oil [ More info ]
|
| #8 | 858584A 1 | TUBE ASSEMBLY, Exhaust (1 required per assembly) |
  |
|
858584A 1 - TUBE ASSEMBLY Exh [ More info ] Unavailable |
| #9 | 25-881295 | O-RING (1 required per assembly) |
  |
|
25-881295 - O-Ring [ More info ]
|
| #10 | 25-89417 1 | GROMMET (1 required per assembly) |
|
|
25-89417 1 - 25-89417 1 - GROMMET [ More info ] Unavailable Replaced by 25-89417004 |
|
|
25-89417004 - Grommet [ More info ]
|

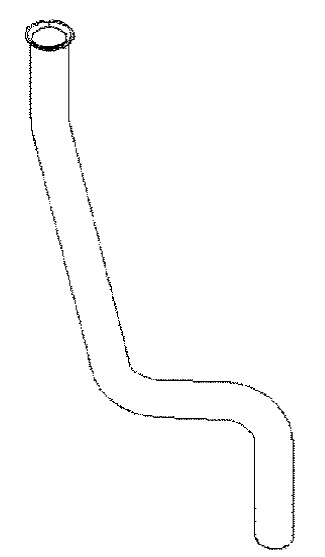

| #11 | 32-858575 | TUBE, Water (1 required per assembly) (Long) |
  |
|
32-858575 - 32-858575 - TUBE Water [ More info ] Unavailable Replaced by 32-8585754 |
  |
|
32-8585754 - 32-8585754 - ->858575006 [ More info ] Unavailable Replaced by -858575006 |
  |
|
32-858575006 - 32-858575006 - TUBE Water [ More info ] Unavailable Replaced by 32-8M0026130 |
  |
|
32-8M0026130 - Water Tube [ More info ]
|
| #11 | 32-858575 1 | TUBE, Water (1 required per assembly) (X-Long) |
  |
|
32-858575 1 - 32-858575 1 - TUBE Water [ More info ] Unavailable Replaced by 32-858575 3 |
  |
|
32-858575 3 - 32-858575 3 - TUBE-WATER [ More info ] Unavailable Replaced by 32-858575005 |
  |
|
32-858575005 - 32-858575005 - TUBE Water [ More info ] Unavailable Replaced by 32-8M0026129 |
  |
|
32-8M0026129 - Water Tube [ More info ]
|
| #12 | 814080 | SEAL (Upper) (1 required per assembly) |
|
|
814080 - 814080 - SEAL [ More info ] Unavailable Replaced by -814080001 |
  |
|
814080001 - Upper Seal [ More info ]
|
| #13 | 858571T | TUBE, Oil Pick Up (1 required per assembly) |
|
|
858571T - Tube - Oil Pickup [ More info ]
|
| #14 | 25-859082 | O-RING (1 required per assembly) |
|
|
25-859082 - O-Ring [ More info ]
|
| #15 | 10-40011128 | SCREW, (M6 x 20) Stainless Steel (4 required per assembly) |
  |
|
10-40011128 - 10-40011128 - SCREW (M6 x 20) S [ More info ] Unavailable Replaced by -8M4503518 |
|
|
10-8M4503518 - 10-8M4503518 - SCREW (M6 X 1.0 [ More info ] Unavailable Replaced by -8M0204741 |
|
|
108M0204741 - SCREW Note: Priced Individually [ More info ]
|
| #16 | 10-824832 7 | SCREW, (M6 x 30) (12 required per assembly) |
  |
|
10-824832 7 - Screw [ More info ]
|

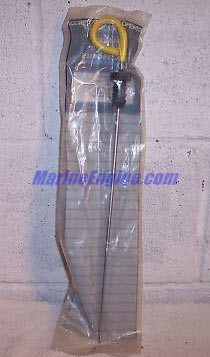

| #17 | 859602 | DIPSTICK (1 required per assembly) SN# 0T178499 & Below |
  |
|
859602 - Dipstick [ More info ]
|
| #17 | 859602 1 | DIPSTICK (1 required per assembly) SN# 0T178500 & Up |
|
|
859602 1 - Dipstick [ More info ]
|
| #18 | 23-48237 | BUSHING (1 required per assembly) |
|
|
23-48237 - Bushing [ More info ]
|

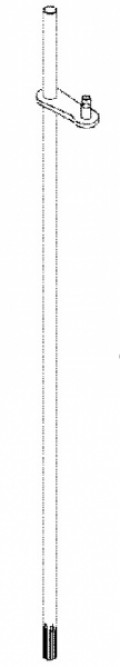

| #19 | 858577A 2 | SHIFT SHAFT (1 required per assembly) |
  |
|
858577A 2 - 858577A 2 - SHIFT SHAFT [ More info ] Unavailable Replaced by -858577A 3 |
  |
|
858577A 3 - Shift Lever Assembly [ More info ]
|
| #20 | 859177A 3 | SHIFT LINK (1 required per assembly) |
|
|
859177A 3 - Shift Link Kit [ More info ]
|
| #21 | NSS | NOT SOLD SEPARATE, Bushing (1 required per assembly) |
|
|
NSS - NOT SOLD SEPARATE [ More info ] Unavailable |
| #23 | 11-40138 6 | NUT, (M6) Stainless Steel (1 required per assembly) |
  |
|
11-40138 6 - Nut - Priced Individually [ More info ]
|
| #24 | 23-813745 | SPACER (1 required per assembly) (Long) |
|
|
23-813745 - Spacer [ More info ]
|
| #24 | 23-11289 | SPACER (1 required per assembly) (X-Long) |
|
|
23-11289 - Spacer - Shift Shaft - XL [ More info ]
|
| #25 | 43585 | COUPLING (1 required per assembly) |
  |
|
43585 - Shift Shaft Coupling [ More info ]
|
| #26 | 18-859746 | COTTER PIN (2 required per assembly) |
|
|
18-859746 - OB/MCM SB 2003-1, NLA [ More info ]
|
| #27 | 858573 | SEAL (1 required per assembly) |
  |
|
|
  |
|
8M0039073 - Seal [ More info ]
|
| #28 | 828818 1 | PLUG, Drain (1 required per assembly) |
  |
|
828818 1 - Drain Plug [ More info ]
|
| #29 | 27-828816 | GASKET (1 required per assembly) |
  |
|
27-828816 - 27-828816 - GASKET [ More info ] Unavailable Replaced by -8M0204692 |
|
|
27-8M0204692 - GASKET Note: Priced Individually [ More info ]
|
| #30 | 10-824832 13 | SCREW, (M6 x 60) (4 required per assembly) |
  |
|
10-824832 13 - Screw [ More info ]
|
| #31 | 10-40107 50 | SCREW, (M8 x 50) (4 required per assembly) |
  |
|
10-40107 50 - Screw [ More info ]
|
| #32 | 22-47945 2 | PLUG (1 required per assembly) |
|
|
22-47945 2 - Pipe Plug [ More info ]
|
| #33 | 22-38407 3 | PLUG, Pipe (.500-14) (1 required per assembly) |
|
|
22-38407 3 - Pipe Plug - Priced Individually [ More info ]
|
