Parts for Mercury Marine 75 HP (4 Cylinder) Starter Motor & Wiring Harness

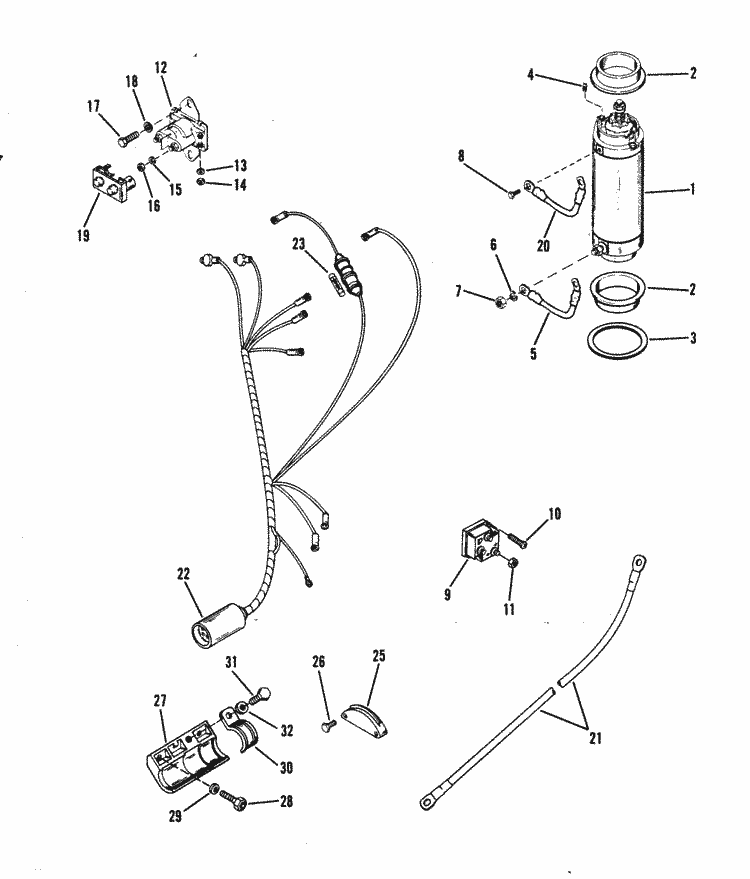

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| #1 | 50-66015 | STARTER MOTOR (1 required per assembly) |
 |
|
50-66015 - 50-66015 - STARTER MOTOR ASS [ More info ] Unavailable Replaced by 50-660152 |
|
|
50-660152 - 50-660152 - ->66015T1 [ More info ] Unavailable Replaced by -66015T1 |
  |
|
50-66015T1 - 50-66015T1 - ->893891T [ More info ] Unavailable Replaced by -893891T |
  |
|
50-893891T - Starter Assembly [ More info ]
|
  |
|
18-5642 - Starter 50-66015 See Detail Page for Important Information [ More info ]
|
  |
|
18-5602 - Starter, 50-67341 [ More info ]
|
  |
|
5375 - Starter, 50-66015, 10 Tooth [ More info ]
|

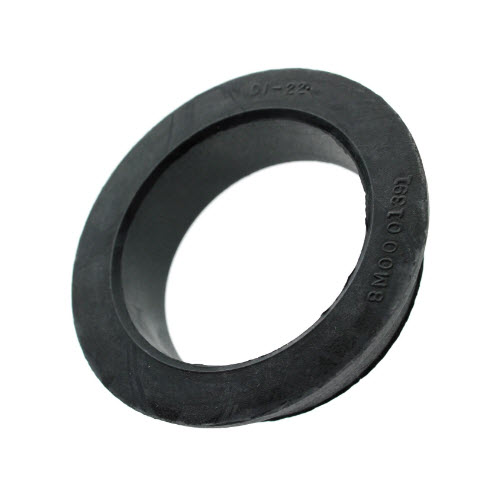

| #2 | 56703 | COLLAR, RUBBER-STARTER MOTOR (2 required per assembly) |
  |
|
56703 - 56703 - COLLAR [ More info ] Unavailable Replaced by 23-8M0001391 |
  |
|
23-8M0001391 - 23-8M0001391 - COLLAR Starter Mo [ More info ] Unavailable Replaced by 23-8M0034918 |
  |
|
23-8M0034918 - Collar [ More info ]
|

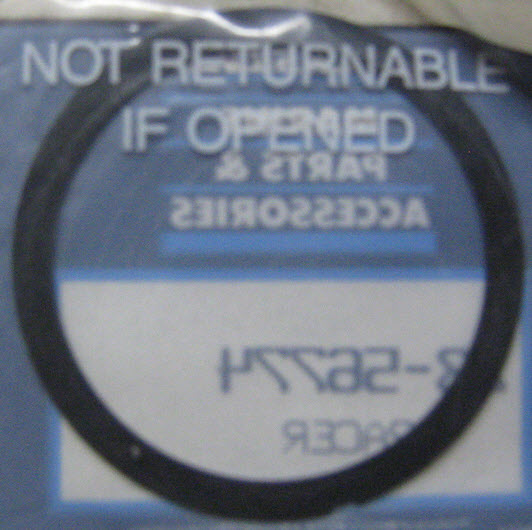

| #3 | 23-56774 | SPACER, COLLAR TO BRACKET (1 required per assembly) |
  |
|
23-56774 - SPACER NLA [ More info ] Unavailable |
| #4 | 57247 | SOTP, RUBBER-STARTER MOTOR (2 required per assembly) |
|
|
57247 - 57247 - STOP [ More info ] Unavailable Replaced by -68042 |
|
|
68042 - 68042 - STOP Rubber [ More info ] Unavailable Replaced by -8M0043376 |
|
|
8M0043376 - Stop [ More info ]
|
| #5 | 84-93389A 8 | WIRE, MOTOR TO SOLENOID (YELLOW) (1 required per assembly) |
|
|
84-93389A 8 - Wire Assembly, NLA [ More info ]
|
| #6 | 13-26992 | LOCKWASHER, STARTER MOTOR TERMINAL (1 required per assembly) |
  |
|
13-26992 - LockWasher - Priced Individually [ More info ]
|
| #7 | 11-64015 | NUT, STARTER MOTOR TERMINAL (1 required per assembly) |
|
|
11-64015 - Nut (1 /4-20) [ More info ]
|

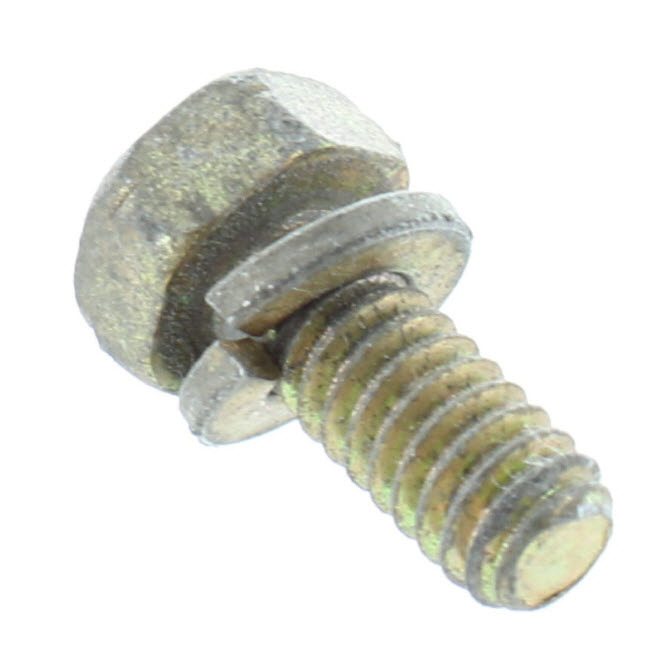

| #8 | 10-69035 | SCREW (1 required per assembly) WIRING HARNESS TO STARTER MOTOR (5/8") |
  |
|
10-69035 - Screw/LockWasher [ More info ]
|

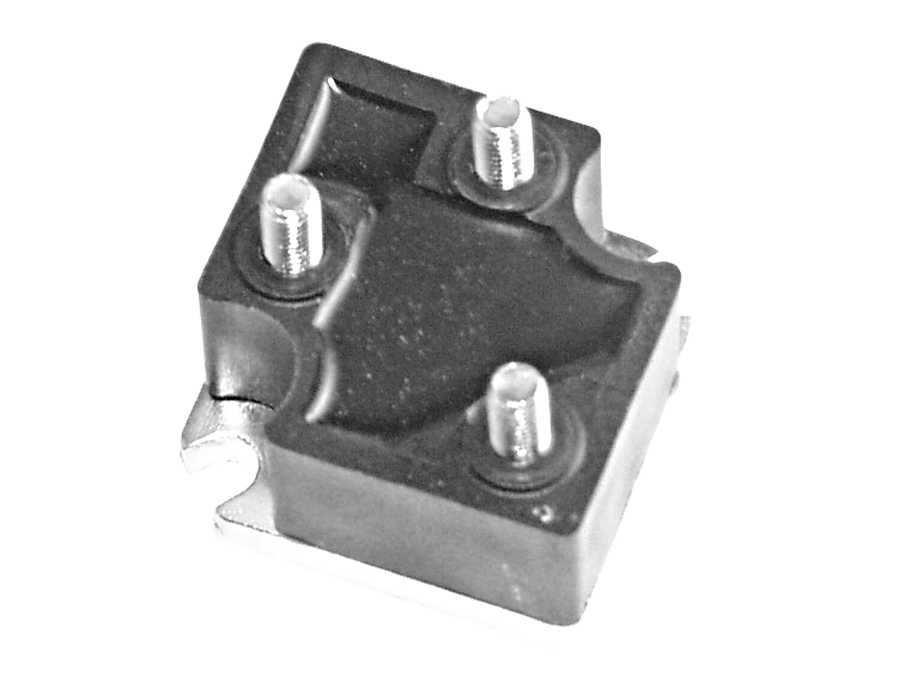

| #9 | 62351A 1 | RECTIFIER (1 required per assembly) |
  |
|
62351A 1 - 62351A 1 - RECTIFIER [ More info ] Unavailable Replaced by -816770 |
  |
|
816770 - 816770 - RECTIFIER [ More info ] Unavailable Replaced by -816770T |
  |
|
816770T - 816770T - RECTIFIER [ More info ] Unavailable Replaced by -8M0058226 |
  |
|

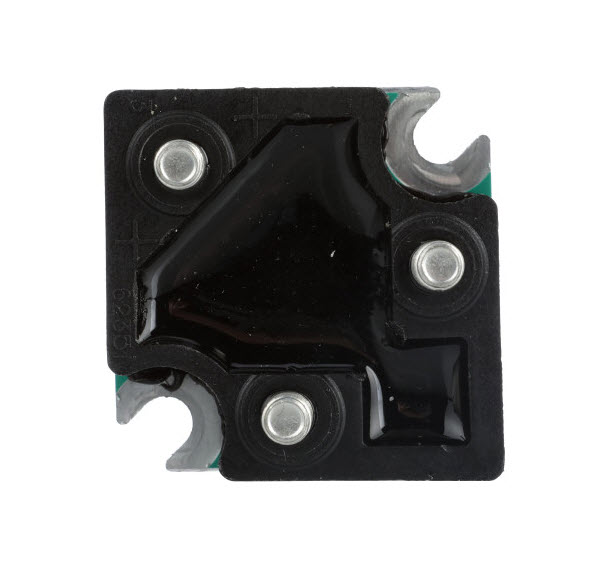

8M0058226 - Rectifier - Outboard [ More info ]
|
  |
|

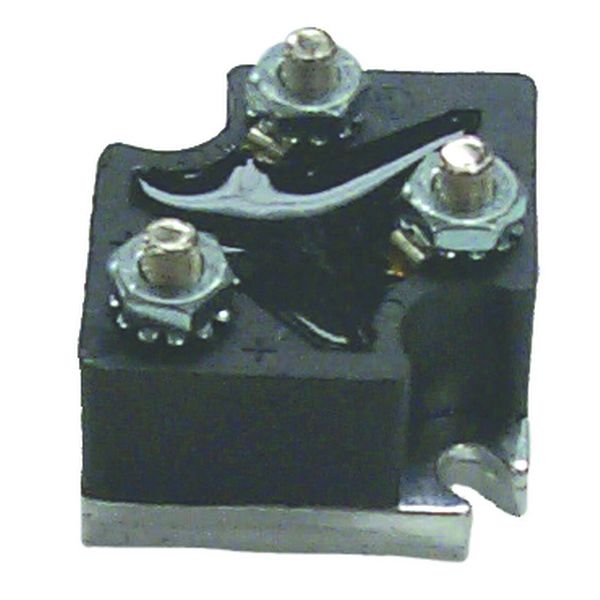

18-5707 - Rectifier 816770 [ More info ]
|
  |
|

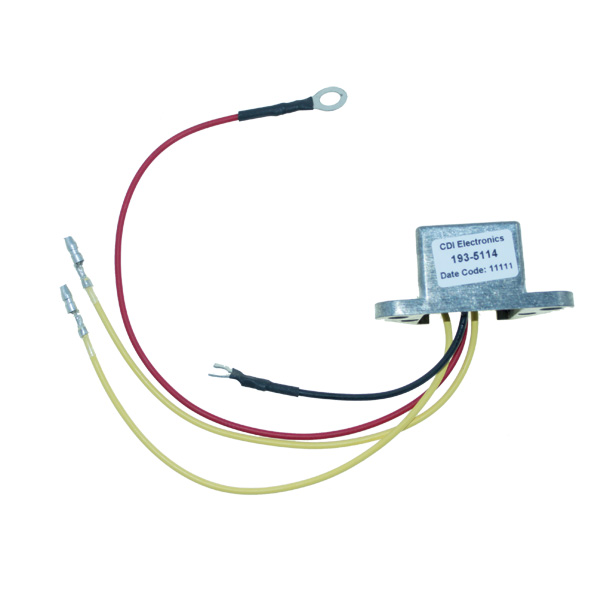

193-5114 - Regulated Rectifier [ More info ]
|
  |
|

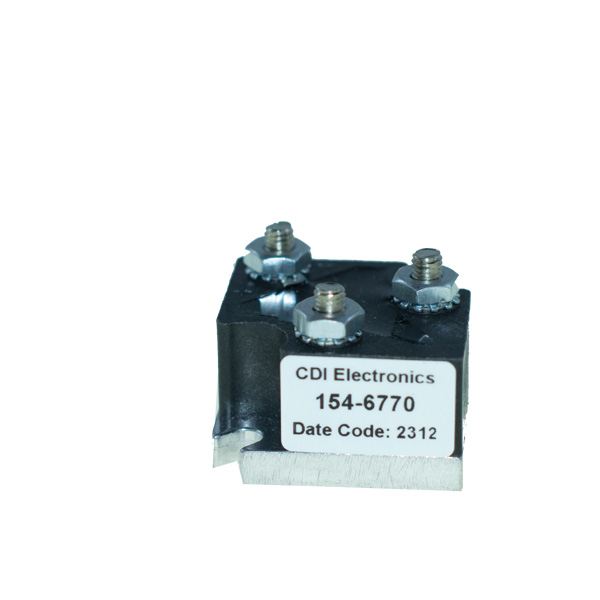

154-6770 - Rectifier [ More info ]
|
  |
|

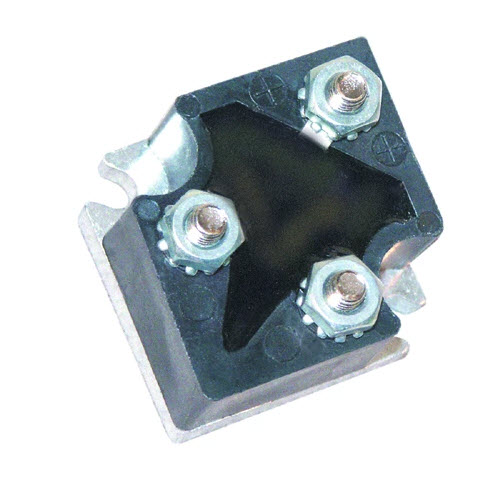

AR351 - Rectifier [ More info ]
|
| #10 | 10-37656 | SCREW, RECTIFIER TO PLATE (5/8") (2 required per assembly) |
|
|
10-37656 - Screw, NLA [ More info ]
|
| #11 | 11-45076 | NUT, RECTIFIER TERMINAL (3 required per assembly) |
  |
|
11-45076 - Nut (#10-32) (brass) [ More info ]
|

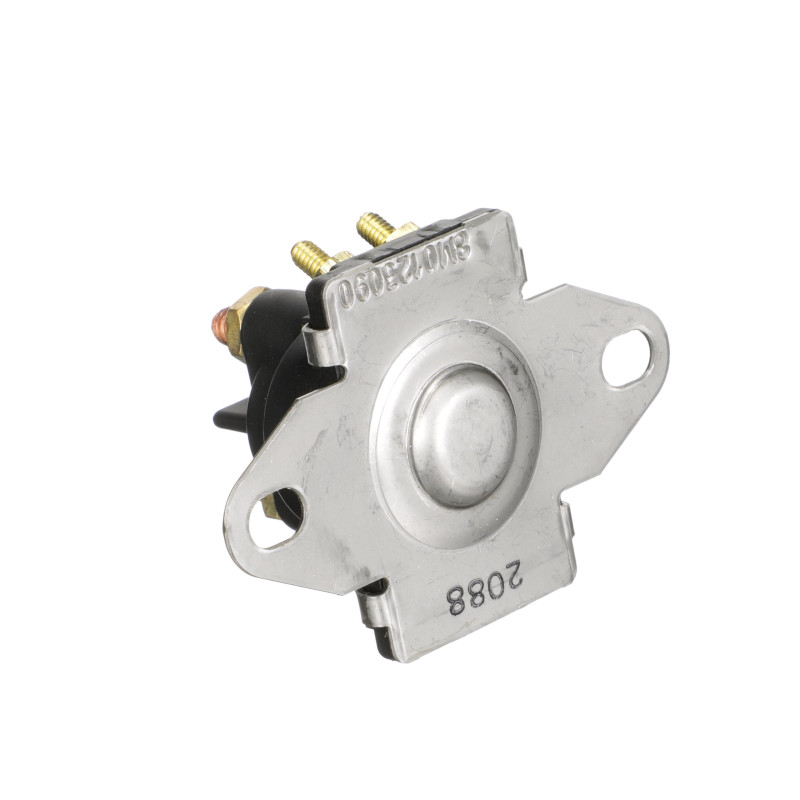

| #12 | 89-96054 | STARTER SOLENOID (1 required per assembly) |
|
|
89-96054 - 89-96054 - SOLENOID ASSEMBLY [ More info ] Unavailable Replaced by 89-96054T |
  |
|
89-96054T - SOLENOID ASSEMBLY [ More info ] Unavailable |
  |
|

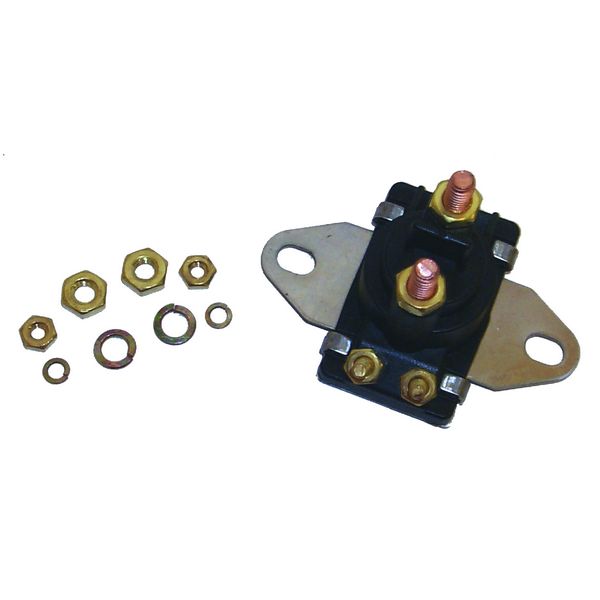

18-5816 - Solenoid, 89-96054 [ More info ]
|
  |
|

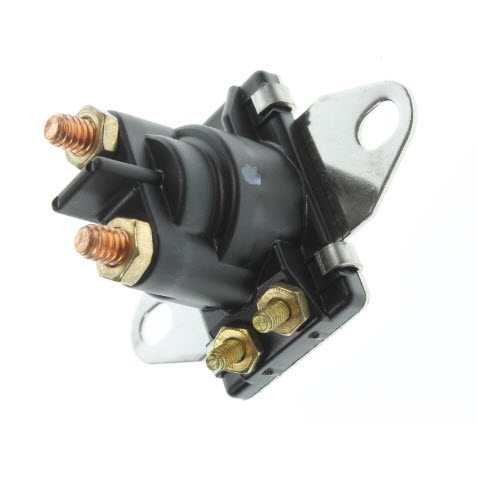

89-8M0185149 - Start Solenoid [ More info ]
|
  |
|
SW054 - Solenoid [ More info ]
|
| #13 | 13-26995 | LOCKWASHER, SOLENOID TERMINAL (#8) (2 required per assembly) |
  |
|
13-26995 - Lock Washer - Priced Individually [ More info ]
|

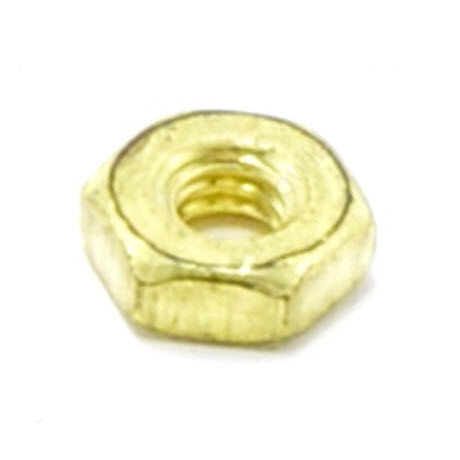

| #14 | 11-26419 | NUT, SOLENOID TERMINAL (#8-32) (2 required per assembly) |
  |
|
11-26419 - Nut (#8-32) (brass) [ More info ]
|
| #16 | 11-94330 | NUT, SOLENOID TERMINAL (1/4-20) (2 required per assembly) |
|
|
11-94330 - Nut, Brass (1/4-20) [ More info ]
|

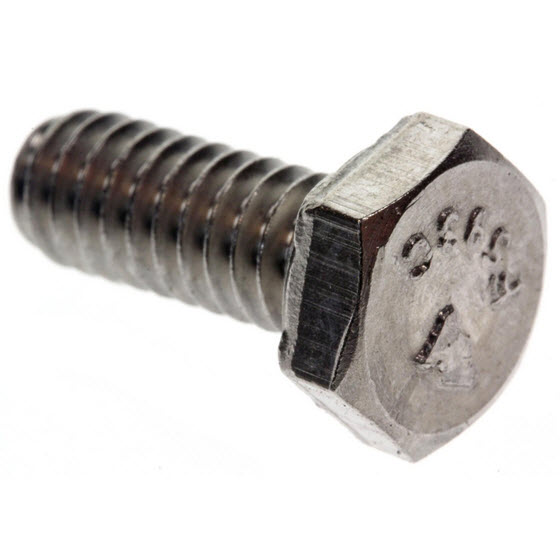

| #17 | 10-28635 | SCREW, SOLENOID TO BOTTOM COWL (5/8") (2 required per assembly) |
  |
|
10-28635 - Screw - Priced Individually [ More info ]
|
| #19 | 85-97861 | INSULATOR, STARTER SOLENOID (1 required per assembly) |
|
|
85-97861 - Insulator [ More info ]
|
| #20 | 84-93388A 1 | WIRE, GROUND (BLACK) (1 required per assembly) |
|
|
84-93388A 1 - Cable Assembly [ More info ]
|
| #21 | 84-88439A 3 | BATTERY CABLE (POSITIVE) (1 required per assembly) |
|
|
84-88439A 3 - Battery Cable Assembly [ More info ]
|
| #21 | 84-88439A 4 | BATTERY CABLE(NEGATIVE) (1 required per assembly) |
  |
|
84-88439A 4 - Cable Assembly -neg [ More info ]
|
| #22 | 84-96233A 2 | WIRING HARNESS (1 required per assembly) |
|
|
84-96233A 2 - HARNESS ASSEMBLY NLA [ More info ] Unavailable |
  |
|

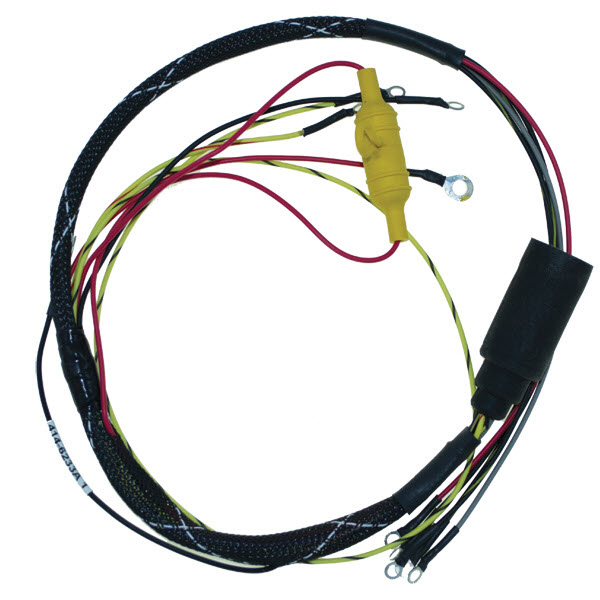

414-6233A 2 - Harness, 84-89915A1, 84-96233 [ More info ]
|

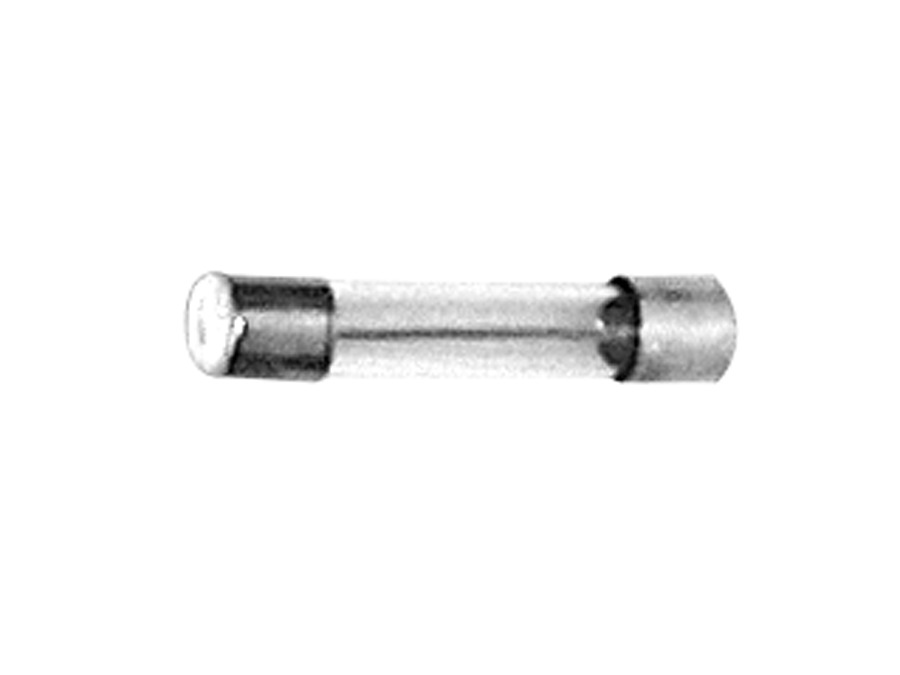

| #23 | 88-79091 | FUSE (1 required per assembly) |
  |
|
88-79091 - Fuse - 20 Amp - Priced Individually [ More info ]
|
|
|
888M0207796 - FUSE-20 AMP Note: Priced Individually [ More info ]
|
| #25 | 54-88608 | CLAMP, WIRING HARNESS (1 required per assembly) |
|
|
54-88608 - Clamp [ More info ]
|

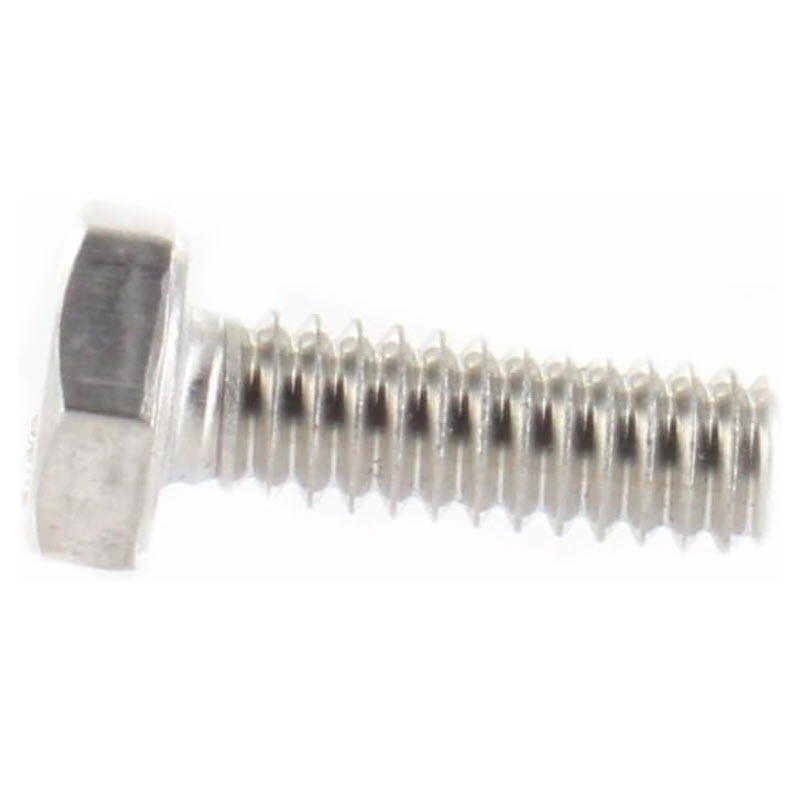

| #26 | 10-28636 | SCREW, WIRING HARNESS CLAMP (2 required per assembly) |
  |
|
10-28636 - Screw - Priced Individually [ More info ]
|
| #27 | 89047 | BRACKET, WIRING HARNESS (1 required per assembly) |
|
|
89047 - BRACKET NLA [ More info ] Unavailable |
| #28 | 10-32228 | SCREW, WIRING HARNESS BRACKET (2 required per assembly) |
  |
|
10-32228 - Screw - Priced Individually [ More info ]
|
| #29 | 12-38833 | WASHER, BRACKET SCREW (2 required per assembly) |
|
|
12-38833 - Washer [ More info ]
|
| #30 | 88751 | CLAMP, WIRING HARNESS (1 required per assembly) |
|
|
|

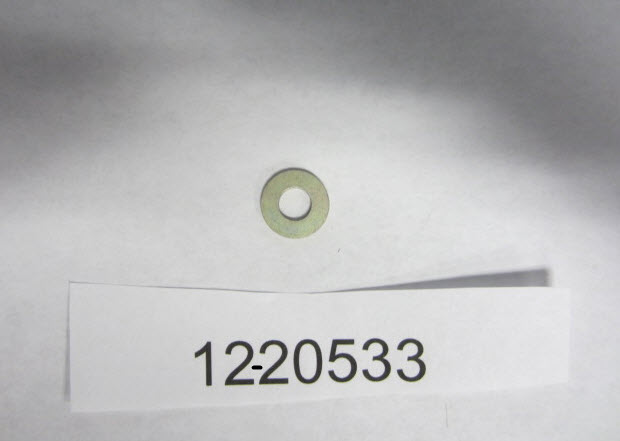

| #32 | 12-20533 | WASHER, CLAMP SCREW (1 required per assembly) |
  |
|
12-20533 - Washer, 9/16 Inch O.D. [ More info ]
|
