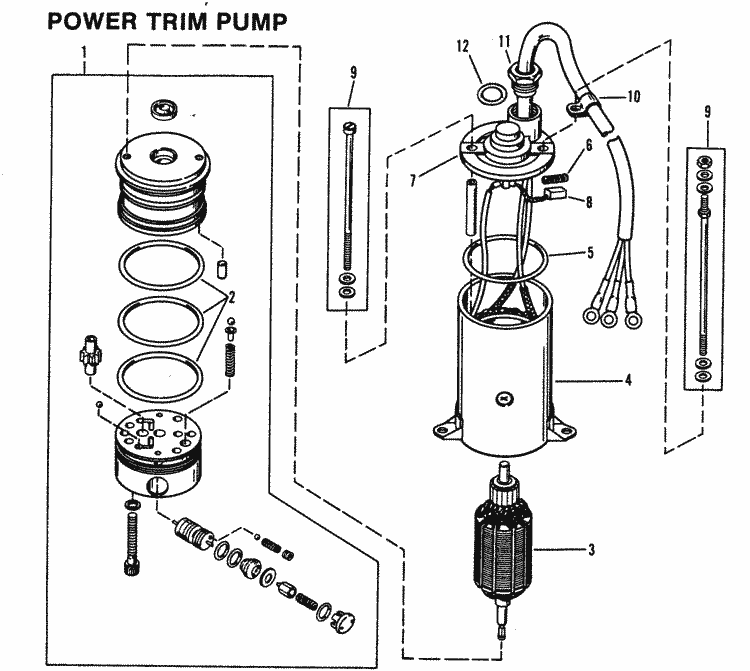

Parts for Mercury Marine 75 HP (4 Cylinder) Power Trim Pump (Prestolite Round Motor)
Reference numbers in this diagram can be found in a light blue row below — scroll down to order.

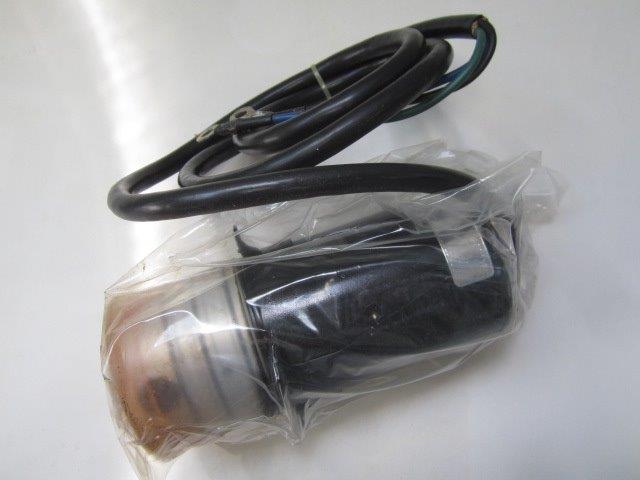

| # | 99186 | POWER TRIM PUMP ASSEMBLY (1 required per assembly) |
  |
|
99186 - 99186 - PUMP ASSEMBLY Pow [ More info ] Unavailable Replaced by -826729A4 |
  |
|
826729A4 - 826729A4 - ->826729A07 [ More info ] Unavailable Replaced by -826729A07 |
 |
|
826729A07 - 826729A07 - POWER TRIM KIT [ More info ] Unavailable Replaced by -826729A08 |
|
|
826729A08 - 826729A08 - POWER TRIM KIT [ More info ] Unavailable Replaced by -826729A09 |
  |
|
826729A09 - 826729A09 - POWER TRIM KIT [ More info ] Unavailable Replaced by -826729A10 |
  |
|
826729A10 - POWER TRIM KIT [ More info ] Unavailable |
  |
|

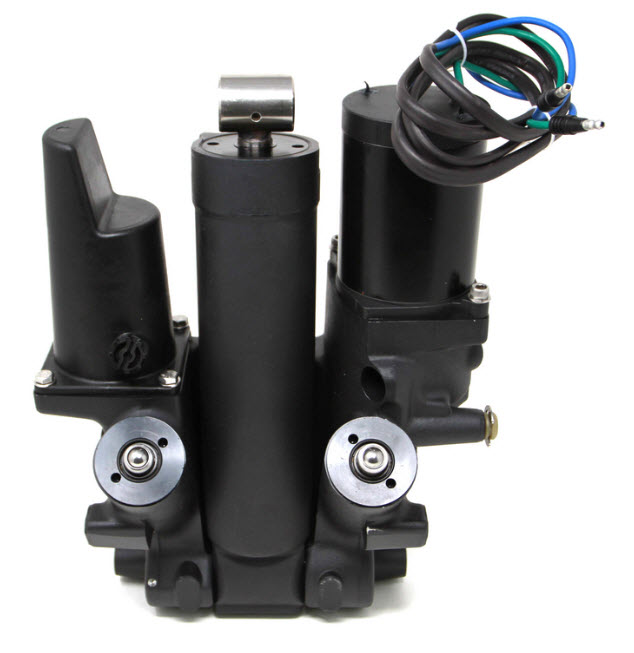

TT2000 - PTT System 3-Wire Mercury Replaces Mercury 3-Ram 3-Wire 1985-95 [ More info ]
|
  |
|

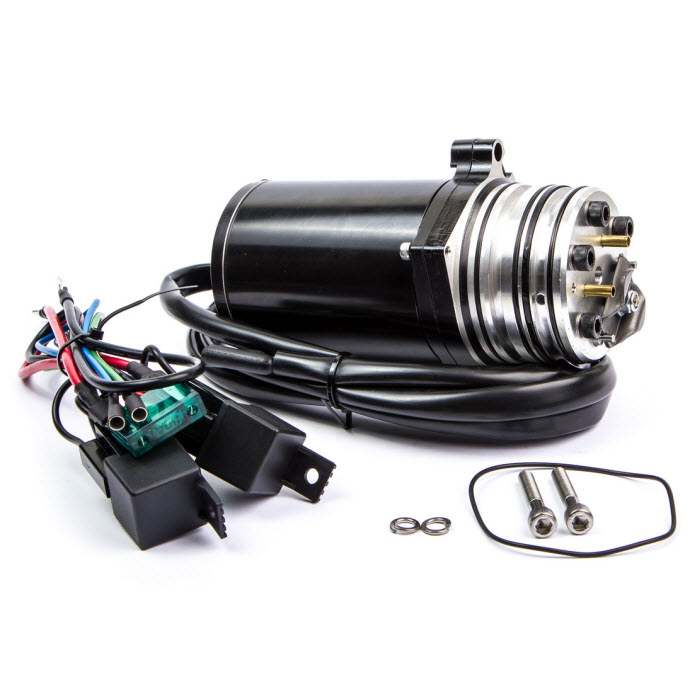

18-6273-1 - Tilt Trim Motor and Pump [ More info ]
|
  |
|

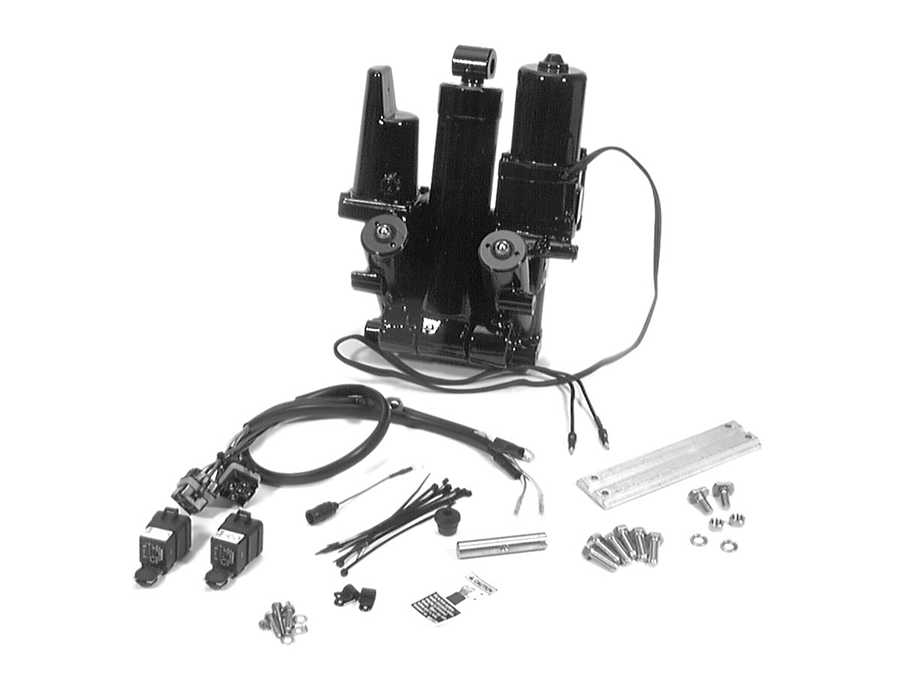

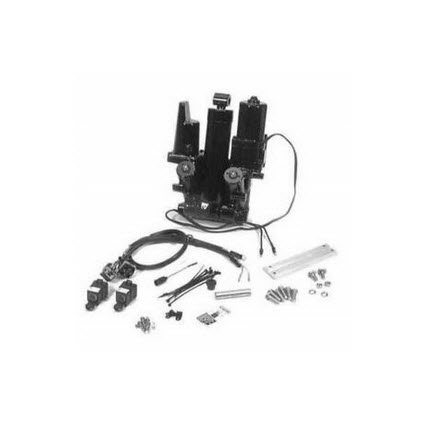

8M0168223 - Power Trim Kit [ More info ]
|
  |
|
13506 - Brush Card Kit, NLA [ More info ]
|
|
|
12660 - Ord 99186 1A, NLA [ More info ]
|
|
|
12659 - Frame & Field Kit [ More info ]
|
| #1 | 392-8995 | CARTRIDGE PUMP ASSEMBLY (1 required per assembly) |
  |
|
392-8995 - Pump Assembly [ More info ]
|
| #2 | 392-8996 | "O" RING KIT (1 required per assembly) |
  |
|
392-8996 - O-ring Kit (3 pcs) [ More info ]
|

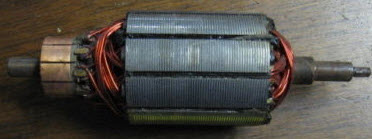

| #3 | 392-8986 | ARMATURE (1 required per assembly) |
  |
|
392-8986 - Armature, NLA [ More info ]
|
| #4 | 392-8987 | FRAME AND FIELD (1 required per assembly) |
|
|
392-8987 - ARC6278, NLA [ More info ]
|

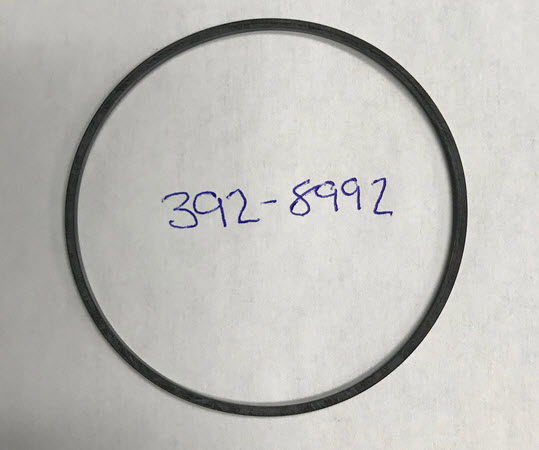

| #5 | 392-8992 | "O" RING, HEAD (1 required per assembly) |
  |
|
392-8992 - O-ring, Head [ More info ]
|
| #6 | 392-8993 | SPRING KIT, BRUSH (1 required per assembly) |
|
|
392-8993 - Spring Set, Brush Tension,NLA [ More info ]
|
| #7 | 392-8988 | HEAD, COMMUTATOR END (1 required per assembly) |
|
|
|

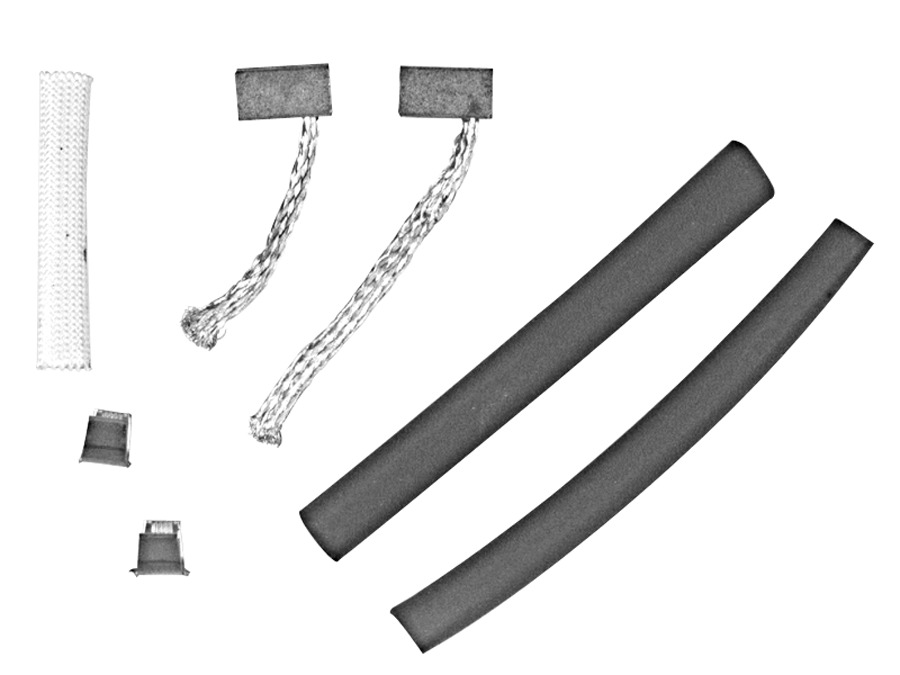

| #8 | 392-8989 | BRUSH KIT (1 required per assembly) |
  |
|
392-8989 - Brush Set for 3 - Wire Motors Only. [ More info ]
|
| #9 | 392-8994 | THRU BOLT KIT (1 required per assembly) |
|
|
392-8994 - Bolt, NLA [ More info ]
|
| #10 | 392-8985 | CLAMP, LEAD WIRE (1 required per assembly) |
|
|
392-8985 - CLAMP NLA [ More info ] Unavailable |
| #11 | 392-8990 | NUT, PACKING (1 required per assembly) |
|
|
392-8990 - NUT NLA [ More info ] Unavailable |
| #12 | 392-8991 | "O" RING, PACKING NUT (1 required per assembly) |
|
|
392-8991 - O-Ring, NLA [ More info ]
|
