Parts for Mercury Marine 75 HP (4 Cylinder) Starter Motor Assembly (Prestolite)
Tap to zoom. Scroll down to order.

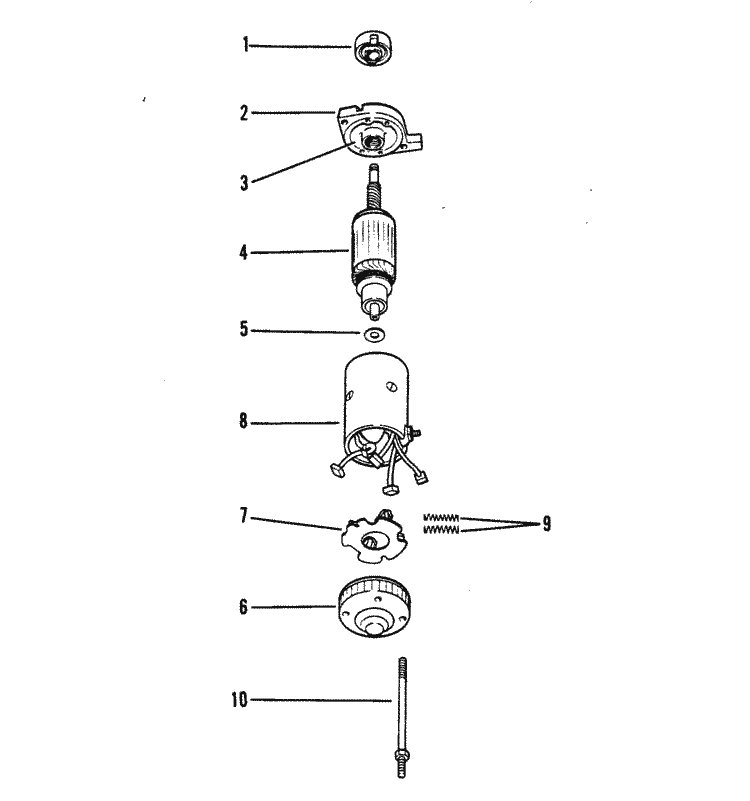

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| #1 | 392-8848 | MOTOR DRIVE (1 required per assembly) |
 |
|
392-8848 - MOTOR DRIVE NLA [ More info ] Unavailable |
| #2 | 392-8852 | PLATE ASSEMBLY, DRIVE END (1 required per assembly) |
|
|
392-8852 - PLATE ASSEMBLY NLA [ More info ] Unavailable |
| #3 | 392-8853 | BUSHING, DRIVE END PLATE (1 required per assembly) |
|
|
392-8853 - BUSHING NLA [ More info ] Unavailable |
| #4 | 392-8857 | ARMATURE (1 required per assembly) |
|
|
392-8857 - ARMATURE NLA [ More info ] Unavailable |
| #5 | 392-8856 | PACKAGE, ARMATURE THRUST WASHER (1 required per assembly) |
|
|
392-8856 - PACKAGE NLA [ More info ] Unavailable |
| #6 | 392-8849 | END CAP ASSEMBLY, COMMUTATOR (1 required per assembly) |
  |
|
392-8849 - Head Assembly, NLA * [ More info ]
|
| #7 | 392-8850 | BRUSH PLATE AND HOLDER ASSEMBLY (1 required per assembly) |
|
|
392-8850 - PLATE/HOLDER ASSE NLA [ More info ] Unavailable |
| #9 | 392-8854 | SPRING SET, BRUSH (2 SPRINGS PER SET) (2 required per assembly) |
|
|
392-8854 - SPRING SET NLA [ More info ] Unavailable |
| #10 | 392-8855 | BOLT, THRU - END CAP TO END PLATE (1/4-28) (1 required per assembly) |
|
|
392-8855 - BOLT NLA [ More info ] Unavailable |
