Parts for Mercury Marine 75 HP (4 Cylinder) Starter Motor Assembly (Bosch)

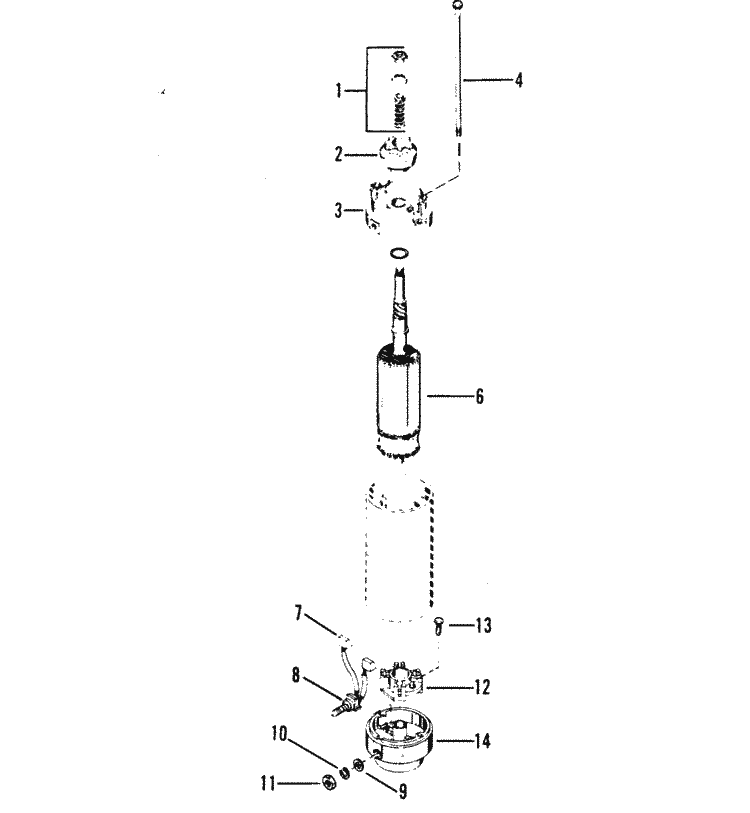

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| # | 50-66015 | STARTER MOTOR ASSEMBLY (1 required per assembly) |
 |
|
50-66015 - 50-66015 - STARTER MOTOR ASS [ More info ] Unavailable Replaced by 50-660152 |
|
|
50-660152 - 50-660152 - ->66015T1 [ More info ] Unavailable Replaced by -66015T1 |
  |
|

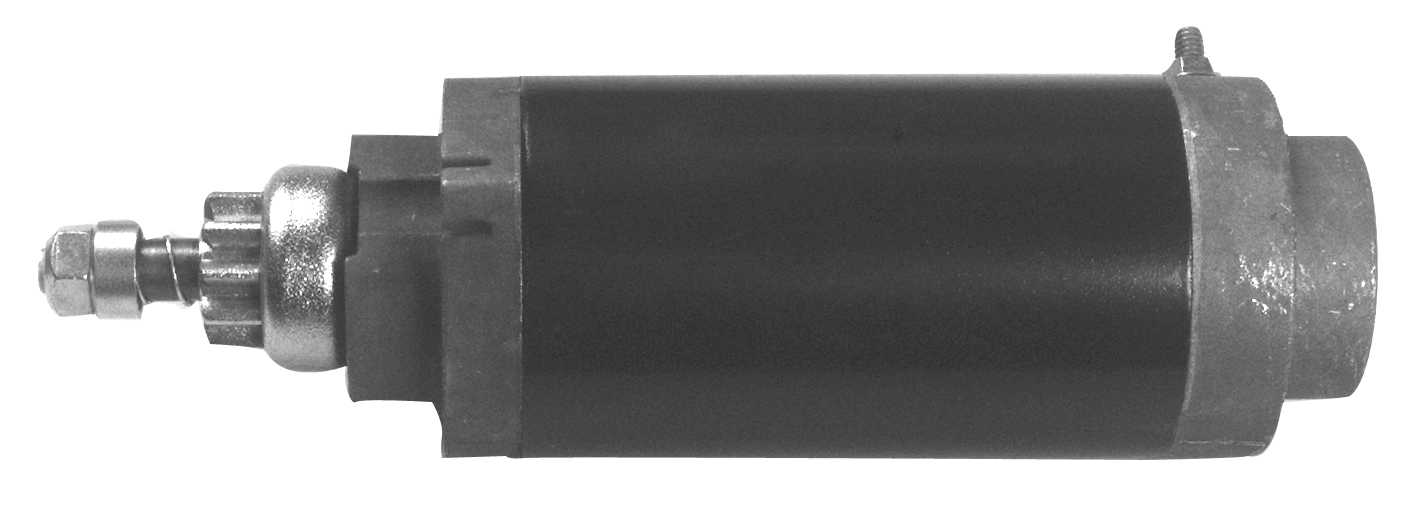

50-66015T1 - 50-66015T1 - ->893891T [ More info ] Unavailable Replaced by -893891T |
  |
|

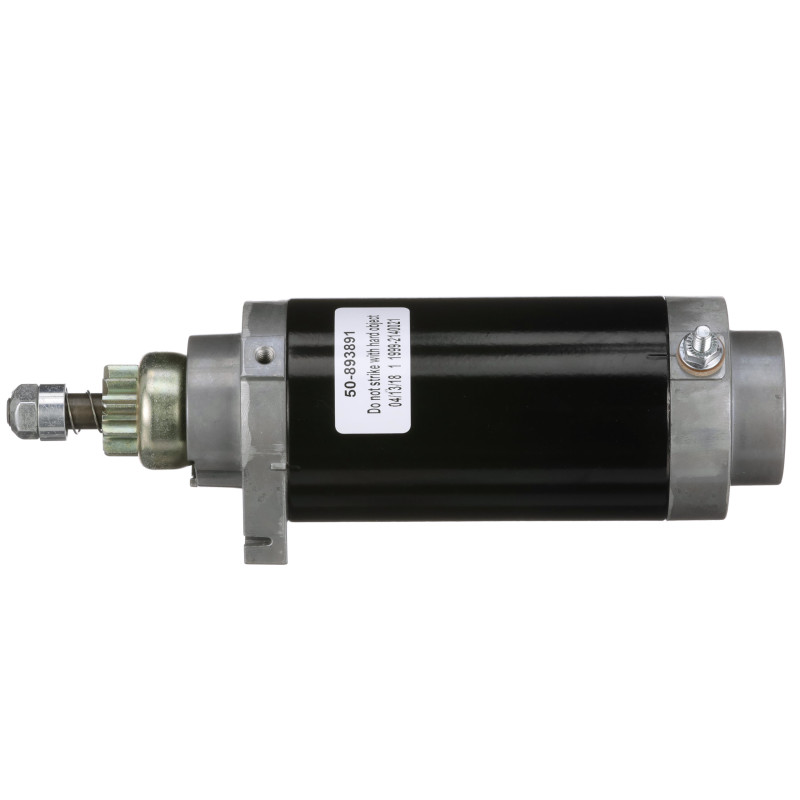

50-893891T - Starter Assembly [ More info ]
|
  |
|
18-5642 - Starter 50-66015 See Detail Page for Important Information [ More info ]
|
  |
|

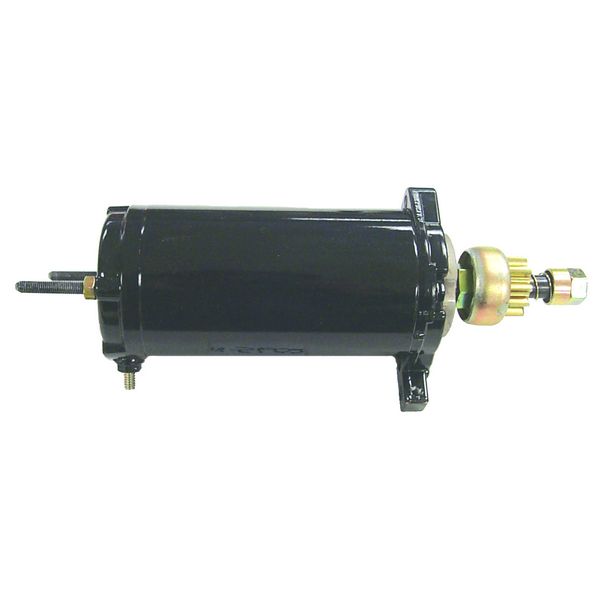

18-5602 - Starter, 50-67341 [ More info ]
|
  |
|
5375 - Starter, 50-66015, 10 Tooth [ More info ]
|
| #1 | 90643 | DRIVE KIT (1 required per assembly) |
  |
|

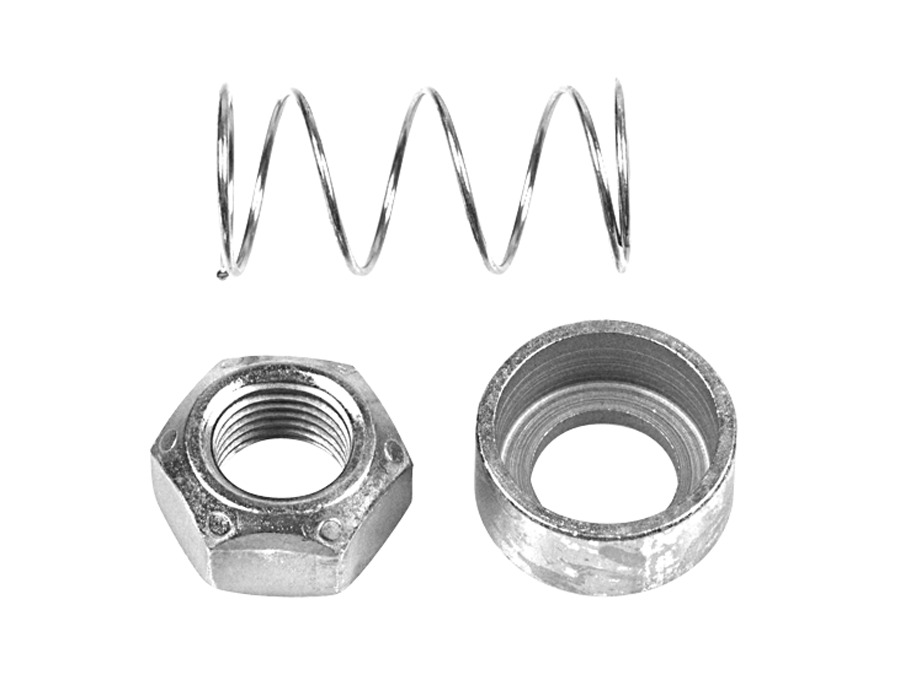

90643 - Drive Retainer Kit [ More info ]
|
| #2 | 68575 | DRIVE ASSEMBLY (1 required per assembly) |
  |
|

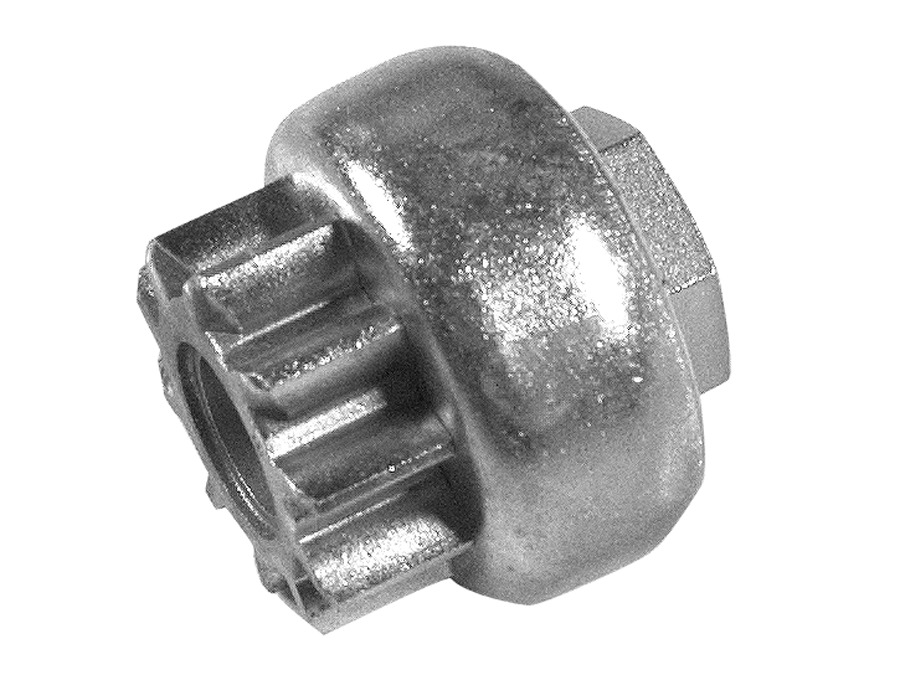

68575 - 68575 - DRIVE ASSEMBLY [ More info ] Unavailable Replaced by -685753 |
  |
|
|
  |
|

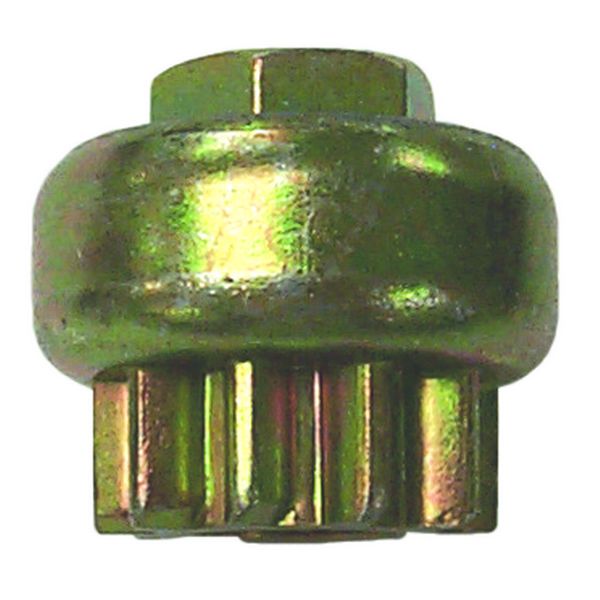

18-5656 - Drive Assembly, 385949, 68575 3 [ More info ]
|
  |
|

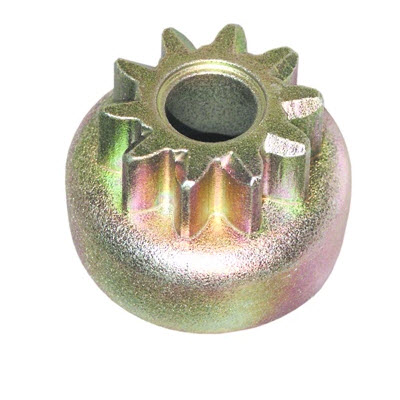

DV396 - Starter Drive [ More info ]
|
  |
|
DV377 - Starter Drive, 68575 [ More info ]
|
| #3 | 75660 | PLATE, DRIVE END (1 required per assembly) |
  |
|

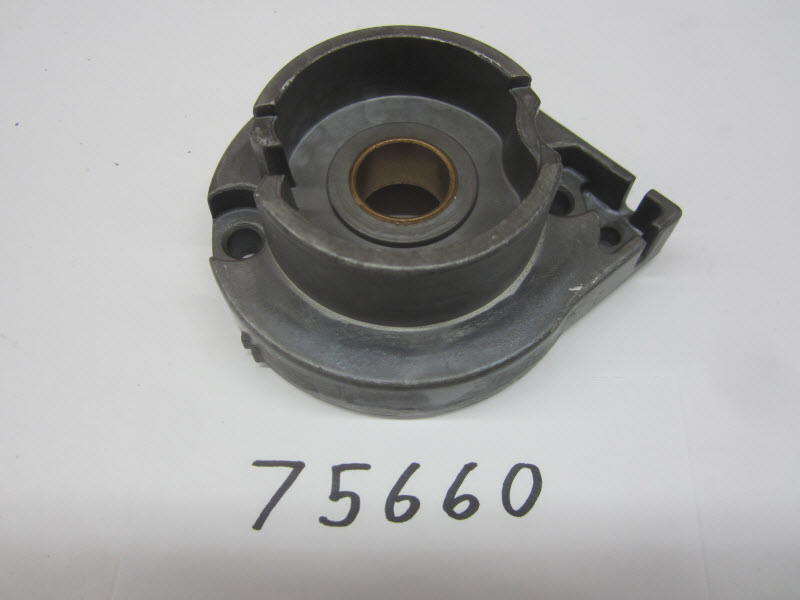

75660 - Drive End Cap [ More info ]
|
  |
|

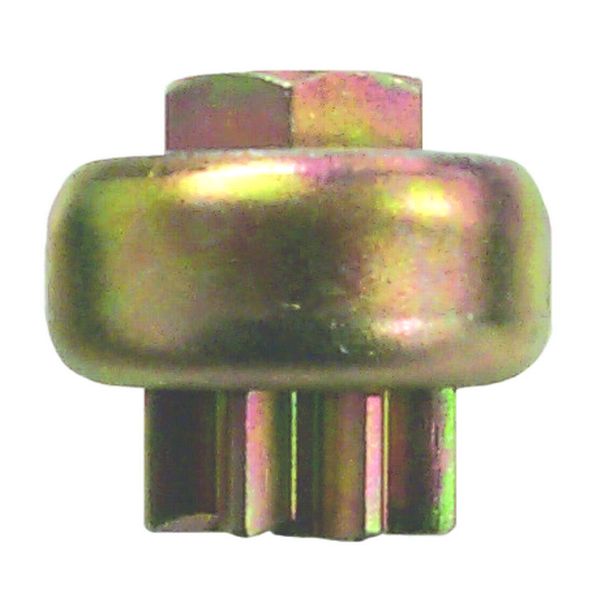

18-5674 - Drive Assembly, 387683, 75661 [ More info ]
|
| #4 | 10-75385 | BOLT, THRU (2 required per assembly) |
|
|
10-75385 - Thru Bolt, NLA [ More info ]
|
| #6 | 75386 | ARMATURE (1 required per assembly) |
|
|
75386 - ARMATURE NLA [ More info ] Unavailable |
| #7 | 75384 | BRUSH SET (1 required per assembly) |
  |
|

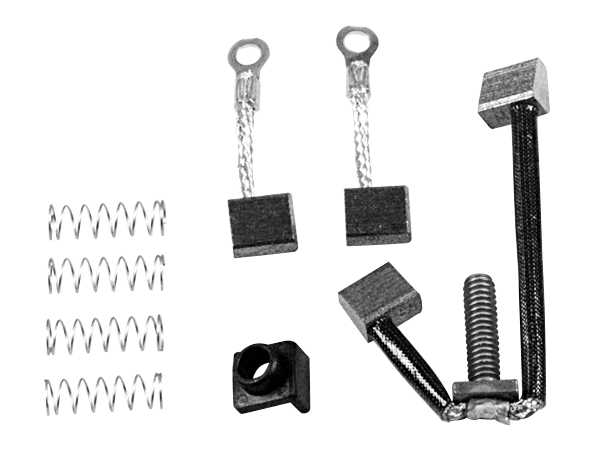

75384 - 75384 - BRUSH/SPRING KIT [ More info ] Unavailable Replaced by -898265016 |
  |
|

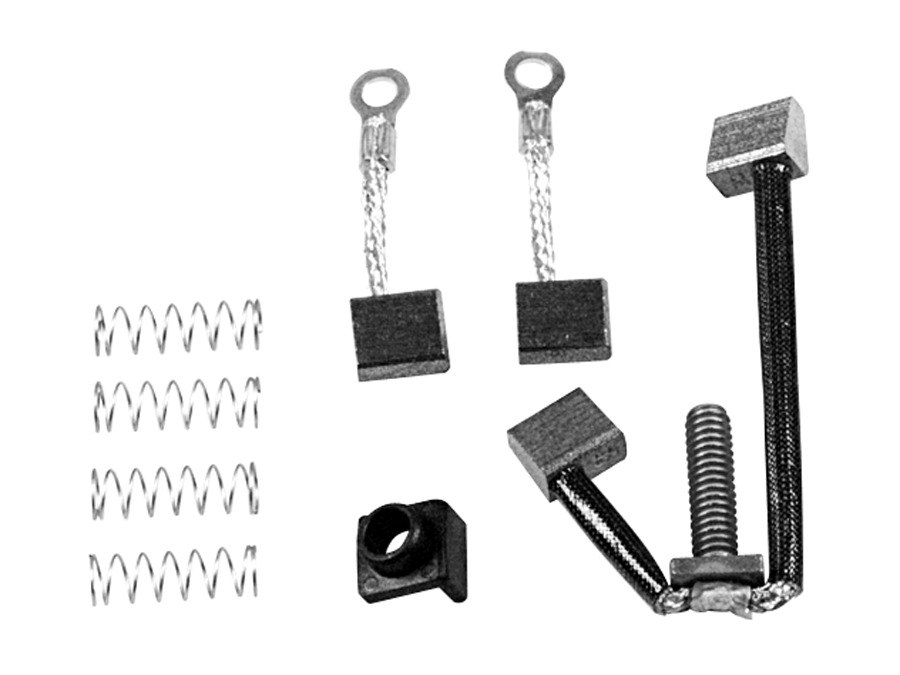

898265016 - BRUSH/SPRING KIT [ More info ] Unavailable |
  |
|
18-5697 - Brush Kit, 385952, 75384 [ More info ]
|
  |
|
0433850 - Brush And Spring Set [ More info ]
|
  |
|
0385952 - Brush & Spring Set [ More info ]
|
  |
|
BK900 - Brush Kit [ More info ]
|
| #8 | 23-57387 | BUSHING, INSULATING (1 required per assembly) |
|
|
23-57387 - Bushing - Priced Individually [ More info ]
|
| #9 | 12-38013 | WASHER, INPUT STUD (1 required per assembly) |
|
|
12-38013 - Washer, Input Stud, NLA [ More info ]
|
| #10 | 13-26992 | LOCKWASHER, INPUT STUD (1 required per assembly) |
  |
|
13-26992 - LockWasher - Priced Individually [ More info ]
|
| #11 | 11-20890 | NUT, INPUT STUD (1 required per assembly) |
  |
|

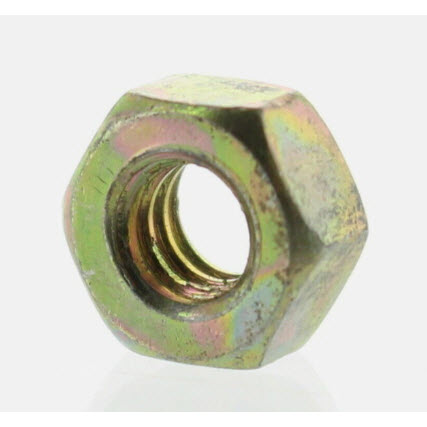

11-20890 - Nut (1/4 x20) [ More info ]
|
| #12 | 61787 | HOLDER, BRUSH (2 required per assembly) |
  |
|
61787 - Brush Holder [ More info ]
|
  |
|

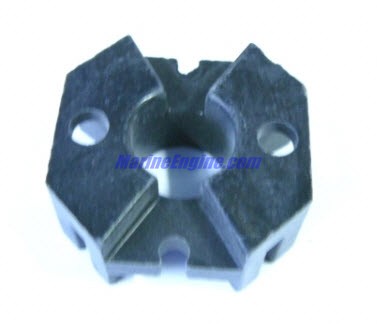

898265014 - Brush Holder [ More info ]
|
| #13 | 10-68586 | SCREW, BRUSH AND HOLDER (2 required per assembly) |
|
|
10-68586 - SCREW NLA [ More info ] Unavailable |
| #14 | 79215 | END CAP, COMMUTATOR (1 required per assembly) |
|
|
79215 - 79215 - END CAP [ More info ] Unavailable Replaced by -15386 |
  |
|
15386 - 15386 - END CAP [ More info ] Unavailable Replaced by -15386001 |
  |
|

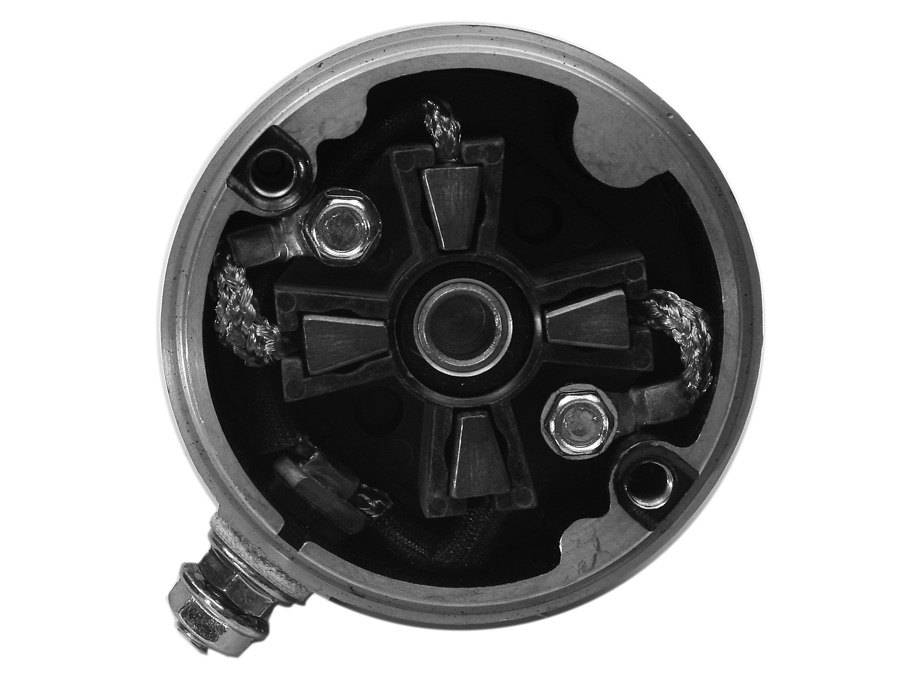

15386001 - END CAP [ More info ] Unavailable |
  |
|

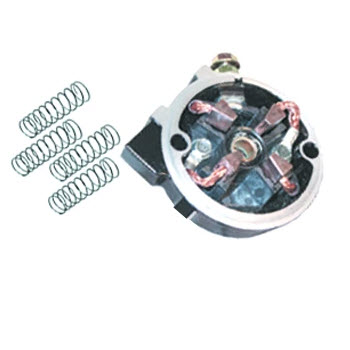

SR398 - Repair Kit [ More info ]
|
  |
|
SR380 - Outboard Starter Repair Kit [ More info ]
|
