Parts for Mercury Marine 75 HP (3 Cylinder) Starter Motor, Service

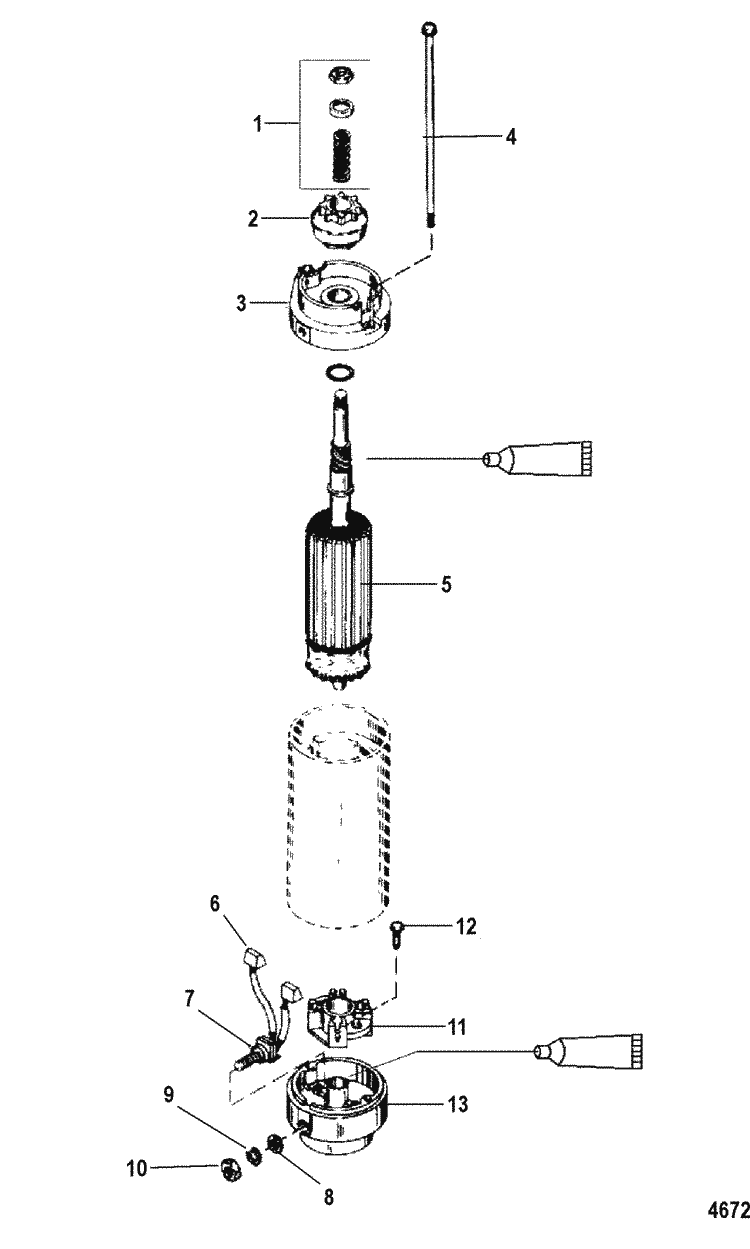

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| # | 50-893891T | STARTER MOTOR ASSEMBLY (1 required per assembly) |
  |
|
50-893891T - Starter Assembly [ More info ]
|
  |
|
18-5642 - Starter 50-66015, 8 inch, See Detail Page for Important Information [ More info ]
|
  |
|
5375 - Starter, 50-66015, 10 Tooth, 8 inch, See detail page for more [ More info ]
|
| # | 50-66015T 1 | STARTER MOTOR ASSEMBLY (1 required per assembly) |
  |
|
50-66015T 1 - Starter Assembly [ More info ]
|
| #1 | 90643 | DRIVE KIT (1 required per assembly) |
  |
|
90643 - Drive Retainer Kit [ More info ]
|
| #2 | 68575 3 | DRIVE ASSEMBLY (1 required per assembly) |
  |
|
|
| #3 | 75660 | PLATE (1 required per assembly) |
  |
|
75660 - Drive End Cap [ More info ]
|
  |
|
18-5674 - Drive Assembly, 387683, 75661 [ More info ]
|
| #4 | 10-75385 | BOLT (2 required per assembly) |
  |
|
10-75385 - Thru Bolt, NLA [ More info ]
|
| #5 | 75386 | ARMATURE (1 required per assembly) |
  |
|
75386 - Armature, NLA [ More info ] Unavailable |
| #6 | 75384 | BRUSH/SPRING KIT (1 required per assembly) |
  |
|
75384 - Brush and Spring Kit [ More info ]
|
  |
|
898265016 - Brush/Spring Kit [ More info ] Unavailable |
  |
|
18-5697 - Brush Kit, 385952, 75384 [ More info ]
|
  |
|
300-05697 - 300-05697 OMC STR BRS KT [ More info ]
|
  |
|
BK900 - Brush Kit [ More info ]
|
| #7 | 23-57387 | BUSHING (1 required per assembly) |
  |
|
23-57387 - Bushing - Priced Individually [ More info ]
|
| #8 | NSS | NOT SOLD SEPARATE, Washer (AMER. BOSCH #WA-1728) (1 required per assembly) |
  |
|
NSS - NOT SOLD SEPARATE [ More info ] Unavailable |
| #9 | 13-26992 | LOCKWASHER, (.250) Stainless Steel (1 required per assembly) |
  |
|
13-26992 - LockWasher - Priced Individually [ More info ]
|
| #10 | 11-20890 | NUT, (.250-20) (1 required per assembly) |
  |
|
11-20890 - Nut (1/4 x20) [ More info ]
|
| #11 | 61787 | HOLDER (2 required per assembly) |
  |
61787 - Brush Holder [ More info ] Unavailable |
|
  |
|
898265014 - Brush Holder [ More info ] Unavailable |
| #13 | 15386 | END CAP (1 required per assembly) |
  |
15386 - Commutator End Cap [ More info ] Unavailable |
|
  |
|
15386001 - End Cap [ More info ] Unavailable |
