Parts for Mercury Marine 75 HP (3 Cylinder) Starter Assembly (Manual)

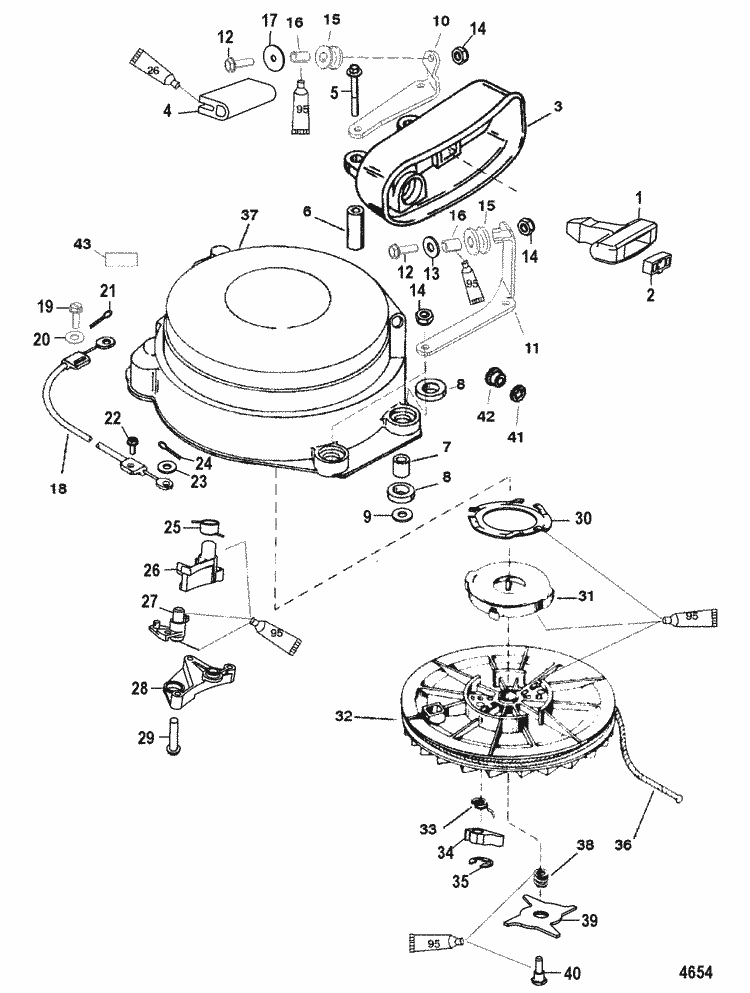

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| # | 816728T14 | STARTER ASSEMBLY, Recoil (1 required per assembly) |
 |
|
816728T14 - Starter Assembly -recoi [ More info ]
|
| #1 | 85174A 2 | HANDLE ASSEMBLY (1 required per assembly) |
|
|
85174A 2 - Handle Assembly -start [ More info ]
|
| #2 | NSS | NOT SOLD SEPARATE, Retainer (1 required per assembly) |
|
|
NSS - NOT SOLD SEPARATE [ More info ] Unavailable |
| #3 | 822072 1 | REST (1 required per assembly) |
|
|
|
| #4 | 823241 | SEAL (1 required per assembly) |
|
|
|
|
|
8M0043270 - Seal [ More info ]
|
| #5 | 10-821300 50 | SCREW, (M6 x 50) (2 required per assembly) |
  |
|
10-821300 50 - Screw [ More info ]
|
| #6 | 23-821702 1 | SPACER (2 required per assembly) |
|
|
23-821702 1 - Spacer [ More info ]
|
| #7 | 23-816086 | BUSHING (4 required per assembly) |
|
|
23-816086 - Bushing [ More info ]
|
| #8 | 25-815795 | GROMMET (8 required per assembly) |
|
|
25-815795 - Grommet [ More info ]
|
| #9 | 12-69057 | WASHER, (.281 x .734 x .063) (6 required per assembly) (Quantity of 2 used in Front. Quantity of 4 used in Back) |
  |
|
12-69057 - Washer, (.281 X .734 X .063) [ More info ]
|
| #10 | 855596 | BRACKET (1 required per assembly) |
  |
|
855596 - Bracket [ More info ]
|

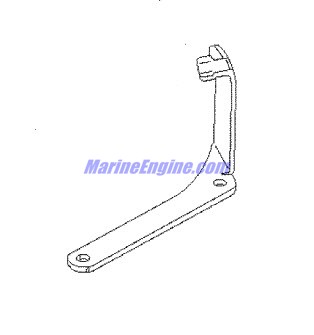

| #11 | 855597 | BRACKET (1 required per assembly) |
  |
|
855597 - Bracket [ More info ]
|
| #12 | 10-40011129 | SCREW, (M6 x 25) Stainless Steel (2 required per assembly) |
  |
|

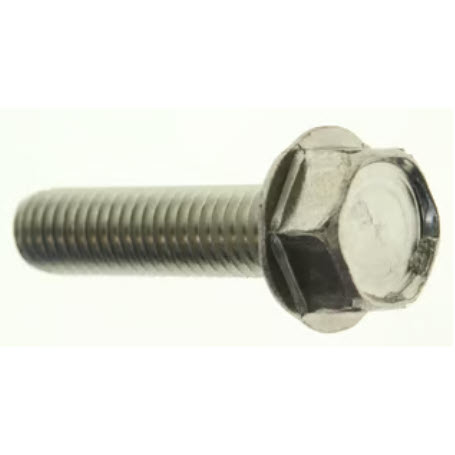

10-40011129 - Screw [ More info ]
|
| #13 | 12-35462 | WASHER, (.2656 x .625 x .0625) Stainless Steel (1 required per assembly) |
  |
|
12-35462 - Washer, (.2656 X .625 X .0625) Stainless Steel [ More info ]
|
| #14 | 11-40138 6 | NUT, (M6) Stainless Steel (6 required per assembly) |
  |
|
11-40138 6 - Nut - Priced Individually [ More info ]
|
| #15 | 11704A 1 | PULLEY KIT (2 required per assembly) |
|
|
11704A 1 - Pulley Kit, NLA [ More info ]
|
| #17 | 12-67983 | WASHER (1 required per assembly) |
|
|
12-67983 - Washer, Clamp Bracket Bolt [ More info ]
|
| #18 | 856754 1 | CABLE, Interlock (1 required per assembly) |
|
|
856754 1 - Cable - Interlock [ More info ]
|

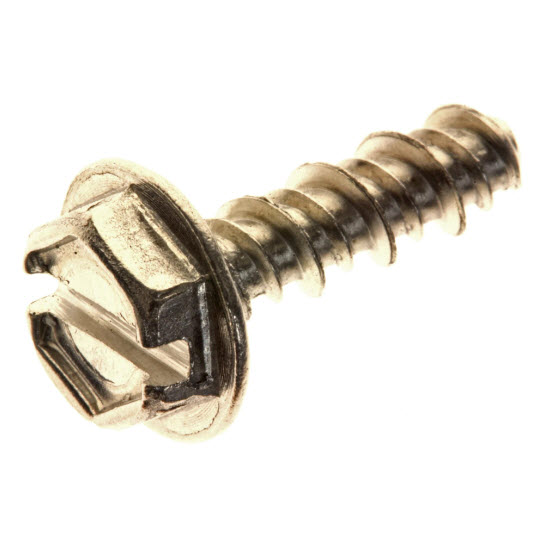

| #19 | 10-821428 1 | SCREW, (#10-16 x .625) (1 required per assembly) |
  |
|
10-821428 1 - Screw [ More info ]
|
| #20 | 12-73288 | WASHER, (.220 x .500 x .030) Stainless Steel (1 required per assembly) |
|
|
12-73288 - Washer, (.220 X .500 X .030) Stainless Steel [ More info ]
|
| #21 | 18-26811 | COTTER PIN (1 required per assembly) |
|
|
18-26811 - Pigtail, GM HEI 2 Terminal [ More info ]
|
| #22 | 10-878608 | SCREW, (#10-16 x .500) (1 required per assembly) |
  |
|
10-878608 - Screw [ More info ]
|
| #25 | 24-826791 | SPRING (1 required per assembly) |
|
|
24-826791 - Spring [ More info ]
|
| #26 | 816690 3 | LEVER (1 required per assembly) |
|
|
816690 3 - Interlock Lever [ More info ]
|
| #27 | 816712 1 | CAM (1 required per assembly) |
|
|
|
|
|
|

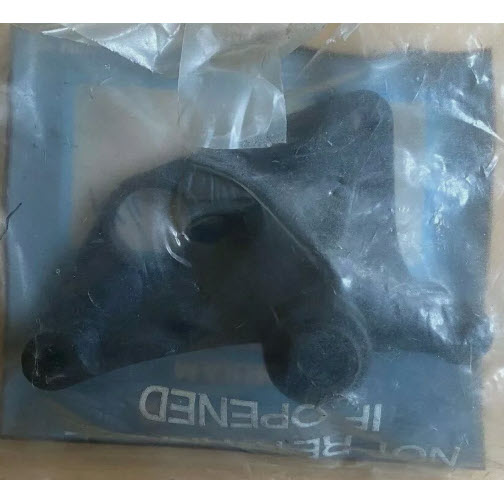

| #28 | 816711 | RETAINER (1 required per assembly) |
  |
|
816711 - Retainer [ More info ]
|
| #29 | 10-818249 1 | SCREW, (#10-16 x 1.00) (3 required per assembly) |
  |
|
10-818249 1 - Screw [ More info ]
|
| #30 | 13-826229 | LOCKWASHER (1 required per assembly) |
|
|
13-826229 - Spring, Lockwasher [ More info ]
|

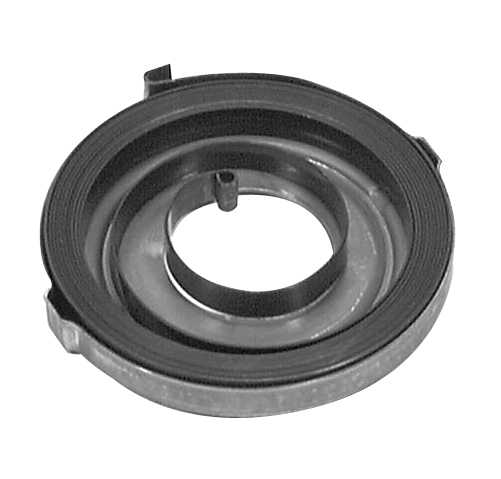

| #31 | 24-86857 1 | SPRING (1 required per assembly) |
  |
|
24-86857 1 - 24-86857 1 - SPRING [ More info ] Unavailable Replaced by 24-86857T01 |
  |
|
24-86857T01 - Spring [ More info ]
|

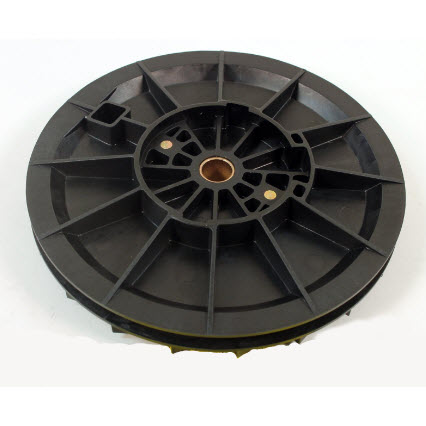

| #32 | 50-825269A 1 | SHEAVE, Starter (1 required per assembly) |
|
|
50-825269A 1 - 50-825269A 1 - SHEAVE Starter [ More info ] Unavailable Replaced by 50-825269T01 |
  |
|

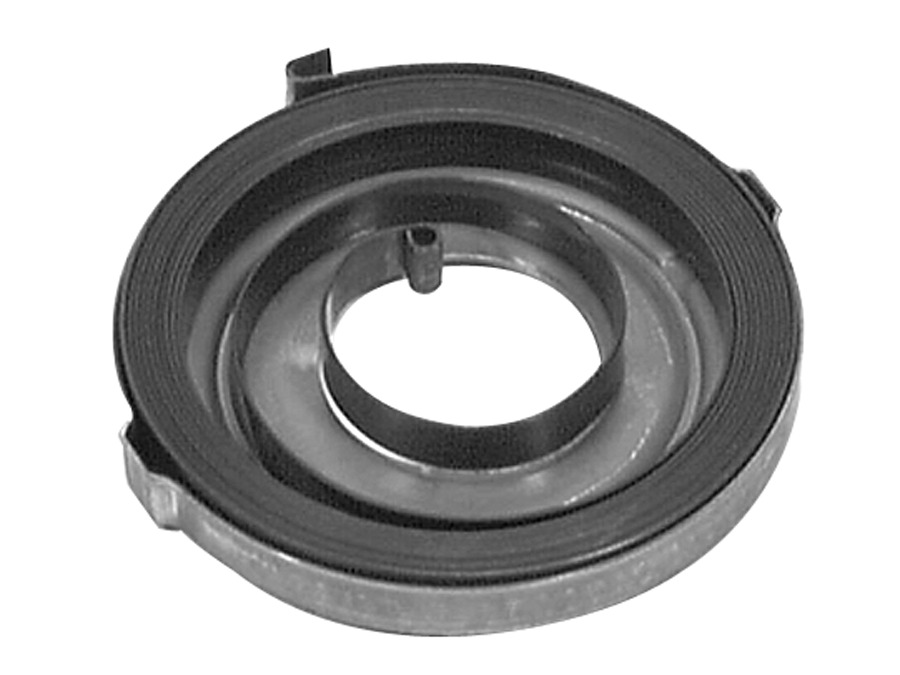

50-825269T01 - Starter Sheave [ More info ]
|
| #33 | 24-86851 2 | SPRING (2 required per assembly) |
|
|
24-86851 2 - 24-86851 2 - SPRING [ More info ] Unavailable Replaced by 24-86851T02 |
|
|
24-86851T02 - Spring - Priced Individually [ More info ]
|

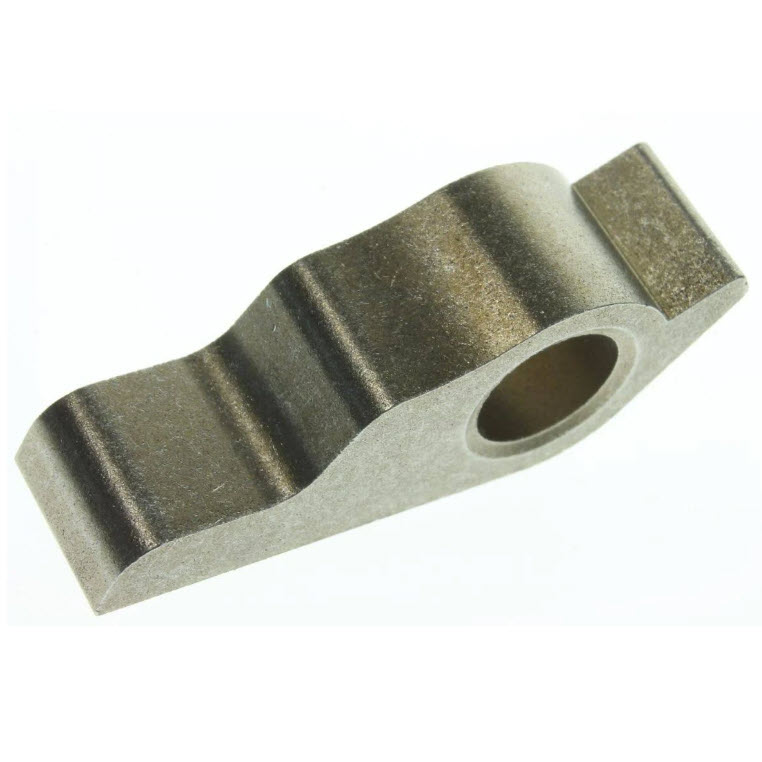

| #34 | 86850 1 | CAM (2 required per assembly) |
  |
|
86850 1 - Cam Dog [ More info ]
|
| #35 | 53-86849 1 | RING, Retaining (2 required per assembly) |
|
|
53-86849 1 - 53-86849 1 - RING Retaining [ More info ] Unavailable Replaced by 53-86849T01 |
|
|
53-86849T01 - Ring - Priced Individually [ More info ]
|
| #36 | 50-12066Q 9 | ROPE (1 required per assembly) |
  |
|
50-12066Q 9 - 50-12066Q 9 - ROPE [ More info ] Unavailable Replaced by 50-12066Q10 |
  |
|
50-12066Q10 - Starter Rope - Priced Individually [ More info ]
|
  |
|
18-4915 - Pull Rope, 50-12066Q9 [ More info ]
|
  |
|
50-12066K10 - Starter Rope - Priced Individually [ More info ]
|
| #37 | 816728 5 | HOUSING (1 required per assembly) |
  |
|

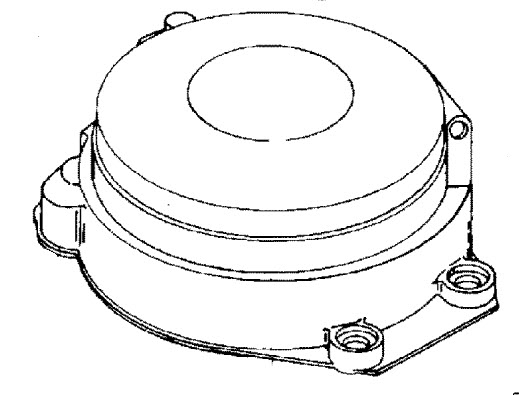

816728 5 - 816728 5 - HOUSING [ More info ] Unavailable Replaced by -816728T05 |
  |
|

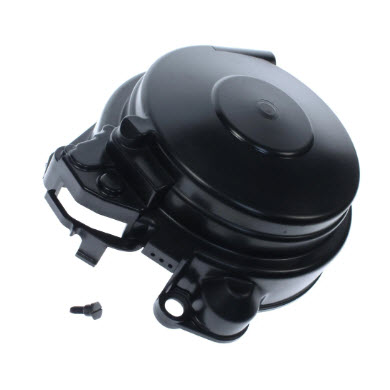

816728T05 - Starter Housing [ More info ]
|
| #38 | 24-86852 3 | SPRING (1 required per assembly) |
|
|
24-86852 3 - Spring [ More info ]
|
| #39 | 86853 1 | CAM (1 required per assembly) |
|
|
86853 1 - 86853 1 - CAM [ More info ] Unavailable Replaced by -86853T01 |
|
|
|

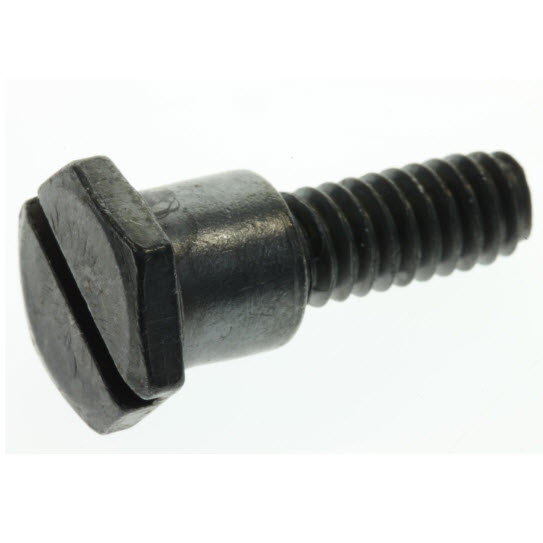

| #40 | 10-826253 | SCREW, (.250-20 x .625) (1 required per assembly) |
  |
|
10-826253 - Screw [ More info ]
|
| #41 | 42690 | BUSHING (1 required per assembly) |
  |
|
42690 - 42690 - BUSHING [ More info ] Unavailable Replaced by -8M0183792 |
|
|
8M0183792 - ROPE BUSHING [ More info ] Unavailable |
| #42 | 53-818853 | RING, Retaining (1 required per assembly) |
  |
|
53-818853 - Ring - Retaining [ More info ]
|
