Parts for Mercury Marine 75 HP (3 Cylinder) Jet Pump Assembly

Revise Search: All Models > 75 HP (3 Cylinder) > 1B000000 & Up (USA) > Jet Pump Assembly

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

Engine section

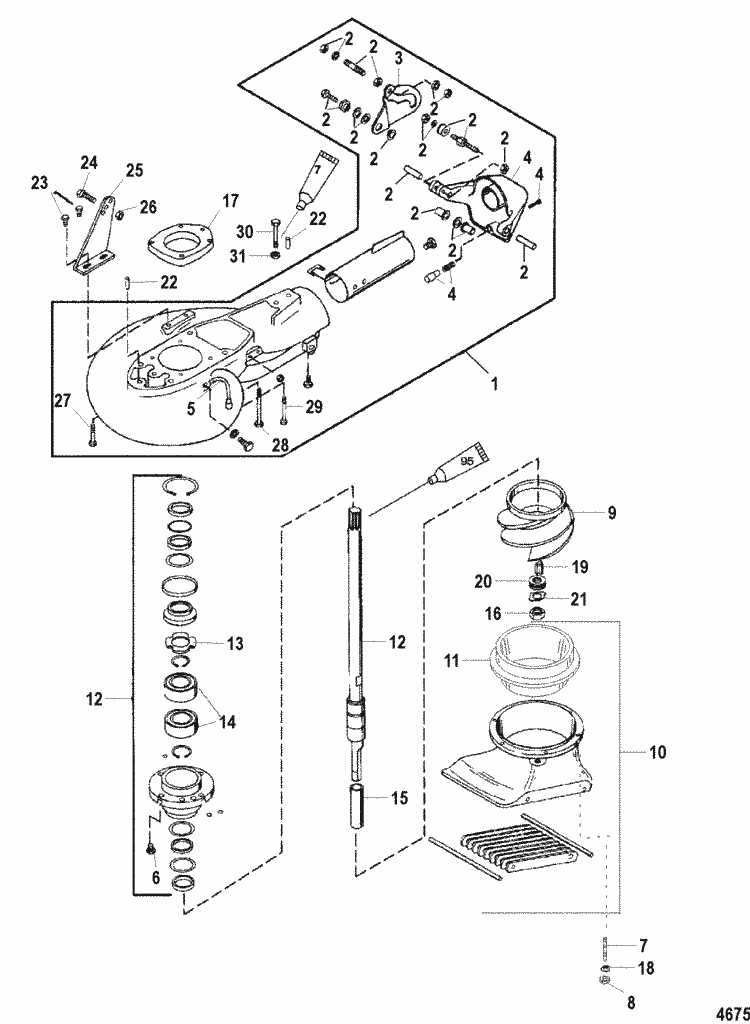

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#	856143A 1	JET PUMP ASSEMBLY (1 required per assembly)
		856143A 1 - JET PUMP ASSEMBLY [ More info ] Unavailable
#1	855767T90	HOUSING, Pump (1 required per assembly)
		855767T90 - HOUSING Pump [ More info ] Unavailable

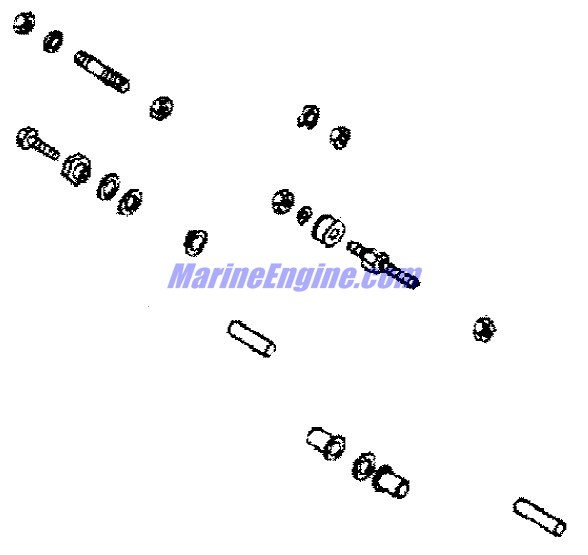

#2	878377	SHIFT LINKAGE KIT (1 required per assembly)
		878377 - Shift Linkage Kit [ More info ] $290.92 Available to Order: Usually ships within 10 days.
#3	878382	CAM (1 required per assembly)
		878382 - Cam [ More info ] $76.42 Available to Order: Usually ships within 10 days.
#4	878380	GATE, Reverse - With Bumper (1 required per assembly)
		878380 - Gate - Reverse [ More info ] $479.07 Available to Order: Usually ships within 10 days.
#5	32-827490	HOSE, Lube (1 required per assembly)
		32-827490 - Hose - Lube [ More info ] $87.75 Available to Order: Usually ships within 10 days.
#6	10-848497	SCREW, (.312-18 x 1.00) (4 required per assembly)
		10-848497 - Screw [ More info ] $8.40 Available to Order: Usually ships within 10 days.
#7	16-855840	STUD, (.312-18 x 1.81) (6 required per assembly)
		16-855840 - Stud [ More info ] $8.00 Available to Order: Usually ships within 10 days.
#8	11-826709 10	NUT, (.312-18) Stainless Steel (6 required per assembly)
		11-826709 10 - Nut, (.312-18) Stainless Steel [ More info ] $6.90 7 In Stock.

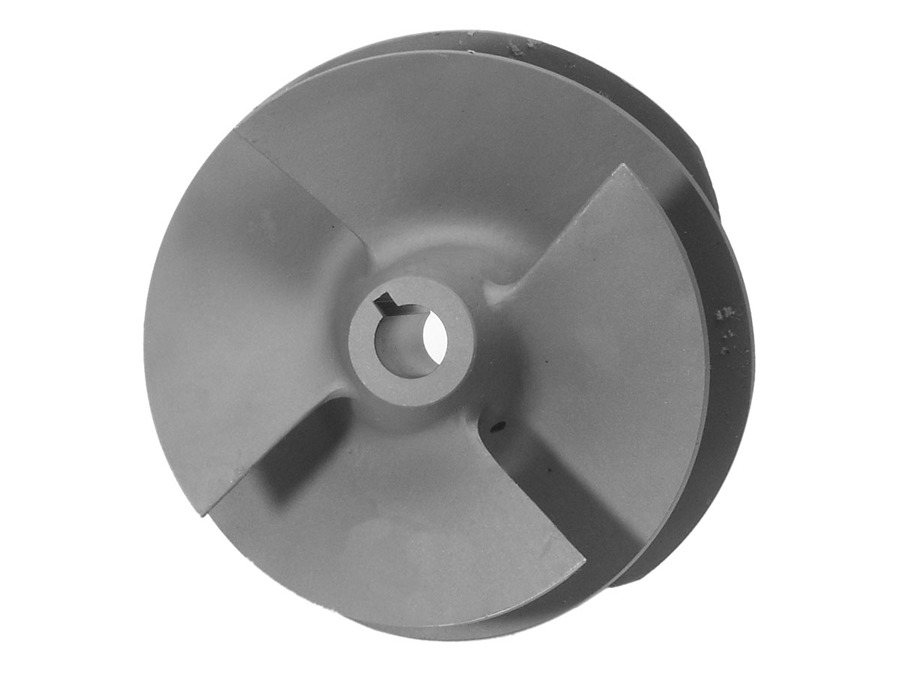

#9	47-855708115	IMPELLER (1 required per assembly)
		47-855708115 - Impeller [ More info ] $546.62 Available to Order: Usually ships within 10 days.

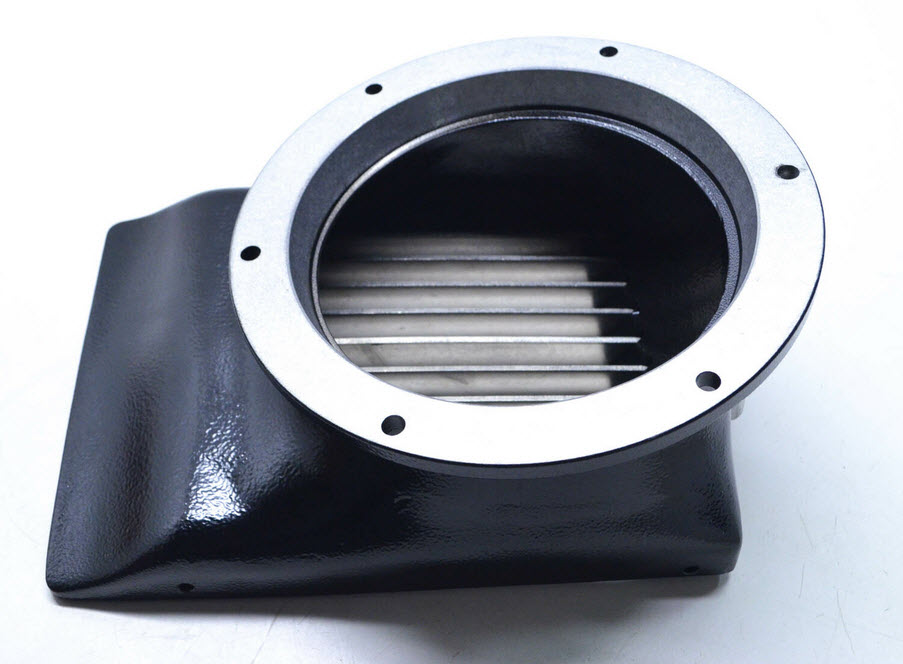

#10	855768 90	HOUSING, Intake (1 required per assembly)
		855768 90 - Intake Housing Assembly [ More info ] $1,517.07 Available to Order: Usually ships within 10 days.

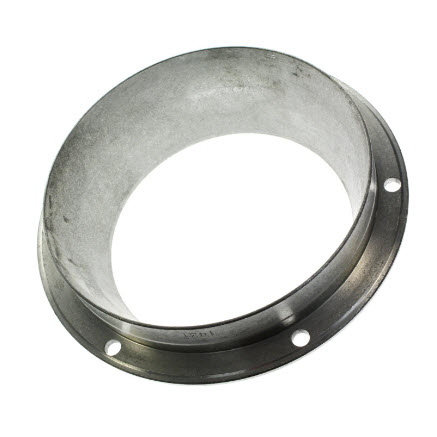

#11	855771	LINER (1 required per assembly)
		855771 - Liner [ More info ] $241.42 Available to Order: Usually ships within 10 days.

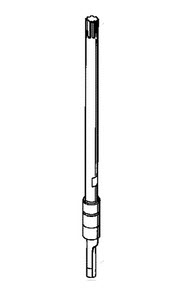

#12	45-855769 90	DRIVESHAFT (1 required per assembly)
		45-855769 90 - Drive Shaft [ More info ] $1,752.64 Available to Order: Usually ships within 10 days.
#13	12-879652 2	THRUST WASHER (1 required per assembly)
		12-879652 2 - Thrust Washer [ More info ] $25.08 Available to Order: Usually ships within 10 days.
#14	30-879653 1	BEARING, Ball (2 required per assembly)
		30-879653 1 - Ball Bearing [ More info ] $221.83 Available to Order: Usually ships within 10 days.
#15	23-827189 1	SLEEVE (1 required per assembly)
		23-827189 1 - Sleeve [ More info ] $30.75 1 In Stock.
#16	11-827190 1	NUT (1 required per assembly)
		11-827190 1 - Nut [ More info ] $34.08 1 In Stock.
#17	808747	ADAPTOR, Pump (1 required per assembly)
		808747 - Adaptor - Pump [ More info ] $186.50 Available to Order: Usually ships within 10 days.
#18	12-36001	WASHER (6 required per assembly)
		12-36001 - Washer - Priced Individually [ More info ] $1.40 10+ In Stock.
		18-4270 - Washer 12-36001 [ More info ] $0.74 $0.48 10+ In Stock.
#19	28-801405875	KEY (1 required per assembly)
		28-801405875 - Key [ More info ] $22.08 Available to Order: Usually ships within 10 days.
#20	15-801404875	SHIM, Impeller (8 required per assembly)
		15-801404875 - Shim [ More info ] $8.90 4 In Stock.
#21	14-801403875	TAB WASHER (1 required per assembly)
		14-801403875 - Tab Washer [ More info ] $11.30 1 In Stock.
#22	17-801407	PIN, Dowel (2 required per assembly)
		17-801407 - Pin, Dowel [ More info ] $12.30 Available to Order: Usually ships within 10 days.
#23	10-19923062	SCREW, (.250-20 x .625) (2 required per assembly)
		10-19923062 - Screw [ More info ] $4.50 Available to Order: Usually ships within 10 days.

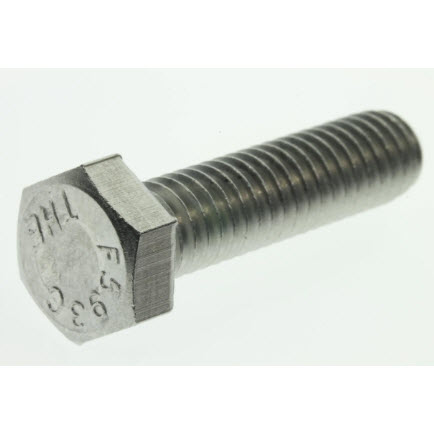

#24	10-60411	SCREW, (.312-18 x 1.250) (1 required per assembly)
		10-60411 - Screw - Priced Individually [ More info ] $1.40 Available to Order: Usually ships within 10 days.
#25	801410	BRACKET, Cable Support (1 required per assembly)
		801410 - Bracket [ More info ] $59.67 Available to Order: Usually ships within 10 days.
#26	11-67980	NUT, (.312-18) (1 required per assembly)
		11-67980 - 11-67980 - NUT (.312-18) [ More info ] Unavailable Replaced by 11-82670910
#27	10-40108 60	SCREW, (M10 x 60) Hex Flange - Stainless Steel (2 required per assembly)
		10-40108 60 - Screw [ More info ] $10.60 Available to Order: Usually ships within 10 days.
#28	10-40108 90	SCREW, (M10 x 90) Hex Flange - Stainless Steel (1 required per assembly)
		10-40108 90 - Screw [ More info ] $24.92 Available to Order: Usually ships within 10 days.
#29	10-40108 70	SCREW, (M10 x 70) Hex Flange - Stainless Steel (1 required per assembly)
		10-40108 70 - Screw [ More info ] $22.92 1 In Stock.
#30	10-843575	SCREW, (.375-16 x 4.00) Stainless Steel (1 required per assembly)
		10-843575 - Screw [ More info ] $8.40 Available to Order: Usually ships within 10 days.
#31	12-856774	WASHER, (.406 x .750 x .105) Stainless Steel (1 required per assembly)
		12-856774 - WASHER (.406 x .7 [ More info ] Unavailable
