Parts for Mercury Marine 75 HP (3 Cylinder) Induction Manifold & Reed Block

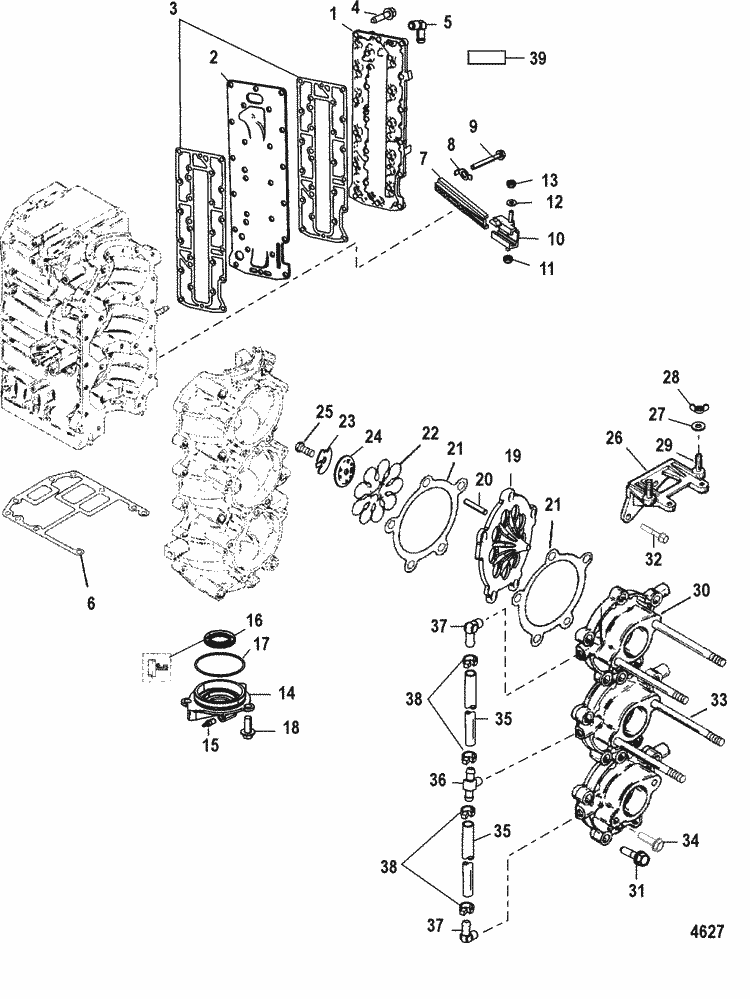

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| # | 898208A02 | POWERHEAD ASSEMBLY (1 required per assembly) (Non Oil Injection) SN# 1B227000 & Up |
 |
|
898208A02 - POWERHEAD ASSEMBL [ More info ] Unavailable |
| # | 27-43004A99 | GASKET SET, Powerhead (1 required per assembly) |
  |
|
27-43004A99 - Engine Gasket Set [ More info ]
|
  |
|

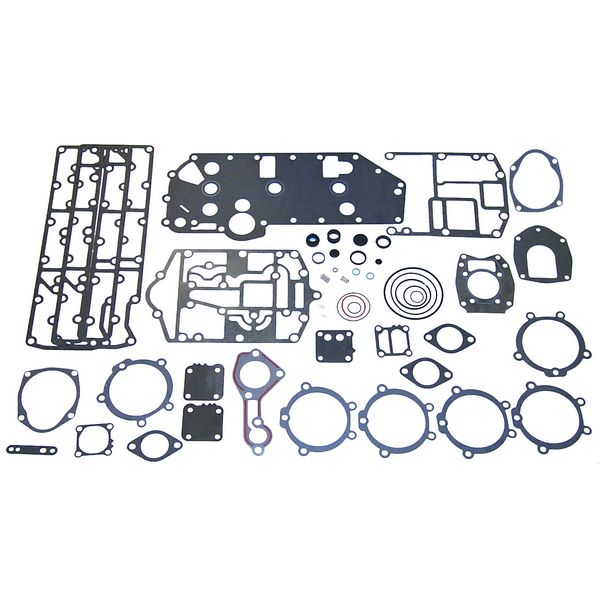

18-4336 - Gasket Set, 27-43004A99 [ More info ]
|
| # | 809837T97 | POWERHEAD ASSEMBLY (1 required per assembly) (Oil Injection) |
|
|
809837T97 - POWERHEAD ASSEMBL [ More info ] Unavailable |
| # | 855530T98 | POWERHEAD ASSEMBLY (1 required per assembly) (Non Oil Injection) |
|
|
855530T98 - 855530T98 - POWERHEAD ASSEMBL [ More info ] Unavailable Replaced by -898208A02 |
| #1 | 42878A 2 | COVER/PLATE KIT, Exhaust (1 required per assembly) |
  |
|
42878A 2 - Cov/Plate Kit - Exhaust [ More info ]
|
| #2 | NSS | NOT SOLD SEPARATE, Baffle Plate (1 required per assembly) |
|
|
NSS - NOT SOLD SEPARATE [ More info ] Unavailable |

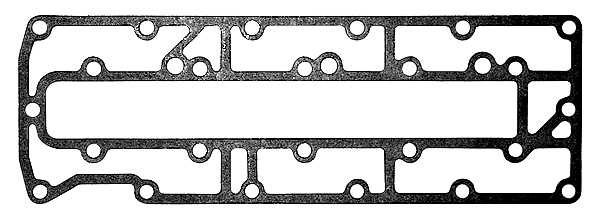

| #3 | 27-43004 7 | GASKET (2 required per assembly) |
  |
|
27-43004 7 - 27-43004 7 - GASKET [ More info ] Unavailable Replaced by 27-43004009 |
  |
|

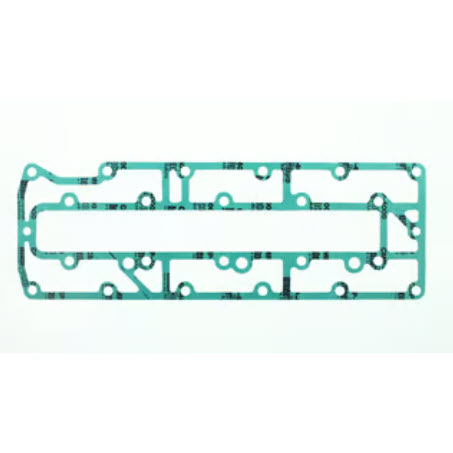

27-43004009 - Gasket [ More info ]
|
  |
|

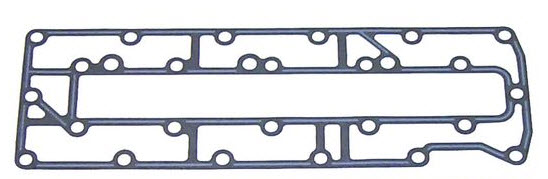

18-2741 - Gasket, Exhaust Cover Plate 27-43004 7 [ More info ]
|
| #4 | 10-821273 35 | SCREW, (M8 x 35) (24 required per assembly) |
  |
|
10-821273 35 - Screw [ More info ]
|
| #5 | 22-99664 2 | FITTING, Elbow 90 Degree (.125-27 x .250) Nylon (1 required per assembly) |
  |
|
22-99664 2 - Elbow [ More info ]
|
| #6 | 27-43007 5 | GASKET (1 required per assembly) |
  |
|
27-43007 5 - Gasket [ More info ]
|
  |
|
18-0670 - Gasket, 27-43007 5 [ More info ]
|
| #7 | 42881A 1 | SHIFT RAIL ASSEMBLY (1 required per assembly) |
  |
|
42881A 1 - Shift Rail Assembly [ More info ]
|
| #8 | 14-42981 | TAB WASHER (2 required per assembly) |
|
|
14-42981 - Tab Washer [ More info ]
|
| #9 | 10-40001134 | SCREW, (M8 x 25) (2 required per assembly) |
  |
|
10-40001134 - Screw [ More info ]
|
| #10 | 98885 1 | SLIDE (1 required per assembly) |
  |
|
98885 1 - SLIDE [ More info ] Unavailable |
| #11 | 11-40138 6 | NUT, (M6) Stainless Steel (1 required per assembly) |
  |
|
11-40138 6 - Nut - Priced Individually [ More info ]
|
| #12 | 12-35459 | WASHER (1 required per assembly) |
|
|
12-35459 - Washer (.265 X .620 X .06) [ More info ]
|
| #14 | 1169-858552T 2 | CAP ASSEMBLY, Lower End (1 required per assembly) |
  |
|
1169-858552T 2 - End Cap Assembly [ More info ]
|
| #15 | 21-42658 5 | CHECK VALVE (1 required per assembly) |
  |
|
21-42658 5 - Check Valve [ More info ]
|
| #16 | 26-41953 3 | SEAL, Oil (1 required per assembly) |
|
|
26-41953 3 - Seal [ More info ]
|
| #17 | 25-89224 | O-RING (1 required per assembly) |
  |
|
25-89224 - O-ring (2.862 X .103) [ More info ]
|
| #18 | 10-40108 25 | SCREW, (M10 x 25) Hex Flange - Stainless Steel (3 required per assembly) |
  |
|
10-40108 25 - Screw [ More info ]
|

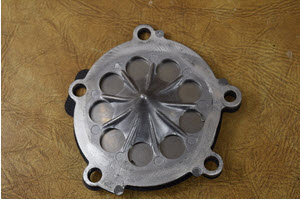

| #19 | 42963A11 | REED BLOCK ASSEMBLY (3 required per assembly) |
  |
|
42963A11 - Reed Block Assembly [ More info ]
|

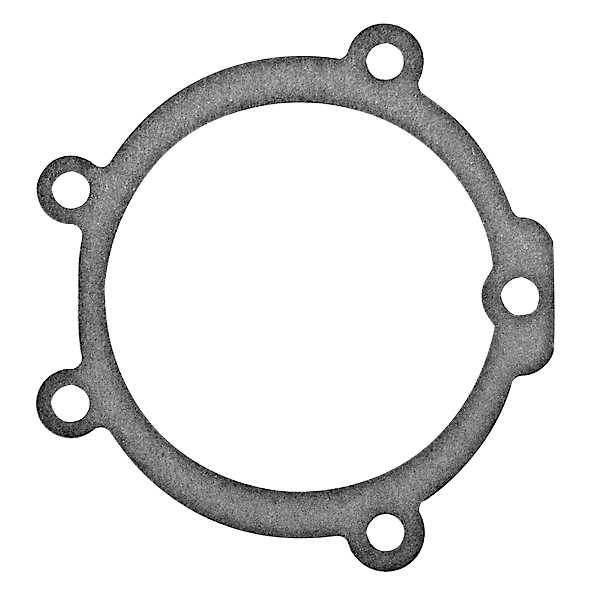

| #21 | 27-13937 6 | GASKET (6 required per assembly) |
  |
|
27-13937 6 - Gasket [ More info ]
|
  |
|

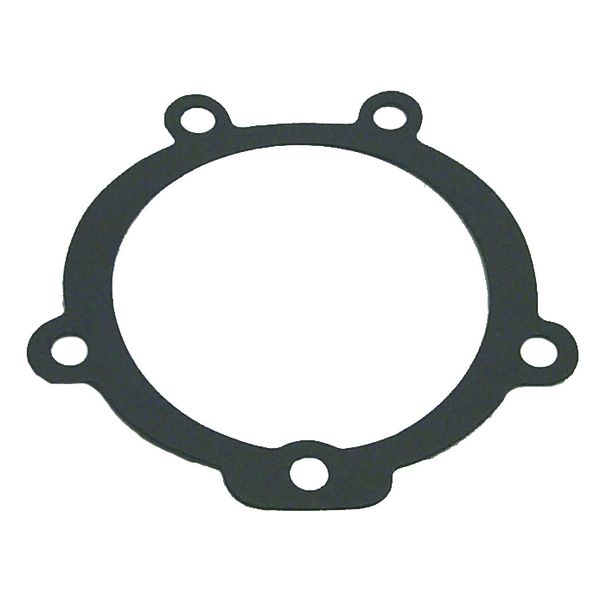

18-0320 - Gasket, 27-13937-6 [ More info ]
|
| #22 | 34-43018A 1 | REED SET (3 required per assembly) |
  |
|

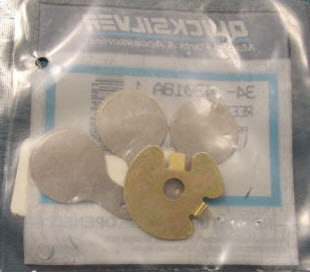

34-43018A 1 - Reed Kit [ More info ]
|
| #23 | 14-42982 1 | TAB WASHER (3 required per assembly) |
|
|
14-42982 1 - Tab Washer [ More info ]
|
| #24 | 42924 | RETAINER (3 required per assembly) |
  |
|
42924 - Retainer [ More info ]
|
| #25 | 10-884214 71 | SCREW, (M6 x 16) (3 required per assembly) |
  |
|

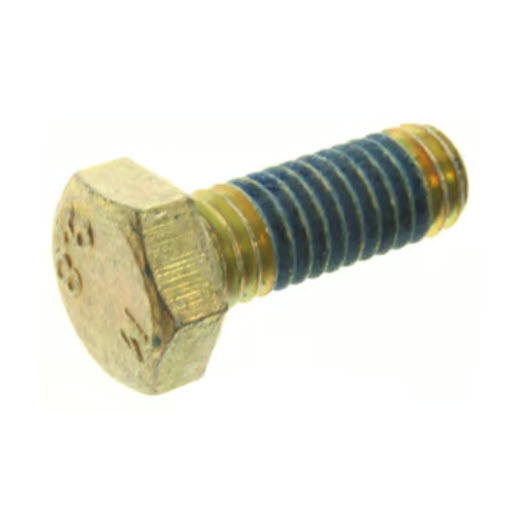

10-884214 71 - Screw [ More info ]
|
| #26 | 821944 1 | BRACKET (1 required per assembly) (Non Oil Injection) |
|
|
821944 1 - 821944 1 - BRACKET [ More info ] Unavailable Replaced by -8M0039350 |
|
|
8M0039350 - Bracket [ More info ]
|
| #26 | 827514 | BRACKET (1 required per assembly) (Oil Injection) |
  |
|
827514 - Bracket [ More info ]
|
| #27 | 12-49221 | WASHER, (.187 x .500 x .062) Neoprene (2 required per assembly) |
  |
|

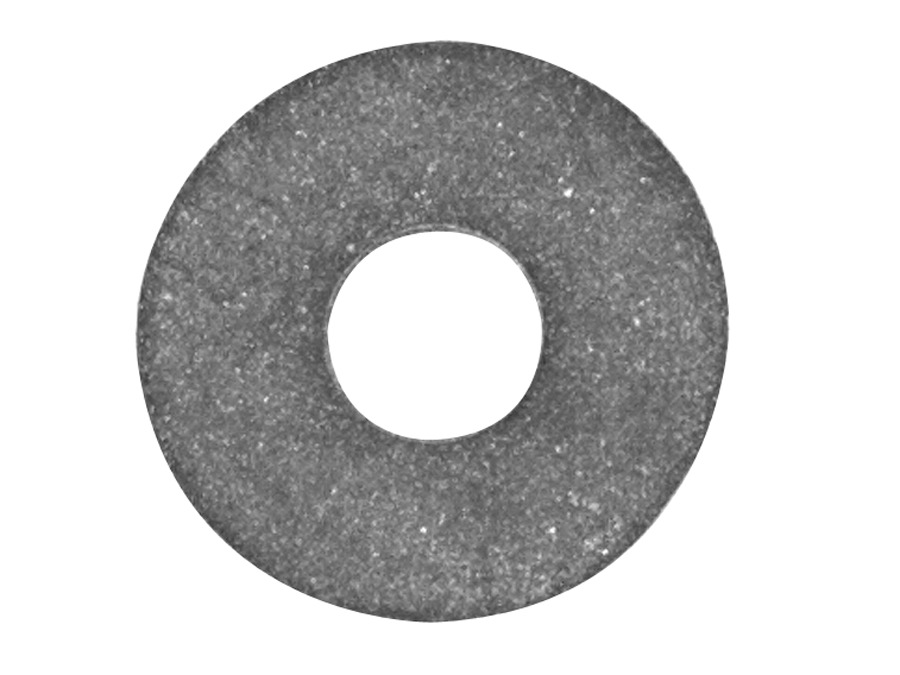

12-49221 - 12-49221 - WASHER (.187 x .5 [ More info ] Unavailable Replaced by -8M0204663 |
|
|
12-8M0204663 - Washer, Sold Individually [ More info ]
|
| #28 | 11-816872 | WING NUT (2 required per assembly) |
|
|
11-816872 - Wing Nut [ More info ]
|
| #29 | 16-816194 9 | STUD, (M6 x 44) (2 required per assembly) |
|
|
16-816194 9 - Stud [ More info ]
|
| #30 | 884296T | MANIFOLD, Induction (3 required per assembly) |
|
|
884296T - Manifold - Induction [ More info ]
|
| #32 | 10-817427 40 | SCREW, (M8 x 40) (2 required per assembly) |
  |
|
10-817427 40 - Screw [ More info ]
|
| #33 | 16-824470 | STUD, (M8 x 1.25) (4 required per assembly) |
|
|
16-824470 - Stud [ More info ]
|
| #34 | 10-40001167 | SCREW, (M8 x 110) (#3 CYLINDER) (2 required per assembly) |
  |
|
10-40001167 - Screw [ More info ]
|
| #35 | 32-830757130 | TUBING, (.312) (70.00 Inches Bulk) (Cut to 4.00 Inch Length) (2 required per assembly) |
  |
|
32-830757130 - 32-830757130 - TUBING (.312) (70 [ More info ] Unavailable Replaced by 32-8M0047448 |
|
|
32-8M0047448 - 32-8M0047448 - TUBING (.312) (70 [ More info ] Unavailable Replaced by 32-8M0108349 |
  |
|
32-8M0108349 - Hose-70 Inch [ More info ]
|
| #36 | 22-43288 1 | TEE FITTING (1 required per assembly) (Electric) |
|
|
22-43288 1 - Connector [ More info ]
|
| #36 | 22-858553 1 | CONNECTOR (1 required per assembly) (Manual) |
|
|
22-858553 1 - Fitting -tee [ More info ]
|
| #38 | 54-816311T | TIE STRAP, (8.00 Inches) (AR required per assembly) |
  |
|
54-816311T - Tie Strap, 8 Inches, Priced Individually [ More info ]
|
| #39 | 37-804666A05 | DECAL, EPA Label Information (2005) (1 required per assembly) |
|
|
37-804666A05 - DECAL EPA Label I NLA [ More info ] Unavailable |
| #39 | 37-804666A06 | DECAL, EPA Label Information (2006) (1 required per assembly) |
|
|
37-804666A06 - DECAL EPA Label I NLA [ More info ] Unavailable |
| #39 | 37-804666A07 | DECAL, EPA Label Information (2007) (1 required per assembly) |
|
|
37-804666A07 - DECAL EPA Label I NLA [ More info ] Unavailable |
| #39 | 37-804666A08 | DECAL, EPA Label Information(2008) (1 required per assembly) |
|
|
37-804666A08 - DECAL EPA Label I NLA [ More info ] Unavailable |
