Parts for Mercury Marine 75 HP (3 Cylinder) Fuel Pump
Tap to zoom. Scroll down to order.
Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
# | 14360A71 | PUMP ASSEMBLY, Fuel (1 required per assembly) |
![]() |
14360A71 - Fuel Pump Kit [ More info ] Unavailable |
|
![]() ![]() |
||
# | 809837T97 | POWERHEAD ASSEMBLY (1 required per assembly) (Oil Injection) |
![]() |
809837T97 - Powerhead 75/90 (oil Inj) [ More info ] Unavailable |
|
# | 27-43004A99 | GASKET SET, Powerhead (1 required per assembly) |
![]() ![]() |
||
# | 855530T98 | POWERHEAD ASSEMBLY (1 required per assembly) (Non Oil Injection) |
![]() |
855530T98 - PH 75/90(ELH/MLH) [ More info ] Unavailable |
|
![]() |
898208A02 - Powerhead 75/90 (elh/Mlh) [ More info ] Unavailable |
|
#2 | 21-857005A 1 | DIAPHRAGM KIT (1 required per assembly) |
![]() ![]() |
||
![]() ![]() |
||
#10 | NSS | NOT SOLD SEPARATE, Gasket-Pulse (1 required per assembly) |
![]() |
NSS - NOT SOLD SEPARATE [ More info ] Unavailable |
|
#12 | 27-98769 1 | GASKET (1 required per assembly) |
![]() ![]() |
27-98769 1 - Gasket [ More info ] Unavailable |
|
#13 | 14430 3 | BASE (1 required per assembly) |
![]() ![]() |
||
#14 | 98775 2 | PLATE (1 required per assembly) |
![]() ![]() |
||
#15 | 22-99664 2 | FITTING, Elbow 90 Degree (.125-27 x .250) Nylon (1 required per assembly) |
![]() ![]() |
||
#16 | 10-821045 40 | SCREW, (M5 x 40) (2 required per assembly) |
![]() ![]() |
||
#17 | 10-821300 50 | SCREW, (M6 x 50) (2 required per assembly) |
![]() ![]() |
||
#18 | 69355 | TIE STRAP, (5.50 Inches) (AR required per assembly) |
![]() ![]() |
||
![]() |
||
#20 | 22-29111 2 | FITTING (1 required per assembly) |
![]() ![]() |
||
#22 | 32-19017A 1 | LINE ASSEMBLY, Fuel (1 required per assembly) (Oil Injection) |
![]() ![]() |
||
#23 | 35-816296Q 2 | FILTER, Fuel (1 required per assembly) (Oil Injection) |
![]() ![]() |
35-816296Q 2 - Fuel Filter - Priced Individually [ More info ] |
|
![]() ![]() |
||
![]() ![]() |
35-816296K 2 - Fuel Filter - Priced Individually [ More info ] |
|
#25 | 32-822554 | MOLDED HOSE (1 required per assembly) (Oil Injection) |
![]() ![]() |
||
#26 | 19-822772 | PLUG, Non Commercial Engines (1 required per assembly) (Oil Injection) |
![]() ![]() |
||
#27 | 22-818994 1 | CHECK VALVE (1 required per assembly) (Oil Injection) |
![]() ![]() |
||
![]() ![]() |
||
#28 | 22-816856Q 3 | CONNECTOR ASSEMBLY, Fuel (1 required per assembly) (Design I) |
![]() ![]() |
22-816856Q 3 - Connector - Priced Individually [ More info ] |
|
![]() ![]() |
22-816856T 3 - Connector - Priced Individually [ More info ] |
|
#29 | 25-16524 | O-RING, Fuel Connector (1 required per assembly) (Design I) |
![]() ![]() |
||
#30 | 10-40106 35 | SCREW, (M6 x 35) Stainless Steel (1 required per assembly) (Design I) |
![]() ![]() |
||
#31 | 25-14509 1 | GROMMET (1 required per assembly) (Design I) |
![]() ![]() |
||
#32 | 22-822769 | CONNECTOR (2 required per assembly) (Design II) |
![]() ![]() |
||
#33 | 32-859361 57 | TUBING, (26.00 Inches Bulk) (Cut to 4.00 Inches Length) (1 required per assembly) (Design II) |
![]() |
32-859361 57 - Hose-26 INCH [ More info ] Unavailable |
|
![]() ![]() |
||
#34 | 25-14509 3 | GROMMET (1 required per assembly) (Design II) |
![]() ![]() |
||
#35 | 89-819503A 1 | SOLENOID ASSEMBLY, Enrichner Valve (1 required per assembly) (Electric) |
![]() ![]() |
||
#36 | 32-14301 65 | TUBING, (38.00 Inches Bulk) (Cut to 15.00 Inches Length) (1 required per assembly) (Electric) |
![]() ![]() |
32-14301 65 - Tubing - 38 Inch [ More info ] Unavailable |
|
#37 | 32-99126 88 | TUBING, (36.00 Inches Bulk) (Cut to 11.50 Inches Length) (1 required per assembly) (Electric) |
![]() ![]() |
||
#38 | 54-18887 1 | CLAMP (1 required per assembly) (Electric) |
![]() ![]() |
||
#39 | 32-830757130 | TUBING, (.312) (70.00 Inches Bulk) (Cut to 17.00 Inches Length) (1 required per assembly) (Non Oil Injection) |
![]() ![]() |
32-830757130 - Tubing-70 Inch [ More info ] Unavailable |
|
![]() |
32-8M0047448 - Tubing-70 Inch [ More info ] Unavailable |
|
![]() ![]() |
||
#40 | 32-834764 63 | TUBING, (32.00 Inches Bulk) (Cut to 13.00 Inches Length) (1 required per assembly) (Non Oil Injection) |
![]() ![]() |
||
#41 | 23-833125 31 | INSULATING SLEEVE (1 required per assembly) (Non Oil Injection) |
![]() |
23-833125 31 - Sleeve -16 Inch [ More info ] Unavailable |
|
#42 | 35-826634T | FILTER, Fuel (1 required per assembly) (Non Oil Injection) |
![]() ![]() |
35-826634T - Fuel Filter [ More info ] Unavailable |
|
![]() ![]() |
||
#43 | 827961 | BRACKET (1 required per assembly) (Non Oil Injection) |
![]() ![]() |
827961 - Bracket [ More info ] Unavailable |
|
#44 | 10-821291 14 | SCREW, (M6 x 14) (2 required per assembly) (Non Oil Injection) |
![]() ![]() |
||
#45 | 10-40106 30 | SCREW, (M6 x 30) Stainless Steel (2 required per assembly) (Non Oil Injection) |
![]() ![]() |
||
#46 | 12-40023 16 | WASHER (2 required per assembly) (Non Oil Injection) |
![]() ![]() |
||
#47 | 23-42116 | BUSHING (2 required per assembly) (Non Oil Injection) |
![]() ![]() |
||
#48 | 25-42117 | GROMMET (2 required per assembly) (Non Oil Injection) |
![]() ![]() |
||
#49 | 858763 | PRIMER BULB (1 required per assembly) (Manual) |
![]() ![]() |
||
![]() ![]() |
||
#50 | 22-59169 2 | FITTING, Tee (2 required per assembly) (Manual) |
![]() |
22-59169 2 - Fitting [ More info ] Unavailable |
|
![]() ![]() |
||

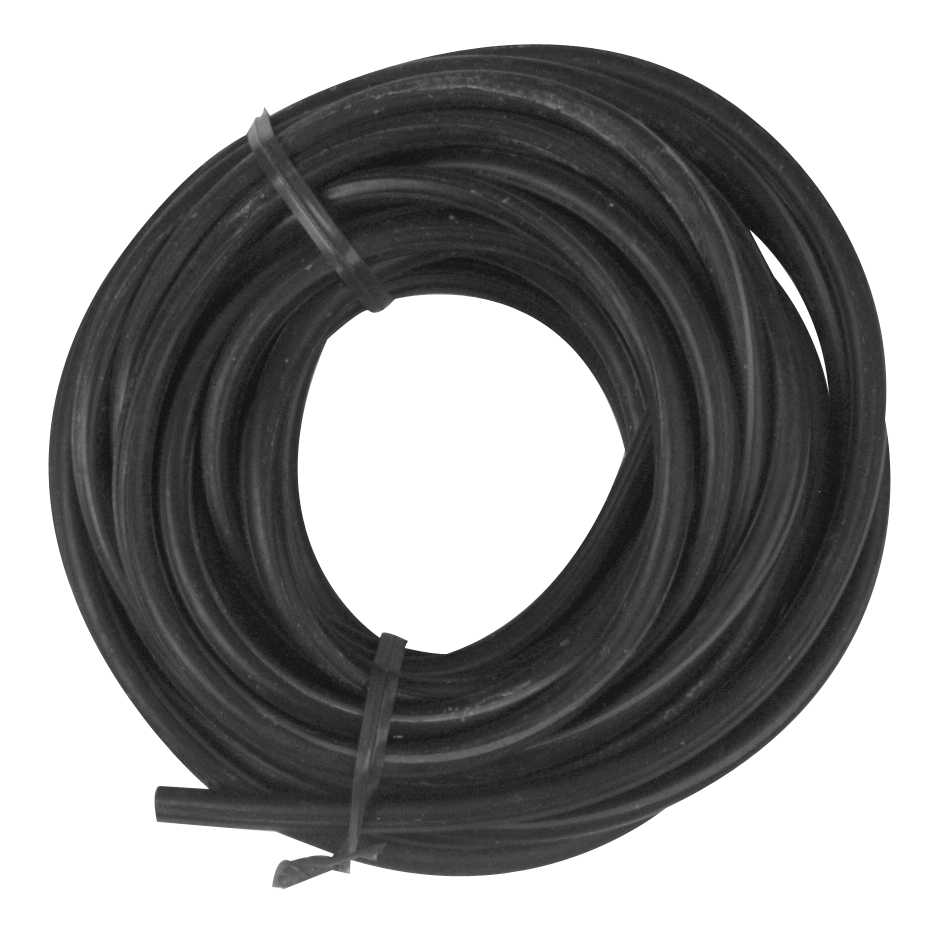

#55 | 32-99130122 | TUBING, (20.00 Feet Bulk) (Cut to 2.50 Inches Length) (1 required per assembly) (Manual) |
![]() ![]() |
32-99130122 - Tubing-20 FEET [ More info ] Unavailable |
|
![]() ![]() |
