Parts for Mercury Marine 75 HP (3 Cylinder) Flywheel & Starter Motor

Revise Search: All Models > 75 HP (3 Cylinder) > 0P017000 - 0P325499 (Belgium) > Flywheel & Starter Motor

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

Engine section

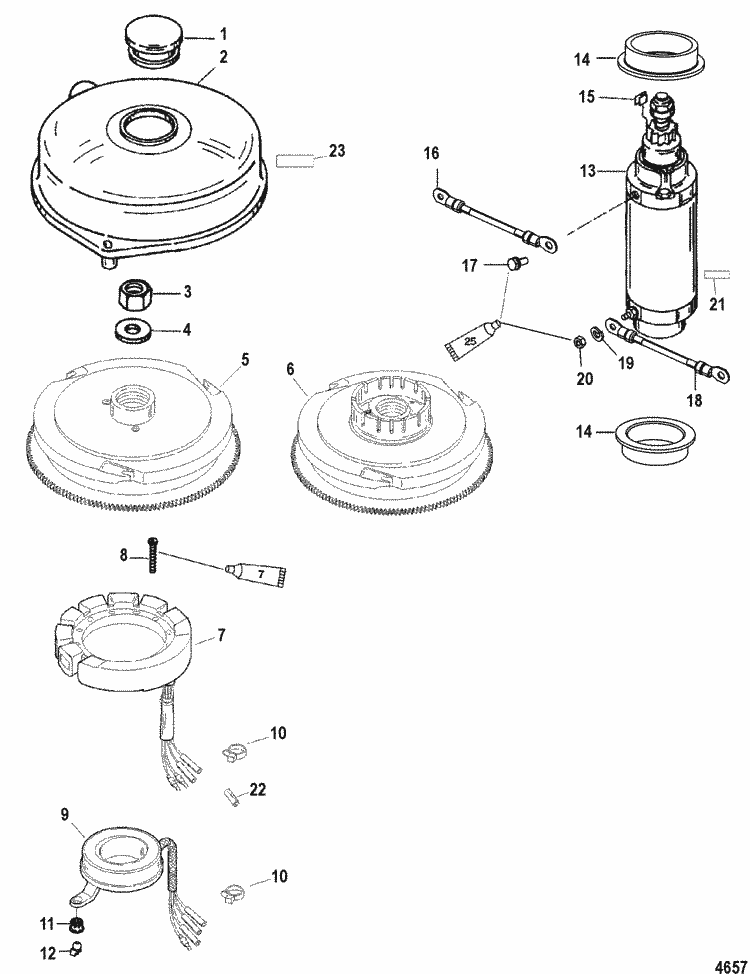

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

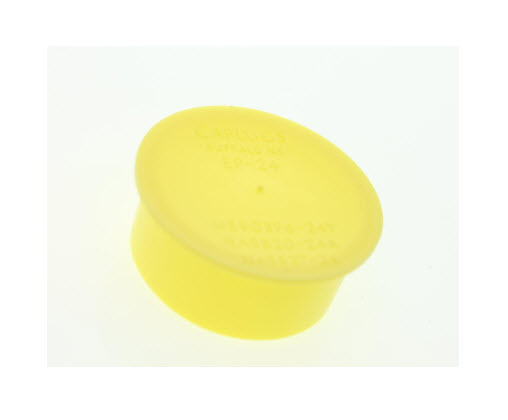

#1	19-45907	PLUG, Yellow (1 required per assembly)
		19-45907 - Plug [ More info ] $6.80 2 In Stock.
#2	812777T 1	COVER ASSEMBLY (1 required per assembly)
		812777T 1 - Cover [ More info ] $99.83 Available to Order: Usually ships within 10 days.
#3	11-42979	NUT, (M16) (1 required per assembly)
		11-42979 - Nut (M16 X 1.5) [ More info ] $4.30 Available to Order: Usually ships within 10 days.
#4	12-68229	WASHER, (.641 x 1.250 x .190) (1 required per assembly)
		12-68229 - Washer, (.641 X 1.250 X .190), Flywheel Nut [ More info ] Unavailable
		12-33001 - Washer, Flywheel Nut [ More info ] $11.20 Available to Order: Usually ships within 10 days.

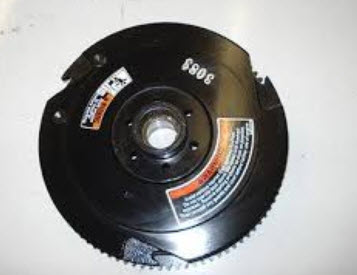

#5	261-878226T10	FLYWHEEL ASSEMBLY (1 required per assembly) (Electric-Oil Injection)
		261-878226T10 - Flywheel [ More info ] $720.64 Available to Order: Usually ships within 10 days.
#5	261-878226T16	FLYWHEEL ASSEMBLY (1 required per assembly) (Electric-Non Oil Injection)
		261-878226T16 - Flywheel [ More info ] $731.64 Available to Order: Usually ships within 10 days.
#6	261-878226T 8	FLYWHEEL ASSEMBLY (1 required per assembly) (Manual)
		261-878226T 8 - Flywheel [ More info ] $632.86 Available to Order: Usually ships within 10 days.
#7	398-832075A 4	IGNITION STATOR KIT (1 required per assembly) (Electric)

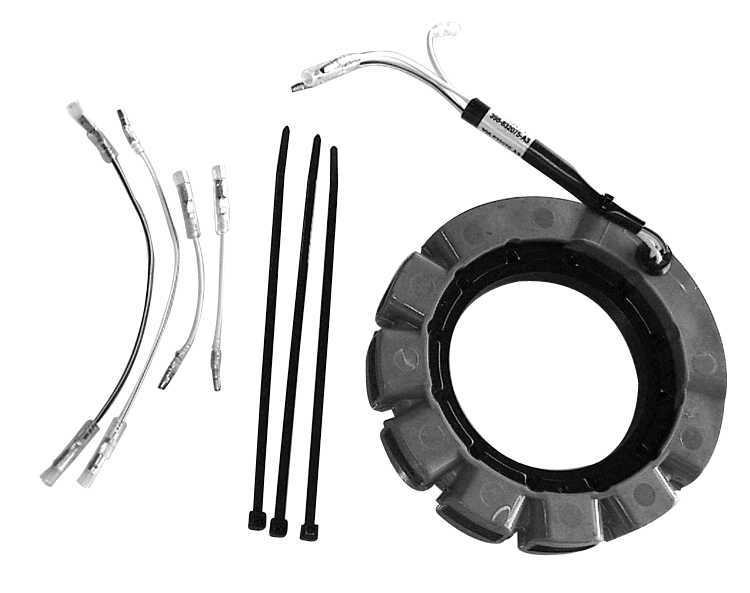

		398-832075A 4 - Stator Assembly [ More info ] Unavailable

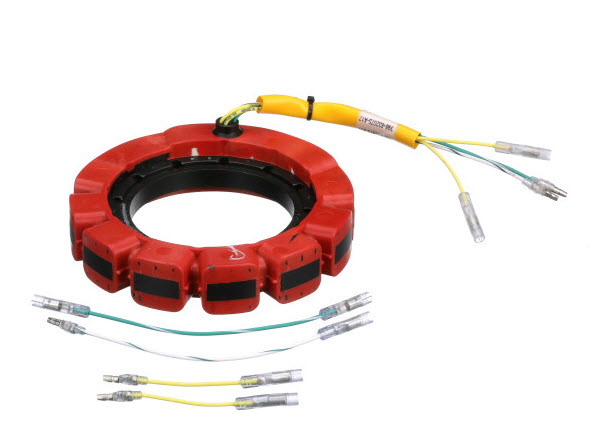

		398-832075A21 - Stator Assembly [ More info ] $387.42 In Stock

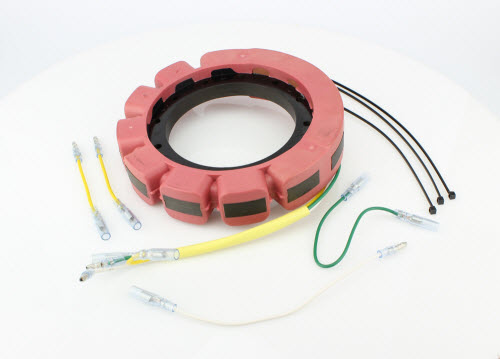

		18-5870 - Stator, 398-832075A4 [ More info ] $324.99 $274.94 3 In Stock.
		174-2075K 2 - Mercury Red Stator 16 Amp [ More info ] $277.77 $263.68 3 In Stock.

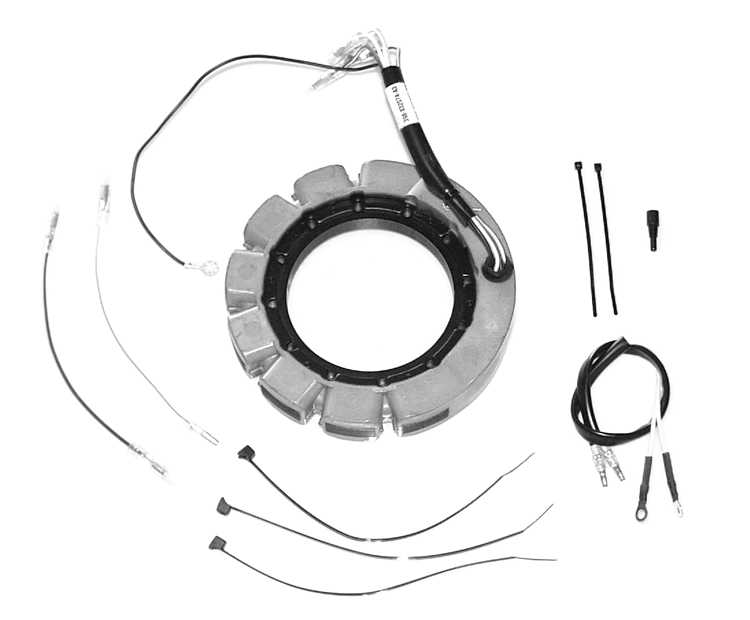

#7	398-832074A 5	STATOR (1 required per assembly) (Manual)
		398-832074A 5 - Stator Kit [ More info ] Unavailable
		398-832074A11 - Stator Kit [ More info ] $389.64 Available to Order: Usually ships within 10 days.
		174-9710K 1 - Stator, 398-9710K1 16AMP, NOT for use with Flywheels with Bolted-In Magnets [ More info ] $454.83 3 In Stock.
		174-2075K 1 - Mercury Red Stator 9 Amp [ More info ] $418.54 1 In Stock.

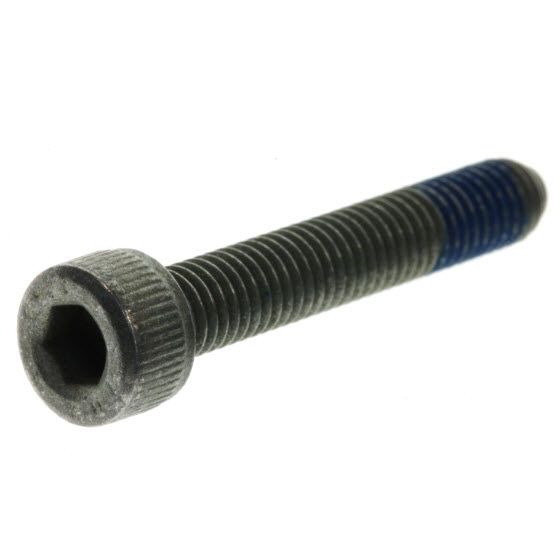

#8	10-40139 30	SCREW, (M5 x 30) (4 required per assembly)
		10-40139 30 - Screw - Priced Individually [ More info ] $2.80 2 In Stock.

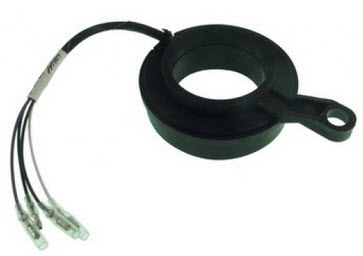

#9	854512T	TRIGGER (1 required per assembly)
		854512T - Trigger [ More info ] $146.50 Available to Order: Usually ships within 10 days.

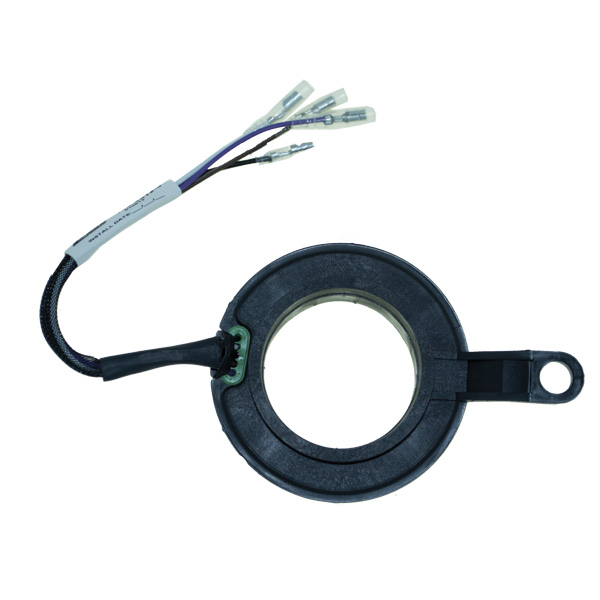

		134-4512-3 - Trigger, 3 Cylinder, 854512T [ More info ] $125.90 1 In Stock.
#10	56762	TIE STRAP, (4.00 Inches) (3 required per assembly)
		56762 - Tie Strap - Priced Individually [ More info ] $0.50 7 In Stock.
		0317893 - Tie Strap [ More info ] $0.36 10+ In Stock.

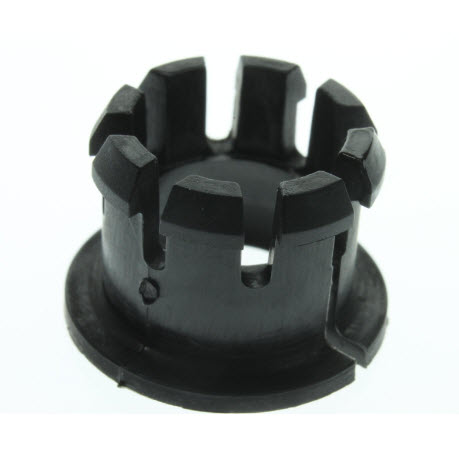

#11	93254	SWIVEL BASE (1 required per assembly)
		93254 - Swivel Base [ More info ] $12.70 5 In Stock.

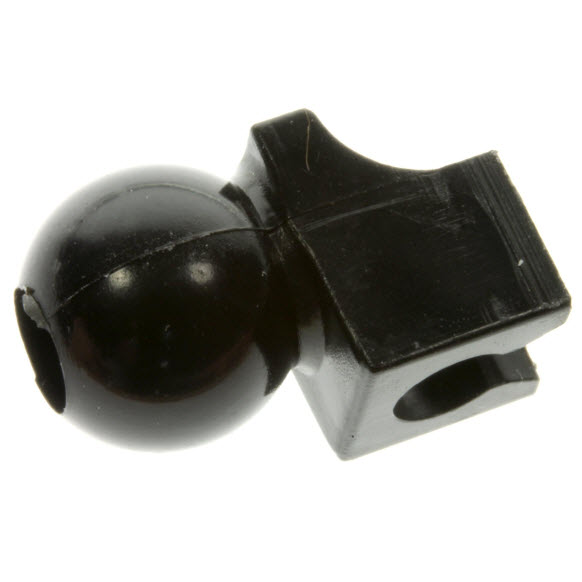

#12	93421	SWIVEL BALL (1 required per assembly)
		93421 - Swivel Ball [ More info ] $13.70 3 In Stock.
#13	50-66015T 1	STARTER MOTOR ASSEMBLY (1 required per assembly)
		50-66015T 1 - Starter Assembly [ More info ] Unavailable
		50-893891T - Starter Assembly [ More info ] $488.15 1 In Stock.
		18-5642 - Starter 50-66015, 8 inch, See Detail Page for Important Information [ More info ] $299.99 $259.89 3 In Stock.
		18-5602 - Starter, 50-67341 [ More info ] $227.69 $208.32 1 In Stock.
		5375 - Starter, 50-66015, 10 Tooth, 8 inch, See detail page for more [ More info ] $245.60 $218.34 2 In Stock.
#14	56703	COLLAR (2 required per assembly)
		56703 - Collar [ More info ] Unavailable
		23-8M0001391 - COLLAR [ More info ] Unavailable
		23-8M0034918 - Collar [ More info ] $8.90 1 In Stock.
#15	57247	STOP (2 required per assembly)
		57247 - Stop [ More info ] Unavailable
		68042 - Rubber Stop [ More info ] Unavailable
		8M0043376 - Stop [ More info ] $42.59 2 In Stock.
#16	84-93388A 1	CABLE ASSEMBLY, (6.00 Inches) Black (1 required per assembly)
		84-93388A 1 - Cable Assembly [ More info ] $12.70 Available to Order: Usually ships within 10 days.
#17	10-69035	SCREW AND LOCKWASHER, (.250-20 x .625) Stainless Steel (1 required per assembly)
		10-69035 - Screw/LockWasher [ More info ] $1.70 $1.44 9 In Stock.
#18	84-93388A 8	CABLE ASSEMBLY, (12.5 Inchs) Black (1 required per assembly)
		84-93388A 8 - Cable Assembly [ More info ] $31.92 Available to Order: Usually ships within 10 days.
#19	13-26992	LOCKWASHER, (.250) Stainless Steel (1 required per assembly)
		13-26992 - LockWasher - Priced Individually [ More info ] $1.20 10+ In Stock.
#20	11-64015	NUT, (.250-20) (1 required per assembly)
		11-64015 - Nut (1 /4-20) [ More info ] $2.70 Available to Order: Usually ships within 10 days.
#21	37-827282 2	DECAL, Warning, High Voltage (1 required per assembly) (Electric)
		37-827282 2 - Decal - Warning [ More info ] $13.30 Available to Order: Usually ships within 10 days.
#22	13541	PLUG, Male (2 required per assembly) (Manual)
		13541 - Plug [ More info ] $3.10 Available to Order: Usually ships within 10 days.
#23	37-881865	DECAL, Caution-Start in Gear (1 required per assembly) (Start In Gear) (Electric)
		37-881865 - Decal -Caution [ More info ] $11.10 Available to Order: Usually ships within 10 days.
