Parts for Mercury Marine 40 HP Jet Electrical Components
Tap to zoom. Scroll down to order.

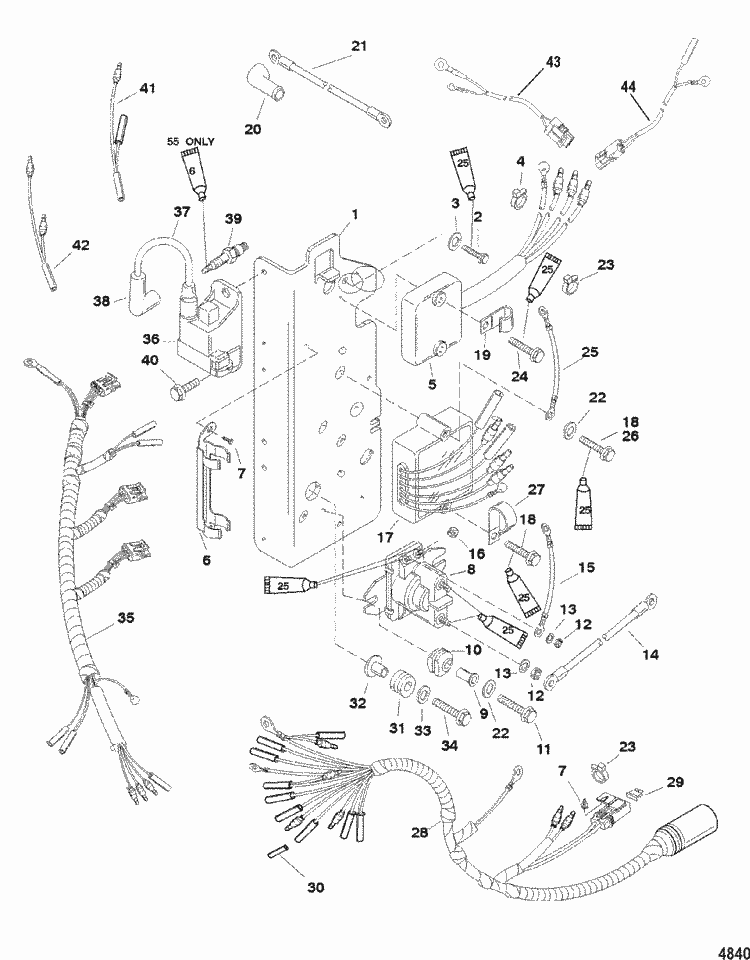

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
#1 | 830235 1 | PLATE, Electrical (1 required per assembly) |
#2 | 10-822393 12 | SCREW, (M5 x 12) (1 required per assembly) |
#3 | 12-89302 | WASHER, (.203 x .406 x .040) (1 required per assembly) |
#4 | 56762 | TIE STRAP, (4.00 Inches) (1 required per assembly) |
#5 | 821889A49 | REV LIMITER (1 required per assembly) (Manual) |
#5 | 821889A50 | REV LIMITER (1 required per assembly) (Electric) |
#6 | 826624 1 | CLAMP (1 required per assembly) (Electric) |
#8 | 89-850187T 1 | SOLENOID ASSEMBLY (1 required per assembly) (Electric) |
89-850187T 1 - Solenoid Assembly [ More info ] Unavailable |
||
#9 | 23-818968 | BUSHING (2 required per assembly) (Electric) |
23-818968 - Bushing [ More info ] Unavailable |
||
BUSHING [ More info ] Unavailable |
||
#10 | 25-818967 | GROMMET (2 required per assembly) (Electric) |
25-818967 - Grommet [ More info ] Unavailable |
||
#11 | 10-821291 25 | SCREW, (M6 x 25) (2 required per assembly) (Electric) |
#12 | 11-64015 | NUT, (.250-20) (2 required per assembly) (Electric) |
#13 | 13-26992 | LOCKWASHER, (.250) Stainless Steel (2 required per assembly) (Electric) |
#14 | 84-88807A33 | CABLE ASSEMBLY (1 required per assembly) (Electric) |
#15 | 84-88807A16 | CABLE ASSEMBLY, (4.00 Inches) Black (1 required per assembly) (Electric) |
84-88807A16 - Cable Assembly [ More info ] Unavailable |
||
#16 | 11-26419 | NUT, (#8-32) Brass (2 required per assembly) (Electric) |
#17 | 883072T | REGULATOR, Voltage (1 required per assembly) (Electric) |
883072T - Voltage Regulator [ More info ] Unavailable |
||
194-5279 - Voltage Regulator Rectifier, 815279T [ More info ] |
||
#17 | 883071T | REGULATOR, Voltage (1 required per assembly) (Manual-Greek) |
#18 | 10-821291 40 | SCREW, (M6 x 40) (2 required per assembly) (Electric) |
#19 | 54-55098 | J CLIP (1 required per assembly) (Electric) |
54-8M0024808 - J-CLIP [ More info ] Unavailable |
||
#20 | 85-830233 | BOOT, Insulator - Red (1 required per assembly) (Electric) |
#21 | 84-88439A 4 | CABLE ASSEMBLY, Battery - Negative (1 required per assembly) (Electric) |
#22 | 12-29245 | WASHER, (.281 x .500 x .060) Stainless Steel (3 required per assembly) (Quantity of 1 Required on Manual)) |
12-8M0204649 - WASHER Note: Priced Individually [ More info ] |
||
#23 | 54-816311T | TIE STRAP, (8.00 Inches) (AR required per assembly) |
54-816311T - Tie Strap, 8 Inches, Priced Individually [ More info ] |
||
#25 | 84-88807A31 | CABLE ASSEMBLY (1 required per assembly) |
#27 | 54-54457 | J CLIP (2 required per assembly) |
#28 | 84-850220A 2 | HARNESS ASSEMBLY, Engine (1 required per assembly) (Electric) |
#29 | 88-812619 | FUSE, Yellow - 20 Ampere (1 required per assembly) (Electric) |
#30 | 13541 | PLUG, Male (1 required per assembly) (Electric) |
#31 | 25-822002 | GROMMET (3 required per assembly) |
#32 | 23-822003 | BUSHING (3 required per assembly) |
#33 | 12-40023 16 | WASHER (3 required per assembly) |
#34 | 10-40011129 | SCREW, (M6 x 25) Stainless Steel (3 required per assembly) |
#35 | 84-850221A 2 | HARNESS ASSEMBLY, Ignition (1 required per assembly) |
#36 | 827509T 7 | CDM MODULE ASSEMBLY (2 required per assembly) |
827509T 7 - CDM Module Assembly [ More info ] Unavailable |
||
#36 | 827509A10 | CDM MODULE ASSEMBLY (1 required per assembly) |
827509A10 - CDM Module Assembly [ More info ] Unavailable |
||
#37 | 84-857124A 1 | CABLE ASSEMBLY, Hi-Tension (3 required per assembly) |
#38 | 85-857074A 1 | BOOT/TERMINAL KIT (3 required per assembly) |
#39 | 33-816737 2 | SPARK PLUG (3 required per assembly) (NGK# BP8H-N-10) |
33-816737 2 - NGK BP8HN-10 Note: Priced Individually [ More info ] Unavailable |
||
33-816737Q - NGK BP8HN-10 - Priced Individually [ More info ] Unavailable |
||
#39 | 33-816837 2 | SPARK PLUG (3 required per assembly) (NGK#BPZ-8H-N-10) |
33-816837 2 - NGKBPZ8HN-10 Note: Priced Individually [ More info ] Unavailable |
||
33-816837Q - NGKBPZ8HN-10 - Priced Individually [ More info ] Unavailable |
||
33-938 - Spark Plug - QL78YC - Priced Individually [ More info ] Unavailable |
||
#39 | 33-14103568 | SPARK PLUG (3 required per assembly) (NGK#BUZ8H) |
33-14103568 - NGK BUZ8H - Priced Individually [ More info ] Unavailable |
||
33-896329885 - Spark Plug - L6VC - Priced Individually [ More info ] |
||
#39 | 33-12343 | SPARK PLUG (3 required per assembly) (NGK#BP8HS-10) |
33-12343 - Spark Plug NGK BP8HS-10 - Priced Individually [ More info ] Unavailable |
||
338M0114745 - S Plug BP8HS - Priced Individually [ More info ] |
||
#40 | 10-821291 16 | SCREW, (M6 x 16) (6 required per assembly) |
#41 | 84-850052A 1 | HARNESS ASSEMBLY, Power (1 required per assembly) (Manual) |
#42 | 84-11149A31 | HARNESS ASSEMBLY (1 required per assembly) (Manual) |
84-11149A31 - HARNESS ASSY [ More info ] Unavailable |
||
#43 | 84-65017A27 | HARNESS ASSEMBLY (1 required per assembly) (International) |
84-65017A27 - HARNESS ASSEMBLY NLA [ More info ] Unavailable |
||
#44 | 84-74725A 3 | HARNESS ASSEMBLY, Lightning (1 required per assembly) (International) |
