Parts for Mercury Mark & Kiekhaefer Mark 35A Carburetor Assembly

Revise Search: All Models > Mark 35A > All Serial Numbers > Carburetor Assembly

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

Engine section

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#	1399-932	SCREW, MAIN ADJUSTMENT (2,,,,,, required per assembly)
		1399-932 - Screw, NLA [ More info ] Unavailable
#	1399-1718	REPAIR PARTS KIT (1 PER CARBURETOR) (,,,2,2,2,2 required per assembly)
		1399-1718 - REPAIR PART,NLA [ More info ] Unavailable
#	1399-108	PACKING, MAIN ADJUSTMENT SCREW (2,,,,,, required per assembly)
		1399-108 - Packing, NLA [ More info ] $6.99 Available to Order: Shipping delay up to 10 days.
#	1399-1146	REPAIR PARTS KIT (2,,,,,, required per assembly)
		1399-1146 - Carburetor Kit, NLA [ More info ] Unavailable
#	24823A 1	KNOB ASSEMBLY, MAIN ADJUSTMENT SCREW (2,,,,,, required per assembly)
		24823A 1 - Knob Assembly, NLA [ More info ] Unavailable
#	27-20848	GASKET, MAIN ADJUSTMENT SCREW GLAND (2,,,,,, required per assembly)
		27-20848 - Adjustment Screw Gland Gasket [ More info ] Unavailable

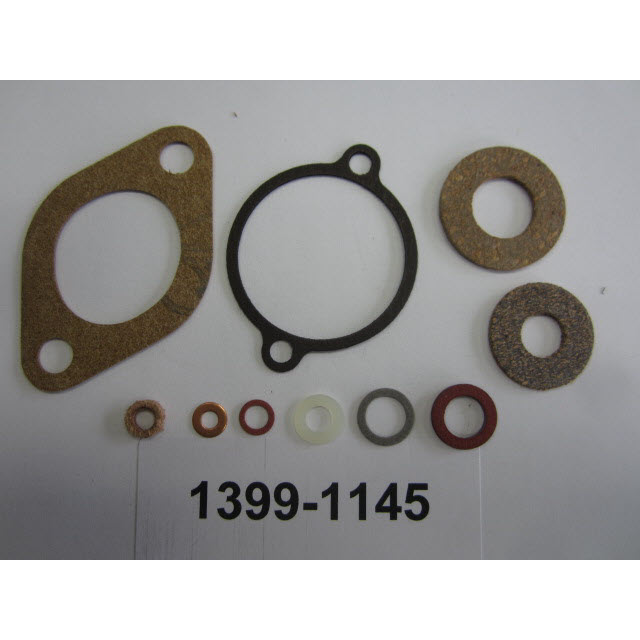

#	1399-1145	GASKET AND PACKING SET (1 PER CARBURETOR) (2,2,2,,,, required per assembly)
		1399-1145 - Carburetor Gasket Set [ More info ] $19.99 4 In Stock.
#	10-23030	SCREW, PLUG-IDLE TUBE (2,2,2,,,, required per assembly)
		10-23030 - SCREW,NLA [ More info ] Unavailable
#	11-20849	NUT, MAIN ADJUSTMENT SCREW (2,,,,,, required per assembly)
		11-20849 - Nut, Main Adjustment Screw Packing [ More info ] Unavailable
#	1399-1624	REPAIR PARTS KIT ( 1 PER CARBURETOR) (,2,2,,,, required per assembly)
		1399-1624 - REPAIR PART,NLA [ More info ] Unavailable
#	10-22928	SCREW, KNOB FASTENING (2,,,,,, required per assembly)
		10-22928 - Screw, NLA [ More info ] $1.65 $1.40 10+ In Stock.
#	1399-94	GLAND, MAIN ADJUSTMENT SCREW (2,,,,,, required per assembly)
		1399-94 - Gland, NLA [ More info ] $7.77 $6.58 10+ In Stock.
#	1399-1717	GASKET AND PACKING SE (1 PER CARBURETOR) (,,,2,2,2,2 required per assembly)
		1399-1717 - Carburetor Gasket Set [ More info ] $13.39 7 In Stock.
		18-7006-1 - Carburetor Gasket Set, 1399-1717 and 1399-2015 [ More info ] $8.99 $8.73 10+ In Stock.
#1	1326-1119	CARBURETOR ASSEMBLY, COMPLETE (AJ-50A) (2,,,,,, required per assembly) SERIAL 00000000-01231089
		1326-1119 - Carburetor Assembly [ More info ] Unavailable
#1	1326-1604	CARBURETOR ASSEMBLY, COMPLETE (AJ-54A) (,2,2,,,, required per assembly) SERIAL 01231090-01324410
		1326-1604 - Carburetor [ More info ] Unavailable
#1	1334-1701	CARBURETOR ASSEMBLY, COMPLETE (KB-2A) (,,,2,2,2,2 required per assembly) SERIAL 01324411-09999999
		1334-1701 - Carburetor [ More info ] Unavailable
#2	1399-110A 1	FLOAT ASSEMBLY (2,2,2,2,2, required per assembly)
		1399-110A 1 - FLOAT ASSY Note: Priced Individually [ More info ] Unavailable
		1395-8983 - Float Assembly [ More info ] Unavailable
		1395-8673 - Float [ More info ] $17.49 9 In Stock.
		18-7208 - Float 1395-8983, 1359-8673 [ More info ] $15.89 10+ In Stock.

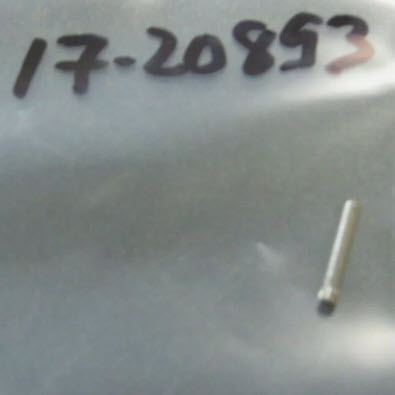

#3	17-20853	PIN, FLOAT LEVER PINION (4,4,4,4,4, required per assembly)
		17-20853 - Pin, Float Lever, NLA [ More info ] $2.57 10+ In Stock.

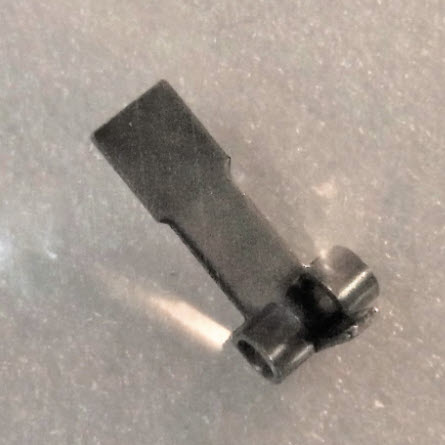

#4	1399-102	LEVER, FLOAT (LOWER) (2,2,2,2,2, required per assembly)
		1399-102 - Lever [ More info ] $3.25 10+ In Stock.

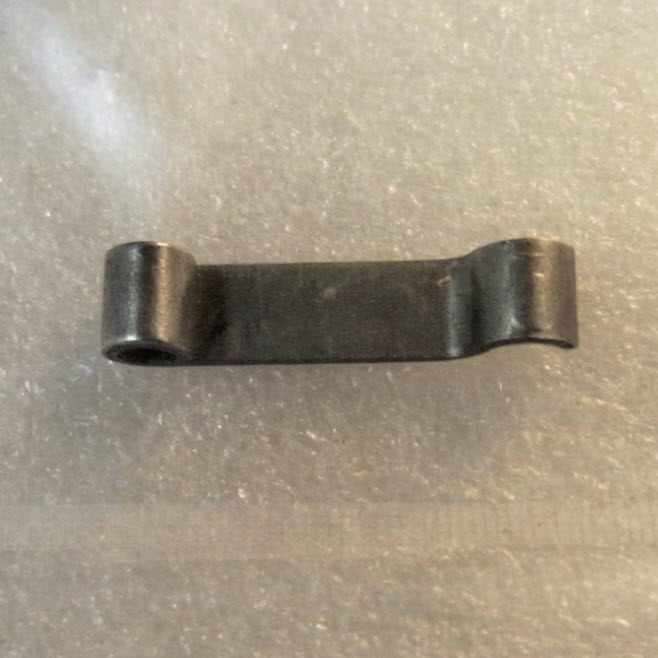

#5	1399-101	LEVER, FLOAT (UPPER) (2,2,2,2,2, required per assembly)
		1399-101 - Lever [ More info ] $7.82 10+ In Stock.
#6	1399-1138	INLET NEEDLE, SEAT AND GASKET (2,2,2,2,2, required per assembly)
		1399-1138 - Inlet Needle - Priced Individually [ More info ] Unavailable
		1395-9258 - Inlet Needle & Seat [ More info ] Unavailable
		1395-9258 1 - Valve Seat Kit [ More info ] $17.99 10+ In Stock.
		18-7057 - Needle And Seat 1395-9258 [ More info ] $11.90 3 In Stock.
#7	27-25033	GASKET, INLET SEAT (2,2,2,2,2, required per assembly)
		27-25033 - Inlet Seal Gasket [ More info ] $2.99 7 In Stock.
#8	10-20847	SCREW, THROTTLE STOP LEVER (2,2,2,2,2, required per assembly)
		10-20847 - 10-20847 - SCREW [ More info ] Unavailable Replaced by 1395-6027
		1395-6027 - Screw [ More info ] Unavailable
#9	1399-97	LEVER, THROTTLE STOP (SEE NOTE BELOW) (1,1,1,1,1, required per assembly)
		1399-97 - Throttle Lever [ More info ] Unavailable
		814679 1 - Throttle Lever [ More info ] $9.58 10 In Stock.
#10	1399-933	SHAFT, THROTTLE (2,2,2,,,, required per assembly)
		1399-933 - Throttle Shaft [ More info ] Unavailable
#10	1399-1716	SHAFT, THROTTLE (,,,2,2,2,2 required per assembly)
		1399-1716 - Throttle Shaft,NLA [ More info ] Unavailable
#11	24-20869	SPRING, THROTTLE SHAFT RETURN (UPPER CARBURETOR) (1,1,1,1,1, required per assembly)
		24-20869 - Spring, Throttle Shaft Return (upper Carburetor)NLA [ More info ] $1.88 $1.59 10+ In Stock.

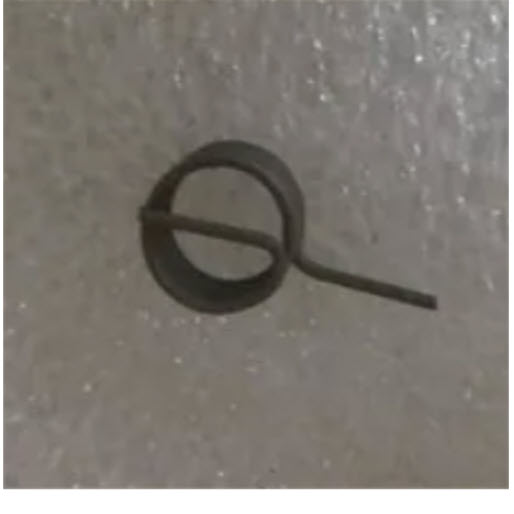

#11	24-26890	SPRING, THROTTLE SHAFT RETURN (LOWER CARBURETOR) (1,1,1,1,1, required per assembly)
		24-26890 - Spring, Throttle Shaft Return,NLA [ More info ] $2.50 $2.13 10+ In Stock.
#12	1399-1655	JET, MAIN FUEL (.055) (,2,2,2,2,2 required per assembly)
		1399-1655 - Jet -.055, NLA [ More info ] $21.54 10+ In Stock.
#12	1399-1653	JET, MAIN FUEL (.053) (,OPT,OPT,O required per assembly)
		1399-1653 - Jet -.053, NLA [ More info ] $9.66 $8.18 10+ In Stock.
#12	1399-1651	JET, MAIN FUEL (.051) (,OPT,OPT,O required per assembly)
		1399-1651 - Jet 051, NLA [ More info ] $7.00 $5.93 10+ In Stock.
#12	1399-1649	JET, MAIN FUEL (.049) (,OPT,OPT,O required per assembly)
		1399-1649 - Jet 049, NLA [ More info ] $3.65 10+ In Stock.
#13	27-28409	GASKET, MAIN FUEL JET (,2,2,2,2,2 required per assembly)
		27-28409 - Main Fuel Jet Gasket [ More info ] $7.53 8 In Stock.
#14	24-27160	SPRING, IDLE ADJUSTMENT SCREW (2,2,2,2,2, required per assembly)
		24-27160 - Spring, Idle Adjusting Screw [ More info ] $4.09 10+ In Stock.
#15	1399-931	SCREW, IDLE ADJUSTMENT (2,,,,,, required per assembly)
		1399-931 - Screw, NLA [ More info ] $16.00 $13.55 10+ In Stock.
#15	1399-1623	SCREW, IDLE ADJUSTMENT (,2,2,,,, required per assembly)
		1399-1623 - Screw, NLA [ More info ] $1.88 $1.59 10+ In Stock.
#15	1399-1713	SCRW, IDLE ADJUSTMENT (,,,2,2,2,2 required per assembly)
		1399-1713 - Idle Adj Screw, NLA [ More info ] $25.86 10+ In Stock.
#16	1399-99	GASKET, FLOAT BOWL COVER (2,2,2,2,2, required per assembly)
		1399-99 - Float Bowl Cover Gasket, Sold Individually [ More info ] $1.70 10+ In Stock.
#17	1399-1133	COVER, FLOAT BOWL (2,2,2,2,2, required per assembly)
		1399-1133 - Float Bowl Cover [ More info ] $183.50 $55.92 10+ In Stock.
#18	1399-1754	SCREEN, FILTER-NOT AS SHOWN (2,2,2,2,2, required per assembly)
		1399-1754 - FILTER Note: Priced Individually [ More info ] Unavailable
		1399-3938 - Screen, NLA [ More info ] Unavailable
		18-7832 - Filter, 1399-3938 [ More info ] $11.29 $10.23 Available to Order: Shipping delay up to 10 days.
#19	10-20854	SCREW, FLOAT BOWL COVER (SHORT) (2,2,2,2,2, required per assembly)
		10-20854 - SCREW Note: Priced Individually [ More info ] Unavailable
		10-22625 - Screw, NLA [ More info ] $3.59 10+ In Stock.

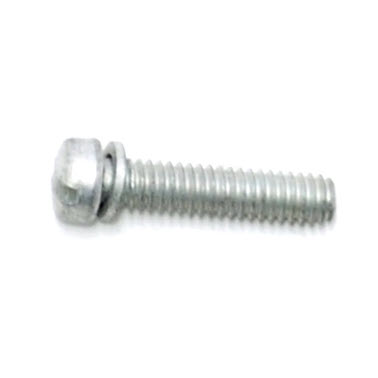

#20	10-25850	SCREW, FLOAT BOWL COVER (LONG) (2,2,2,2,2, required per assembly)
		10-25850 - Screw, NLA [ More info ] $1.79 10+ In Stock.
#21	27-25851	GASKET, STRAINER COVER (LARGE) (2,2,2,2,2, required per assembly)
		27-25851 - Strainer Cover Gasket [ More info ] $1.00 7 In Stock.
#22	27-25849	GASKET, STRAINER COVER (SMALL) (2,2,2,2,2, required per assembly)
		27-25849 - Strainer Cover Gasket [ More info ] $1.20 7 In Stock.
#23	1399-1135	COVER, STRAINER (2,2,2,2,2, required per assembly)
		1399-1135 - Cover [ More info ] $23.44 10+ In Stock.
#24	27-25848	GASKET, STRAINER COVER SCREW (2,2,2,2,2, required per assembly)
		27-25848 - Cover Screw Gasket [ More info ] $2.69 10+ In Stock.
#25	10-25822	SCREW, STRAINER COVER FASTENING (2,2,2,2,2, required per assembly)
		10-25822 - Screw, NLA [ More info ] $2.59 10+ In Stock.
#26	1399-1715	NOZZLE, MAIN (,,,2,2,2,2 required per assembly)
		1399-1715 - Main Nozzle, NLA [ More info ] $1.25 $1.06 10+ In Stock.
#27	10-23178	SCREW, PLUG-MAIN NOZZLE (,,,2,2,2,2 required per assembly)
		10-23178 - Screw, NLA [ More info ] Unavailable
#28	10-23035	SCREW AND LOCKWASHER, THROTTLE SHUTTER (2,2,2,2,2, required per assembly)
		10-23035 - Screw, NLA [ More info ] $2.13 $1.80 10+ In Stock.
#29	1399-107	SHUTTER, THROTTLE (2,2,2,2,2, required per assembly)
		1399-107 - THROTTLE,NLA [ More info ] Unavailable
#30	1399-960	TUBE, IDLE (2,2,2,,,, required per assembly)
		1399-960 - Tube, NLA [ More info ] $6.75 $5.71 10+ In Stock.
#30	1399-1714	TUBE, IDLE (,,,2,2,2,2 required per assembly)
		1399-1714 - Idle Tube, NLA [ More info ] Unavailable
#31	27-23180	GASKET, IDLE TUBE (,,,2,2,2,2 required per assembly)
		27-23180 - Idle Jet Gasket [ More info ] Unavailable
#32	10-20870	SCREW, PLUG-BODY CHANNEL (2,,2,,,, required per assembly)
		10-20870 - SCREW,NLA [ More info ] Unavailable
#32	10-28405	SCREW, PLUG-BODY CHANNEL (,2,,,,, required per assembly)
		10-28405 - Screw, NLA [ More info ] $4.99 $4.22 10+ In Stock.
#32	10-28845	SCREW, PLUG-BODY CHANNEL (,,,2,2,2,2 required per assembly)
		10-28845 - SCREW,NLA [ More info ] Unavailable
#33	19-20011	WELCH PLUG, BODY CHANNEL (2,2,2,2,2, required per assembly)
		19-20011 - Plug - Welch - Priced Individually [ More info ] $5.09 Available to Order: Shipping delay up to 10 days.

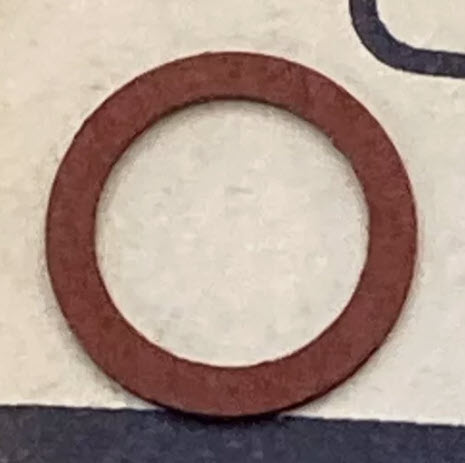

#35	27-28406	GASKET, BODY CHANNEL PLUG SCREW (,2,2,2,2,2 required per assembly)
		27-28406 - Inlet Needle Gasket [ More info ] $4.99 4 In Stock.
#36	27-20183	GASKET, CARBURETOR FLANGE (2,2,2,2,2, required per assembly)
		27-20183 - Carburetor Flange Gasket [ More info ] $7.02 10+ In Stock.
#37	11-24652	NUT, CARBURETOR MOUNTING STUD (4,4,4,4,4, required per assembly)
		11-24652 - Nut (1/4-28) [ More info ] $1.60 10+ In Stock.
